Dibujos de aviones STOL SR701 and 30 similar items

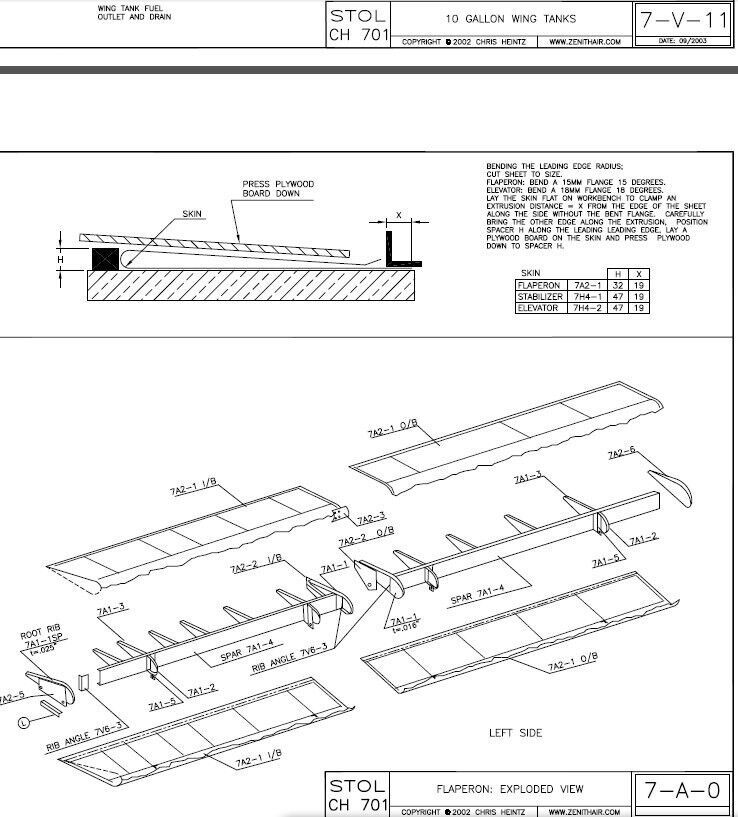

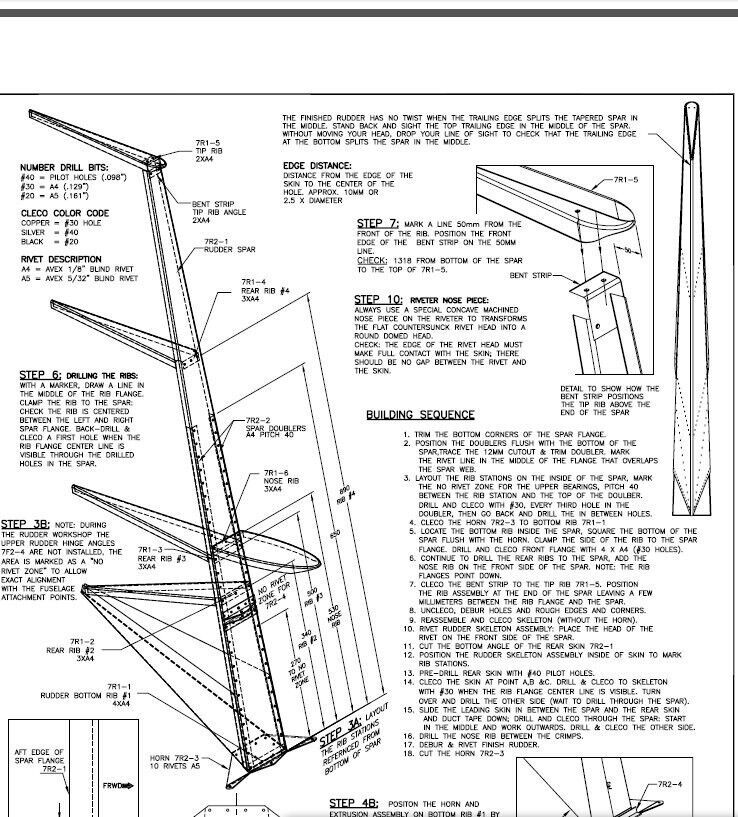

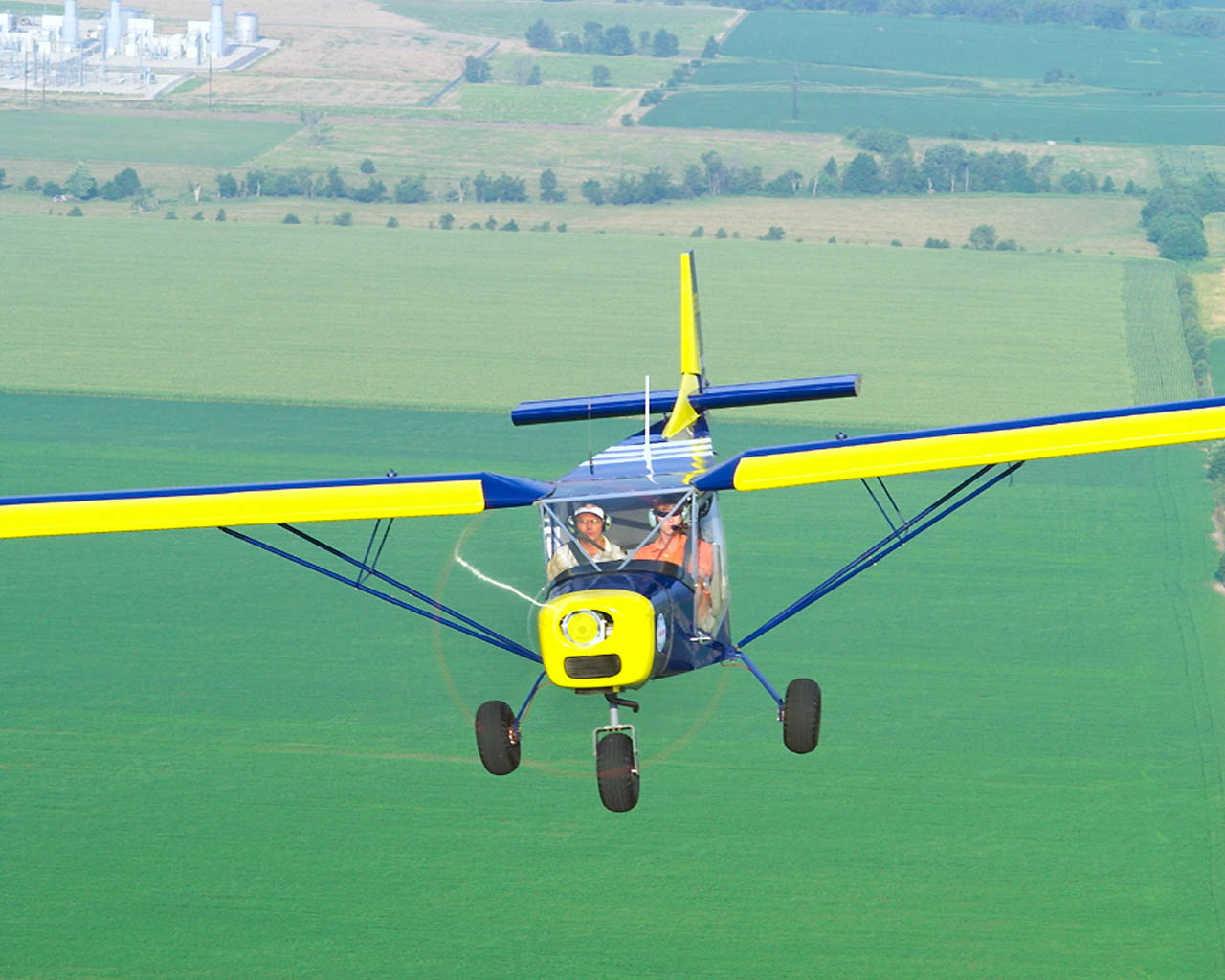

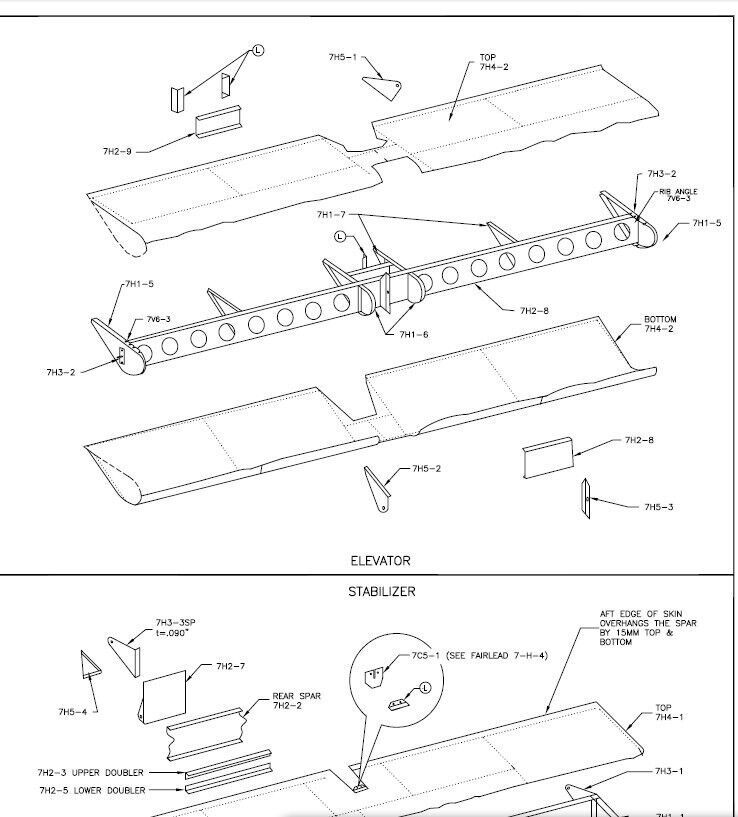

STOL aircraft drawings SR701 This two-seater called the "Flying Jeep" razbeg- mileage of 20-25 meters. Drawings aircraft STOL CH701, look, buy, download and build. To begin with basic technical harrakteristiki: STOL CH 701 PERFORMANCE ROTAX 912 (80 HP) ROTAX 912S (100 HP) SINGLE DUAL SINGLE DUAL TOP SPEED (MPH) 85 85 95 95 CRUISE, Sea Level (MPH) 80 80 85 85 75% CRUISE @ 8,000 ft. (TAS*) 92 92 98 98 VNE (MPH) 110 110 110 110 STALL (MPH) 28 30 28 30 RATE OF CLIMB (FPM) 1,100 1,000 1,200 1,100 TAKE-OFF ROLL (FEET) 60 115 50 90 LANDING ROLL (FEET) 80 140 80 140 SERVICE CEILING (FEET) 13,000+ 12,000+ 15,000+ 12,000+ STD. RANGE (MILES) 372 372 350 350 ENDURANCE 4.6 Hrs. 4.6 Hrs. 4.1 Hrs. 4.1 Hrs. SPECIFICATIONS STOL CH 701 WING SPAN 27 FEET 8.2 m. WING AREA 122 SQ.FT. 11.4 m.sq. LENGTH 20 Ft. 11 In. 6.38 m. HEIGHT (rudder tip) 8 Ft. 7 In. 2.6 m. EMPTY WEIGHT 580 LBS. 263 kg. GROSS WEIGHT 1,100 LBS. 500 kg. USEFUL LOAD 520 LBS. 236 kg. WING LOADING 9.0 LBS/FT? 43.8 m? POWER LOADING 13.75 LBS/BHP 6.25 kg/BHP DESIGN LOAD FACTOR (ultimate) +6 G / -3G CABIN WIDTH (shoulders) 40 INCHES 100 cm. CABIN WIDTH (optional bubble doors) 44 INCHES 110 cm. FUEL CAPACITY (std., dual wing tanks) 20 US Gallons (2 x 10 gal.) 76 liters (2 x 38 liters) Attention. I am selling a reference to a resource (website) where you can download absolutely free drawings. For digital download only, the item physically will not be sent! You accept that with the purchase! This item is region free, you do not risk your Steam account (BAN) I'll send you a link to download the drawings after your payment. An excellent and detailed material to build ultralight "Flying Jeep". Full manual and drawings. I leave a comment for each of its customers and hope you do the same. Different trades and good deals !!! For digital download only, the item physically won't be sent! You accept that with the purchase! {{airplane blueprints}} {{aircraft drawings}} {{DIY airplane plans}} {{light aircraft designs}} {{plane construction kits}} {{aviation schematics}} {{ultralight aircraft plans}} {{homebuilt aircraft blueprints}} {{airplane CAD files}} {{3D airplane models}} {{aircraft engineering plans}} {{aviation enthusiasts tools}} {{build your own airplane}} {{aircraft design templates}} {{pilot projects DIY}}
