Warning:
Dear buyer, these aircraft drawings are a guide for building an aircraft in the garage. These are accurate drawings of aircraft without a license. I can not be held responsible for the mistakes of the designers. Use these drawings for familiarization and your own training.
Visit www.P65Warnings.ca.gov for more information.
Listing details
| Seller policies: | |
|---|---|
| Shipping discount: |
Free shipping on orders over $20.00 |
| Price discount: |
5% off w/ $50.00 spent |
| Posted for sale: |
More than a week ago |
| Item number: |
1588985320 |
Item description
This package includes detailed STOL aircraft drawings for the SR701 model.
The drawings are produced in Hong Kong and are compatible with the SR701 model. Enhance your aviation knowledge and add these drawings to your collection. Perfect for aviation enthusiasts and professionals alike.
STOL aircraft drawings SR701
This two-seater called the "Flying Jeep" razbeg- mileage of 20-25 meters.
Drawings aircraft STOL CH701,
look, buy, download and build.
To begin with basic technical harrakteristiki:
STOL CH 701 PERFORMANCE
ROTAX 912 (80 HP)
ROTAX 912S (100 HP)
SINGLE
DUAL
SINGLE
DUAL
TOP SPEED (MPH)
85
85
95
95
CRUISE, Sea Level (MPH)
80
80
85
85
75% CRUISE @ 8,000 ft. (TAS*)
92
92
98
98
VNE (MPH)
110
110
110
110
STALL (MPH)
28
30
28
30
RATE OF CLIMB (FPM)
1,100
1,000
1,200
1,100
TAKE-OFF ROLL (FEET)
60
115
50
90
LANDING ROLL (FEET)
80
140
80
140
SERVICE CEILING (FEET)
13,000+
12,000+
15,000+
12,000+
STD. RANGE (MILES)
372
372
350
350
ENDURANCE
4.6 Hrs.
4.6 Hrs.
4.1 Hrs.
4.1 Hrs.

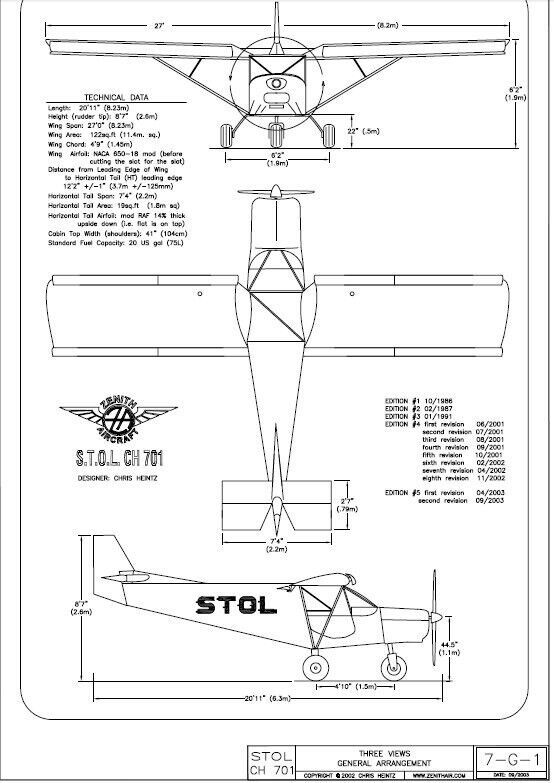

SPECIFICATIONS
STOL CH 701
WING SPAN
27 FEET
8.2 m.
WING AREA
122 SQ.FT.
11.4 m.sq.
LENGTH
20 Ft. 11 In.
6.38 m.
HEIGHT (rudder tip)
8 Ft. 7 In.
2.6 m.
EMPTY WEIGHT
580 LBS.
263 kg.
GROSS WEIGHT
1,100 LBS.
500 kg.
USEFUL LOAD
520 LBS.
236 kg.
WING LOADING
9.0 LBS/FT?
43.8 m?
POWER LOADING
13.75 LBS/BHP
6.25 kg/BHP
DESIGN LOAD FACTOR (ultimate)
+6 G / -3G
CABIN WIDTH (shoulders)
40 INCHES
100 cm.
CABIN WIDTH (optional bubble doors)
44 INCHES
110 cm.
FUEL CAPACITY (std., dual wing tanks)
20 US Gallons
(2 x 10 gal.)
76 liters
(2 x 38 liters)
Attention.
For digital download only, the item physically will not be sent! You accept that with the purchase!
This item is region free, you do not risk your Steam account (BAN)

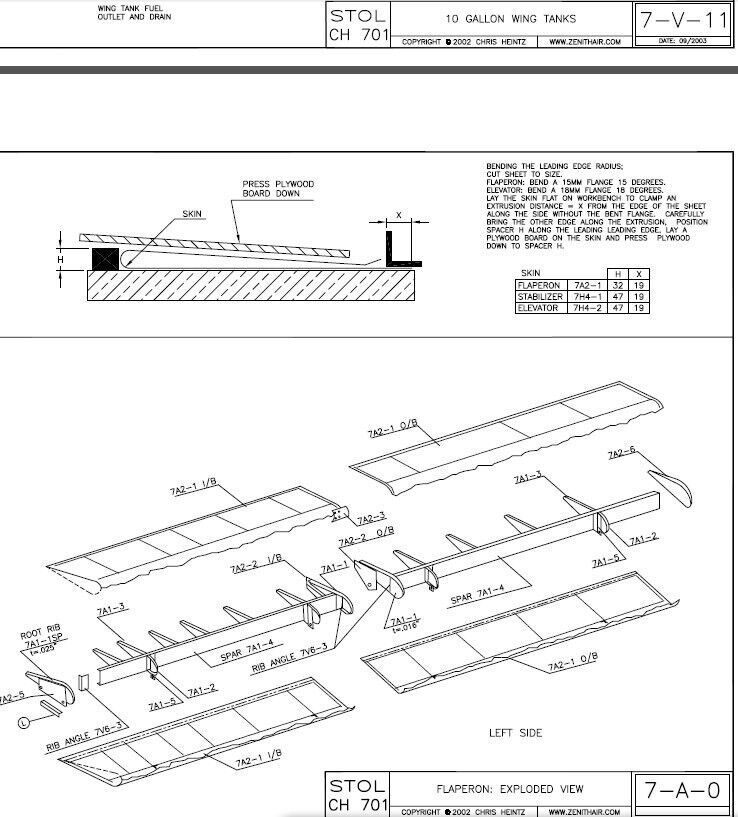

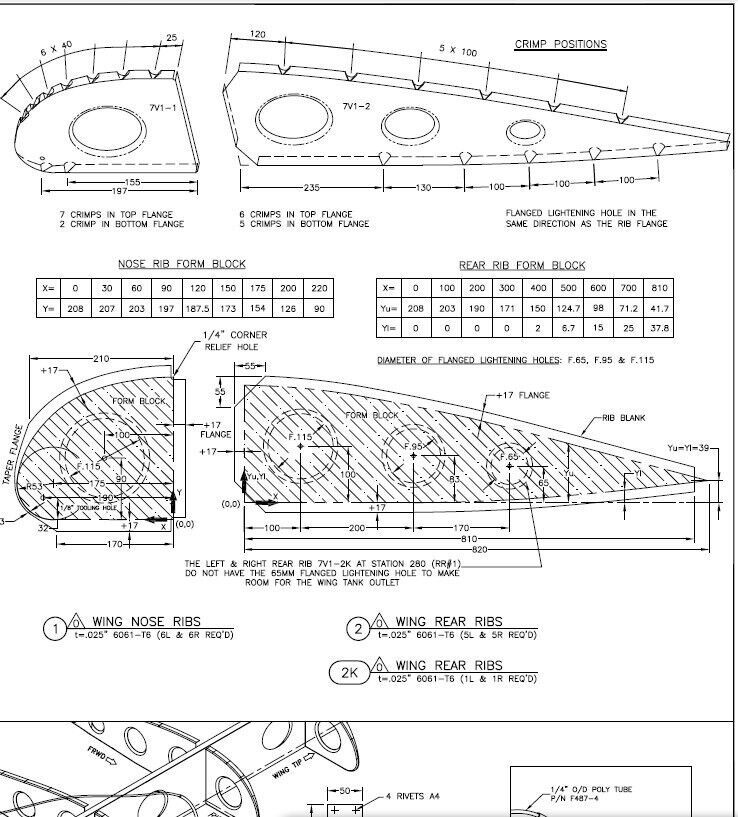

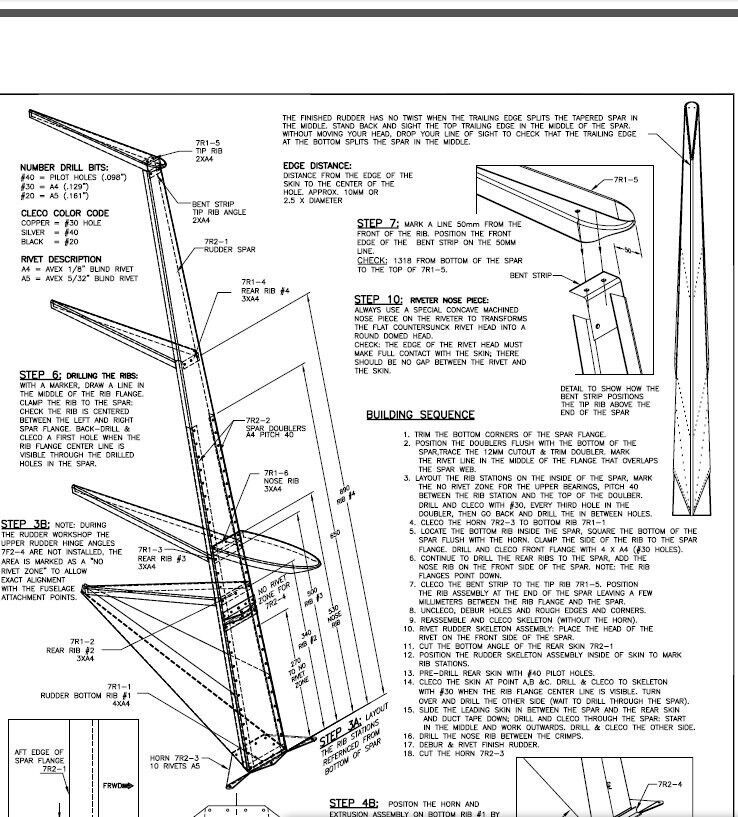

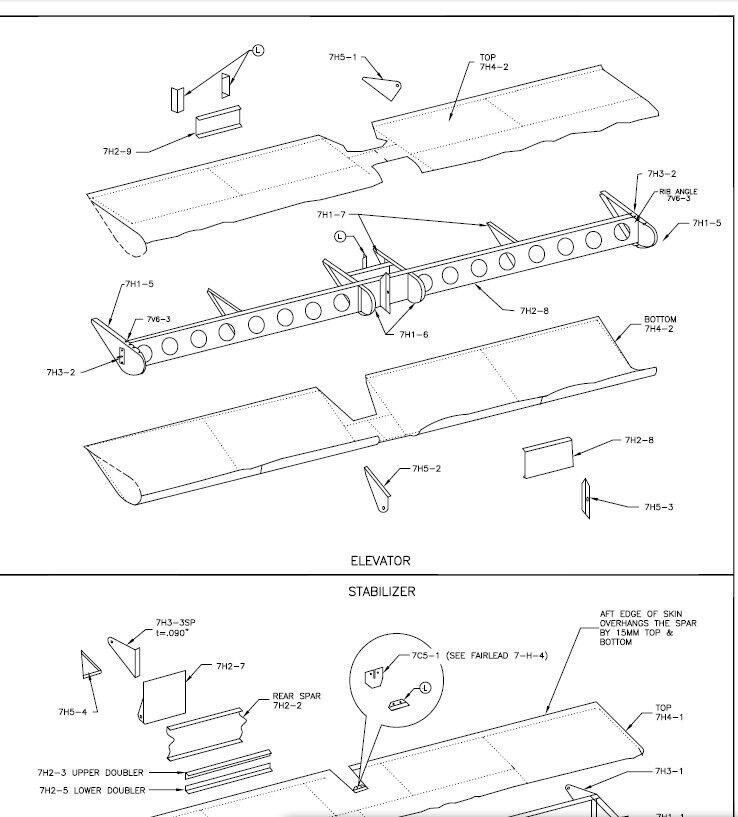

An excellent and detailed material to build ultralight
"Flying Jeep".
Full manual and drawings.
I leave a comment for each of its customers and hope you do the same.
Different trades and good deals !!!
For digital download only, the item physically won't be sent! You accept that with the purchase!
|
