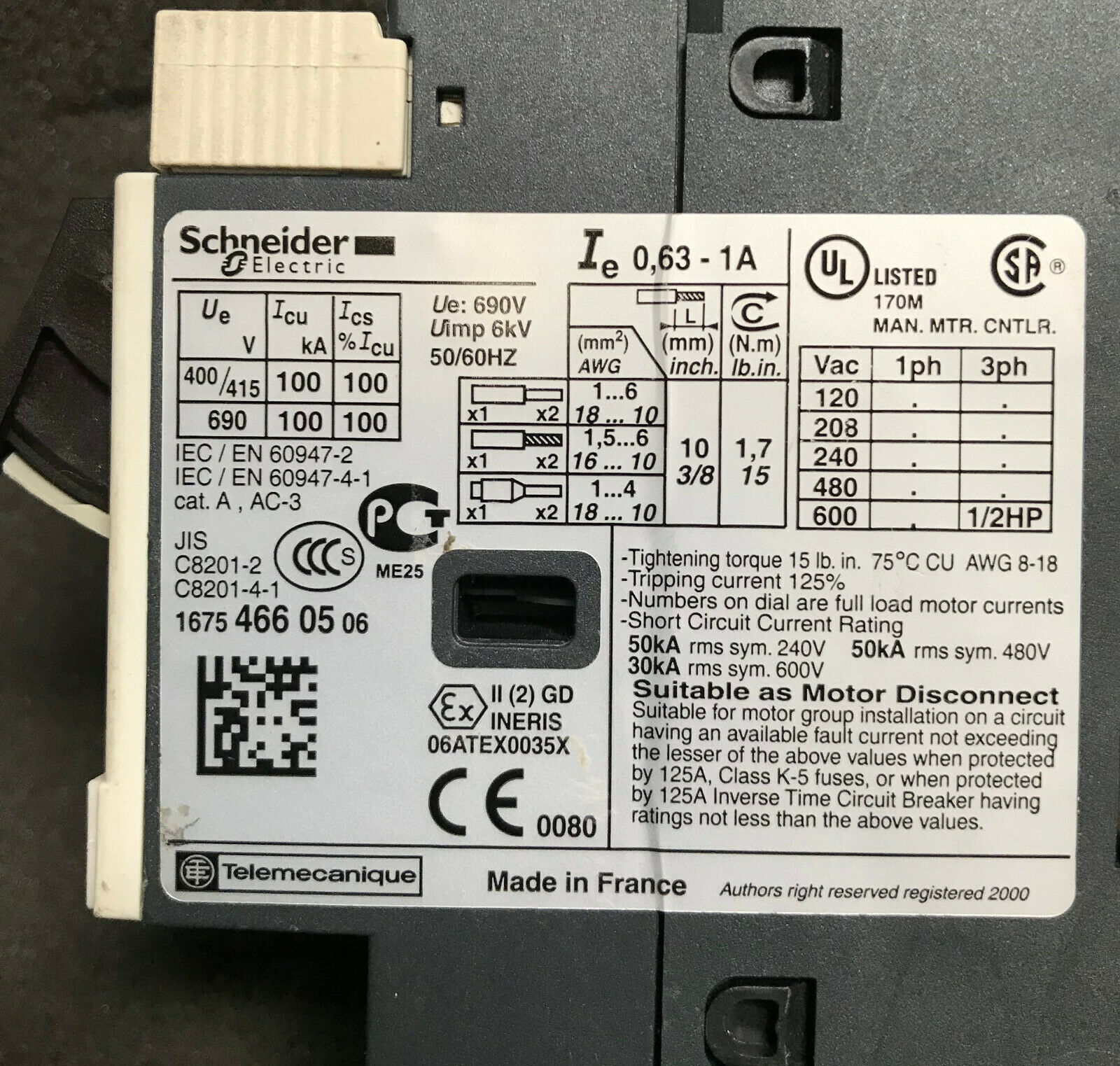

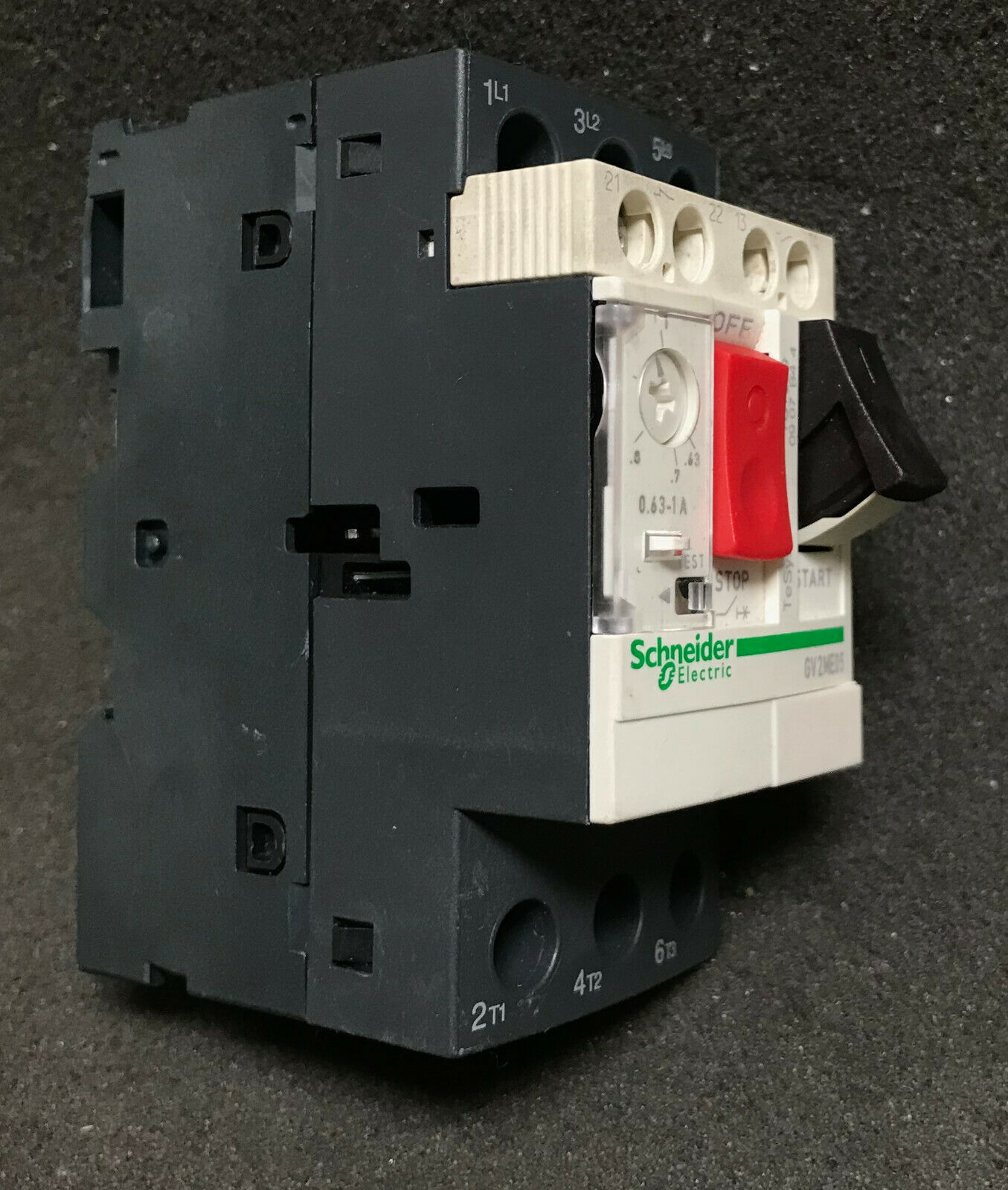

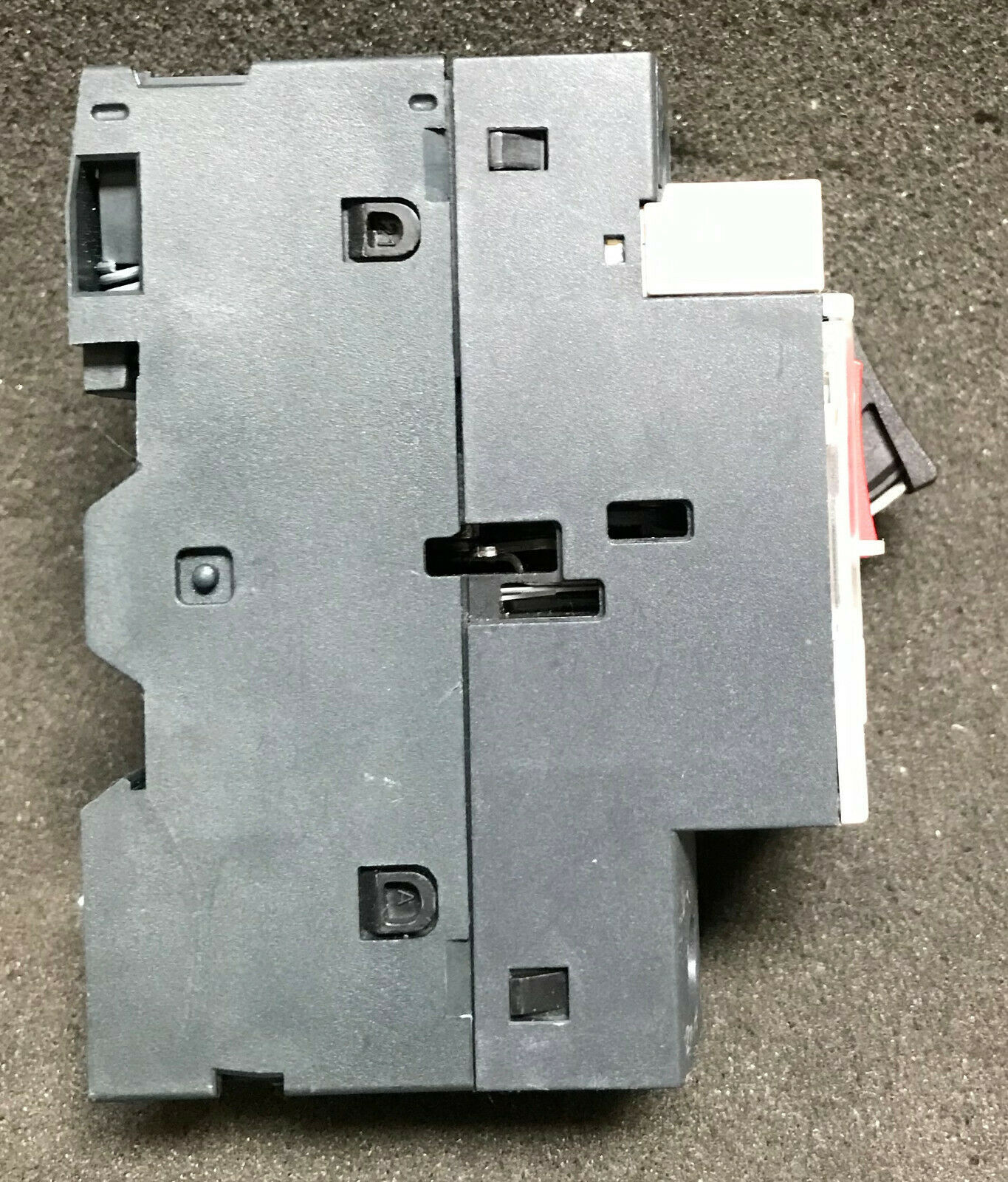

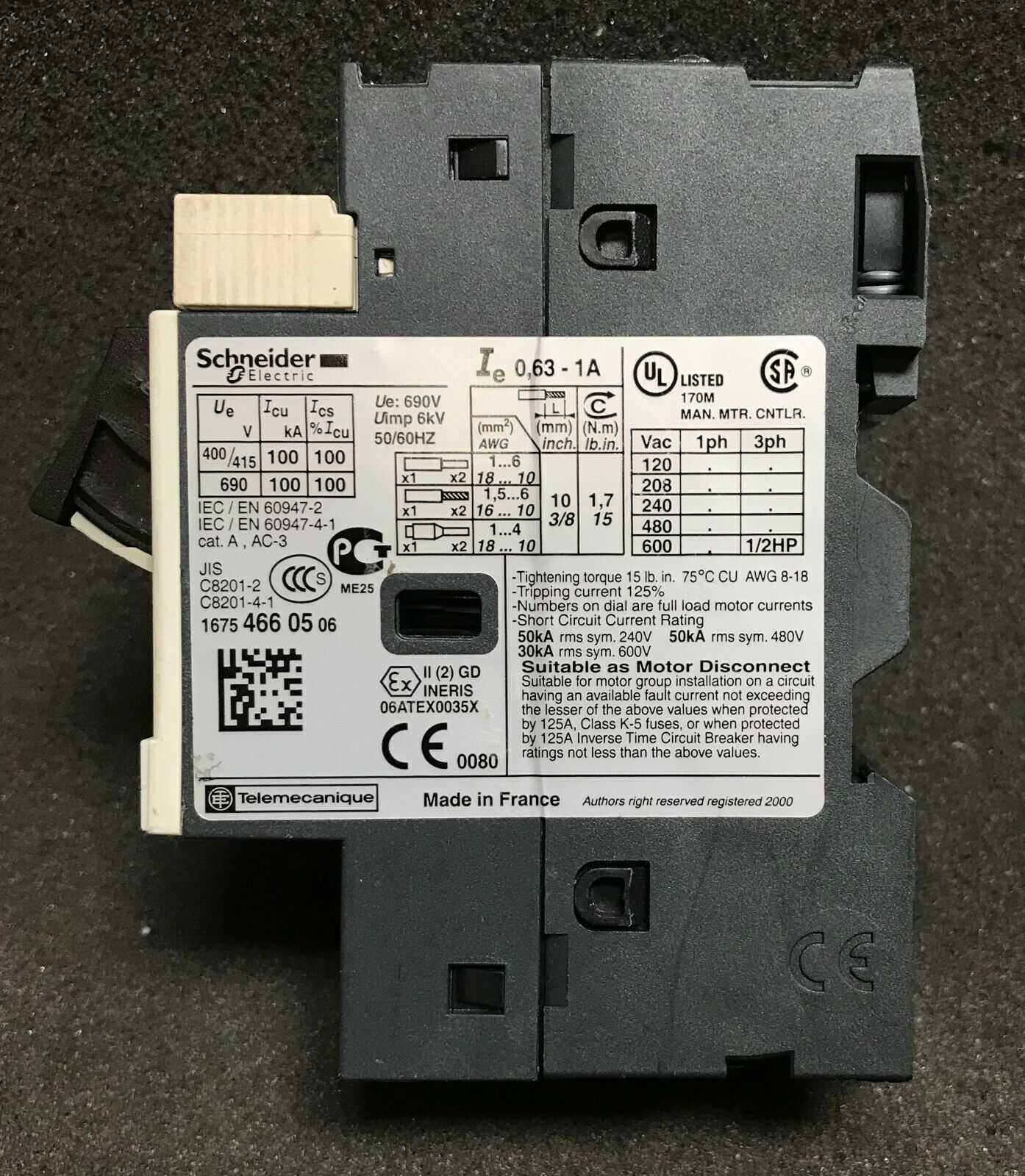

Schneider Electric Telemecanique GV2ME05 and 18 similar items

Main range TeSys product name TeSys GV2 device short name GV2ME device application Motor trip unit technology Thermal-magnetic Complementary poles description 3P network type AC utilisation category AC-3 conforming to IEC 60947-4-1 Category A conforming to IEC 60947-2 network frequency 50/60 Hz conforming to IEC 60947-4-1 fixing mode Clipped on 35 mm symmetrical DIN rail Screwed on panel (with adaptor plate) operating position Any position motor power kW 0.25 kW at 400/415 V AC 50/60 Hz 0.37 kW at 400/415 V AC 50/60 Hz 0.37 kW at 500 V AC 50/60 Hz breaking capacity 100 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2 100 kA Icu at 230/240 V AC 50/60 Hz conforming to IEC 60947-2 100 kA Icu at 400/415 V AC 50/60 Hz conforming to IEC 60947-2 100 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2 100 kA Icu at 690 V AC 50/60 Hz conforming to IEC 60947-2 [Ics] rated service short-circuit breaking capacity 100 % at 230/240 V AC 50/60 Hz conforming to IEC 60947-2 100 % at 440 V AC 50/60 Hz conforming to IEC 60947-2 100 % at 500 V AC 50/60 Hz conforming to IEC 60947-2 100 % at 690 V AC 50/60 Hz conforming to IEC 60947-2 100 % at 400/415 V AC 50/60 Hz conforming to IEC 60947-2 control type Push-button [In] rated current 1 A thermal protection adjustment range 0.63...1 A magnetic tripping current 13 A [Ue] rated operational voltage 690 V AC 50/60 Hz conforming to IEC 60947-2 [Ui] rated insulation voltage 690 V AC 50/60 Hz conforming to IEC 60947-2 [Ith] conventional free air thermal current 1 A conforming to IEC 60947-4-1 [Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947-2 power dissipation per pole 2.5 W mechanical durability 100000 cycles electrical durability 100000 cycles for AC-3 at 440 V operating rate 25 cyc/h rated duty Continuous conforming to IEC 60947-4-1 connections - terminals Screw clamp terminals 2 cable(s) 1...6 mm solid Screw clamp terminals 2 cable(s) 1.5...6 mm flexible without cable end Screw clamp terminals 2 cable(s) 1...4 mm flexible with cable end tightening torque 1.7 N.m on screw clamp terminals suitability for isolation Yes conforming to IEC 60947-1 phase failure sensitivity Yes conforming to IEC 60947-4-1 height 89 mm width 44.5 mm depth 78.2 mm product weight 0.28 kg Environment standards EN 60204 IEC 60947-1 IEC 60947-2 IEC 60947-4-1 NF C 63-120 NF C 63-650 NF C 79-130 UL 508 VDE 0113 VDE 0660 CSA C22.2 product certifications ATEX BV CCC CEBEC CSA DNV EZU GL LROS (Lloyds register of shipping) RINA SETI TSE UL EAC protective treatment TH IP degree of protection IP20 conforming to IEC 60529 IK degree of protection IK04 ambient air temperature for operation -20...60 C ambient air temperature for storage -40...80 C fire resistance 960 C conforming to IEC 60695-2-1 operating altitude 2000 m
