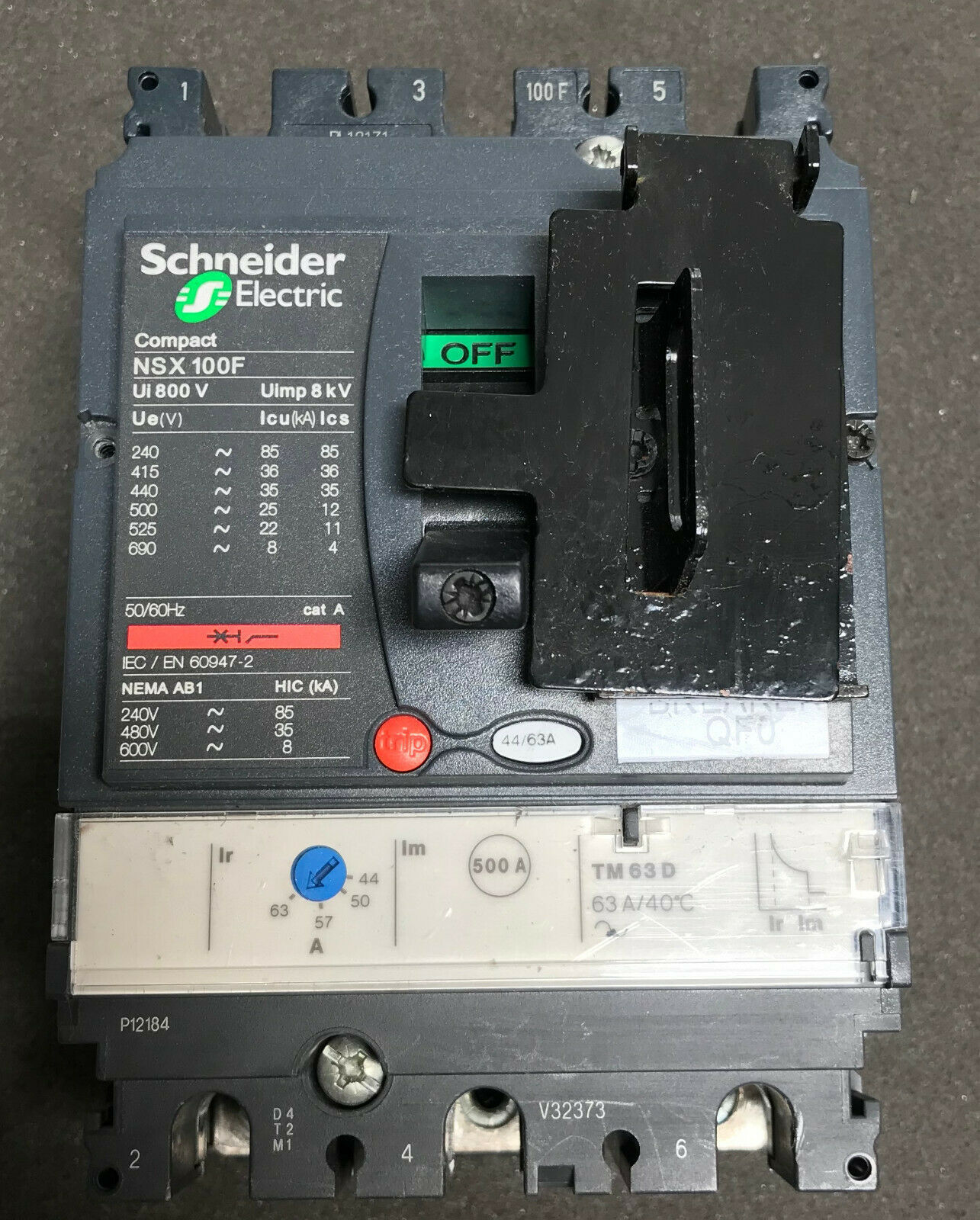

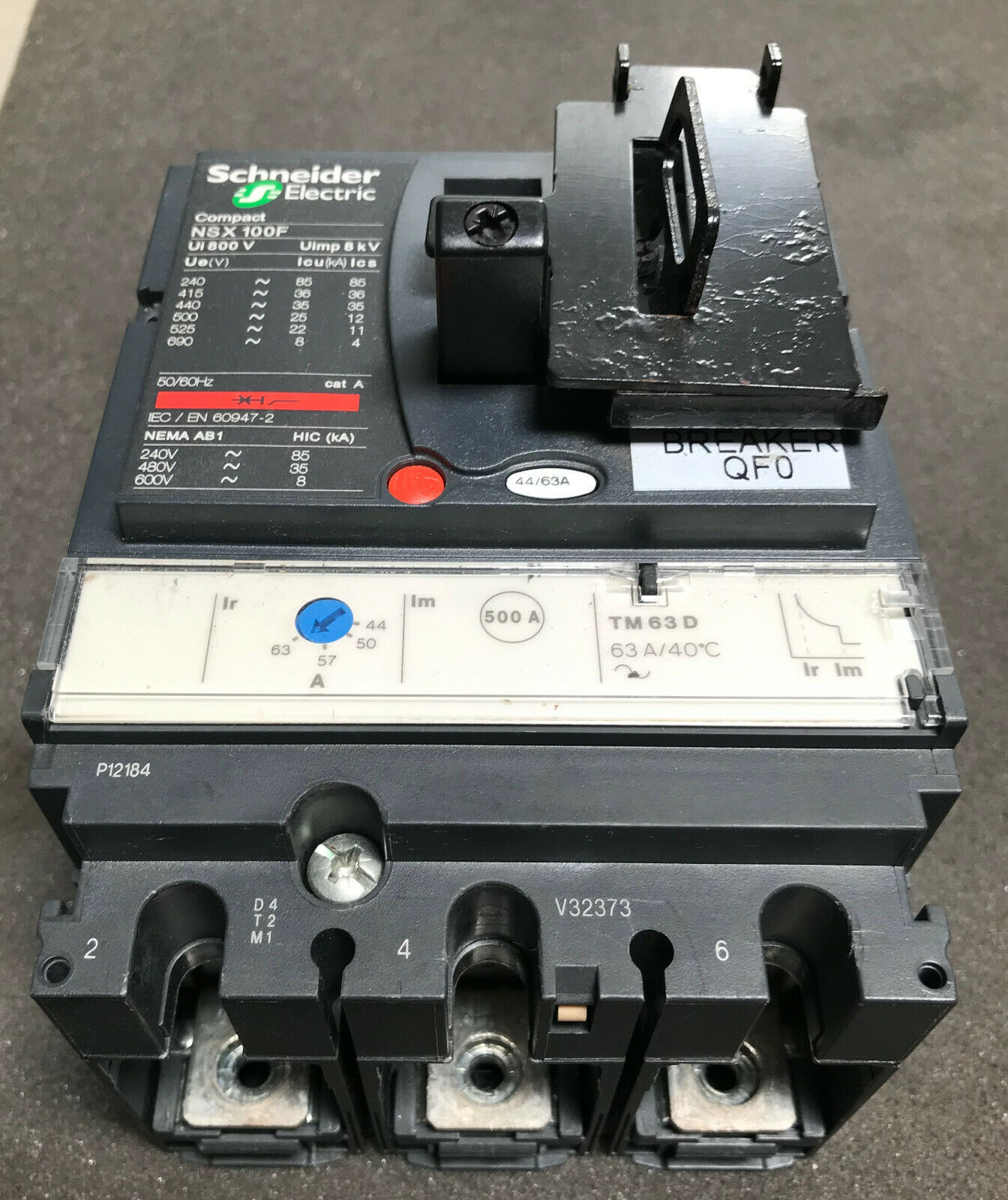

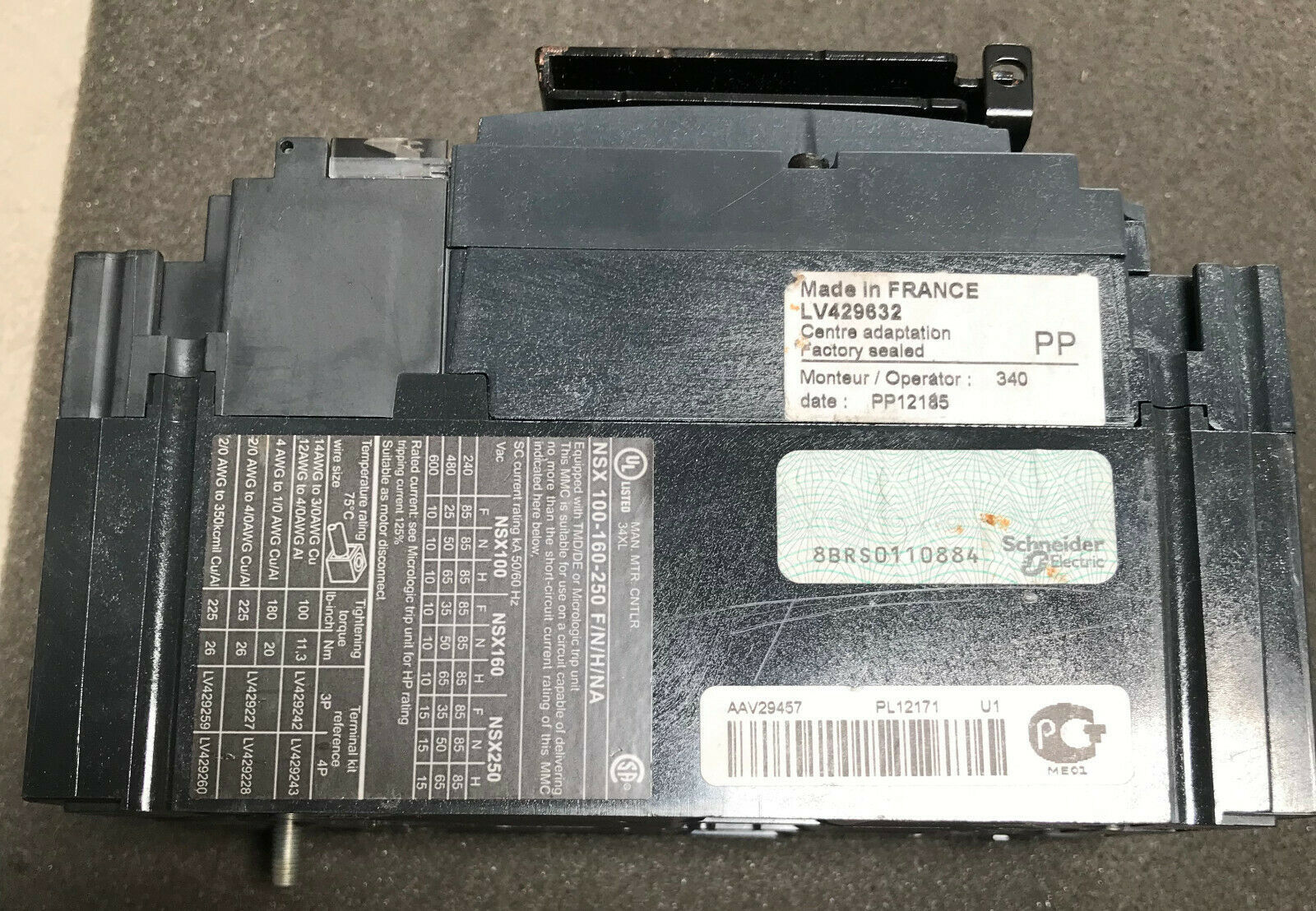

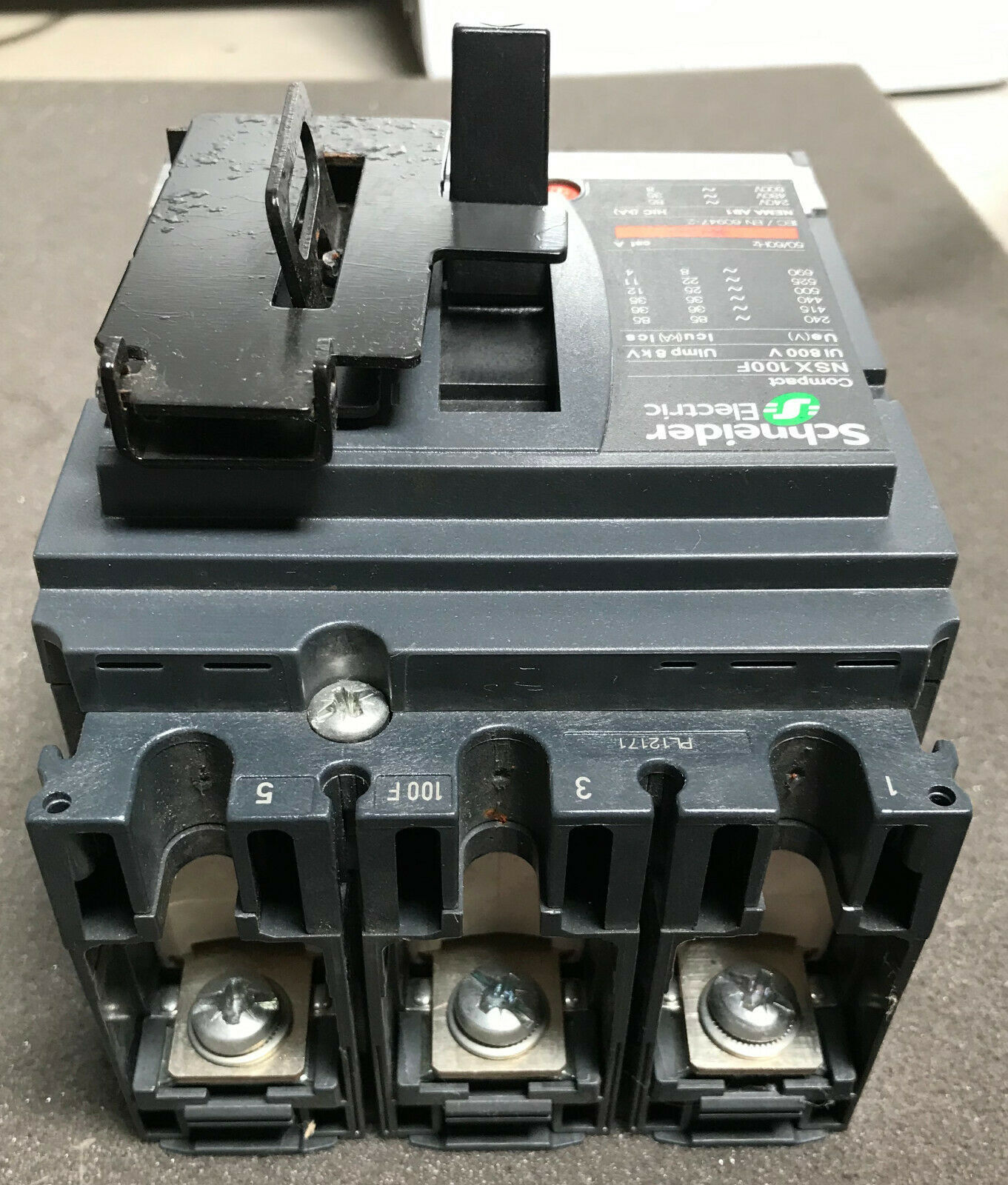

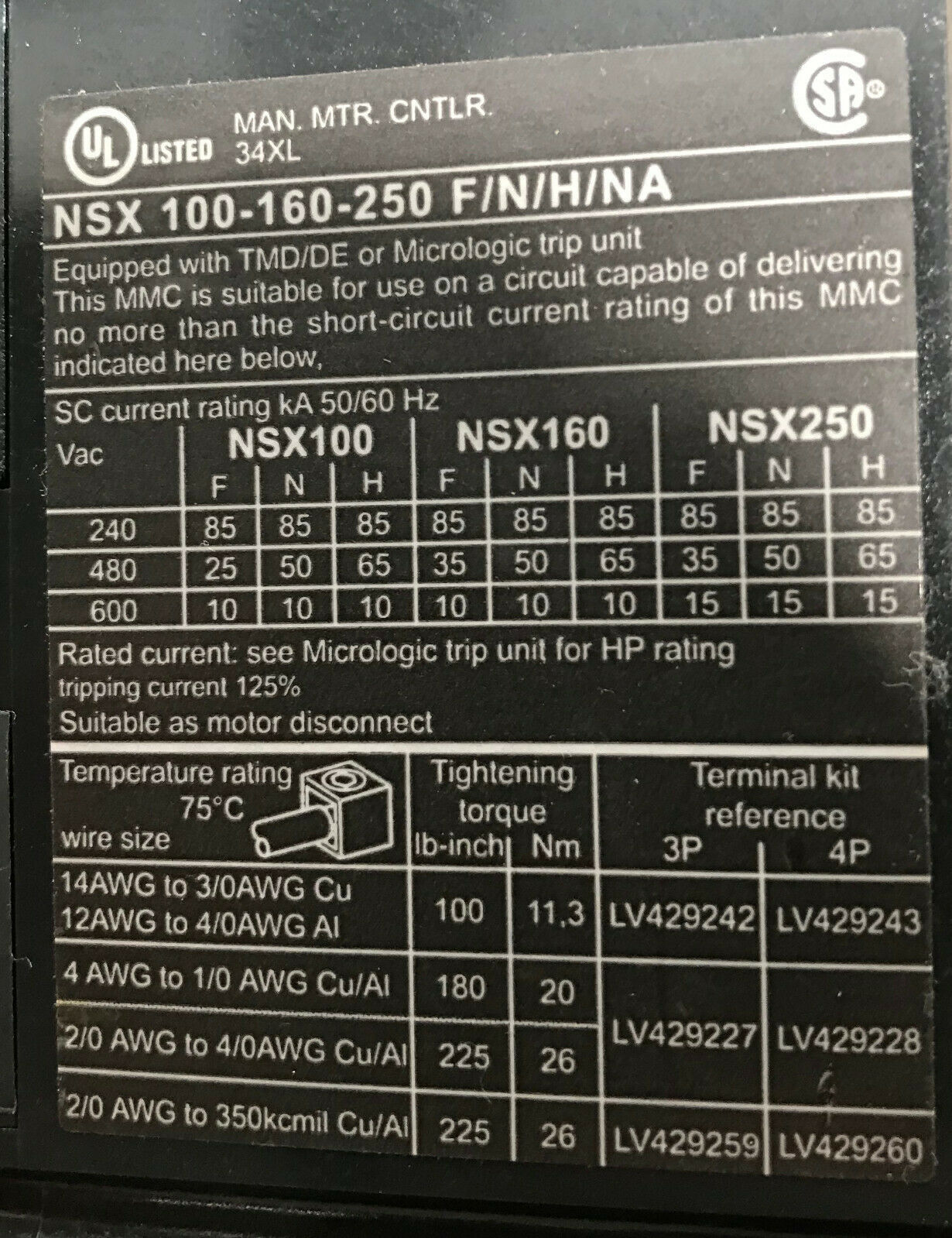

Main range Compact product name Compact NSX product or component type Circuit breaker device short name Compact NSX100F device application Distribution poles description 3P protected poles description 3t network type AC network frequency 50/60 Hz [In] rated current 100 A ( 40 C ) [Ui] rated insulation voltage 800 V AC 50/60 Hz [Uimp] rated impulse withstand voltage 8 kV [Ue] rated operational voltage 690 V AC 50/60 Hz breaking capacity code F (36 kA) AC breaking capacity 8 kA Icu at 660/690 V AC 50/60 Hz conforming to IEC 60947-2 22 kA Icu at 525 V AC 50/60 Hz conforming to IEC 60947-2 25 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2 35 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2 36 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2 85 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2 10 kA at 600 V AC 50/60 Hz conforming to UL 508 25 kA at 480 V AC 50/60 Hz conforming to UL 508 85 kA at 240 V AC 50/60 Hz conforming to UL 508 [Ics] rated service breaking capacity Ics 11 kA 525 V AC 50/60 Hz conforming to IEC 60947-2 Ics 35 kA 440 V AC 50/60 Hz conforming to IEC 60947-2 Ics 36 kA 380/415 V AC 50/60 Hz conforming to IEC 60947-2 Ics 4 kA 660/690 V AC 50/60 Hz conforming to IEC 60947-2 Ics 85 kA 220/240 V AC 50/60 Hz conforming to IEC 60947-2 Ics 12.5 kA 500 V AC 50/60 Hz conforming to IEC 60947-2 suitability for isolation Yes conforming to EN 60947-2 Yes conforming to IEC 60947-2 utilisation category Category A trip unit name TM-D trip unit technology Thermal-magnetic trip unit protection functions LI trip unit rating 100 A ( 40 C ) protection type Overload protection (thermal) L Short-circuit protection (magnetic) I pollution degree 3 conforming to IEC 60664-1 Complementary control type Toggle mounting mode Fixed mounting support Backplate upside connection Front downside connection Front auxiliary contact composition Without mechanical durability 50000 cycles electrical durability 10000 cycles 690 V In conforming to IEC 60947-2 20000 cycles 690 V In/2 conforming to IEC 60947-2 30000 cycles 440 V In conforming to IEC 60947-2 50000 cycles 440 V In/2 conforming to IEC 60947-2 connection pitch 35 mm local signalling Positive contact indication long time pick-up adjustment type Ir Adjustable long time pick-up adjustment range 0.7...1 x In long time delay adjustment type Fixed [tr] long-time delay adjustment range 15 s 6 x Ir 120...400 s 1.5 x In short-time pick-up adjustment type Isd Fixed [Isd] short-time pick-up adjustment range 800 A short-time delay adjustment type Fixed height 161 mm width 105 mm depth 86 mm product weight 2.05 kg Environment overvoltage category Class II electrical shock protection class Class II standards EN/IEC 60947 UL 508 product certifications CCC Marine EAC IP degree of protection IP40 conforming to IEC 60529 IK degree of protection IK07 conforming to IEC 62262 ambient air temperature for operation -35...70 C ambient air temperature for storage -55...85 C
