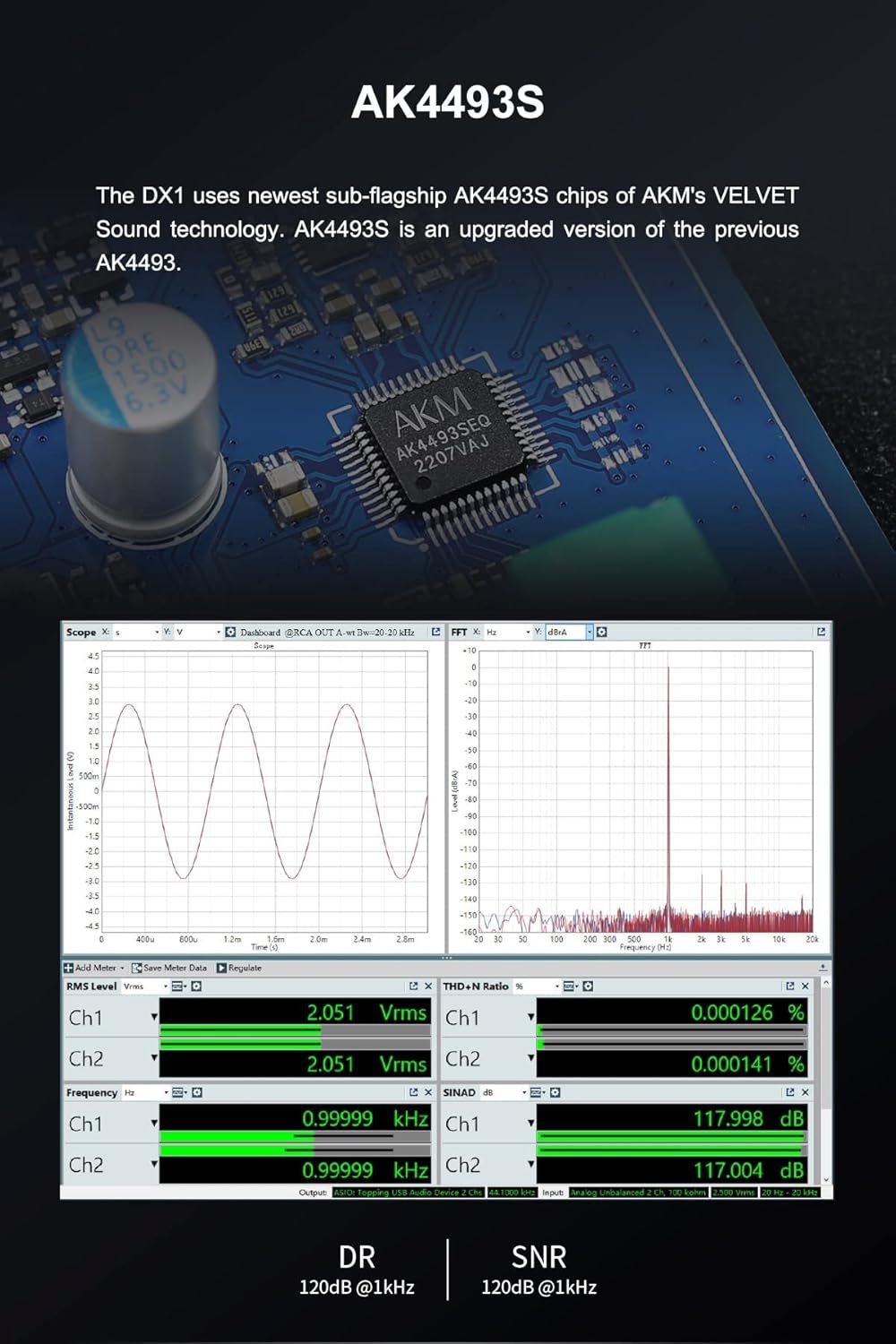

Up To Dsd256 Pcm384 Is Supported By The Top-Tier Dx1 Decoder Ak4493S Xu208 Dac Product Details Spec: USB IN PCM:44.1kHz-384kHz/16bit-32bit DSD (Native):DSD64-DSD256 DSD (DOP):DSD64-DSD128 DX1 DAC parameters (USB In@44. 1kHz ) THD+N @1kHz (A-wt) 0.0002% THD @20-20kHz 90kBW 0.0006% SNR @1kHz (A-wt):120dB Dynamic range @1kHz (A-wt):120dB Frequency Response: 20Hz- 20kHz (+0.3dB) 20Hz-40kHz (+0.7dB) Output Level: 2.0Vrms @0dBFS Noise (A-wt) 2.0uVrms Channel Crosstalk @1kHz: -112dB Channel Balance: 0.3 dB Output Impedance :22? DX1 Headphone Amplifier specifications THD+N @1kHz (A-wt) 0.0003% @Output= 200mW (32?) 0.0002% @Output=4 5mW (300?) THD@20-20kHz 90kBW 0.003% @Output=200mW (32?) 0.001% @Output=4 5mW (300?) SNR @MAX OUT 1kHz (A-wt) ?118dB Dynamic Range @1kHz (A-wt)?11 8dB Frequency Response? 20Hz- 20kHz (+0.3dB) 20Hz-40kHz (+0.7dB) Output Level? 2.2Vpp @G=L 11Vpp @G=H Noise (A-wt) 1.0uVrms Channel Crosstalk @1kHz?-86dB Gain? -2dB (Vrms/FS) @G=L 12dB (Vrms/FS) @G=H Output Impedance 0.7? Output Power? 280mW x 2 @32?THD+N 0.1% 190mW x 2 @64? THD+N 0. 1% 51mW x 2 @300?THD+N 0. 1% Load Impedance 8? AK4493S: The DX1 uses newest sub-filagship AK4493S chips of AKM'S VELVET Sound technology. AK4493S is an upgraded version of the previous AK4493. Plug and play: turn your PC into a HIFI source DX1 has a wide range of compatibility: Windows 10, Windows 11, MAC, Linux, I0S, Android can be plug and play. Only for Windows ASIO applications, you need to install the driver and set it up. The USB hardware is based on XMOS XU208 and Thesycon custom driver (applicable to Windows, other systems are free of driver), which is stable and reliable. No adapter required: Like other USB device, the DX1 does not require an additional adapter for power supply. Only one USB cable can complete the power supply and data transmission. Powerful output in a small hummingbird size : In such a tiny size, DX1 can provide a maximum output of 280mW x2 without additional power supply. Excellent enough for serving as a pure DAC: DX1 has Line out with fixed volume, which can be used as a pure DAC with headphone amplifiers, power amplifiers and other equipment. Payment We accept PayPal and credit cards via PayPal. Taxes - US We collect sales tax, as required by law. Shipping We make every effort of shipping within 3 business day of payment clearing. The estimated delivery time is 2 - 5 business days from the shipping date. Policies If you do need to return your item, please contact us via email (you will receive an email when your product ships with additional details - Subject: Important information about your purchase). You will then be provided with a return shipping label and packing slip. Pack the item carefully. Include the packing slip, apply the shipping label, and return the item within 30 business days of the date you request a return, or your return will be canceled. Once we receive your order we will inspect the return. Please allow up to 5 business days of receiving the returned item for your refund.
