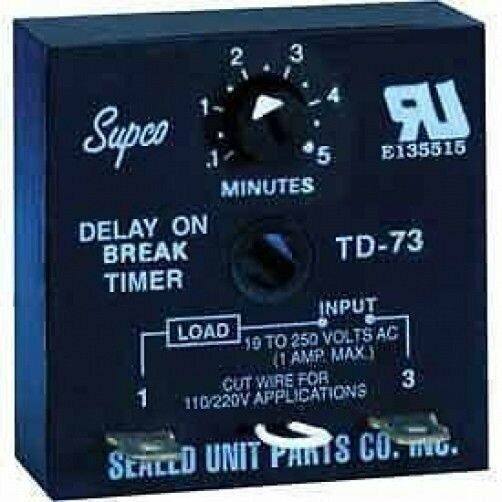

TD70 TIMER DELAY ON BREAK SOLID STATE TD Series Time Delays Standard Features / Specifications ? Three styles available: Delay on Make, Delay on Break By ? Pass ? Fixed or adjustable delay ranges ? Initiate timer in 70 milliseconds ? Broad input voltage range (Pilot Circuit) 19 to 250 VAC/VDC, 50/60 Hz (TD60, TD70 TD32) 19 to 130 VAC/VDC, 50/60 Hz (TD74) ? Maximum load 1.0 amp, 10 amp inrush ? Varying models work with or without anticipator type thermostats ? Terminal or wire connections available ? Operating Temperature Range 0F to +160 F (-18C to +71C) ? Compact Size 2? x 2? x .075? (5.08 x 5.08 x 1.9 cm) ? Non positional single hole mounting ? All parameters are subject to change as per special requirements ? By ? pass a control or device during start up ? Helps to reduce power surges in multiple compressor applications General Applications ? Protection from short cycling of compressor ? Ideal for compressor staging TD60 Series Delay on Make Timers (DOM) Mode of Operation ? Upon application of power the time delay initiates. On completion of selected delay period, the load is energized. Timer will reset on power interruption or when thermostat disconnects. TD69 Delay Range Adjustable 6 sec to 8 min Delay Range Fixed (min) n/a Connections 2 - 1/4" male terminals Replaces Diversitech AC-800-ADM1/ICM 102/A-1 701/ Mars 32391 ? Three styles available: Delay on Make, Delay on Break By ? Pass 19 to 250 VAC/VDC, 50/60 Hz (TD60, TD70 TD32) ? Varying models work with or without anticipator type thermostats ? Operating Temperature Range 0F to +160 F (-18C to +71C) ? Compact Size 2? x 2? x .075? (5.08 x 5.08 x 1.9 cm) ? All parameters are subject to change as per special requirements ? By ? pass a control or device during start up ? Helps to reduce power surges in multiple compressor applications ? Upon application of power the time delay initiates. On completion of selected delay period, the load is energized. Timer will reset on power interruption or when thermostat disconnects. Replaces Diversitech AC-800-ADM1/ICM 102/A-1 701/ Mars 32391 https://www.supco.com/images/pdfs/Manuals-Instructions/TD%20Fam ? Three styles available: Delay on Make, Delay on Break By ? Pass 19 to 250 VAC/VDC, 50/60 Hz (TD60, TD70 TD32) ? Varying models work with or without anticipator type thermostats ? Operating Temperature Range 0F to +160 F (-18C to +71C) ? Compact Size 2? x 2? x .075? (5.08 x 5.08 x 1.9 cm) ? All parameters are subject to change as per special requirements ? By ? pass a control or device during start up ? Helps to reduce power surges in multiple compressor applications ? Upon application of power the time delay initiates. On completion of selected delay period, the load is energized. Timer will reset on power interruption or when thermostat disconnects. Replaces Diversitech AC-800-ADM1/ICM 102/A-1 701/ Mars 32391 https://www.supco.com/images/pdfs/Manuals-Instructions/TD%20Fam
