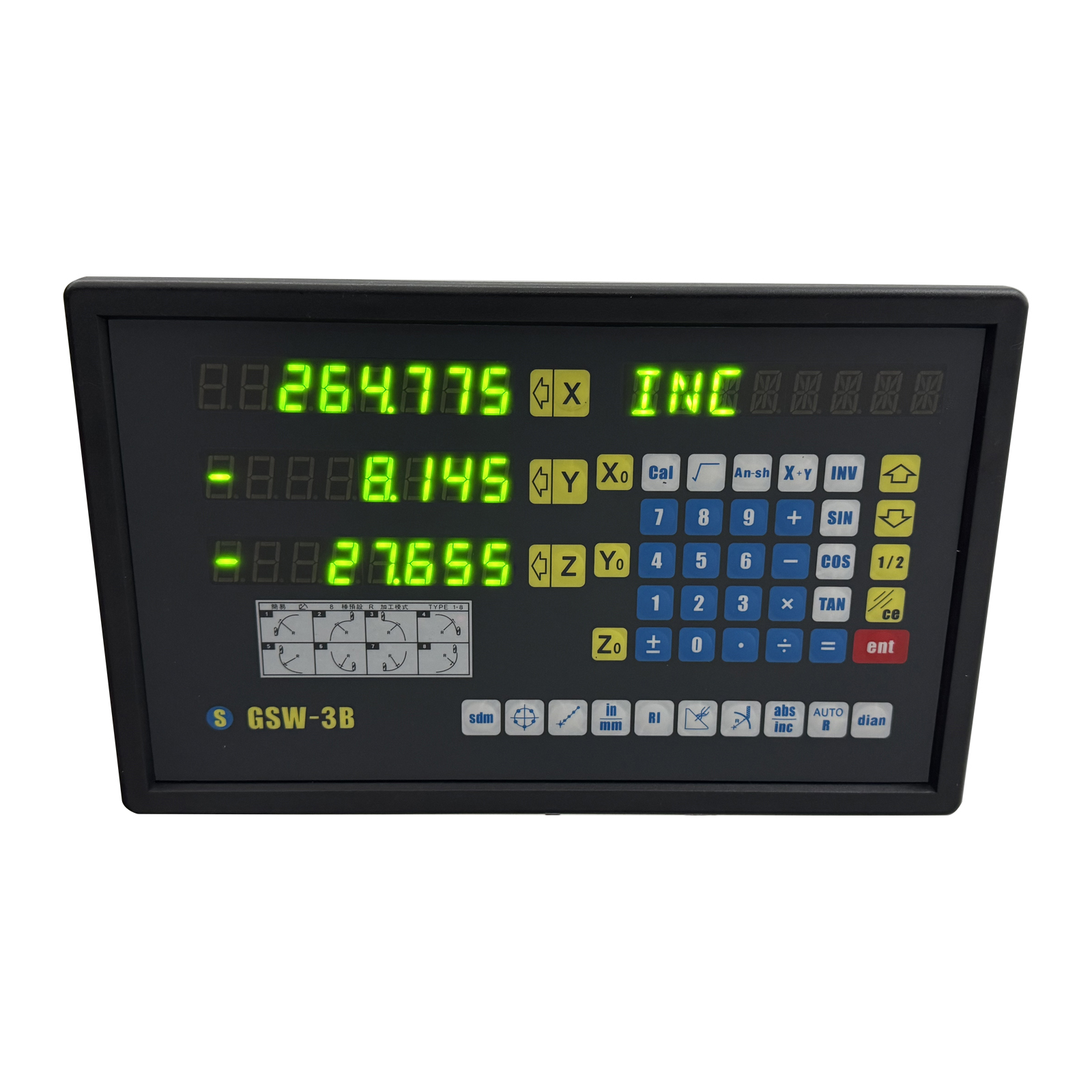

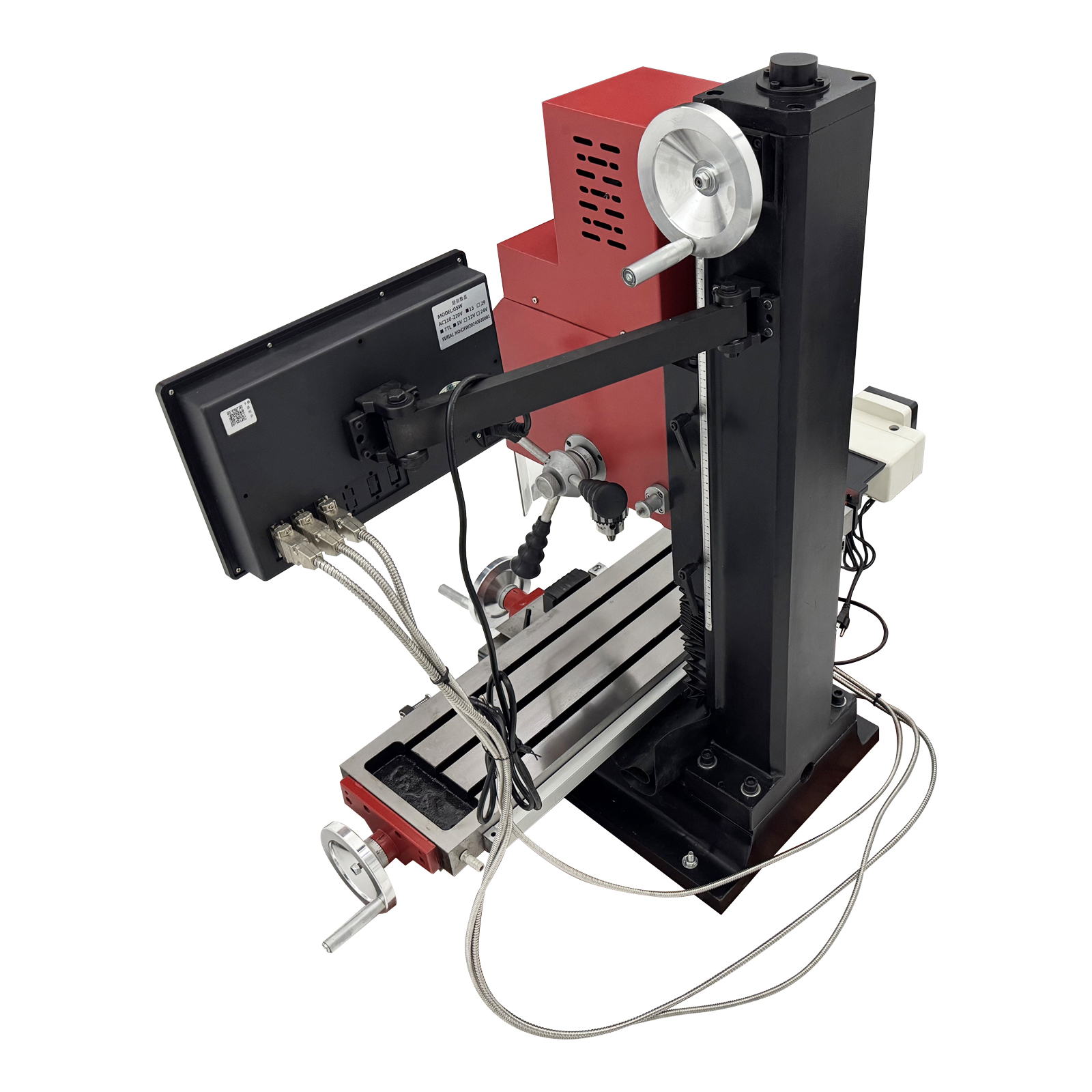

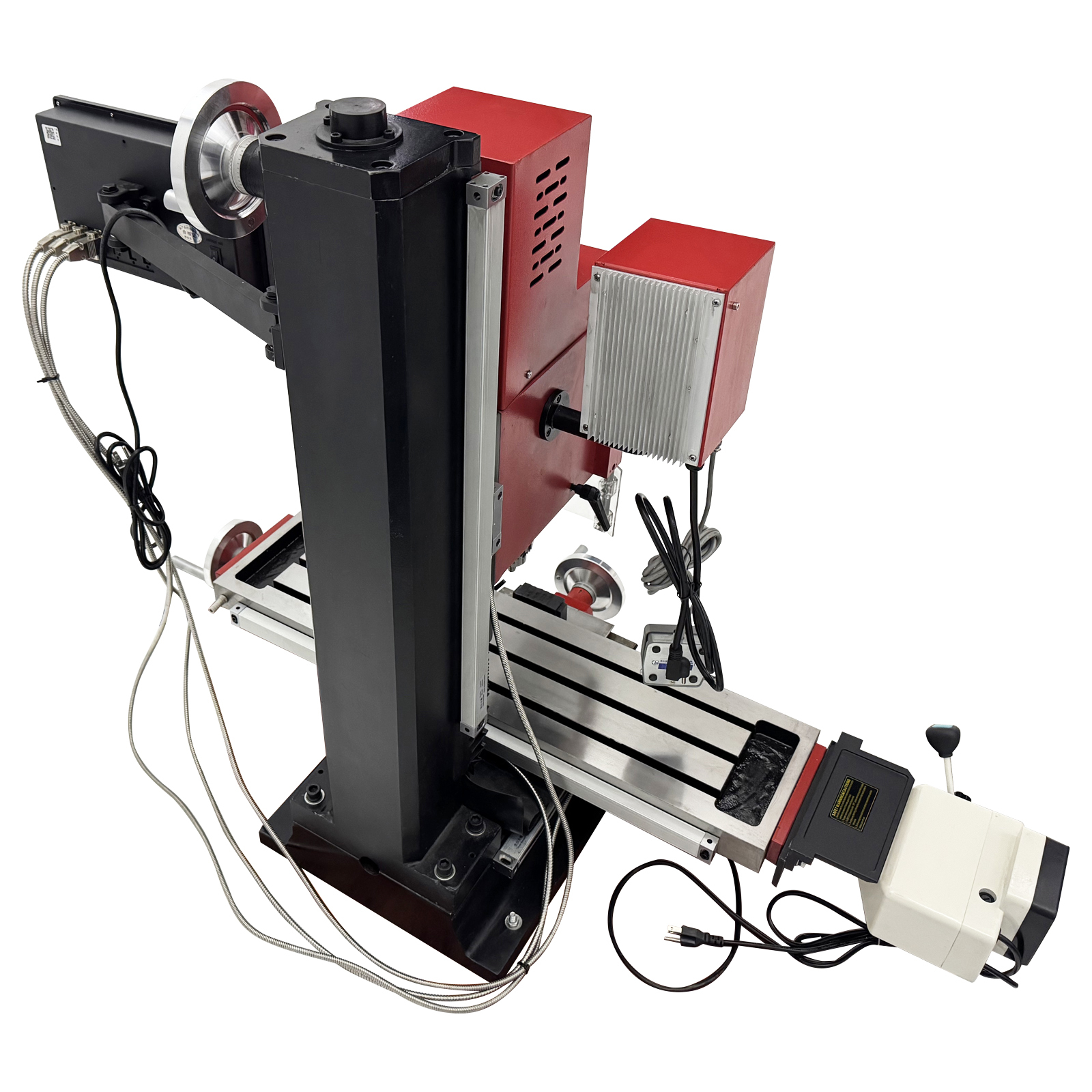

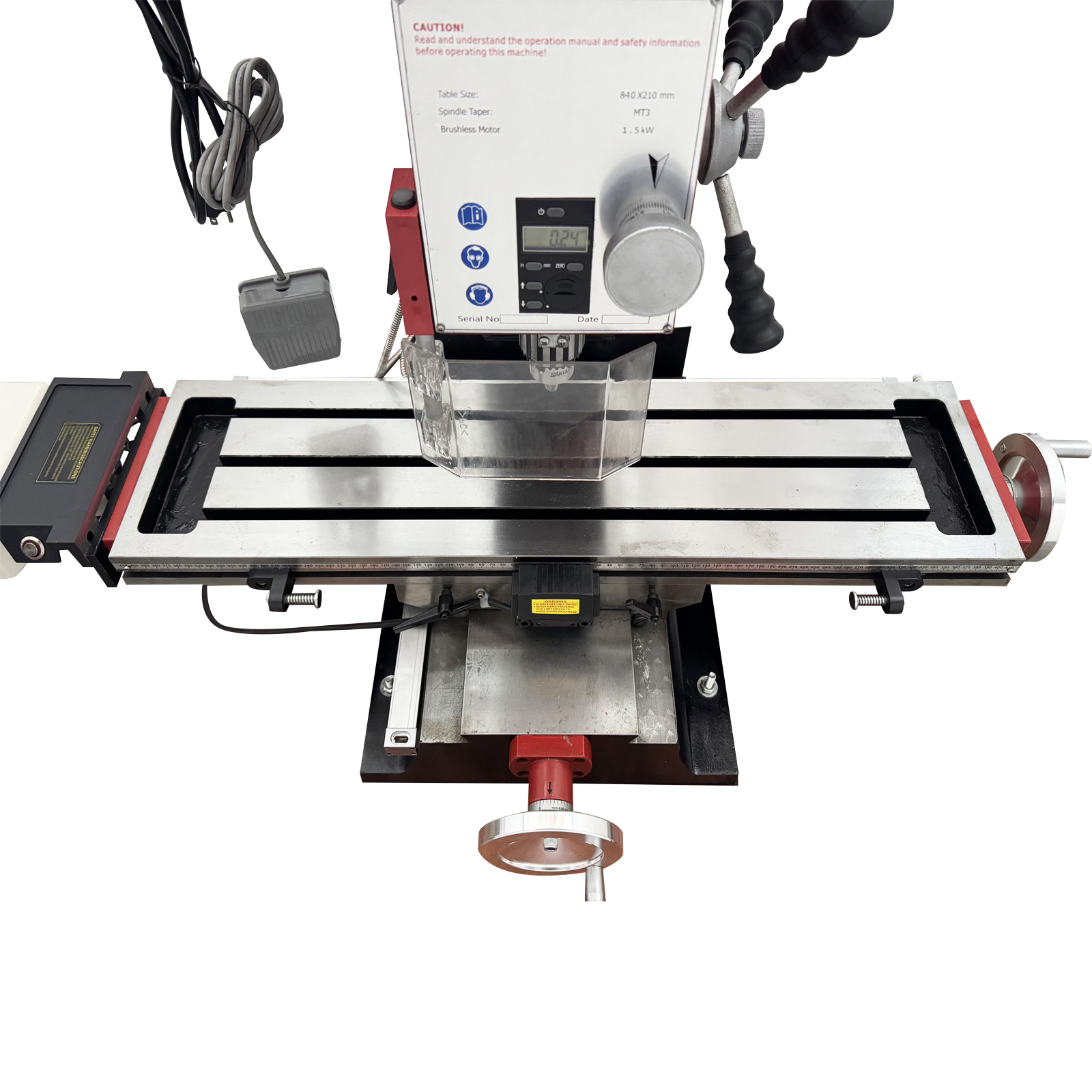

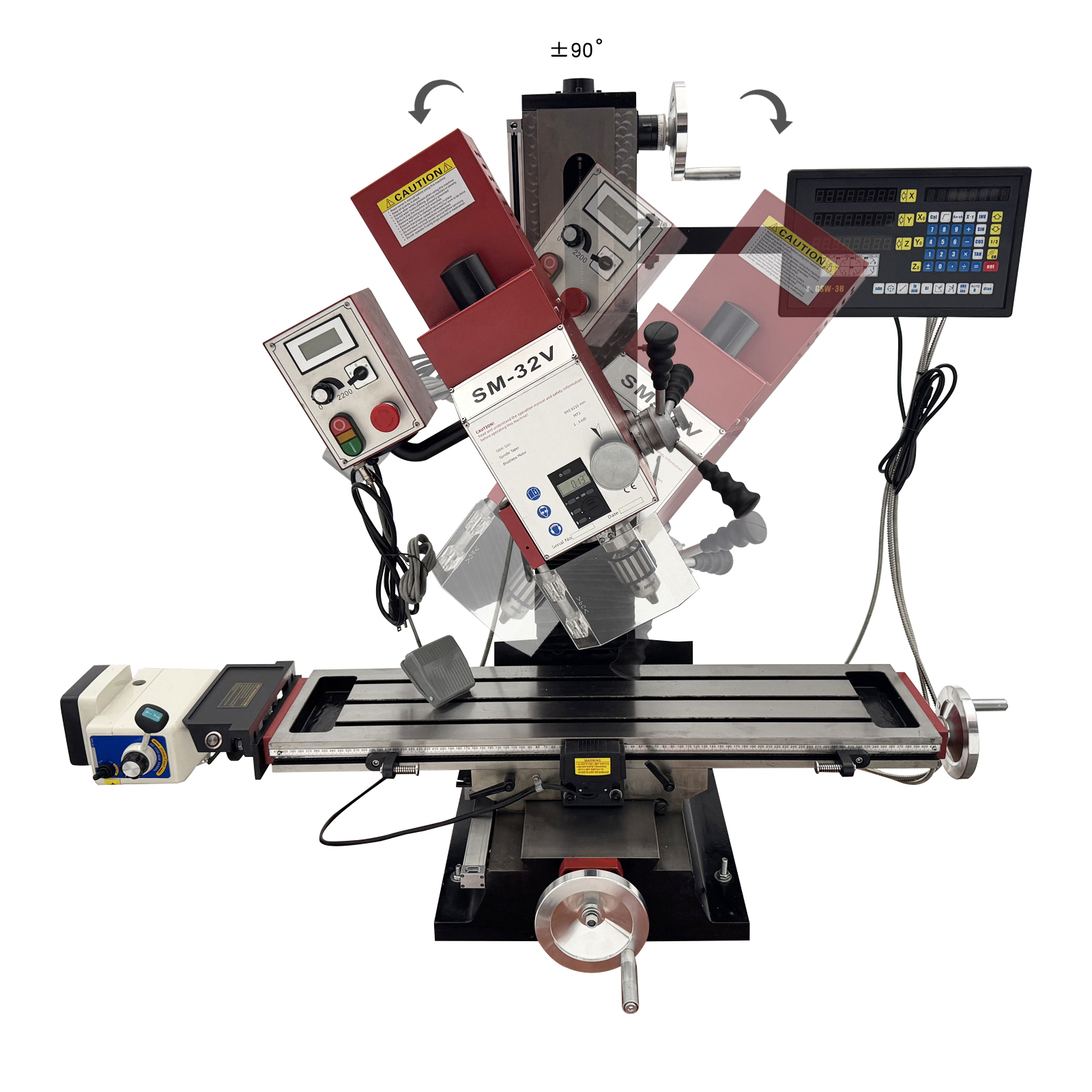

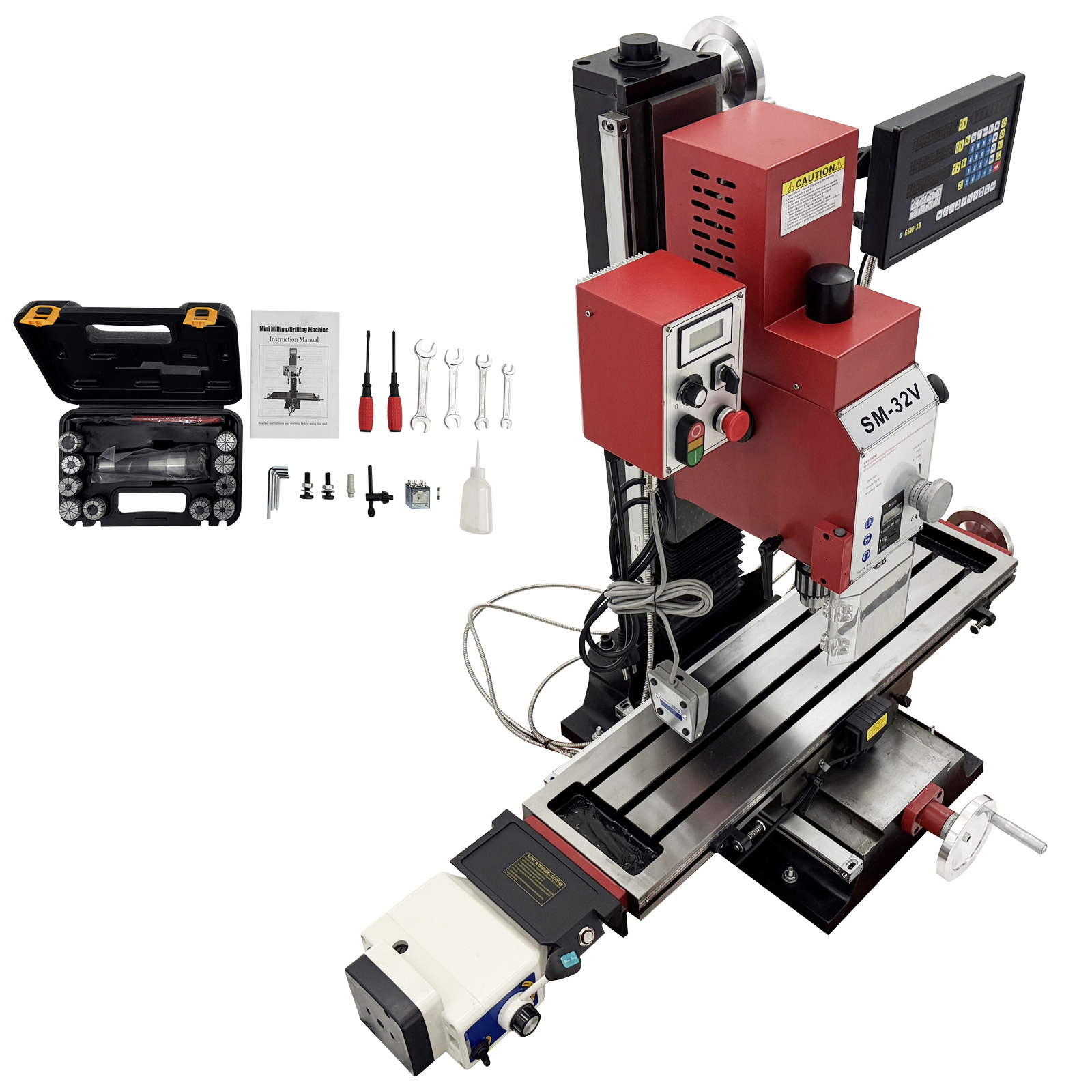

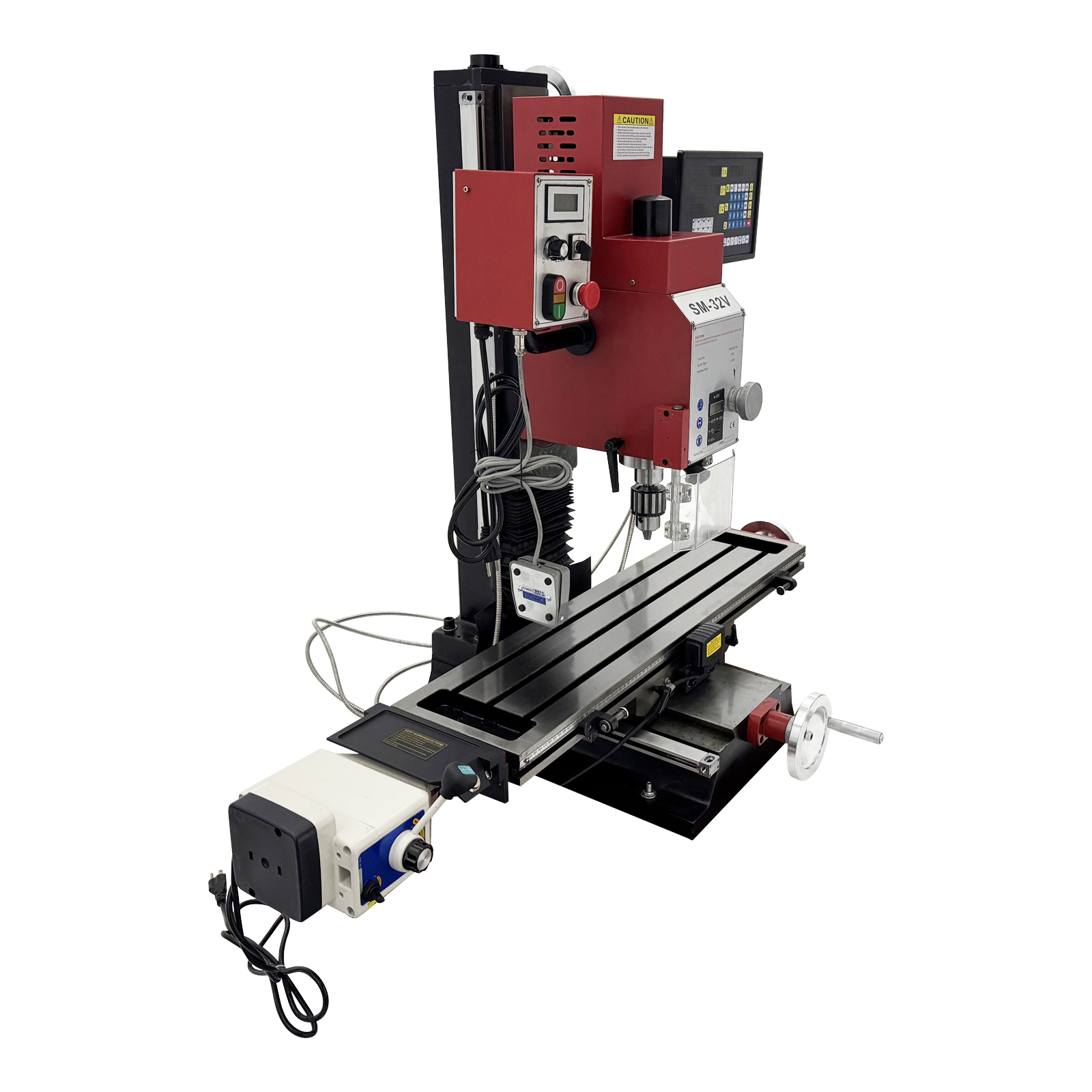

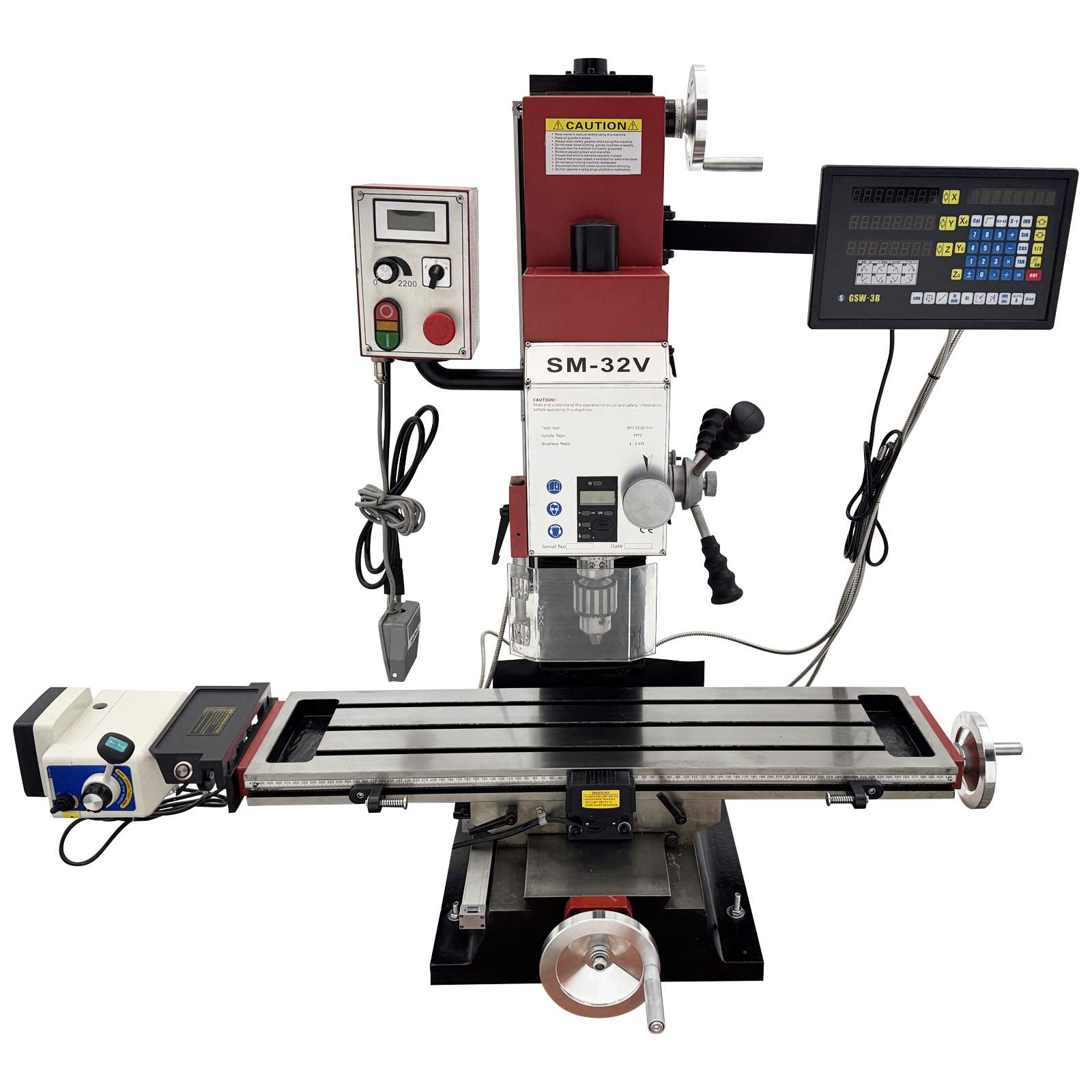

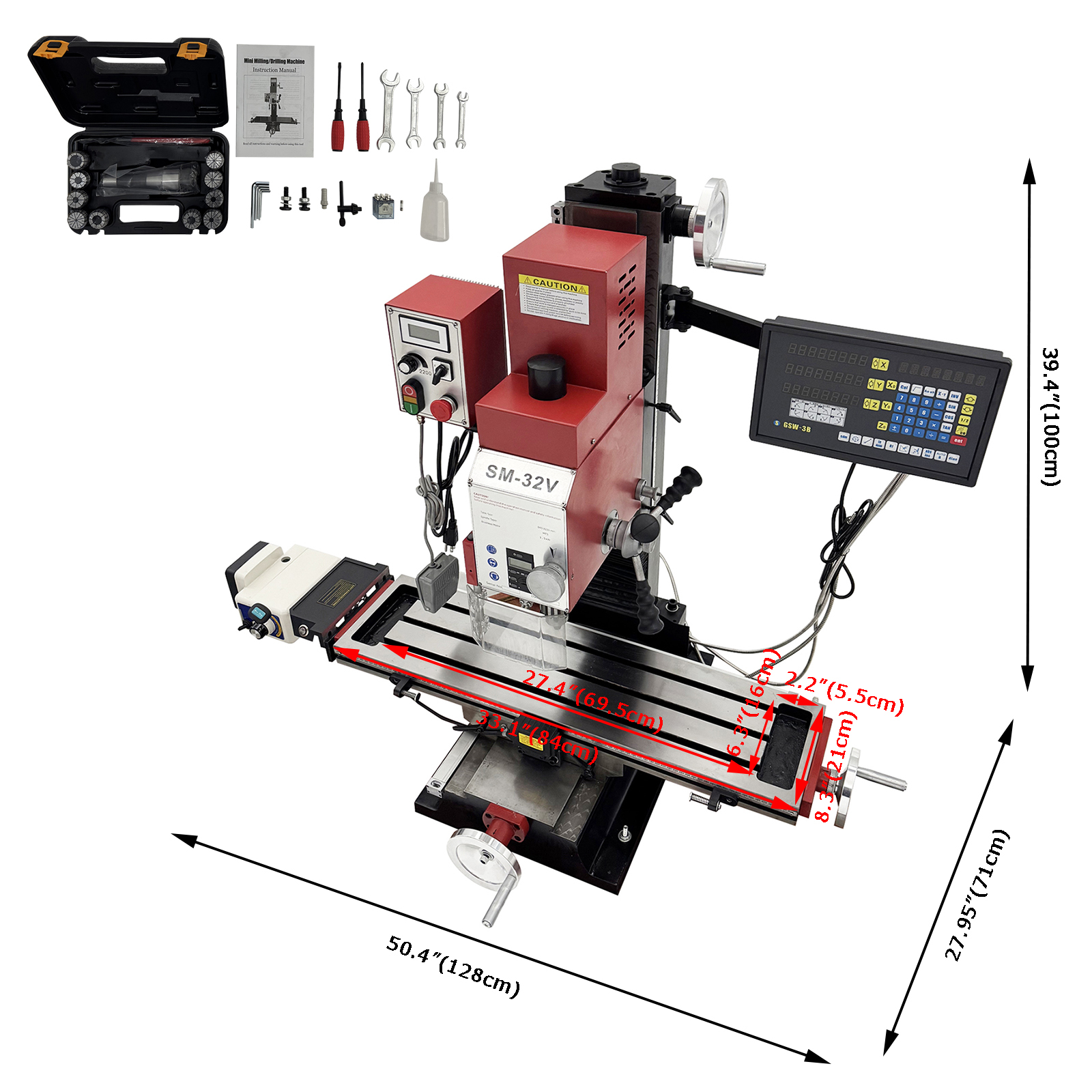

1500W SM-32V Brushless Precision Milling and Drilling Machine 110V(Including Axis X Power Feed and Three - axis Grating Ruler) Product Overview SM-32V multi-functional drilling and milling machine has rich functions, can meet the metal, wood, plastic, Buddha beads and other finishing, all copper brushless motor, strong power, simple operation, durable, high processing accuracy, is the home DIY processing of various parts of the necessary machine. Product Parameters Model: SM-32V Voltage: AC110V/60Hz Motor power: 1500W brushless motor X axis stroke: 22.4" (570mm) Y axis stroke: 8.7" (220mm) Z axis stroke: 15" (380mm) Spindle incline Angle: 90(The nose can actually rotate 360 degrees) Max. drilling diameter: 1.26" (32mm) Max. Face screening capacity: 2.95" (75mm) Max. vertical milling capacity: 1.26" (32mm) Distance from spindle to table: 15.2" (385mm) Spindle taper: R8 Spindle stroke: 2.56" (65mm) The Range of spindle speeds: 50-2250rpm Table size: 33.1"*8.3" (840mm*210mm) T groove width: 0.47" (12mm) Table slot gap width: 0.5"(13mm) Package size: 35"*31"*45.7" (89cm*78cm*116cm) Net weight/Gross weight: 465LB(211kg) / 522LB(237kg) Axis X power feed voltage: AC110V 50/60Hz Axis X power feed Power: 95W Axis X power feed speed range: 0-200rpm Grating ruler voltage: AC110V-220V 50/60Hz Grating ruler power: 10W Precision of grating ruler: 0.005mm Product Features Advantages Grating Ruler ? Equipped with a three-axis digital display grating ruler, can realize the Angle or length measurement and control. The accuracy reaches 0.005mm, greatly improve work efficiency and machining accuracy. Machine Head Tilt ? The head of the machine can be tilted to the left and to the right by loosening the fixing screws of the head of the machine. The tilt Angle range is up to 90, which is easy for drilling and milling special angles. Brushless Motor ? Motor power up to 1500W! Adopt high quality brushless motor, with overload and overheating protection function; Belt drive, high efficiency, low energy consumption, low noise; Long service life. LCD ? The rotating speed display and the drilling and milling depth display are all high-definition LCD screens, which are clearer and richer than the previous digital tube display and convenient to operate. Axis X Power Feed ? Equipped with axis X power feed, can achieve positive and reverse reversing and stepless speed regulation, running more stable, less noise; Greatly improve the machining accuracy and efficiency. Spindle Feed Handle ? Spindle micro feed locking handle, convenient manual control of drilling and milling depth, release the hand can automatically return to the starting position. Foot switch ? The machine can be controlled by foot switch, step on the foot switch can be used, user-friendly design, easy to operate.? Safety Switch ? With one key start/stop protection switch and positive/negative switch, the spindle speed can be adjusted within the range of 50-2250rpm, easy to operate, waterproof switch, safer. Wide Application ? With drilling, plane milling, milling groove, chamfering and other functions, suitable for all kinds of metal, wood and other materials fine processing. Widely used in all walks of life DIY. - Powerful function: This is a multi-functional drilling and milling machine, can complete drilling and milling operations. Also can be used for precision parts processing, sample processing and model. - Three axis grating ruler: Three axis grating ruler includes zero clear, preset, inch/metric display, relative/absolute switch, automatic sub-centers, calculator, power failure memory, RI and other functions, greatly improve the processing efficiency and accuracy! - All metal: It uses an integrated spindle and brass gear, which makes it not only precise but also durable. - Variable-Speed: Weather you need high speed or lower speed spindle operations this machine can handle it. Boasting a 50-2250 RPM spindle speed for the extreme precision your project needs. - Scale: LCD instrument display scale has metric and imperial system, other dials are metric scale. Product Presentation Details Item Included(028365) Drilling and milling machine *1 Axis X power feed *1 Grating ruler *1 Milling chuck set *1 Straight screwdriver *1 Cross screwdriver *1 Fork wrench *4 Hexagon wrench *5 Drill chuck wrench *1 Oil can *1 English manual *1 Fuse *1 Relay *1 ? ? You can make order with no worry. Any concern just feel free to let us know, we'll reply in 24 hours in normal condition. Handling Time: Shipping is usually made in 1-3 business days after payments cleared. Orders are processed from Monday-Friday; Not on the weekends public holidays. Warranty: 6 months' warranty for the machines, not for the consumables. We stand behind our products all the item, so even if your warranty period has expired, you can still seek for service or technical support from us with low cost.
