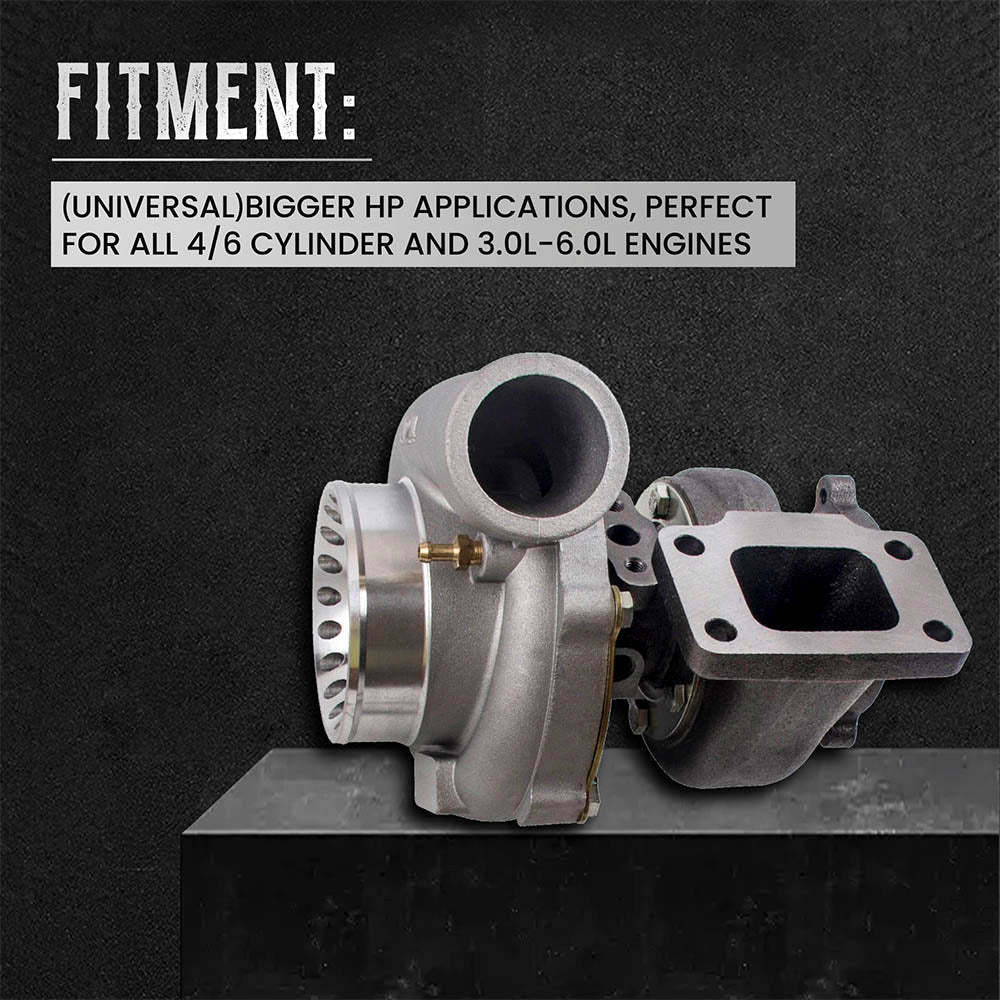

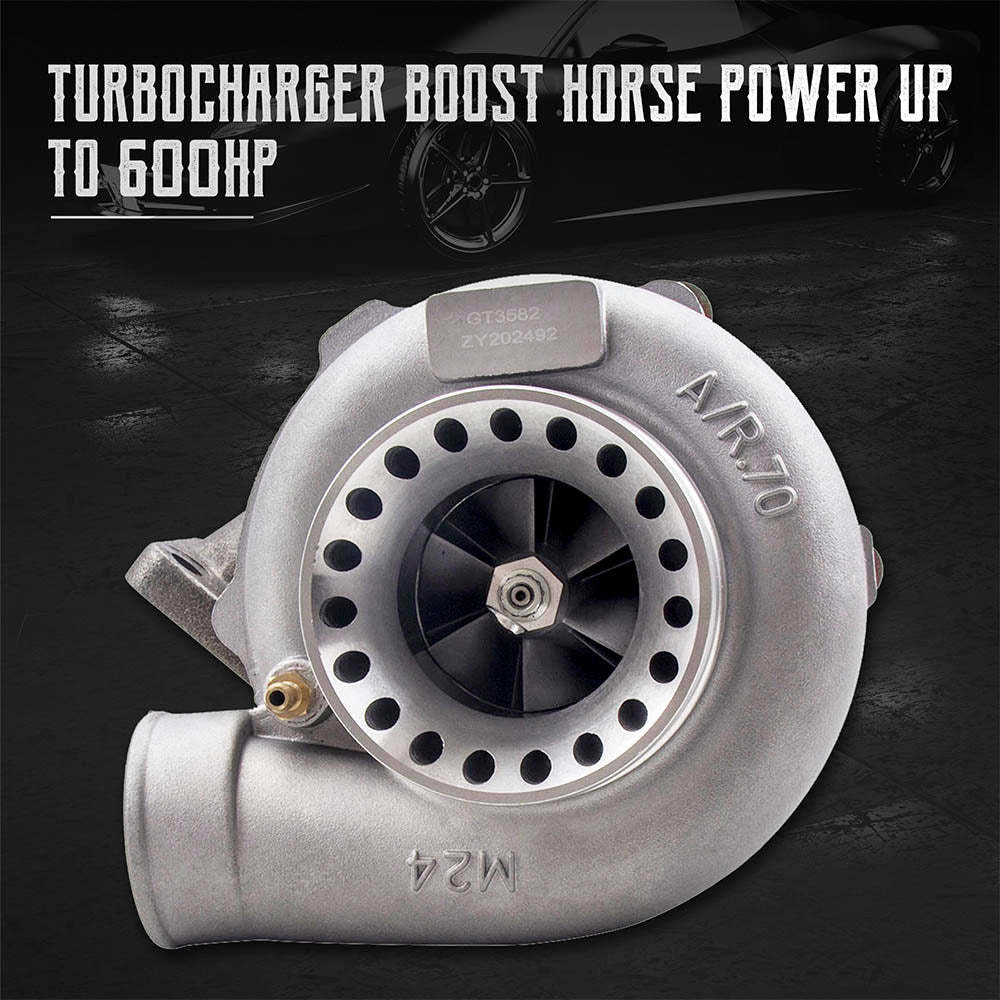

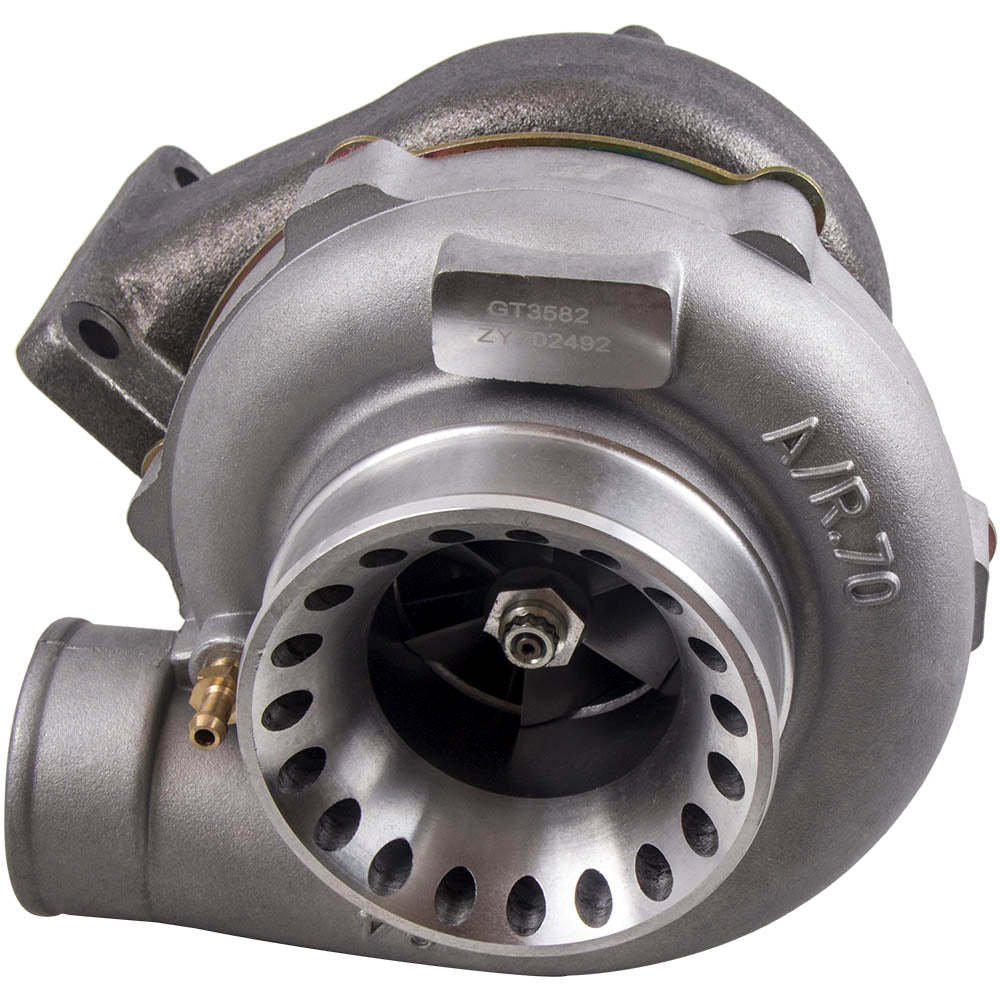

Application? Perfect for all 4/6 cylinder and 2.5L-6.0L engines Horse Power: Capable of Boosting Horse Power up to 600HP Features? Exhaust (Turbo Manifold) Flange?T3 Flange Exhaust (Downpipe) Flange?4 Bolt Wastegate?External Wastegate Bearing Type: Wet Float Compressor? Compressor Trim?56.9 Inducer Diameter?61.5 mm Exducer Diameter?81.5 mm Compressor A/R?0.7 Turbine? Turbine Trim?84.2 Inducer Diameter?68 mm Exducer Diameter?62.4 mm Turbine A/R?0.63 Compress Inlet Size(Air intake): 4 inch (103.5mm) Compressor Outlet Size: 2.5 inch (63.6mm) Wastegate?External Wastegate Oil feed/inlet: M10*7/16-24 Oil drian/outlet: 2*M8*1.25 water inlet/outlet: M14* 1.5 Maximum PSI?22 Product Material: 1. Turbine housing ?Ductile iron QT450-10 shell with high-temperature resistance up to 700 degrees Celsius 2. Steel Turbine Wheel?Made from the special K418 alloy to achieve high oxidation resistance and stability under high temperatures up to 900 degrees Celsius 3. Compressor housing?ZL104 aluminum 4. compressor wheel/blades?Cast aluminium with good gas tightness and corrosion resistance 5. Max HP? UP to 600hp Condition: 100% Brand New Warranty?2 Years Accessories: You will get exactly as shown in the picture above NOTE: * Professional installation is highly recommended *This Turbo is not vehicle specific. It is compatible with a wide range of applications therefore Please review the specifications and verify compatibility prior to placing your order. * For any needs please contact us Notice: * Replace, repair or reconnect air cleaner element per manufacturer's manual to avoid compressor wheel damage. * Make sure the oil drain line is lower than the turbo itself. * Gasoline car must install a water cooling device to avoid overheating. * Ensure exhaust outlet are well sealed by welding. * To protect the turbochager and your car engine, Air filter is necessary. NOTE? Lacking of oil will casue turbocharger shaft play and damage , please adjust your oil pressure make sure turbochager is fully lubricated.
