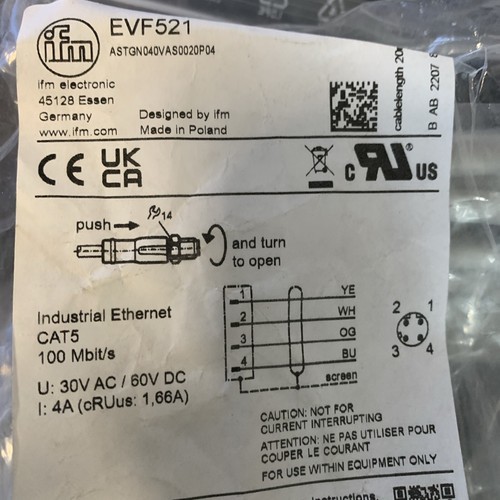

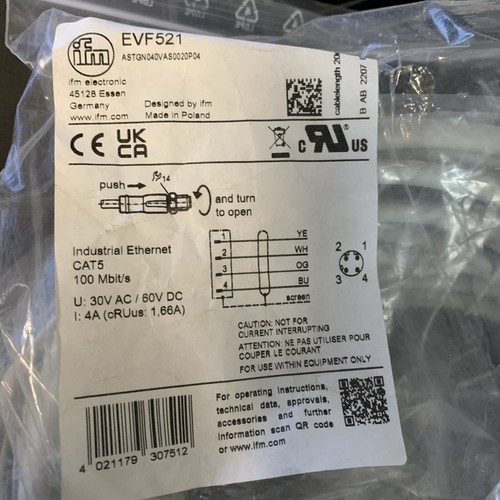

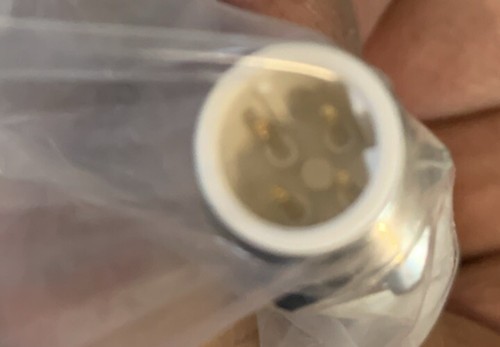

For use in sanitary and wet areas in the food industry Cable jacket made of halogen-free and flame-retardant material With robust M12 connector Industrial Ethernet Wide operating temperature range and high protection rating Shielded cable for good electromagnetic immunity System Free from silicone; Halogen-free; gold-plated contacts; screened cable; Drag chain suitability Design Ethernet cable, D-coded Application Industrial Ethernet; CAT5/CAT5e; 100 Mbit/s; sanitary and wet areas in the food industry Free from silicone yes Electrical data Operating voltage[V] 30 AC / 60 DC Protection class III Max. current load total[A] 4 Overall current rating (UL)[A] 1.66 Operating conditions Ambient temperature[C] -25...100 Note on ambient temperature cRUus: ...65 C Ambient temperature (moving)[C] 0...80 Note on ambient temperature (moving) cRUus: ...65 C Protection IP 65; IP 67; IP 68; IP 69K Mechanical data Weight[g] 1264.8 Dimensions[mm] 15.5 x 15.5 x 51.5 Molded-body material PP, Halogen-free Material nut stainless steel (1.4404 / 316L) Drag chain suitability yes Drag chain suitability Bending radius for flexible applications min. 15 x cable diameter Travel speed max. 3.3 m/s for a horizontal travel length of 5 m and max. acceleration of 5 m/s Bending cycles 1 Mio. Torsional strain 180 /m Remarks Pack quantity 1 pcs. Electrical connection - plug Connector: 1 x M12, straight; coding: D; Moulded body: PP, Halogen-free; Locking: stainless steel (1.4404 / 316L); Contacts: gold-plated; Tightening torque: 0.6...1.2 Nm; Shielded connection cable: shield connected
