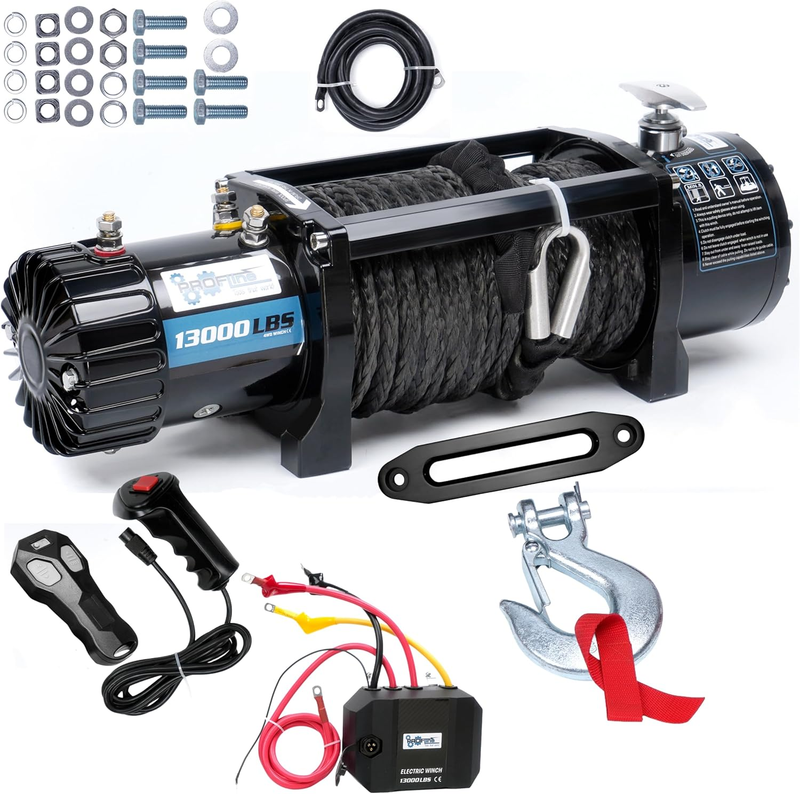

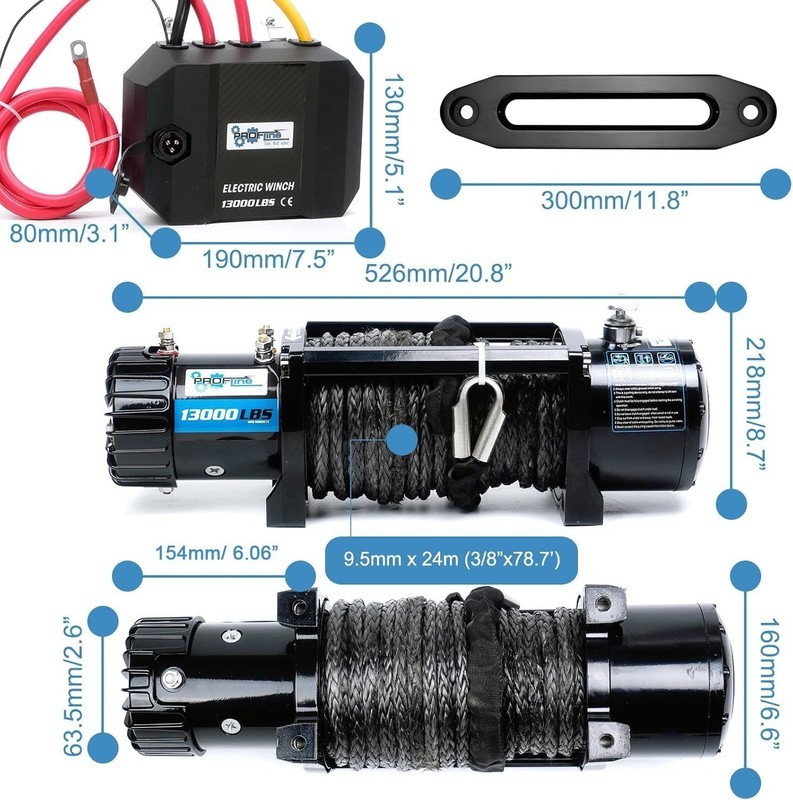

Fast Shipping On All Items 30 Days Money Guarantee Customer Support Excellent Service 100% Satisfaction Satisfaction Guaranteed We ship to US territories and worldwide. Please contact us if you have any special shipping instructions. Electric Winch 13000 Lbs ATV Winch 12V with Synthetic Rope and Hook Truck Winch with Hawse Fairlead Remote Control for Towing UTV SUV off Road Vehicle Specification Item model number EWR13000 Part Number EWR13000 Batteries Required? No Power Source DC Item Package Quantity 1 Product Dimensions 23.62 x 13.39 x 9.96 inches Material Metal Item Weight 56.9 pounds Batteries Included? No Voltage 12 Volts (DC) Wattage 4.8 KW Horsepower 6.4 hp Size 13000 LBS Size Name 13000 LBS Manufacturer PROFLine 13.39 inches x 23.62 inches x 9.96 inches. Weight: 56.9 lb ?STRONG POWER?: The DC 12V electric motor with its 6.4 HP / 4.8 KW output power provides 13000 lbs loading capacity. The configuration of 3-stage planetary gear train and the gear ratio of 265 : 1 makes the offroad vehicle winch generate stable traction force to pull your stuck vehicle. ?EXCEPTIONAL DESIGN?: The synthetic rope winch is additionally provided with a remote control of 100 ft. signal range for your manipulation at a safe distance from the running ATV winch. The traction winch with synthetic rope fits all vehicles quite well and is easy to install with our attached accessories. The IP67 rating and spray paint make the electric ATV winch waterproof and dustproof, thus ensuring a long lifetime. ?CHOSEN MATERIAL?: The DC winch is provided with a 12-strands braided rope with high tensile strength. The clevis hook is forged with our frosting process to prevent the winch for truck from rusting and corroding. The pure copper motor and 500A solenoid valve are all our dedication to this 12V winch. ?OUTSTANDING PERFORMANCE?: This UTV winch with remote control is well adapted to tow your stuck boat, ATV, SUV, 4wd and off-road vehicle in muddy, rainy, snowy and/or slippery conditions? ?REASSURING WARRANTY?: All the electric trailer winches have been factory inspected. We promise a 1-year limited warranty and lifetime technical supports. Your perplexities about our 12 volt winches will be solved with our specialization and great willingness. Product Description PROFLine 13000 LBS Electric ATV Winch Save your vehicle from being stuck The 13000 lbs. strong power with the IP67 waterproof rated design prevents the intrusion of water and sands, making you free of the anxiety of being trapped in any complex road conditions. NOTE: Do not exceed the maximum line pull rating. Do not use the winch to carry out lifting, supporting or otherwise transporting operation. Leave at least five full turns of wire rope on the drum. Package List: 1 Electric Winch with Synthetic Rope 1 Forged hook 1 Control Box 1 Wired Handlebar Switch 1 Hawse Fairlead 1 Black Lead Wire 1 Wireless Remote Control 1 Hardware Pack and User Manual Specification of PROFLine 13000 lbs. ATV/UTV Winch Motor 12V DC 6.4 HP/4.8 KW series wound Rope Size 3/8" 78.7' (9.5 mm 24m) Gear Ratio 265:1 Line Speed 4.1 fpm (1.25 mpm) Amp Draw 415(@ 12V) Duty Cycle Rating 5% (45 sec. at Max. rated load; 14 min, 15 sec. rest) Waterproof Rating IP67 Gear Train 3-stage planetary Fairlead Aluminium fairlead Drum 2.6" 9.6" How to connect? NOTE: To put the electric winch into operation, please make sure that the clutch is in the engageed state. 1. Connect the short red wire of the control box to the red terminal of the motor. 2. Connect the yelllow wire of the control box to the yelllow terminal of the motor. 3. Connect the thick black wire of the control box to the black terminal of the motor. 4. Connect the thin black wire of the control box to the bottom terminal of the motor. 5. Connect the long red wire of the control box to the positive (+) terminal of battery. 6. Connect one terminal of the attached long black wire to the bottom terminal of the motor, and connect the other terminal of the attached long black wire to the negative (-) terminal of battery. MOTOR 12V DC 6.4HP/4.8KW series wound motor, combined with the 3-stage planetary, provides unparalleled efficient power output. DUAL CONTROL Wireless remote control and handlebar switch offer you dual choices to manipulate the winch under different situations. SYNTHETIC ROPE Antiabrasive, high tensile and antifatigue synthetic materials ensure the 24m rope output consistent strong pulling power. ALL NECESSARY ACCESSORIES In addition to the main parts, such as the rope, hook and control box, all the complete accessories have been attached, so as to provide you with all the convenience. SHIPPING . We ship to US territories and worldwide. Please contact us if you have any special shipping instructions. Return Policy ? We guarantee against any defective or misrepresented products. The original shipping label must be sent back to us to validate the return. A full refund can only be issued during the first 30 days upon receipt of the product. ? Returns will be voided if the product is mishandled or physical damaged by customer. ? Buyer will be responsible for all kind of return shipping/shipment to the seller for resolving the problem. ? Returns made for all non-defective, undamaged products are subject to a 15% restocking fee. Shipping and handling fees are absolutely non-refundable. If an item is returned to us due to an address issue, we do charge a reshipping fee to reship. If you would like a refund, there will be a 15% restocking fee applied. ? All returned products need to be assigned an RMA # (Return Merchandise Authorization #) prior to return. Please contact us through's messaging system to obtain an RMA# for the return. Any returned product without an RMA # on package will not be accepted or processed. ? Please contact us before returning. Feedback ? We appreciate your feedback and our system will automatically leave feedback for you after bid ends. ? Please contact us through message center if you have any problems, we will always try our best for 100% customer satisfaction. Payment Options Shop With Confidence
