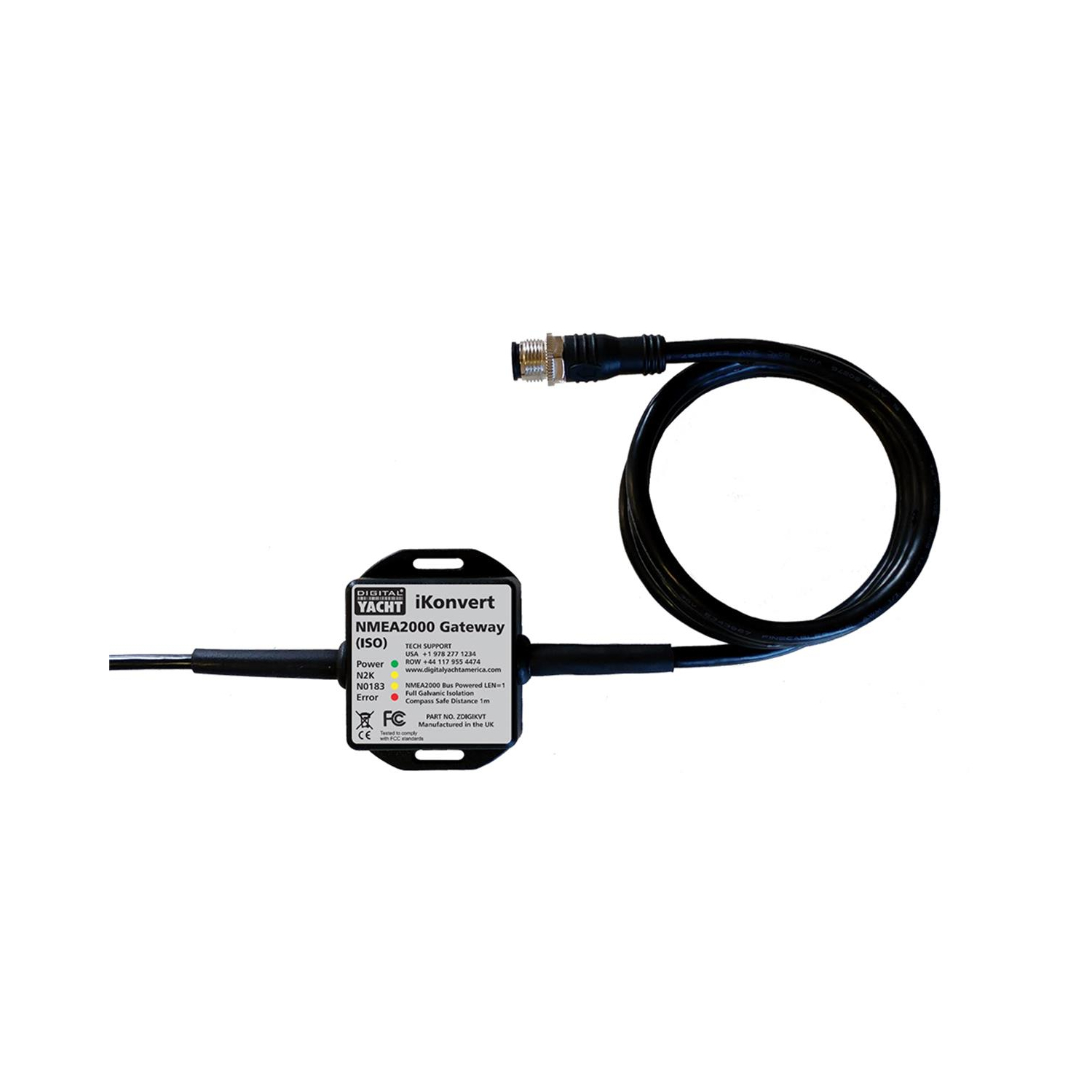

Digital Yacht ZDIGIKVT iKonvert NMEA 2000 Gateway with ISO Interface The iKonvert NMEA2000-0183 Gateway Converter is an intelligent and flexible gateway for allowing software applications to read write NMEA2000 data, either as RAW binary PGN data for ultimate analysis and control or converted to the older and more commonly supported NMEA0183 data. Every popular Marine Navigation application that runs on PC MAC LINUX computers, can read NMEA0183 data and for all of those programs, iKonvert provides a simple, reliable and cost effective way to access the navigation data on an NMEA2000 network. Simply set the DIP switches inside iKonvert to the required data mode that you want to use and iKonvert will extract the selected data from the NMEA2000 network and provide them to your marine application in a format and at a baud rate they support. A number of modes have already been defined including; Heading, Sounder, AIS, GPS, Wind, Instruments and an all data gateway mode, which automatically sets the conversions to be done and the baud rate iKonvert will use. What is more, if you need a mode that we have not defined yet, just let us know and we will consider including it. Digital Yacht's iKonvert Gateway is housed in a compact and easy to mount housing, with an integral NMEA0183 cable and standard NMEA2000 Micro drop cable (male). Taking its power from the NMEA2000 network, and providing full galvanic isolation between the NMEA0183 and NMEA2000 networks, iKonvert is the perfect solution for all NMEA conversions. For customers that want to take this converted data in to a computer, please consider the iKonvert USB gateway, that features an integral USB cable that is compatible with all of the popular operating systems (Windows/Mac/LINUX/Android). Features Small but powerful bi-directional NMEA2000 to NMEA0183 Converter Powered from the NMEA2000 network Opto Isolated NMEA0183 Interface Converts AIS, GPS, Navigation, Instrument and XDR data Features Real Life data modes for most common installations Simple configuration of data modes using DIP switches Integral NMEA0183 cable and NMEA2000 Micro (Male) cables Full galvanic isolation Specifications Weight: 0.4 lbs
