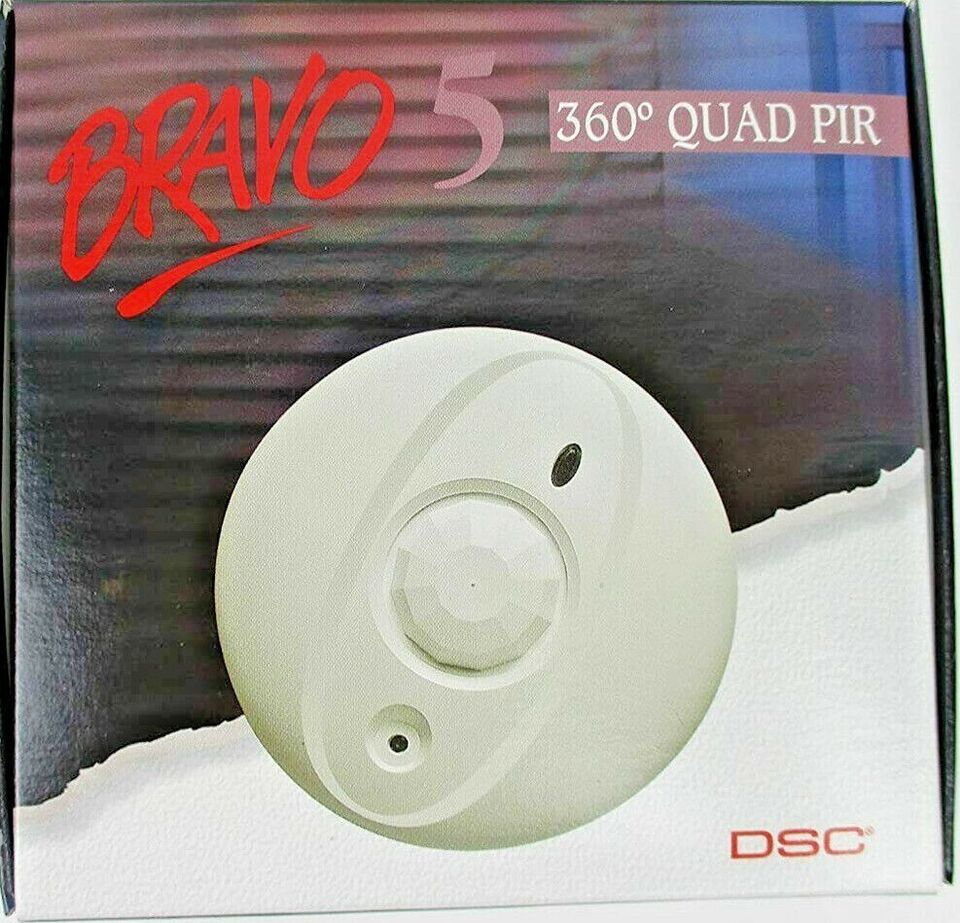

DSC BV-500 Bravo 5 360 Ceiling-Mount PIR Motion Detector, Form 'A' Alarm Contact
DSC's Bravo 5 is a standard passive infrared motion that is ceiling mounted and offers a 360 degree detection pattern. False alarm immunity against RF, static and electrical transient. Ceiling must be flat in order to provide proper detection pattern. Detection pattern varies according to ceiling height. Maximum 12 ft. ceiling height mounting
Specifications:
Electrical
Input Voltage
9 - 14.5 VDC
Current (nominal)
18 /15 mA (alarm on/off) @12 VDC
Contact Rating
Alarm Relay
0.1A @24VDC
Tamper Switch
0.1A @24VDC
Size (diameter x height)
4.6" x 1.4" / 117 mm x 36 mm
Operation
Maximum detection range (diameter)
Detector placed 8 ft./ 2.4 m from floor: 24 ft./ 7.3 m
Detector placed 10 ft./ 3.0 m from floor: 30 ft./ 9.2 m
Detector placed 12 ft./ 3.6 m from floor: 40 ft./ 12.2 m
Additional operating modes
LED ON/OFF Jumper J1
Pulse count (fast/slow) Jumper J2, J2 ON is fast count.
Environmental/Immunity
RF Immunity
20V/m ( 100Hz - 1.2GHz)
Transients @ wiring terminal
2.4KV @ 1.2joules
Operating temperature
32 -122F / 0 - 50C
Humidity
5 - 95% RH non-condensing
