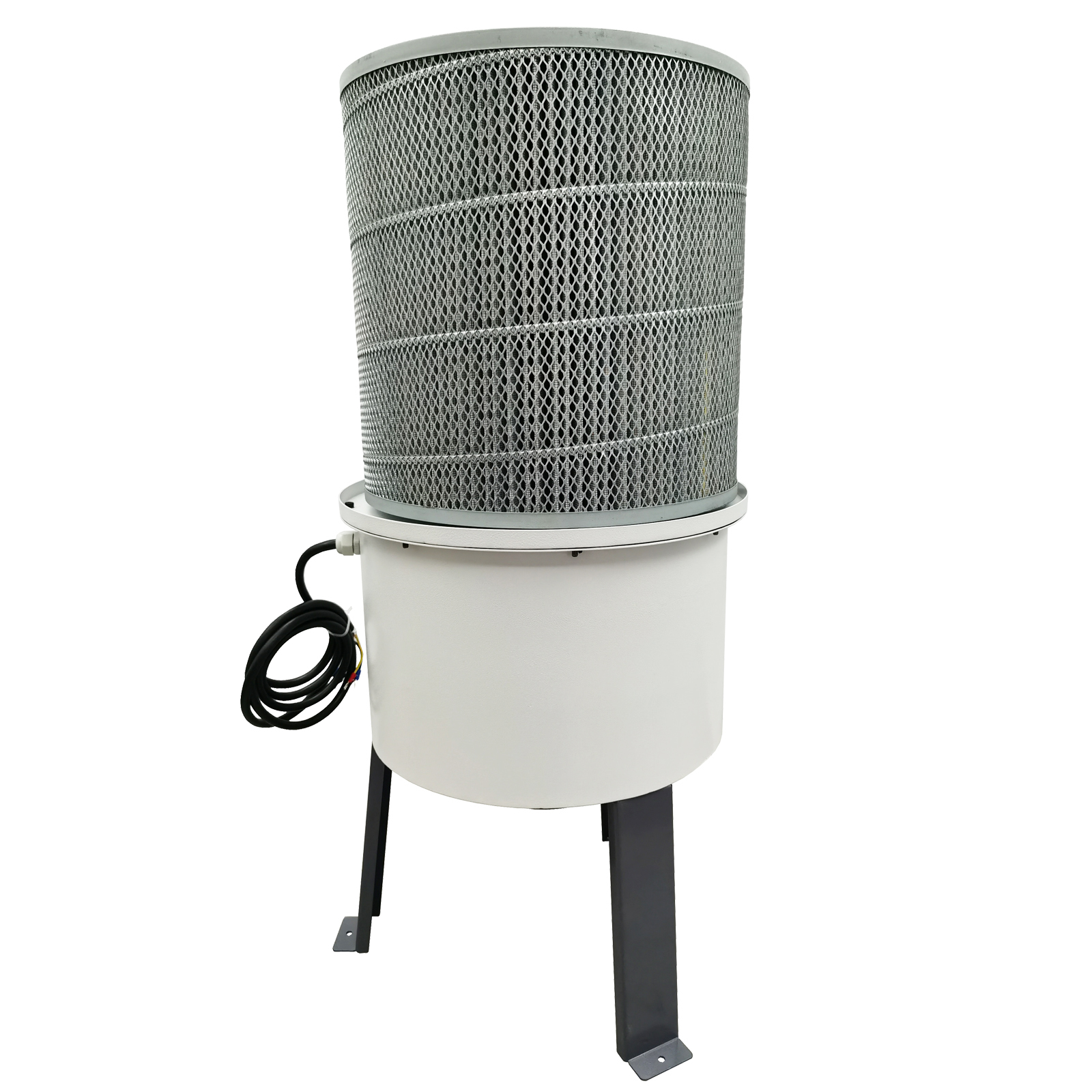

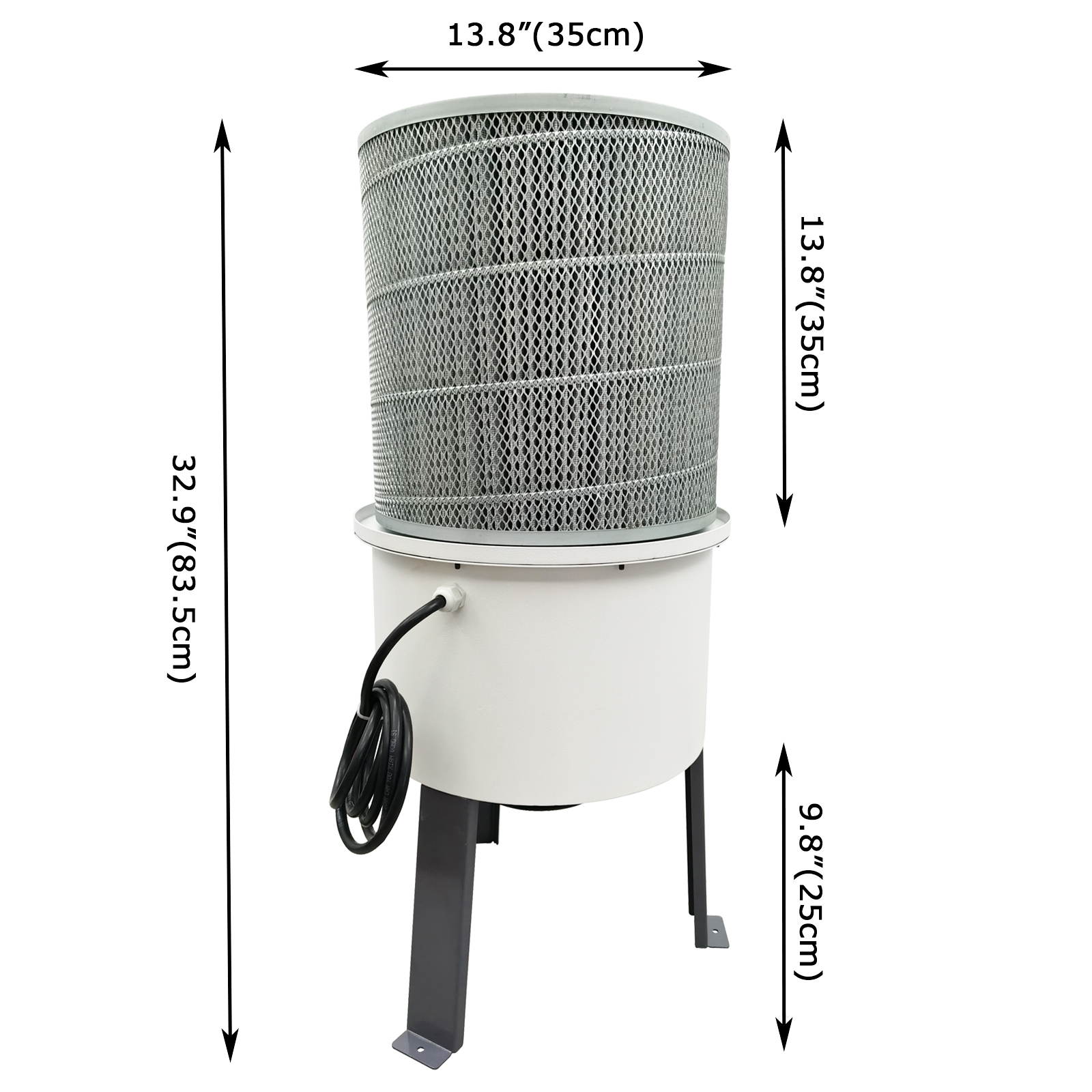

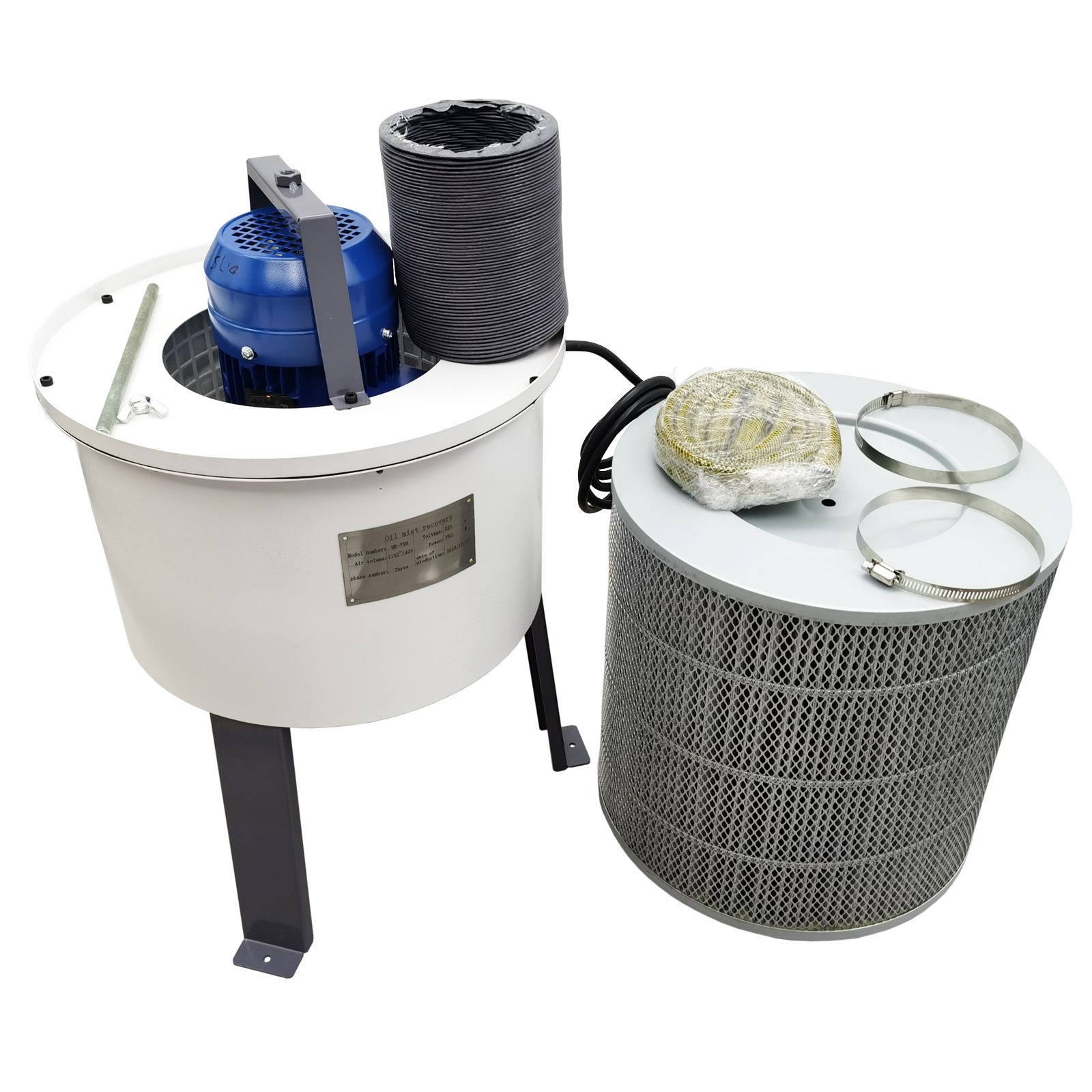

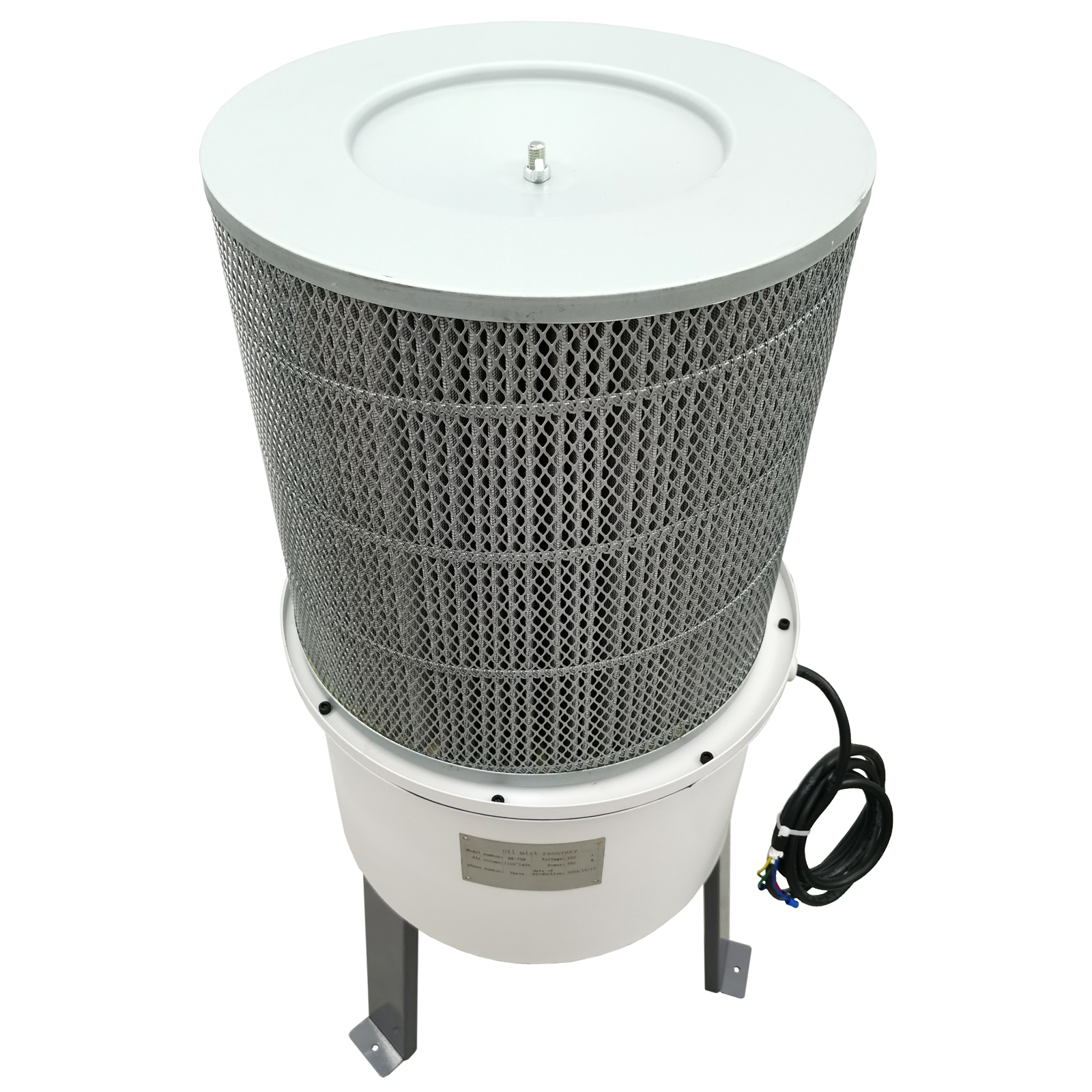

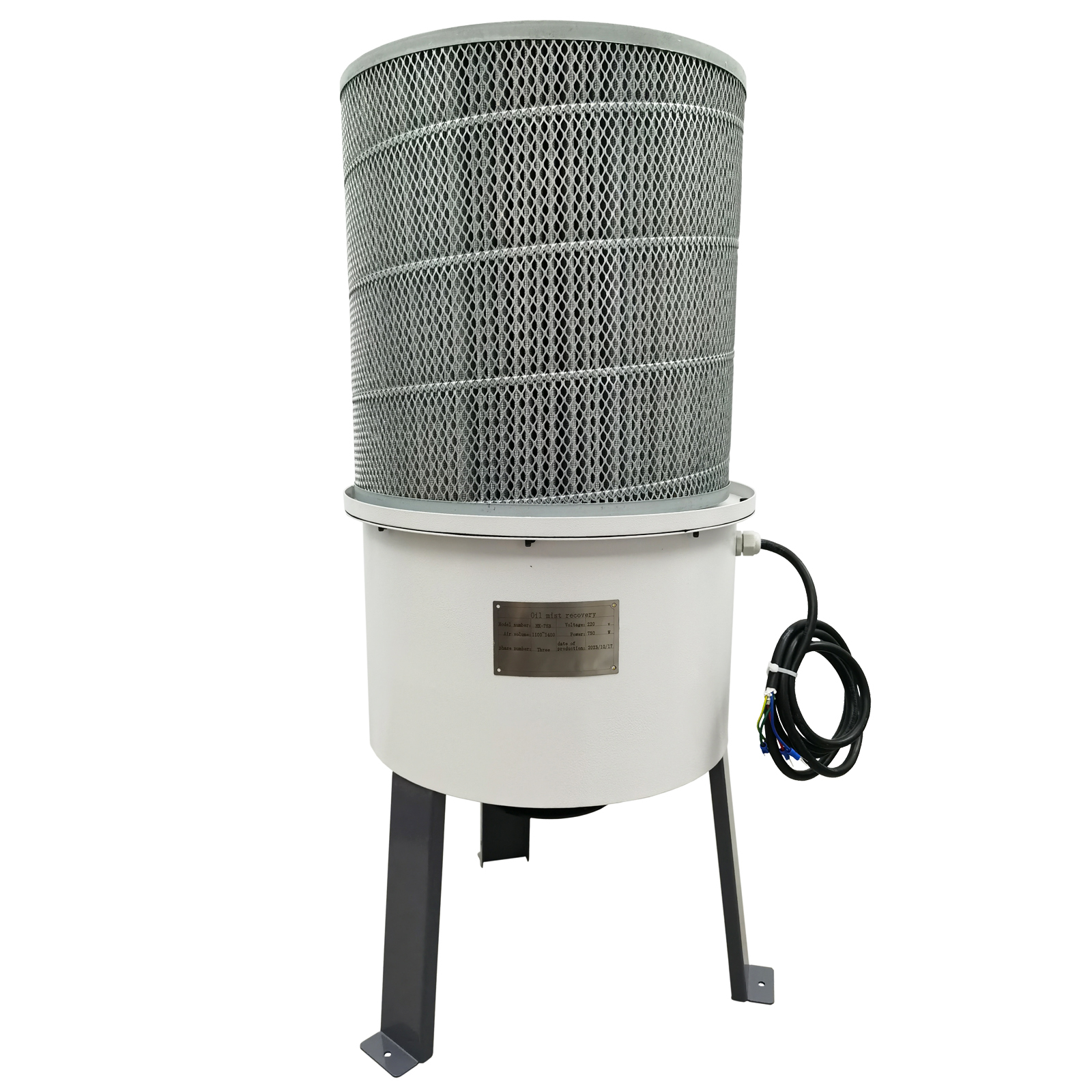

220V 3PH 1HP CNC Machine Tool Processing Center Oil Mist Collector Industrial Soot Purifier 650-824CFM Product Overview Oil mist purifier is a professional equipment installed in CNC machining centers, grinding machines, lathes and other kinds of machine tools to collect and purify environmental pollutants such as oil mist, water mist and dust produced by mechanical processing. It can reduce the influence of oil fog on the control system of the machine tool circuit system and reduce the maintenance cost of the machine tool. Protect the physical and mental health of employees and reduce the occurrence of occupational diseases. Product Parameters Model: HK-75B Voltage: 220V Three-phase Power: 1HP (750W) Air volume: 650-824CFM (1100-1400m/h) Suction caliber: 4.3" (110mm) Noise value: 62-65dbA Applicable area: 2m Filtration efficiency: 99%; 0.2um or more Package size: PART1: 22.8"*15.7"*19" (58cm*40cm*48cm) PART2: 18"*17.8"*17" (46cm*45cm*43cm) Net weight/Gross weight: 48.5LBS(22kg) / 55.5LBS(25.2kg) Wiring Diagram Product Features Advantages 1.Filter element: Efficient filter element and precision air filter material are used to effectively deal with oil mist, water mist, smoke, dust odor and harmful gases. Effective adsorption of particles above 0.02um, filtration efficiency of 99%. ? 2.Oil return port: There is a design of oil return port at the bottom, the oil separated from the oil return port is discharged through the oil discharge port, and the collected oil mist can be reused. 3.Air duct: The air duct is connected here, and the polluted air received around the machine tool is sucked into the pretreatment chamber at the bottom of the product for pretreatment. 4.High safety: No exposed power, safer use; High efficiency and energy saving pure copper motor, strong power, good heat dissipation, low noise, long service life, durable. ? - The turbine design is designed to effectively avoid dust deposition on the surface, while ensuring that vibration problems can be avoided even if there are a large number of pollutant particles. - Small size, save installation space; Suitable for all kinds of small machine tool top mounting. - The filter cotton has a longer life, simple and convenient maintenance, and lower consumable cost. - Low decibels and high frequency make you feel more comfortable working environment. - Multi-layer high-performance filter cotton can intercept and capture the smallest particulate pollutants, preventing pollutants from re-release and diffusion in the workshop. - Rapid purification, separation and recovery of oil mist and water mist produced in the work of machine tools and equipment, and re-sending the purified air into the workshop to improve the air environment. Product Presentation Details ? Item Included(056787) Oil mist purifier *1 You can make order with no worry. Any concern just feel free to let us know, we'll reply in 24 hours in normal condition. Handling Time: Shipping is usually made in 1-3 business days after payments cleared. Orders are processed from Monday-Friday; Not on the weekends public holidays. Warranty: 6 months' warranty for the machines, not for the consumables. We stand behind our products all the item, so even if your warranty period has expired, you can still seek for service or technical support from us with low cost.
