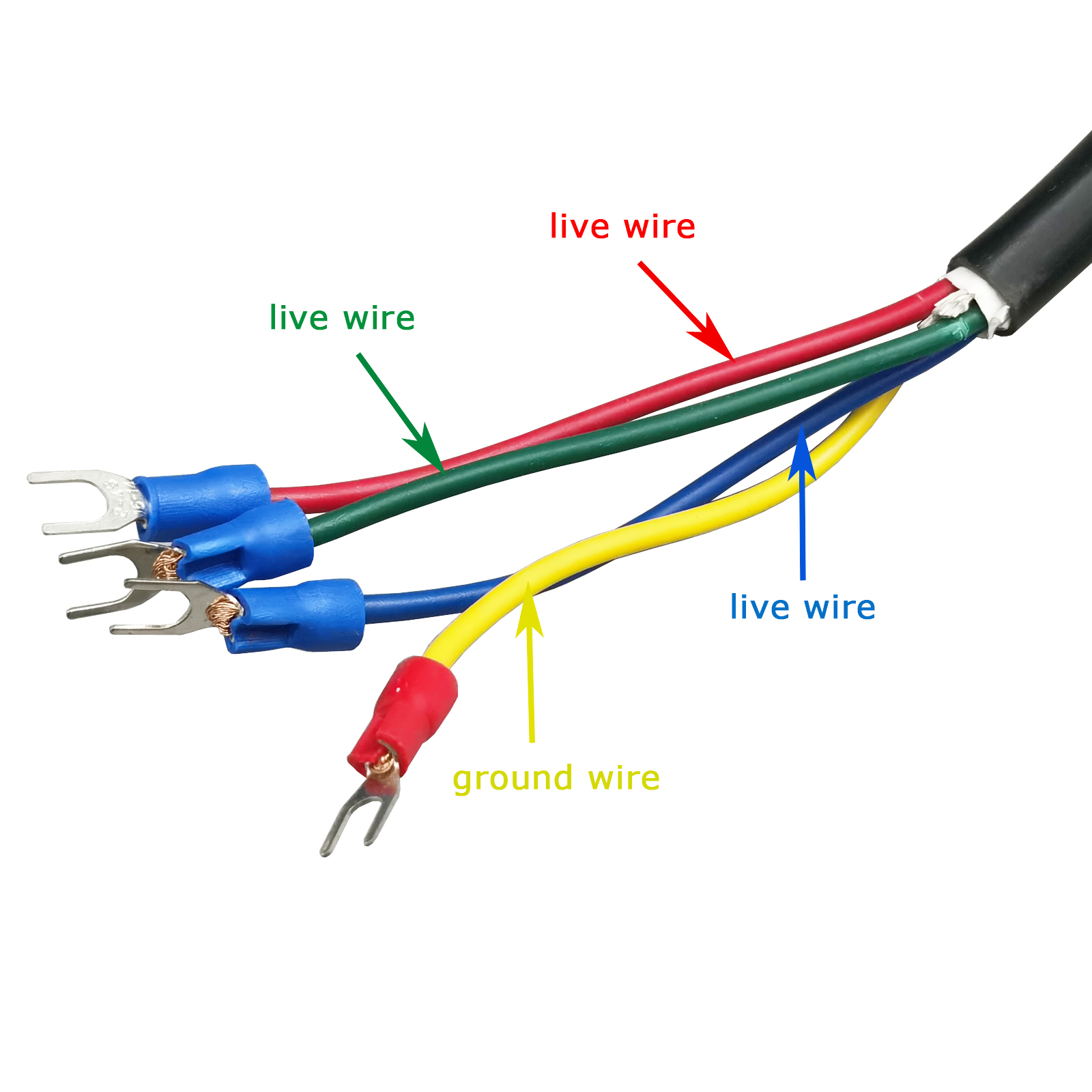

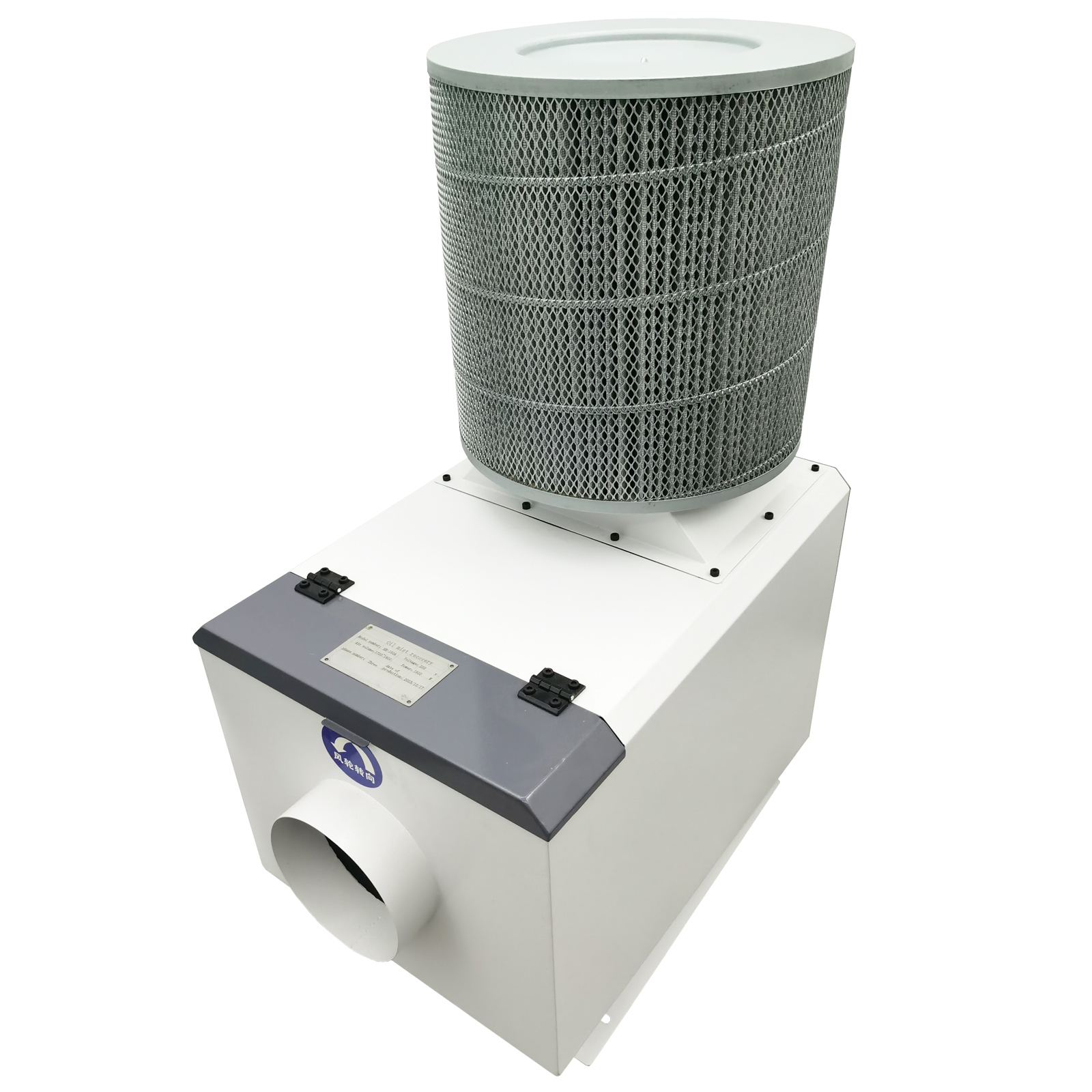

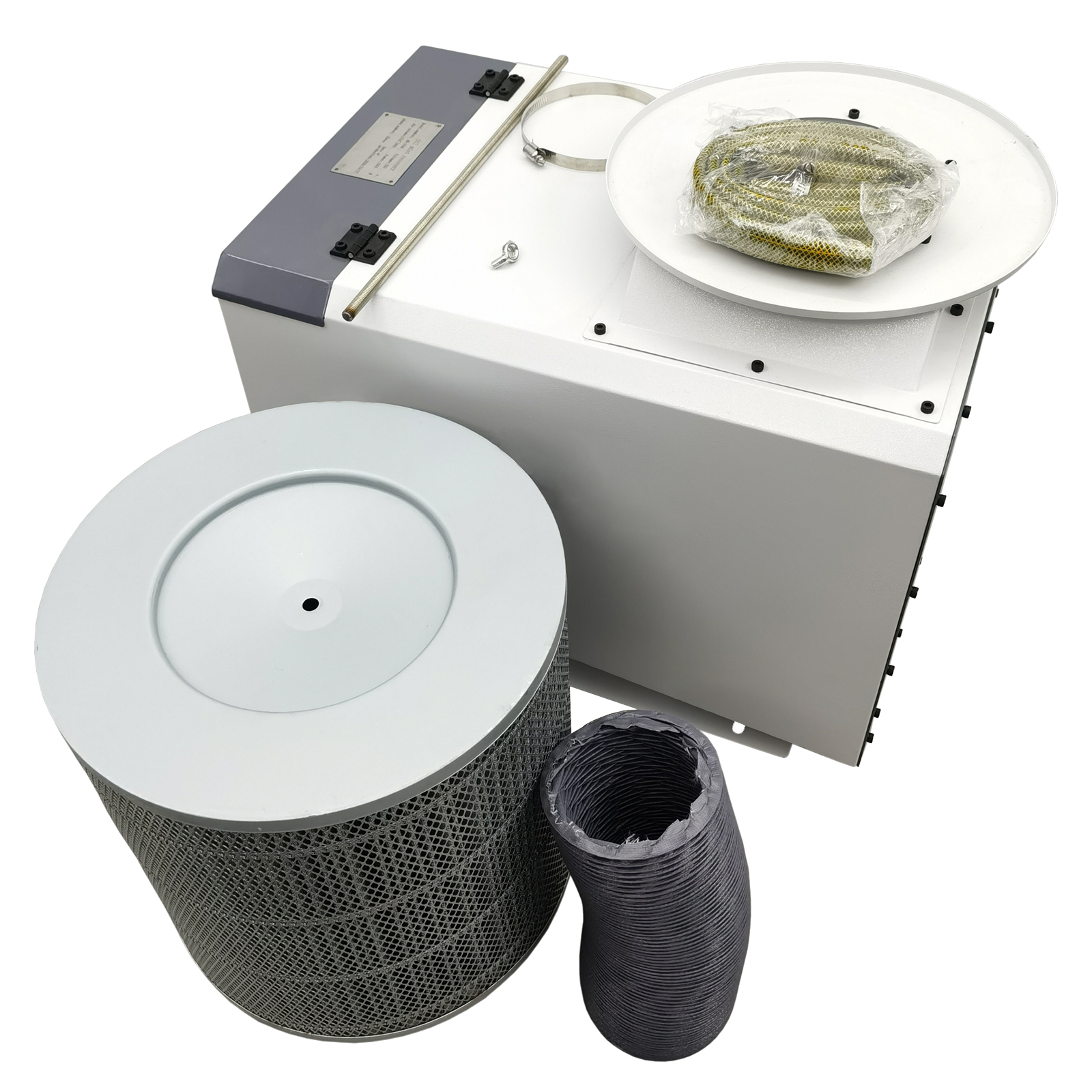

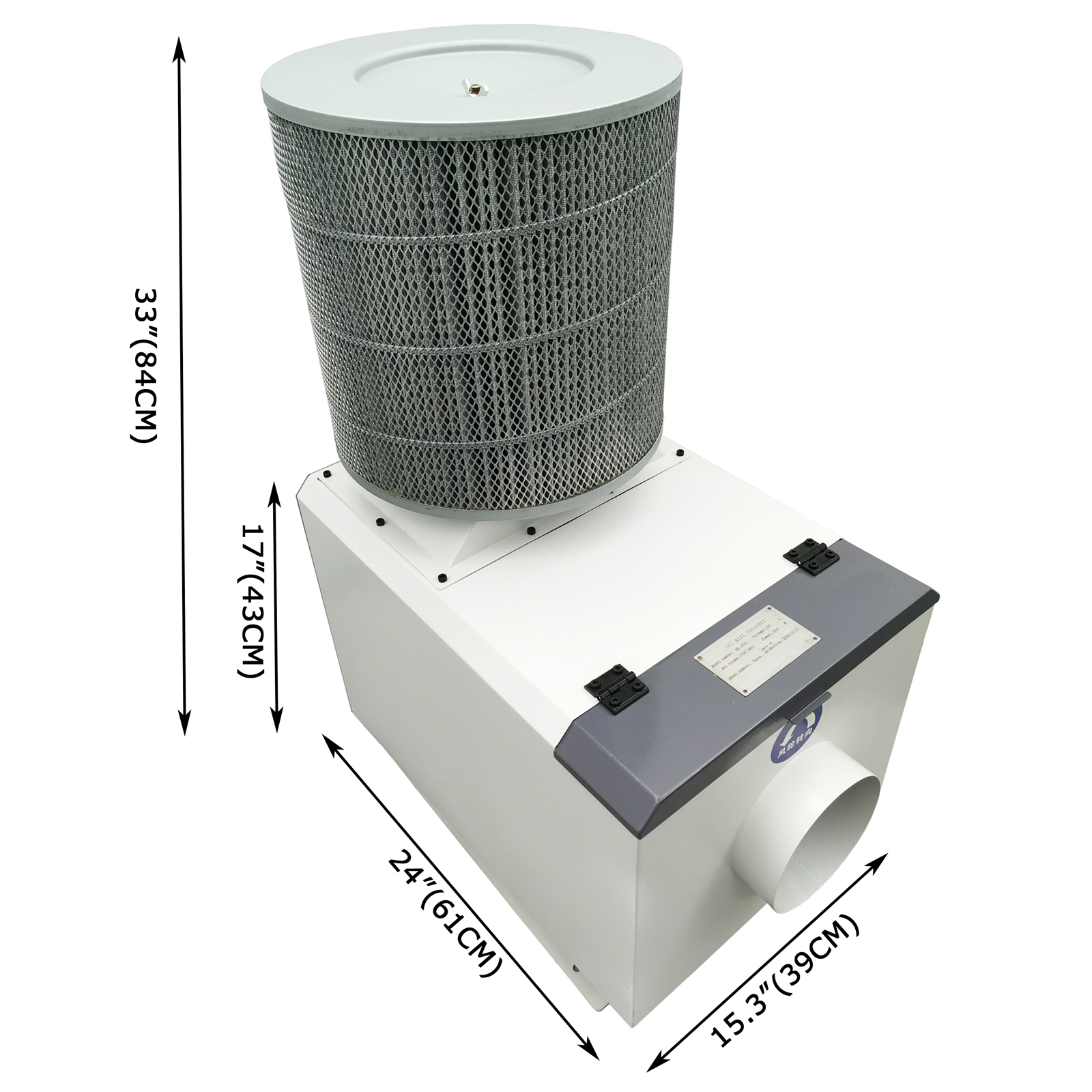

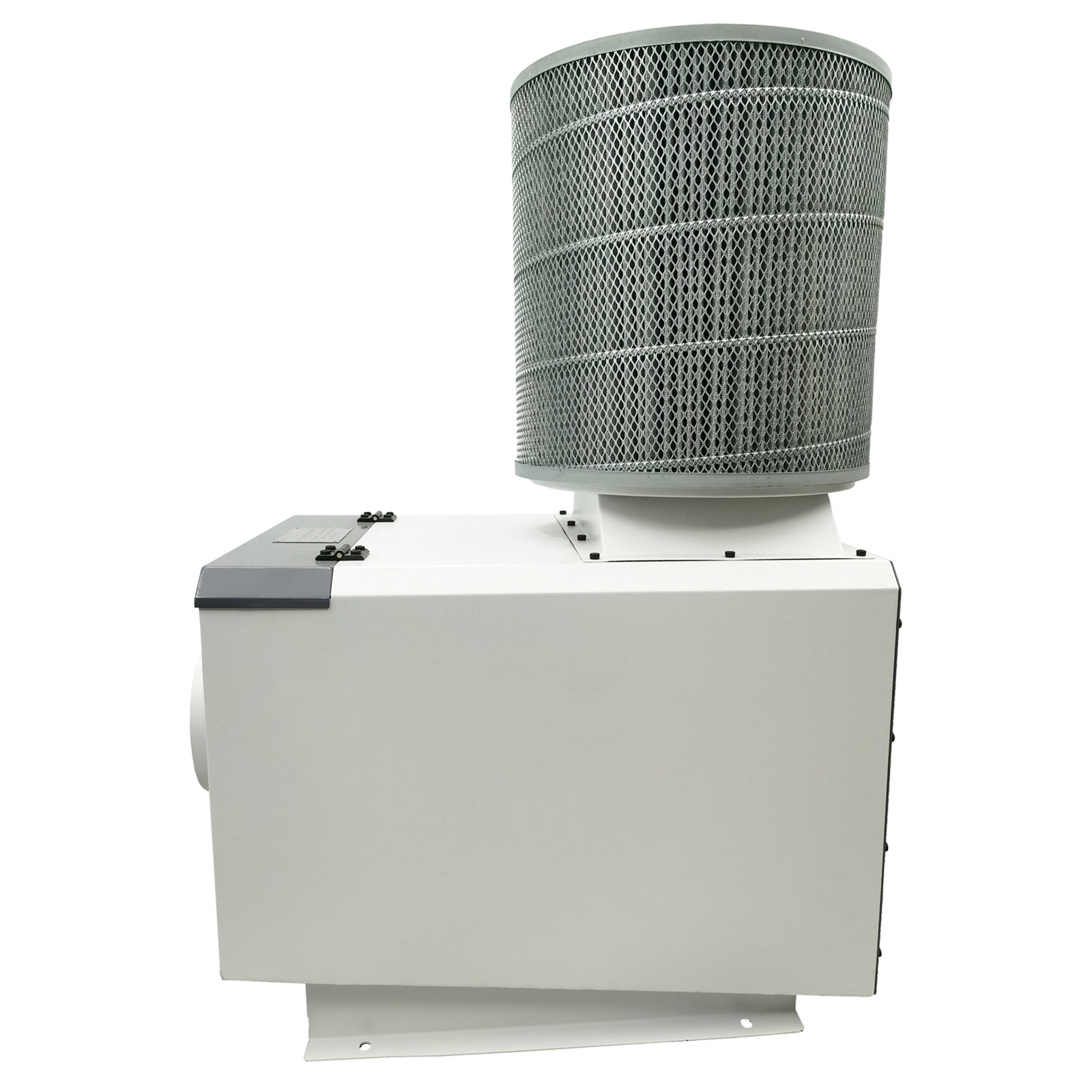

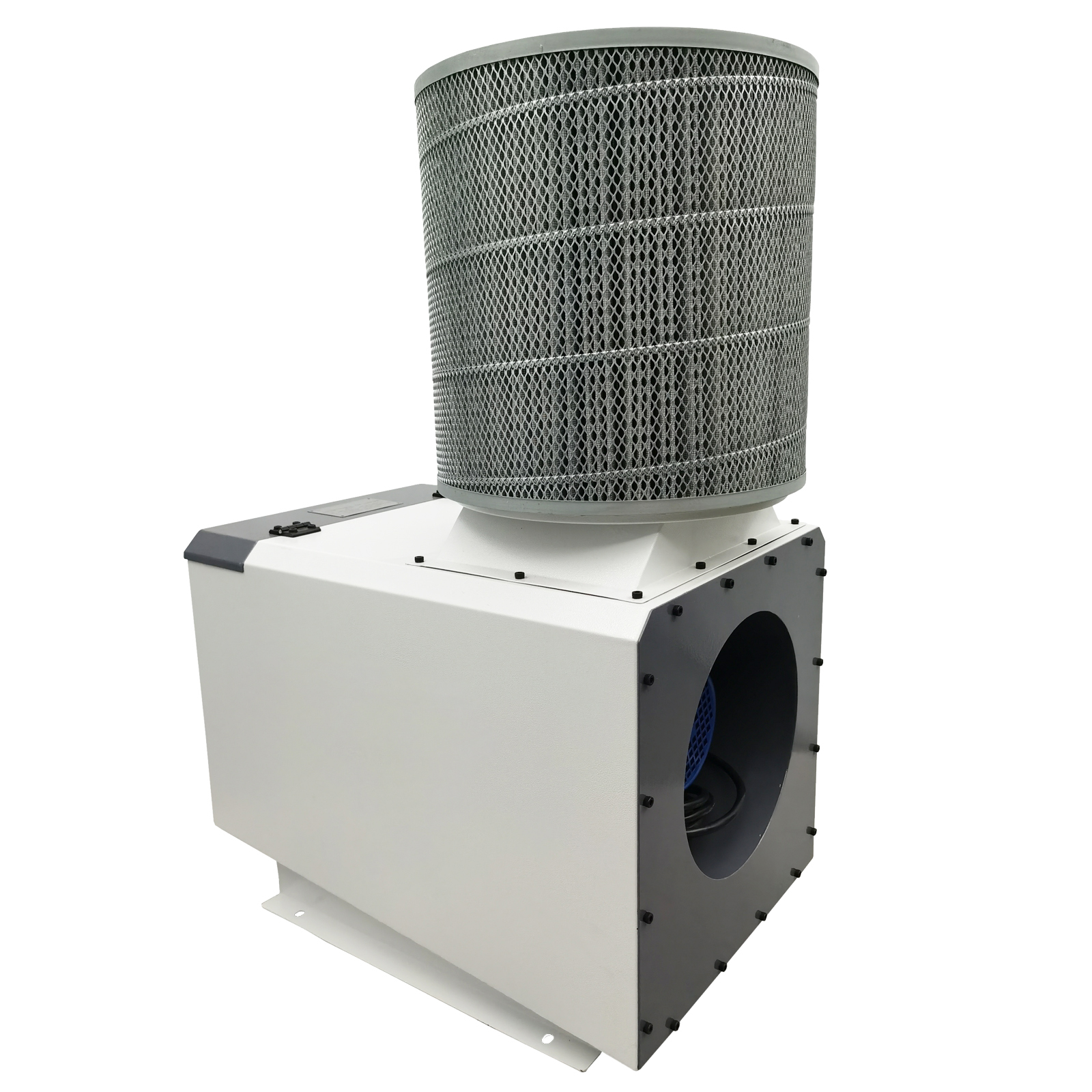

220V 3PH 2HP CNC Machine Tool Processing Center Oil Mist Collector Industrial Soot Purifier 1000-1117CFM Product Overview Oil mist purifier is a professional equipment installed in CNC machining centers, grinding machines, lathes and other kinds of machine tools to collect and purify environmental pollutants such as oil mist, water mist and dust produced by mechanical processing. It can reduce the influence of oil fog on the control system of the machine tool circuit system and reduce the maintenance cost of the machine tool. Protect the physical and mental health of employees and reduce the occurrence of occupational diseases. Product Parameters Model: HK-150A Voltage: 220V Three-phase Power: 2HP (1500W) Air volume: 1000-1118cfm (1700-1900m/h) Suction caliber: 6" (150mm) Noise value: 73-75 db(A) Maximum static pressure: 1.7Kpa Applicable area: 5m Filtration efficiency: 98%; 0.2um or more Package size: PART1: 26.8"*17.8"*22" (68cm*45cm*56cm) PART2: 18"*17.8"*17" (46cm*45cm*43cm) Net weight/Gross weight: 87LBS(39.5kg) / 94LBS(42.5kg) Wiring Diagram Product Features Advantages 1.Filter element: Efficient filter element and precision air filter material are used to effectively deal with oil mist, water mist, smoke, dust odor and harmful gases. Effective adsorption of particles above 0.02um, filtration efficiency of 98%. Filter smoke: Accuracy 0.2um Filter oil mist: accuracy 1-3um Filter water mist: accuracy 1-3um Filter dust: accuracy 0.2um 2.Conical pre-filter: Conical filter structure, conducive to guide the air inlet and pre-filter uniform contact. 3.Multi-layer purification: The use of drawer type filter cotton and high efficiency filter bucket, block large particles, multiple filtration, stable and efficient, purify the workshop air. ? 4.Easy to clean: Drawer type filter adopts drawer type structure, and can be removed at any time through detachable plate, which is convenient for cleaning and maintenance. The bottom adopts the inclined Angle design, the collected and separated oil mist can always be collected from high to low, to ensure the cleanliness of the whole machine and improve the use efficiency.. ? 5.High safety: No exposed power, safer use; High efficiency and energy saving pure copper motor, strong power, good heat dissipation, low noise, long service life, durable. Product Presentation Details ? font face="Verdana" size="5Item Included(056786) Oil mist purifier *1 You can make order with no worry.y. Any concern just feel free to let us know, we'll reply in 24 hours in normal condition. Handling Time: Shipping is usually made in 1-3 business days after payments cleared. Orders are processed from Monday-Friday; Not on the weekends public holidays. Warranty: 6 months' warranty for the machines, not for the consumables. We stand behind our products all the item, so even if your warranty period has expired, you can still seek for service or technical support from us with low cost.
