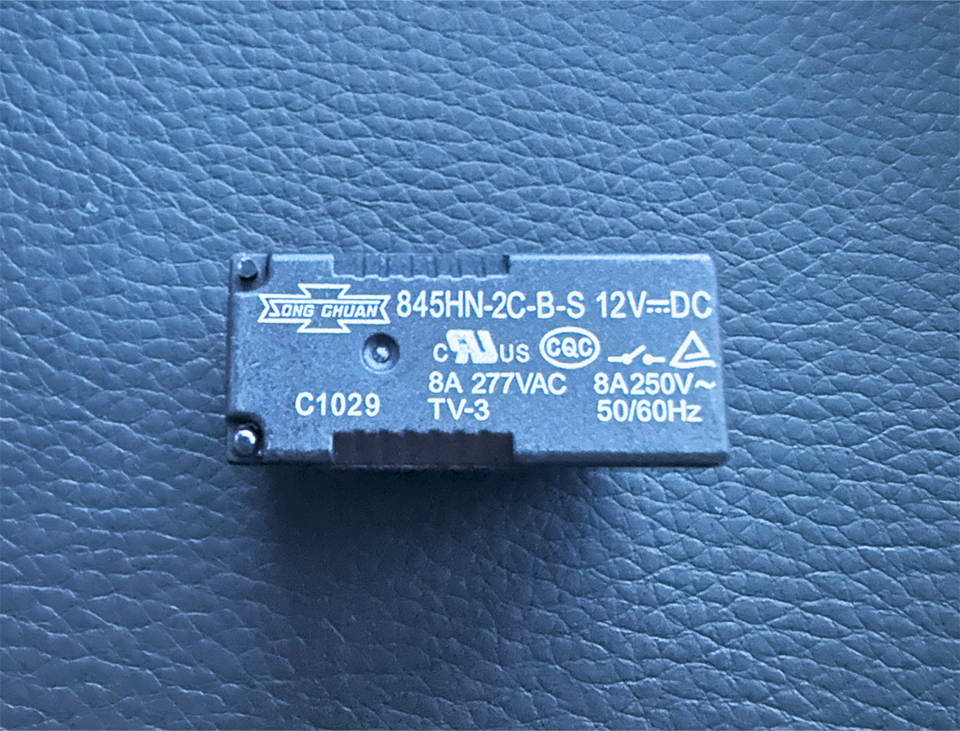

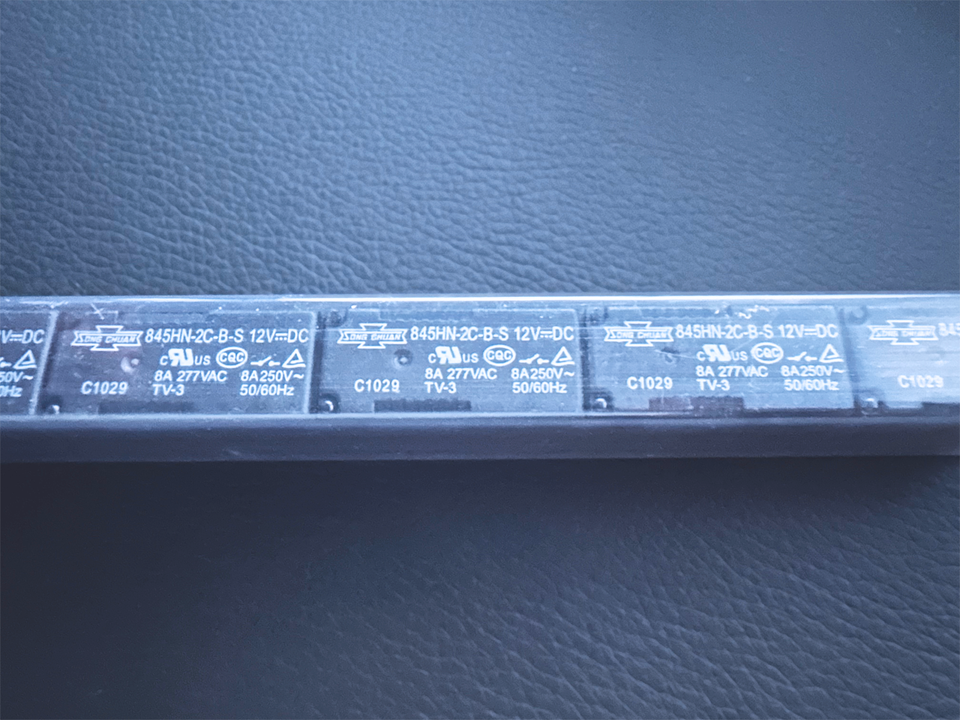

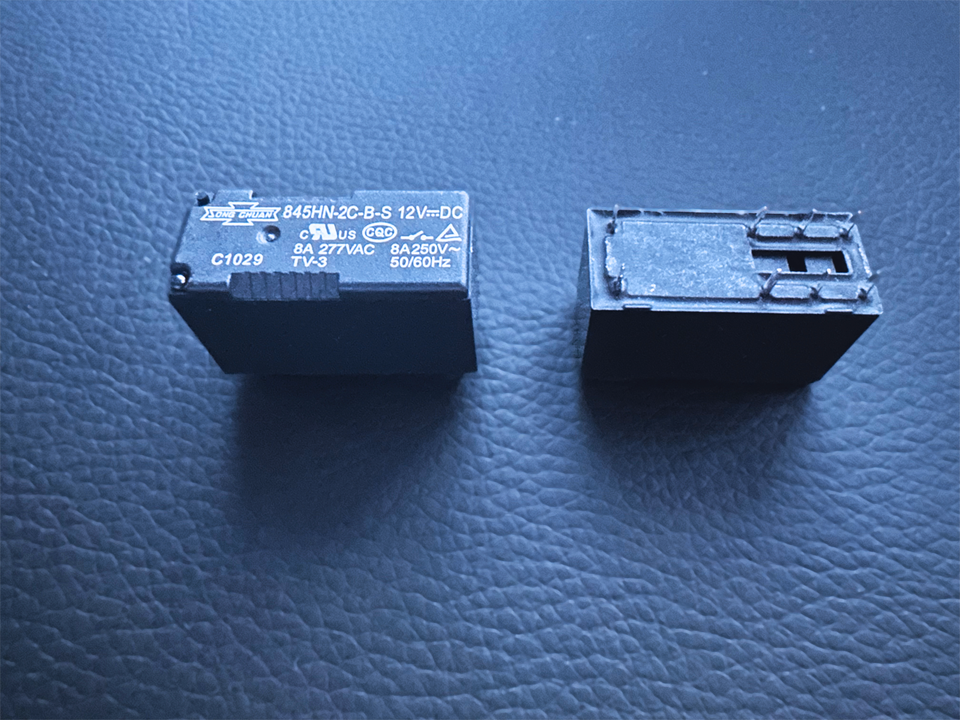

Store Seller Profile Feedbacks Contact Relays Timers General Purpose Relays DC Coil Power Relays close 1X 845HN-2C-B-S 12VDC SONG CHUAN Miniature PCB Power Relay 12VDC DPDT 8A TV-3 Ready to Ship Ask a Question 30-Day Return Description Disclaimer Specifications Shipping Return Policy 1Pcs 845HN-2C-B-S 12VDC SONG CHUAN Miniature PCB Power Relay 12VDC DPDT 8A TV-3 Sofitrek Product Disclaimer Nature of Goods: All products offered by Sofitrek are surplus items. These products may originate from older batches, series, or have earlier date codes compared to those currently provided by the original manufacturers or their authorized dealers. Non-Affiliation: Sofitrek operates independently and is not an authorized distributor, nor is it affiliated or associated with the manufacturers of the products sold. Consequently, Sofitrek does not represent the manufacturers of these products in any capacity. Exclusion of Manufacturer's Warranty: Since Sofitrek is not an authorized distributor, the original manufacturer's warranties are explicitly not applicable to the products sold. This includes any implied warranties of merchantability or fitness for a particular purpose. Firmware and Software: Some products may include pre-installed firmware or software. However, Sofitrek does not guarantee the presence, compatibility, or the revision level of such firmware or software as suitable for your specific application. Furthermore, Sofitrek expressly disclaims any representation regarding your right or ability to download, obtain, or install any firmware or software for the products from any source, including the original manufacturers or their distributors. Limitation of Liability: Sofitrek shall not be held liable for any form of damages?direct, indirect, incidental, consequential, or otherwise?arising from the use, misuse, or inability to use any product sold. This includes, but is not limited to, damages for loss of profits, goodwill, use, data, or other intangible losses. The buyer assumes all responsibility for the safe and lawful use of the product and agrees to indemnify and hold harmless Sofitrek against any claims, liabilities, or expenses related to the product's use. Compliance and Responsibility: The buyer is solely responsible for adhering to all terms of any End-User License Agreement or similar documentation related to the products, particularly concerning the obtaining, installation, and use of firmware or software. By purchasing from Sofitrek, the buyer acknowledges having read, understood, and agreed to this disclaimer in its entirety. Specification Model 845HN-2C-B-S Voltage 12VDC Brand SONG CHUAN Type Miniature PCB Power Relay Configuration DPDT Current Rating 8A Approval TV-3 Coil Rated Voltage (V) 12 Coil Rated Current (mA) 44 Coil Resistance (?) 300 Max. Continuous Voltage at 25C 110% of rated voltage Pick Up Voltage (Max) at 25C 80% of rated voltage Drop Out Voltage (Min) at 25C 10% of rated voltage Power Consumption at Rated Voltage approx. 0.53W Contact Material Ag alloy Contact Resistance 100m? Max. (initial value) Operate Time 10ms Release Time 5ms Insulation Resistance 100M? Min. (DC 500V) Dielectric Strength (Between Open Contact) AC 1000V, 50/60Hz 1 min. Dielectric Strength (Between Contact and Coil) AC 5000V, 50/60Hz 1 min. Dielectric Strength (Between Contact Circuits) AC 3000V, 50/60Hz 1 min. (for 2 pole only) Vibration Resistance (Operating Extremes) 10 ~ 55Hz, amplitude 1.5 mm Vibration Resistance (Damage Limits) 10 ~ 55Hz, amplitude 1.5 mm Shock Resistance (Operating Extremes) 10G Shock Resistance (Damage Limits) 100G Life Expectancy (Mechanical) 10,000,000 operations (frequency 18,000 operations/hr) Life Expectancy (Electrical) 100,000 operations (frequency 1,200 operations/hr under rated load) Operating Temperature -40 ~ +70C (no freezing) Weight Approx. 14g Certification (UL CUR) E88991 Certification (TUV) R9754014 Safety Approval Rating (UL CUR - 1 Pole) 12A 277VAC, 12A 30VDC, 1/2HP 125VAC/250VAC, TV-5 (1A) Safety Approval Rating (TUV - 1 Pole) 12A 250V~(AC), 12A 30V~(DC), 10A 250V~(AC), COS O 0.4 Safety Approval Rating (UL CUR - 2 Pole) 8A 277VAC, 8A 30VDC, 1/4 HP, 125VAC/250VAC, TV-3 (1A) Safety Approval Rating (TUV - 2 Pole) 5A 250V~(AC), 5A 30V~(DC), 3A 250V~(AC), COS O 0.4 Shipping Policy Our go-to options for small to medium items are USPS Ground Advantage and USPS Priority Mail, known for their reliable tracking and peace of mind. Smaller items might qualify for USPS First Class Mail. Contact us to discuss this option before purchasing. Note: This method is less recommended due to the potential for delays. Return Policy We offer a 30-day return policy, no questions asked. If you choose to provide a reason for the return, it will assist us in improving and fix the issue. Packaging Our items are packaged according to their needs?some in ESD bags with pins secured in protective sponge, others in foam-enclosed boxes. For larger quantities, options include broken tubes for transistors or cartons. We welcome your suggestions for packaging preferences. Links Shop Feedbacks Contact Us Sofitrek
