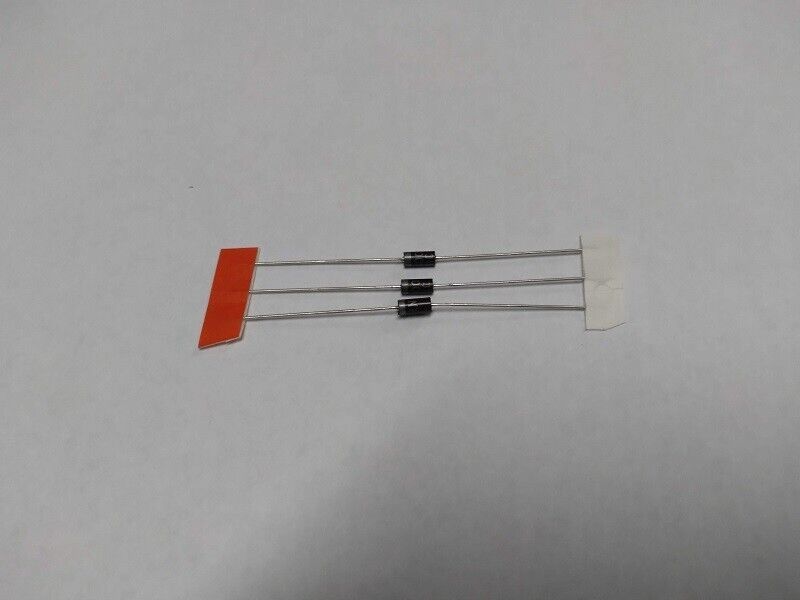

1N4007 Diode (3 Pcs) 1A 1000V Rectifier Diode DO-41 Fast IN4007 | US SHIP
Share & earn! Sign in, share this or any listing, and you’ll get commission when it sells.
Learn more
Shipping options
Offer policy
OBO - Seller accepts offers on this item.
Details
Return policy
Purchase protection
Payment options
PayPal accepted
PayPal Credit accepted
Venmo accepted
PayPal, MasterCard, Visa, Discover, and American Express accepted
Maestro accepted
Amazon Pay accepted
Nuvei accepted
Shipping options
Offer policy
OBO - Seller accepts offers on this item.
Details
Return policy
Purchase protection
Payment options
PayPal accepted
PayPal Credit accepted
Venmo accepted
PayPal, MasterCard, Visa, Discover, and American Express accepted
Maestro accepted
Amazon Pay accepted
Nuvei accepted
Item traits
| Category: | |
|---|---|
| Quantity Available: |
Only one in stock, order soon |
| Condition: |
New |
| Brand: |
Eiechip |
| Type: |
Rectifier Diode |
| Number of Pins: |
2 |
| Number of Phases: |
1 |
| Mounting Style: |
Through-Hole |
| Visible Spectrum: |
N/A |
| MPN: |
1N4007 IN4007 |
| Maximum Diode Capacitance: |
15 pF |
| Maximum Operating Temperature: |
175 °C (347 °F) |
| Minimum Operating Temperature: |
-65 C |
| Material: |
Bright Tin, Plastic |
| Peak Surge Current: |
1 A |
| Package/Case: |
DO-41 |
| Maximum Continuous Current: |
1 A |
| Peak Reverse Repetitive Voltage: |
1000 V |
| Diode Configuration: |
Single |
| Peak Forward Voltage: |
1 V |
| Packaging: |
Cut Tape |
| Country/Region of Manufacture: |
China |
| Polarity: |
Forward |
| Series: |
1N4007 |
| Custom Bundle: |
No |
| RoHS Compliant?: |
YES |
| Lead Free?: |
YES |
| UPC: |
Does not apply |
Listing details
| Shipping discount: |
Shipping weights of all items added together for savings. |
|---|---|
| Posted for sale: |
More than a week ago |
| Item number: |
1663121029 |
Item description

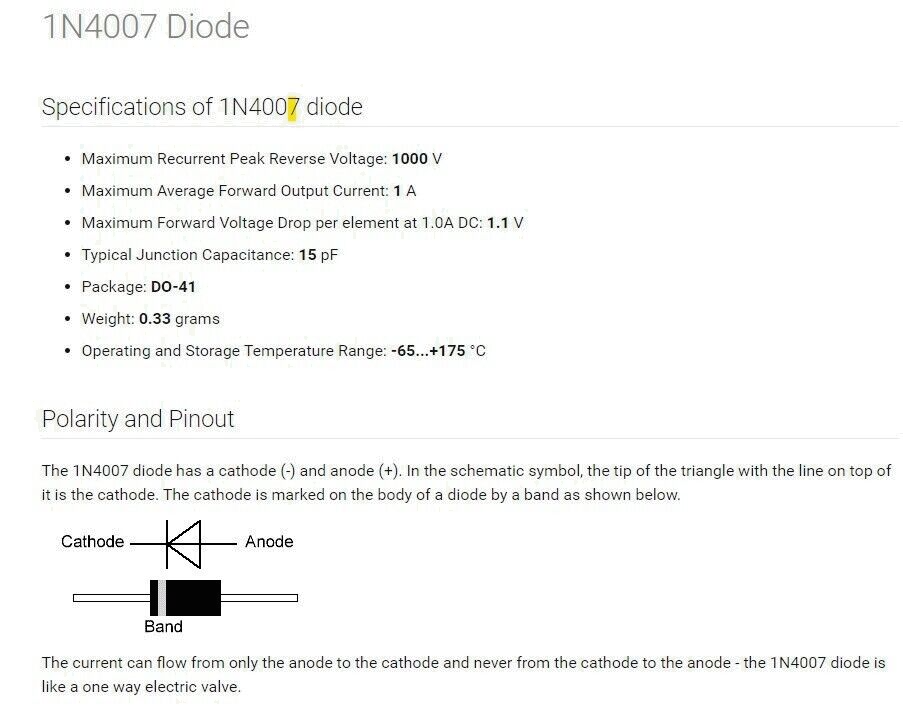

1N4007 Diode
Specifications of 1N4007 diode
Maximum Recurrent Peak Reverse Voltage: 1000 V
Maximum Average Forward Output Current: 1 A
Maximum Forward Voltage Drop per element at 1.0A DC: 1.1 V
Typical Junction Capacitance: 15 pF
Package: DO-41
Weight: 0.33 grams
Operating and Storage Temperature Range: -65...+175 C
Polarity and Pinout
The 1N4007 diode has a cathode (-) and anode (+). In the schematic symbol, the tip of the triangle with the line on top of it is the cathode. The cathode is marked on the body of a diode by a band as shown below.
The current can flow from only the anode to the cathode and never from the cathode to the anode - the 1N4007 diode is like a one way electric valve.
Dimensions of 1N4007 diode
Replacement and Equivalent
You can replace the 1N4007 with the RL207, HER208, HER158, HER108, FR207, FR157, FR107, EM520, EM516, EM513, BY133, 1U8, 1N5399, 1A7, UF4007, 1N4007G
1N4007 Spice Model
.model 1N4007 d
+ is = 1.09774E-008
+ n = 1.78309
+ rs = 0.0414388
+ eg = 1.11
+ xti = 3
+ cjo = 2.8173E-011
+ vj = 0.50772
+ m = 0.318974
+ fc = 0.5
+ tt = 9.85376E-006
+ bv = 1100
+ ibv = 0.1
+ af = 1
+ kf = 0
