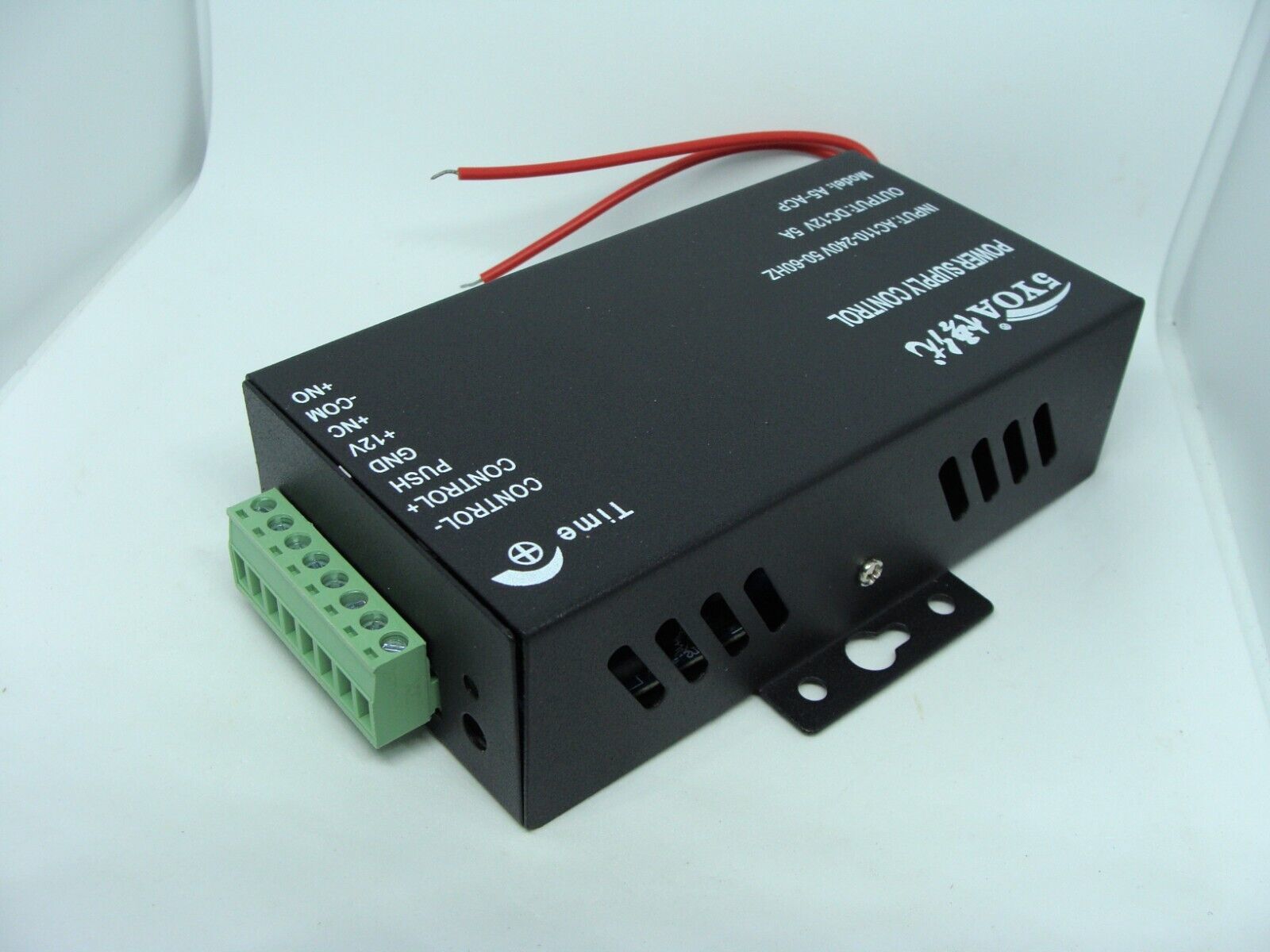

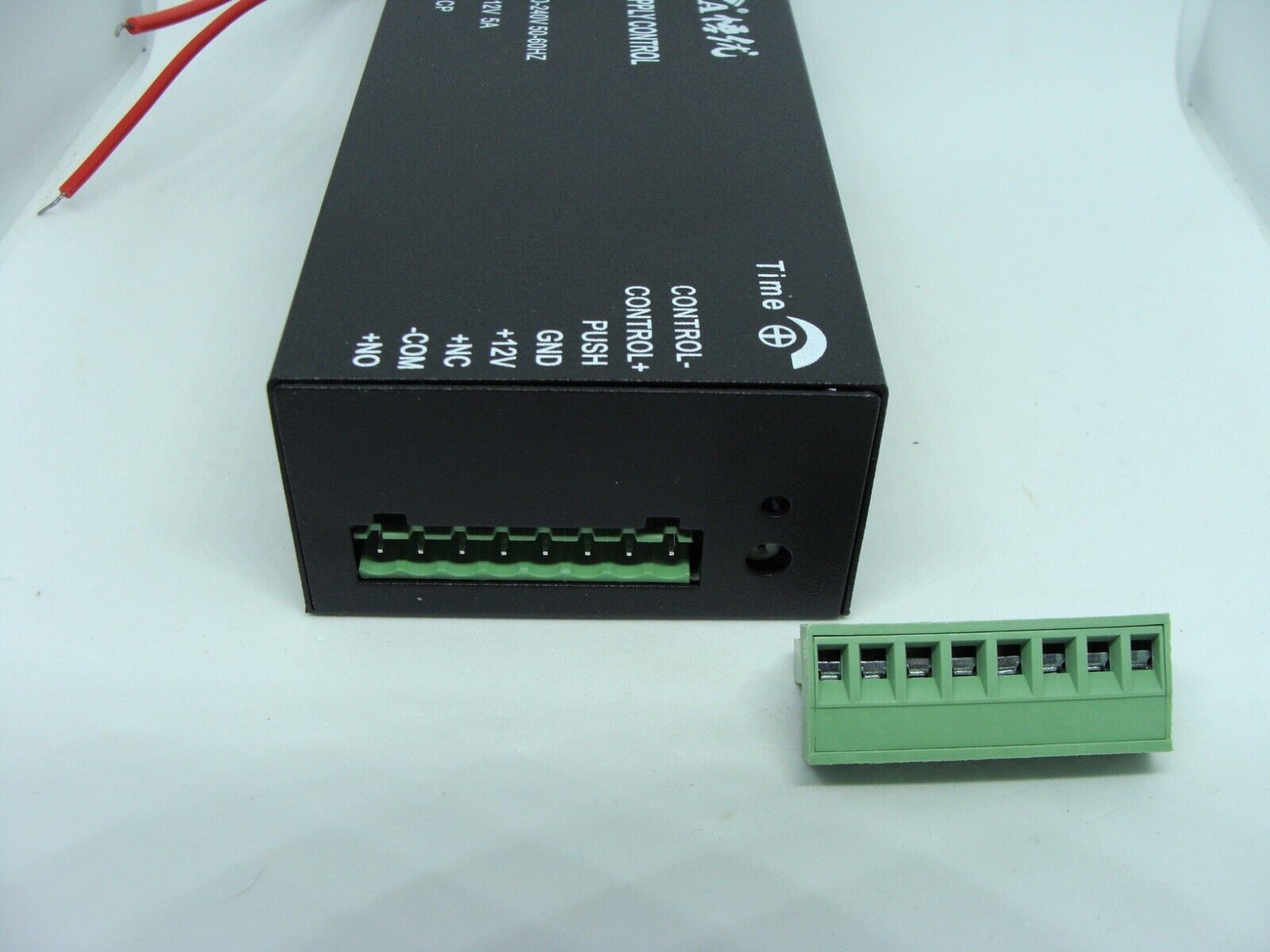

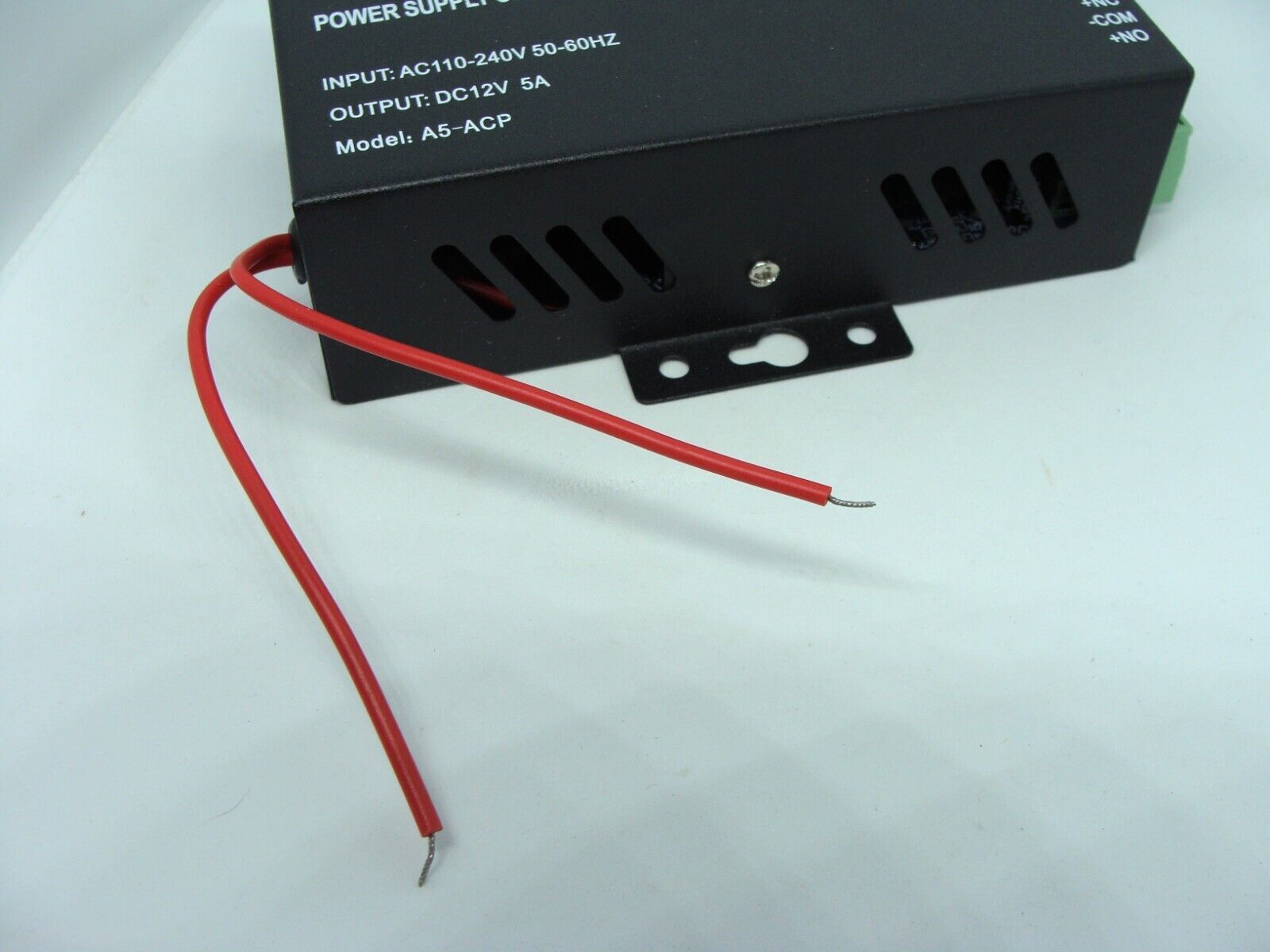

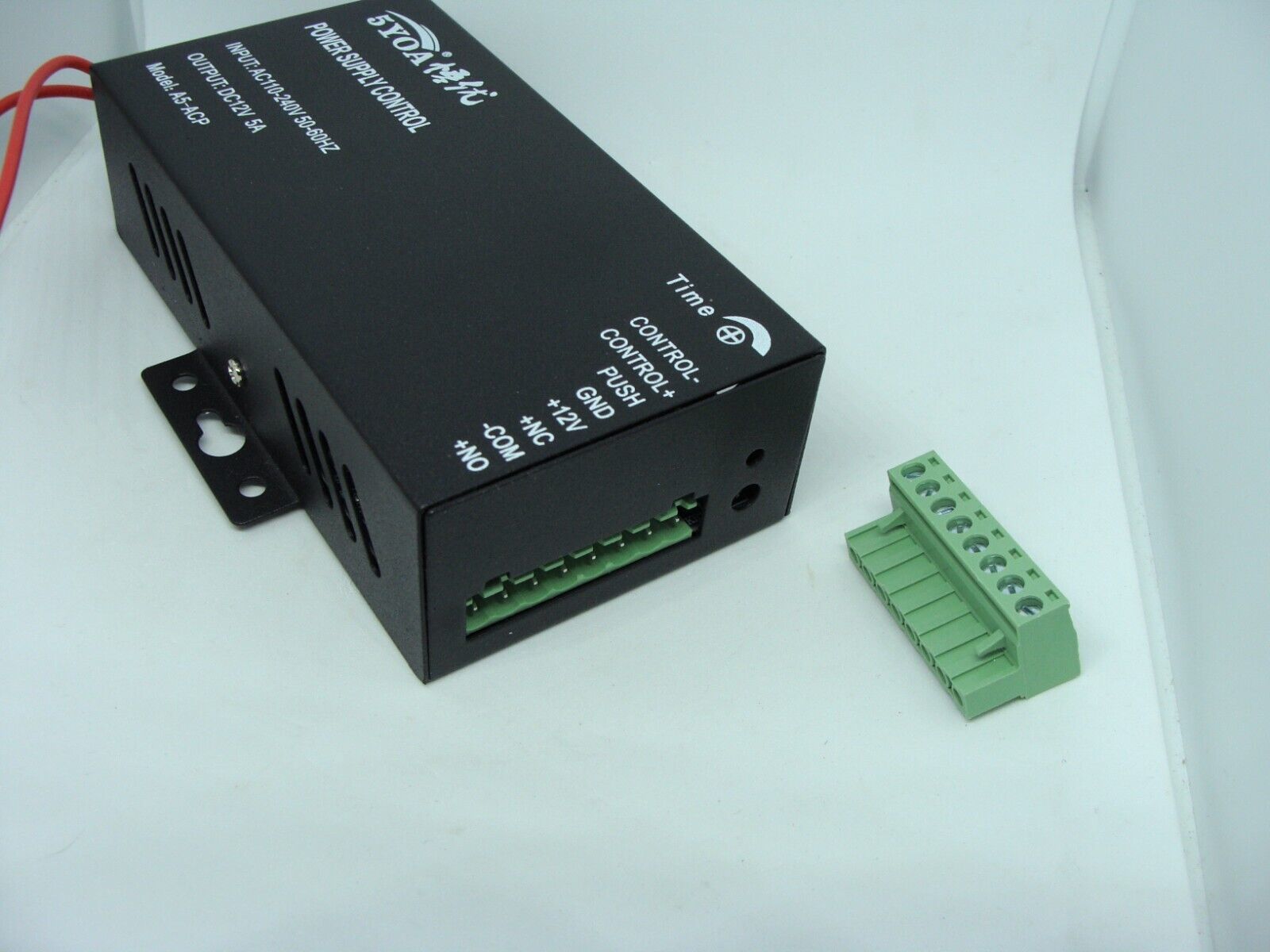

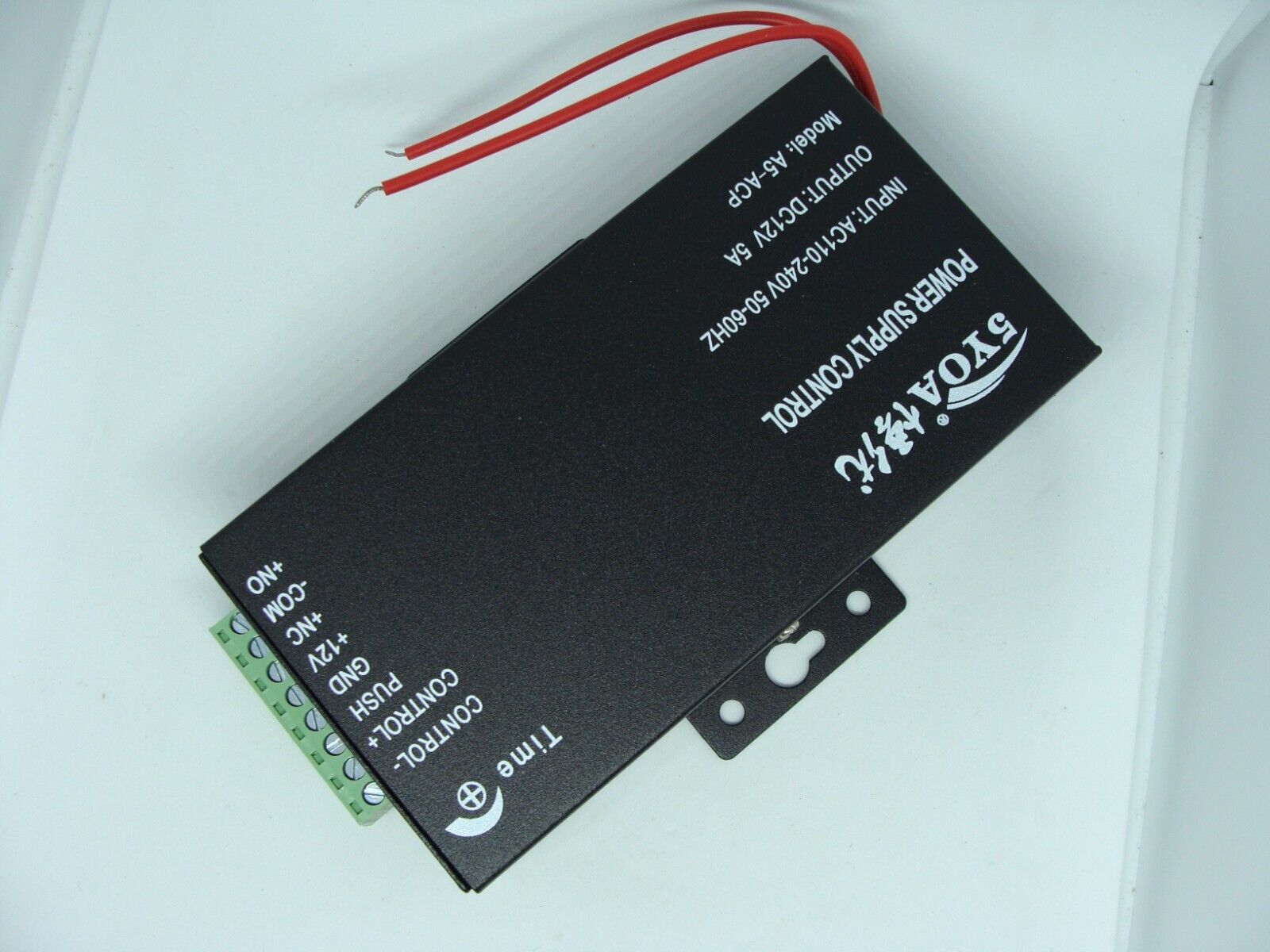

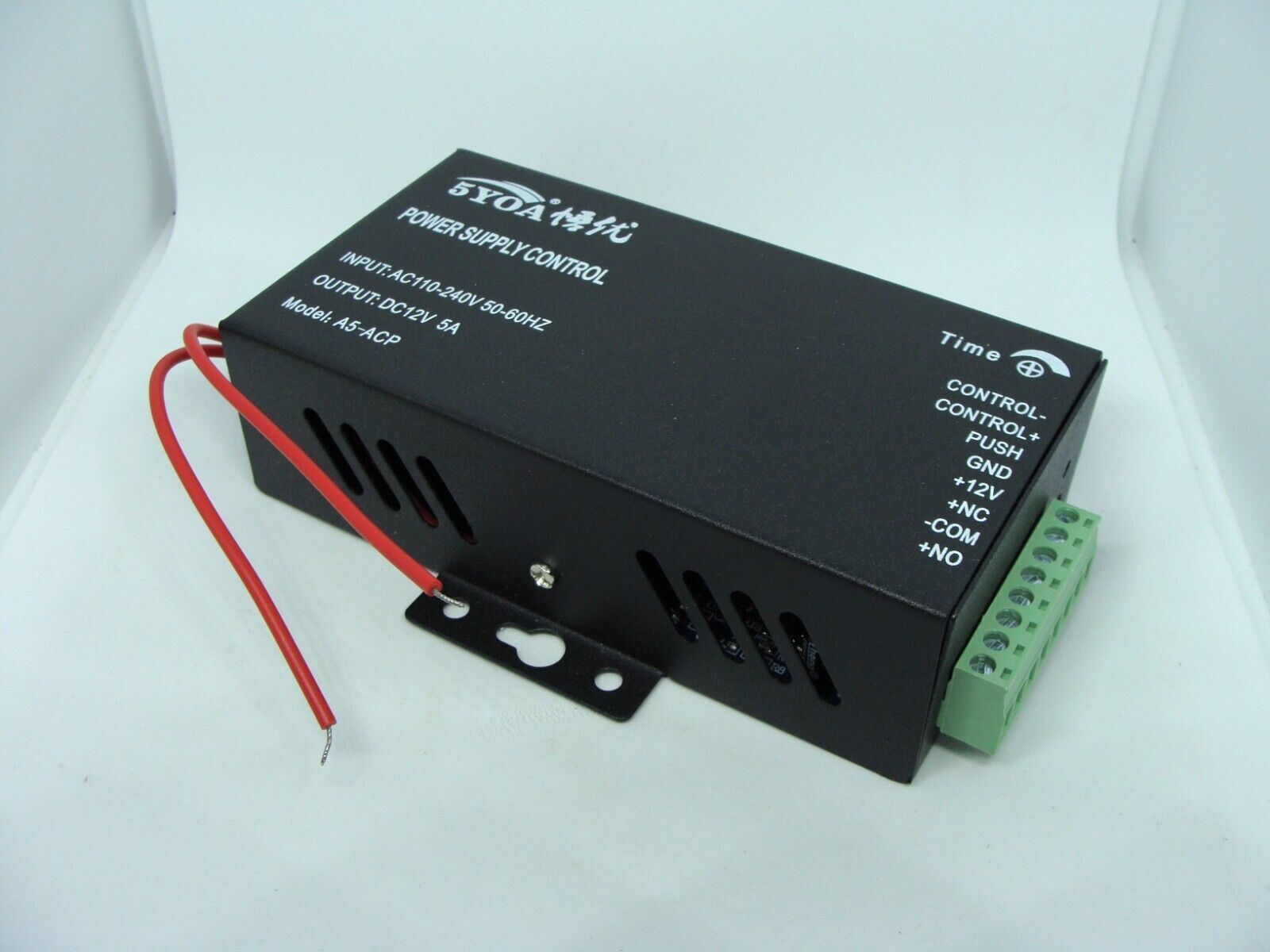

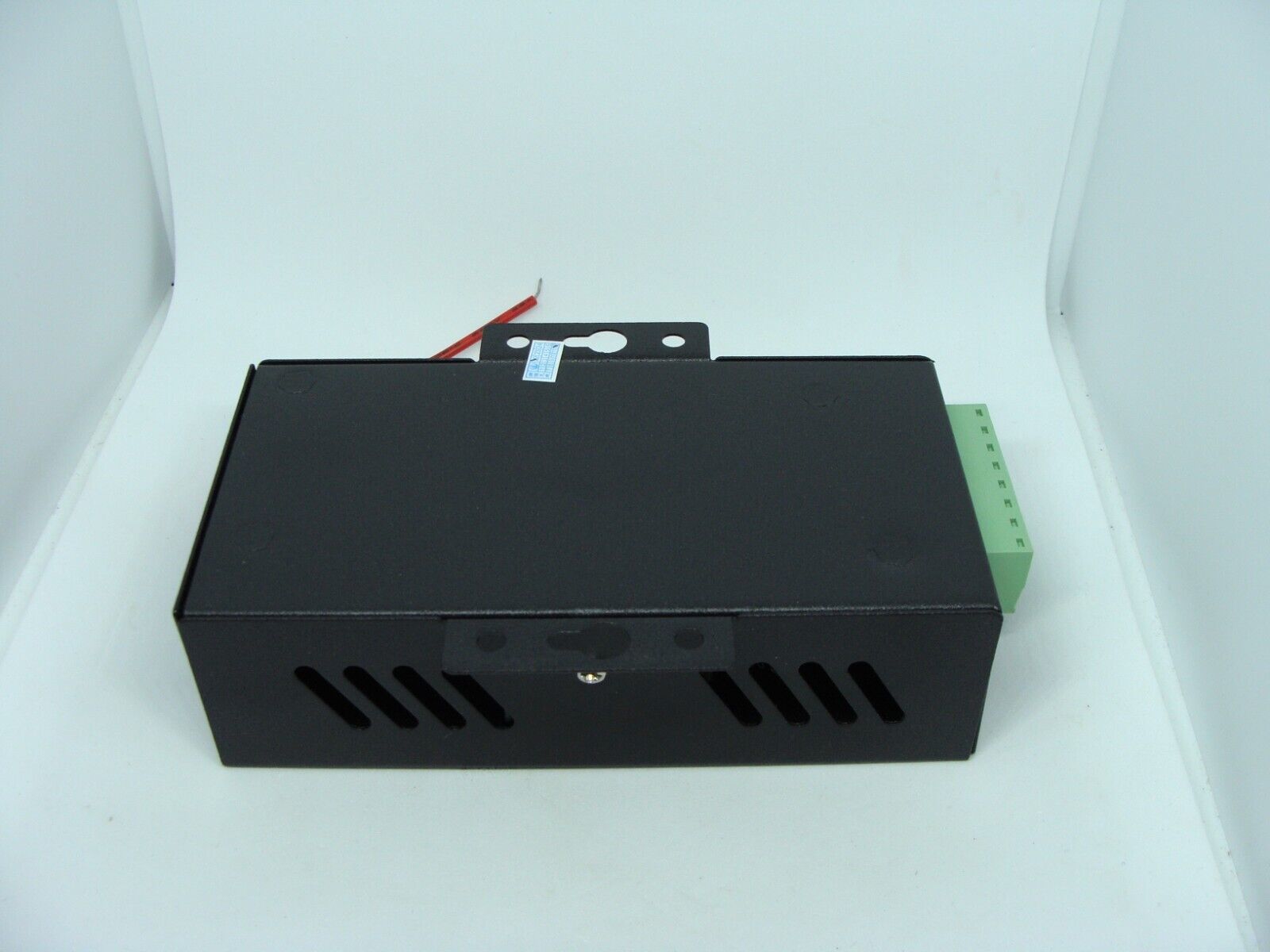

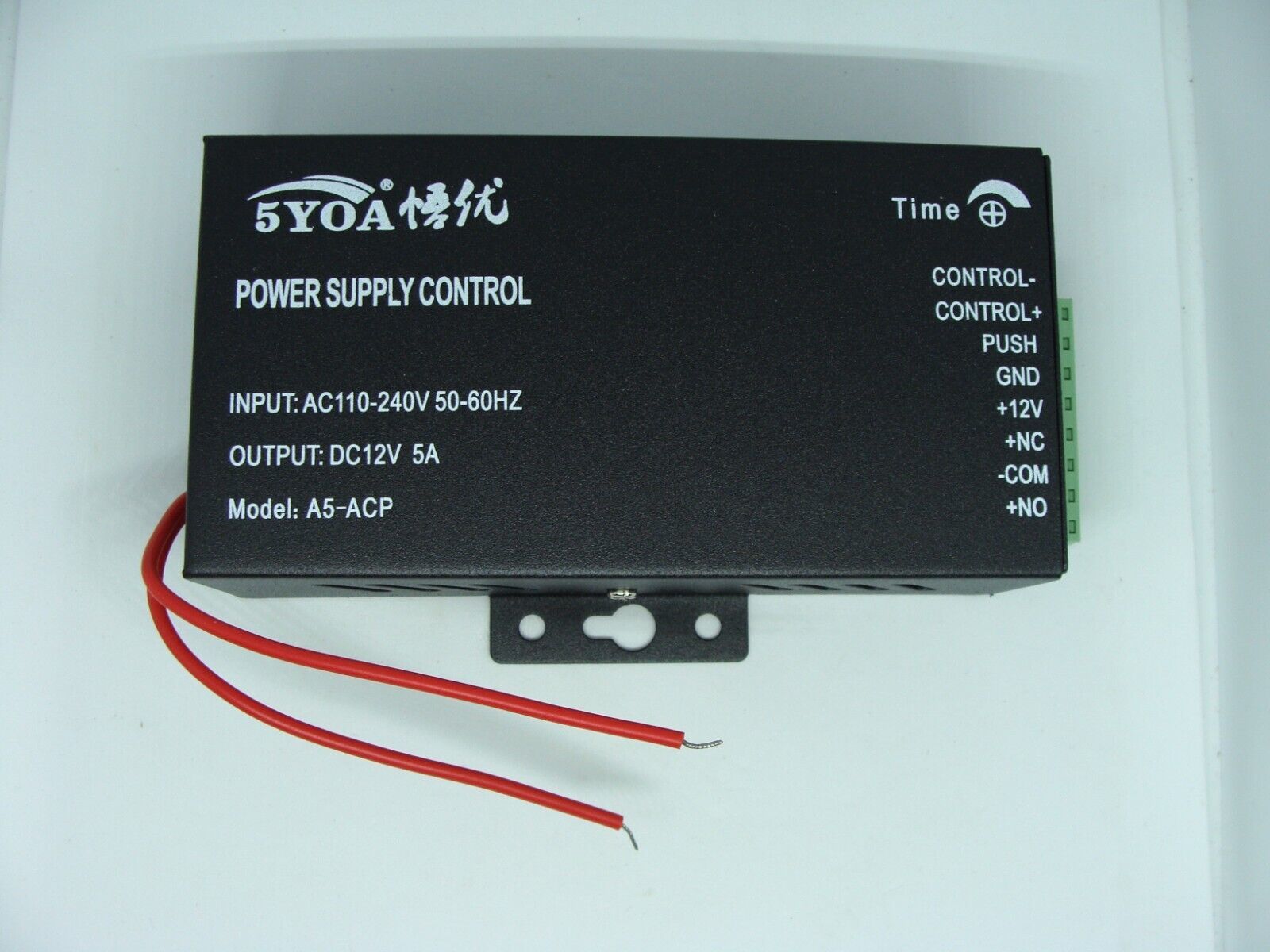

Menu Links Visit Store Items For Sale Add To Favorite Sellers Contact Us Why Us? Friendly Customer Service Item Description Power Supply Control Unit, DC 12V 5A. A5-ACP. Small Size and Easy Fit High Reliability Electromagnetic Compatibility Efficiency Protection Function Reduced Operating Temperature Features: Input AC 110 V ~ 240 V Frequency 50 ~ 60Hz Output DC 12V 5A AC110-240V Time+ Contact Pin Labels: Control -, Control +, Push, GND, +12V, +NC, -COM, +NO Detachable L Shaped Contact Pins Terminal Compact Design Wall Mountable Compatible with most electric locks, gate, and door access control systems Metal Housing Anti-interference feature Stable and reliable output for components such as lock control system, controller control, exit button, RFID-IC Reader, and others. It can control the door electric lock directly. Based delay control circuit, lock time can be set to 0-15 seconds Short Circuit Protection Feature Bare wire electric terminal connection Technical Specifications: Input voltage: 110 - 240VAC Input Frequency: 50 ~60Hz Output voltage: DC12V Output Current: 5A Output voltage trim range: 15% Load: 1 % typical Output stability: 0.5% typical Ripple and Noise 1 %, peak to peak (100m Vp- p typical) Insulation voltage: Junior / Sub-polar inter- 1500V AC, primary / shell between 1500V AC, sub polar / shell between 500V AC Hold Time: full load typically 20ms Operating temperature: -20 ~ +65 C Overload protection: All outputs are short circuit and overload protected Power output of 0-15 seconds delay locks Weight: 315g Attention: When using electronically controlled lock, the delay must be 0 seconds to prevent burning the lock. Approximate Measurements: 5.5 x 3.5 x 1.75'' (Including Mounting Holes and Connection Terminals) Measurement Units Conversion Reference: 1 inch = 2.54 cm = 25.4 mm 1 cm = 10 mm = 0.39 inch Package Includes: 1 x Power Supply Control Unit, DC 12V 5A. A5-ACP. 1 x Access Control Power Supply Manual / Diagram. Note: ruler or measurement device, if shown in pictures is for reference only and it is not included in the sale. The measurements can be approximate. Condition: NEW. Locator: BB1100-BG720-CL14 Our commitment to each and every sale: We are 100% committed to your satisfaction and positive experience. If you are not satisfied with the item you have purchased from us, please contact us using the messaging system and we will gladly assist processing a return and refund for your purchase. We truly appreciate the opportunity. Your satisfaction and positive experience are the most important for us. Thanks. Note: ruler, scale, weight(s), or measurement device, if shown in pictures is for reference only and it is not included in the sale. The weight and measurements can be an approximate. Note: unless specified above, the product photos / images are stock pictures for reference only. The actual item you will receive is the product described in this listing. Color Note: The item color / color tone may differ slightly from pictures depending on stock availability, digital colors, digital displays, lighting conditions, and other factors. Listing Errors Note: We try our best to describe and portray the item you will receive as best as possible. If you find any errors in the listing, please let us know and we will fix the error as soon as possible. Great for electronics repair, prototype building, repair shops, computer repair shops, cellphone repair shops, TV and appliances repair shops, console repair, general electronics repair, technicians, machinery technicians, maintenance, engineers, system engineers, electronic engineers, car techs, appliance technicians, machinery technicians, Arduino systems, robotics, learning electronics, electricians, hobbyists, commercial applications, DIY projects, do it yourself projects, students, learning and practice, and much more. Compatible with many Integrated Circuit (IC) systems and devices such as laptops, computers, desktops, servers, motherboard, mainboard, control boards, main boards, PCB Boards, prototypes, Arduino systems, gaming consoles, 3D printers, communication devices, machinery, phones, cellphones, cellular phones, keyboards, smartphones, phones, tablets, communication devices, data, voice, network devices, routers, printers, hubs, switches, copiers, multifunction, appliances, stoves, refrigerators, intelligent appliances, microwaves, washers, dryers, blenders, lawn mowers, edgers, trimmers, digital pads, audio systems, sound recorders, video recorders, DVD players, Blue-ray players, DVR, digital video recorders, stoves, washer, dryer, electronics, toys, DIY projects, do it yourself projects, digital scales, alarms, door systems, gate systems, keypads, audio devices, MP3 players, MP4 players, automobiles, RC cars, RC planes, remote controlled devices, TV, televisions, radio, VHS, Betamax, HDTV, OLED, LED TVs, emitters, receivers, consoles, and more. Universal Compatibility. Compatible with brands like HP, Hewlett-Packard, Packard, Packard Bell, Compaq, Samsung, Daewoo, JVC, Dell, Canon, Lenovo, IBM, eMachines, Sony, Panasonic, Hitachi, Kenwood, Microsoft, Onn, Acer, Toshiba, LG, Asus, Alienware, MSI, RCA, Haier, Phillips, Alpine, Atari, Bose, Clarion, Emerson, Goodman, Harman, Harman Kardon, Humax, Jensen, Konica Minolta, MicroProse, Nokia, Motorola, Pioneer, Plantronics, Sharp, Vizio, VTech, Western Digital, Yamaha, Zenith, Labtec, Logitech, Mitsubishi, Whirlpool, Xiamen, WS, Westinghouse, Maxtor, Sun, FujiFilm, Fujitsu, Siemens, DuPont, Electrolux, 3M, Belkin, Cisco, Linksys, Xerox, Sanyo, Hisense, BenQ, Avaya, AMD, Sun Microsystems, Texas Instruments, Zenith, Gateway, NVidia, Casio, Brother, Kyocera, Olympus, Ricoh, NEC, TDK, Kodak, Huawei, Xiaomi, Bosch, GE, Whirlpool, Samsung, LG, Bosch, Frigidaire, Kenmore, KitchenAid, Roper, Maytag, Amana, Hotpoint, Westinghouse, Electrolux, Ducane, Admiral, Bemis, Ariston, Broan, Coleman, Haier, Henkel, Weber, Panasonic, Magic Chef, Danby, Thermos, Dacor, and many more. Warranty Returns 30 Days Warranty for NEW items. All other items described "Used", "AS IS", "Not Working" or similar, they are guaranteed to be received as described. A restocking fee may apply if items are returned without original packaging, missing parts, opened and it was a New sealed item or similar situation. If a "free" item is included with the sale, it must be returned with the paid item in the event of a return. Payments, Best Offer Shipping Visa, MasterCard, American Express, Discover, e-Check, and/or other accepted payments methods may/will be available during checkout. We ship to your Specified / Confirmed shipping address. Best offer option is available for purchases of 2 or more items from our store, they can be the same or different items. Our shipping is processed within 1-2 business days after payment has been cleared. We ship by USPS standard, parcel, economy, priority mail, media, and/or first class. At our discretion, we may ship using USPS, FedEx, UPS and/or other carriers. Free Shipping applies to The United States Of America, USA only. International Buyers: Shipping costs may vary if a different shipping method becomes necessary. Customs or any other international charges will be paid by the customer. International Delivery time frame will depend on customs and local post office delivery time, for some countries it may take up to 30 business days for the item to clear customs and to be delivered. Tracking information will be provided for the USPS service only (USA Transit). You may need to contact your local post office to locate an item. Please expect customs delay especially during holidays or peak seasons. We stand behind our products and services, if you have any questions or you need any help with your purchase, please let us know, we are always here to assist. We participate in the Global Shipping Program, which means if you purchase our items from another country, we will ship the item to a USA facility and they will forward the package to you, in these cases, we do not charge, collect and/or refund international shipping charges. Sales Tax Sales tax of 7.5% will be applied to Florida orders. Feedback Your Positive Feedback is VERY IMPORTANT for us. If there is anything that requires our attention, please let us know, we will get it fixed. We will be glad to assist you. Our priority is to make sure you are happy with the transaction and you consider us for future purchases. Five-Star Service Is Our Goal! We strive to earn 100% perfect "FIVE-STAR" scores and positive feedback from you. If you feel that you cannot leave us a 5-star rating or if you cannot leave us positive feedback then please contact us via messaging system. We want our customers to be happy with their purchase. We will leave POSITIVE feedback for you as soon as your payment has been confirmed. We also would like to get your comments as to improving our listings, communications, shipping, and / or any other comments you may have so we may improve customer satisfaction and buying experience. Please let us know if you have any questions we are always glad to assist and we are always here to ensure your satisfaction... Terms Conditions In no event shall La Tiendita Online Store, BBN Online Solutions, BBN Online Solutions Inc, its owners, representatives, subsidiaries, affiliates, suppliers, and/or the respective employees, collectively The Provider be liable for any special, indirect, incidental, consequential or exemplary damages arising out of or in connection with the products, sales, bids, service, services and/or these terms and conditions (however arising, including negligence), including lost profits, whether or not the possibility of such damages was, or could have been, known. The liability of The Provider, to you and/or any third party in any circumstance is limited to the amount paid by you for the product (description exceeds maximum possible length)
