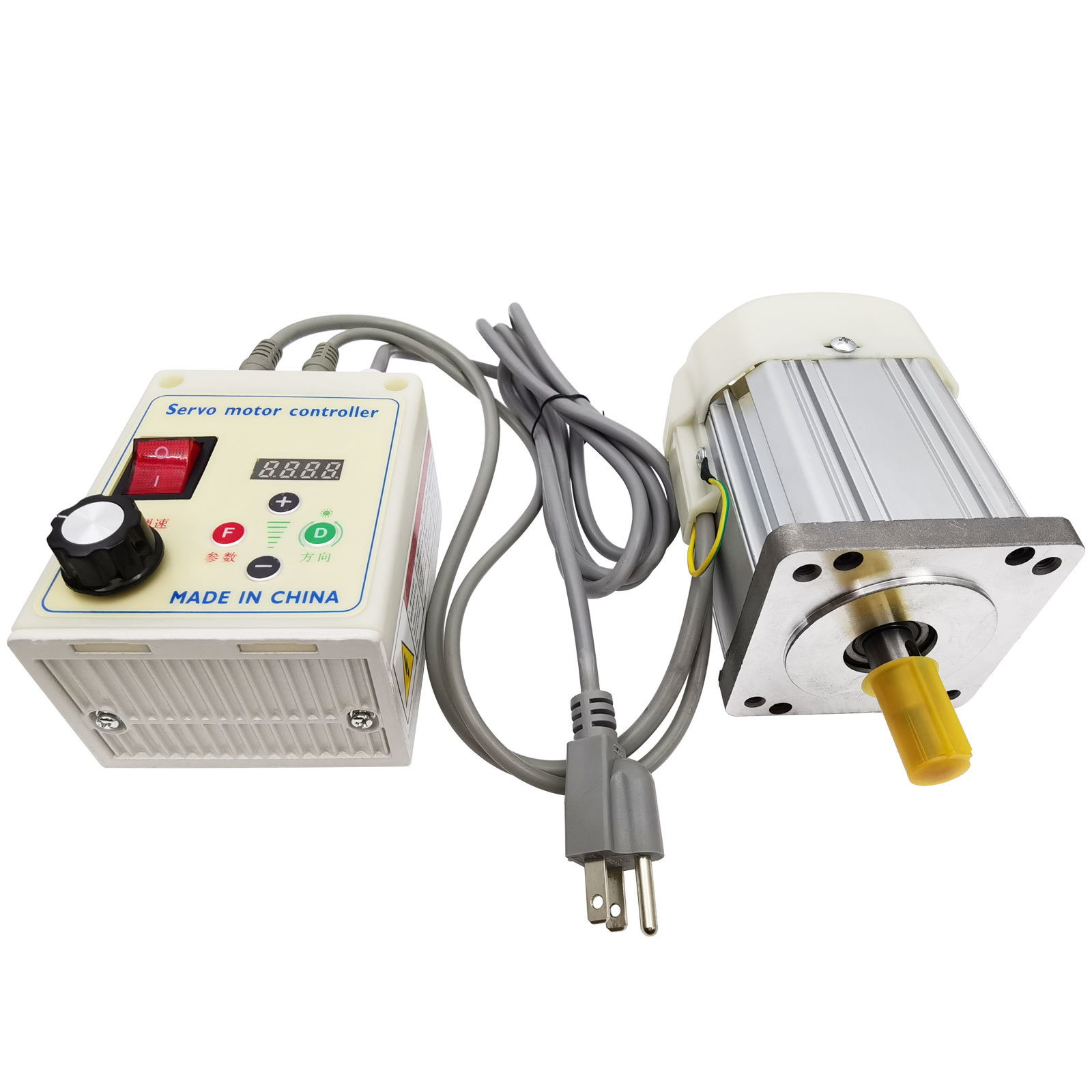

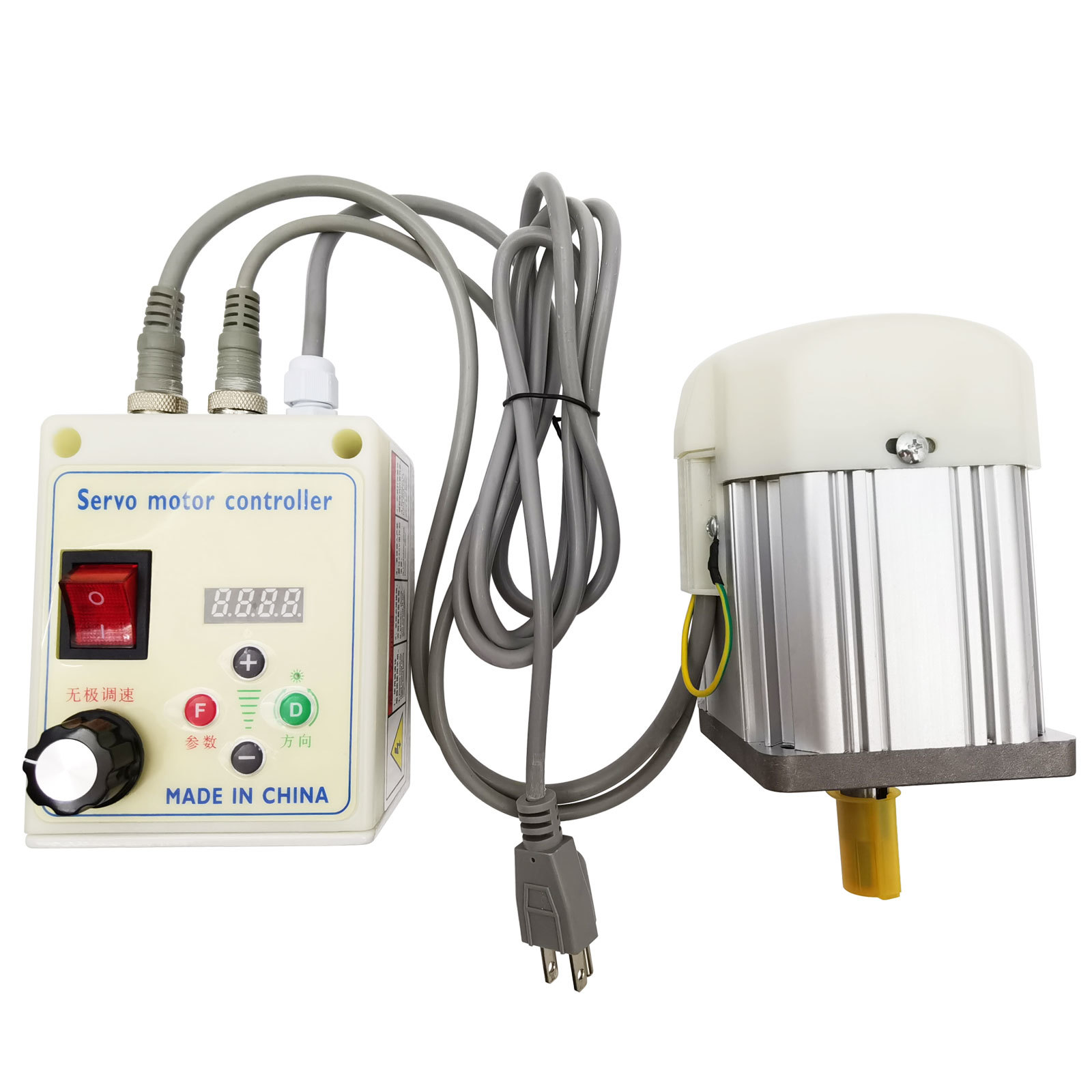

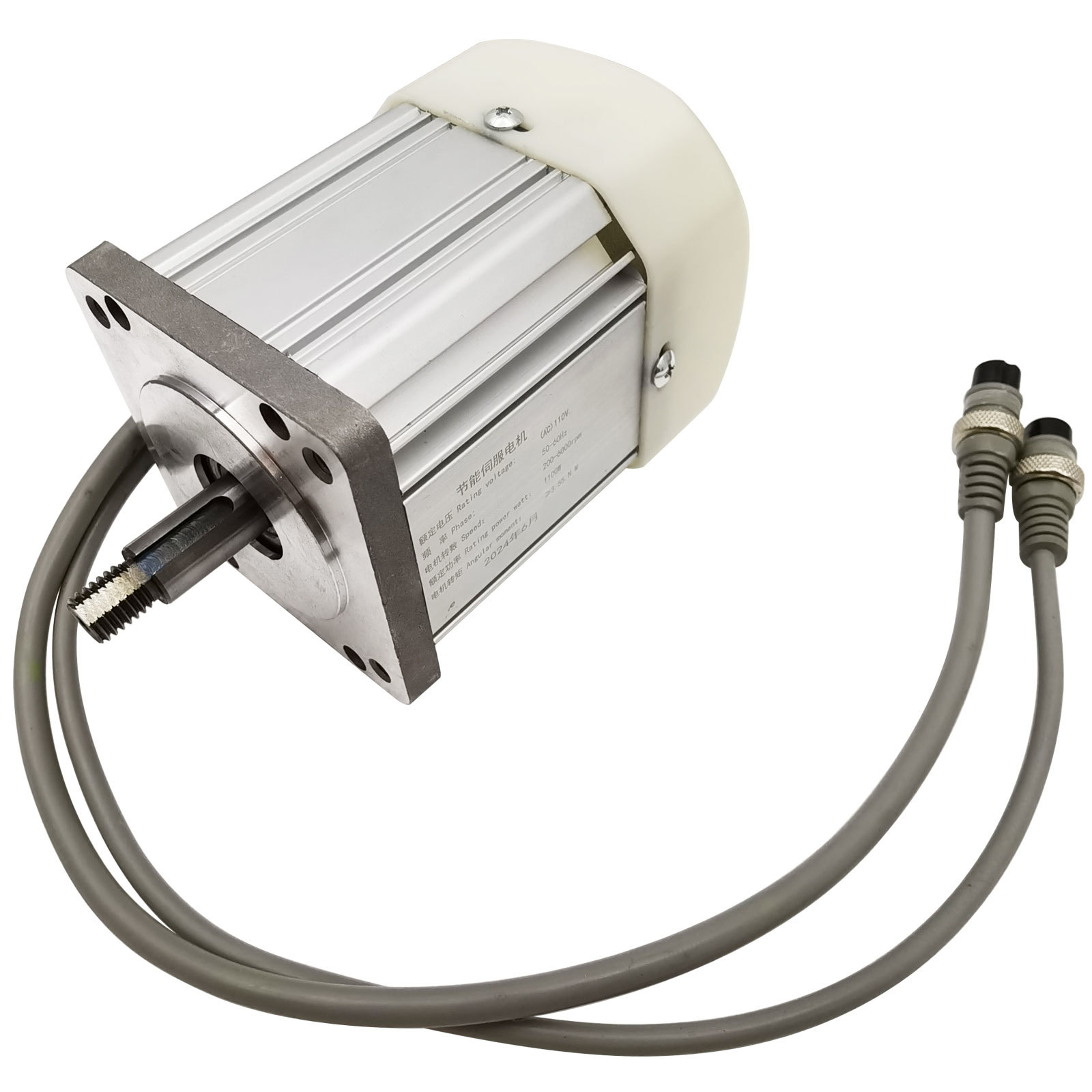

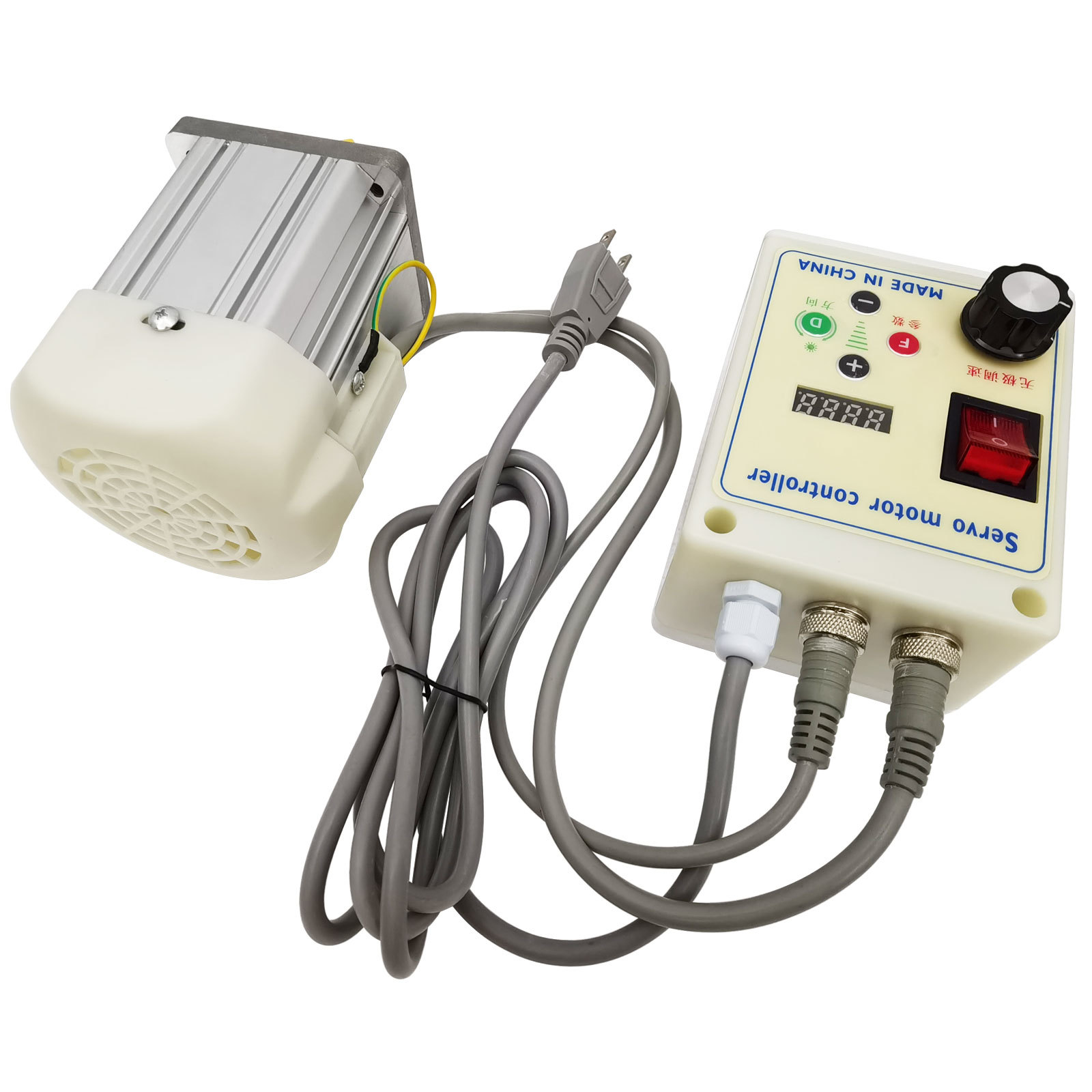

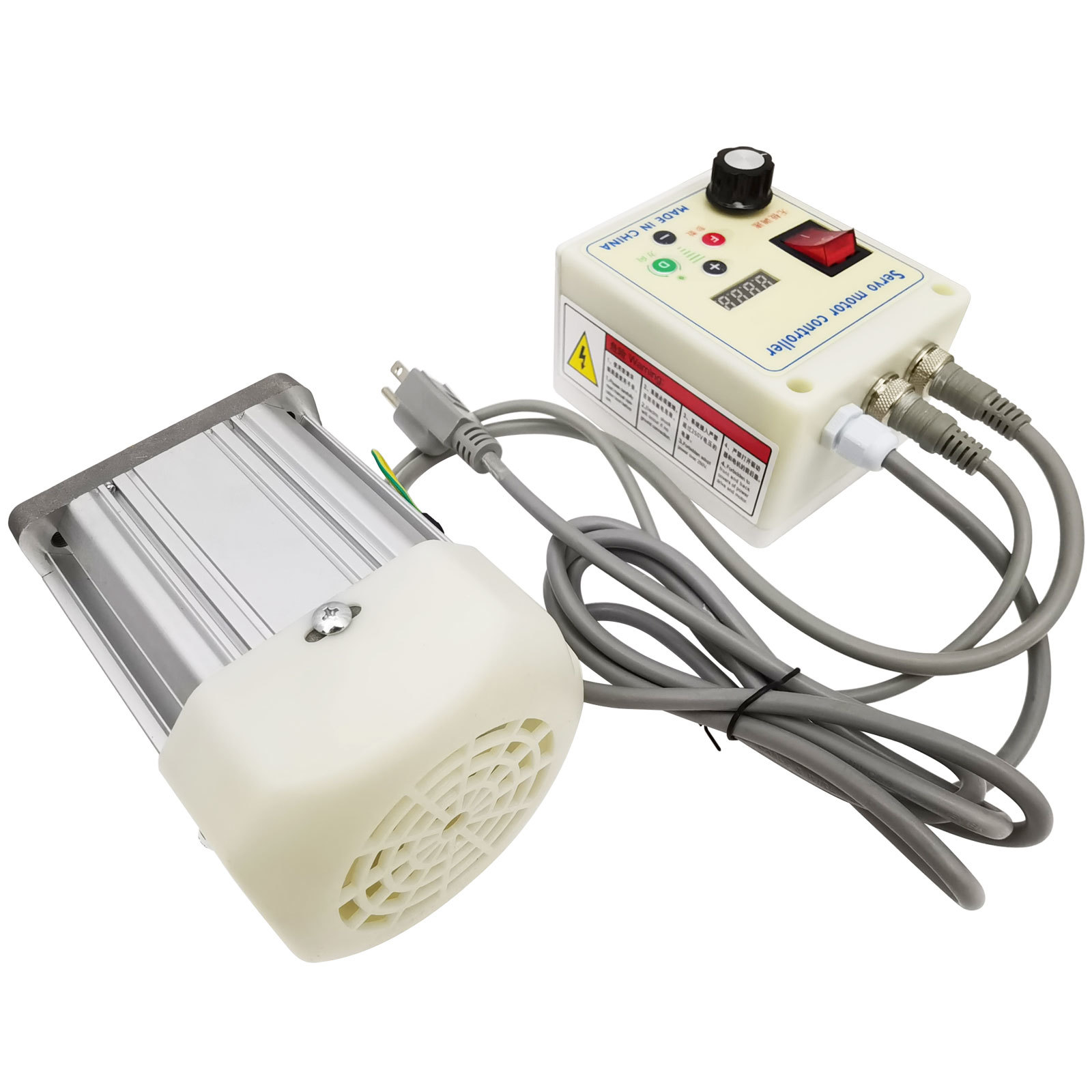

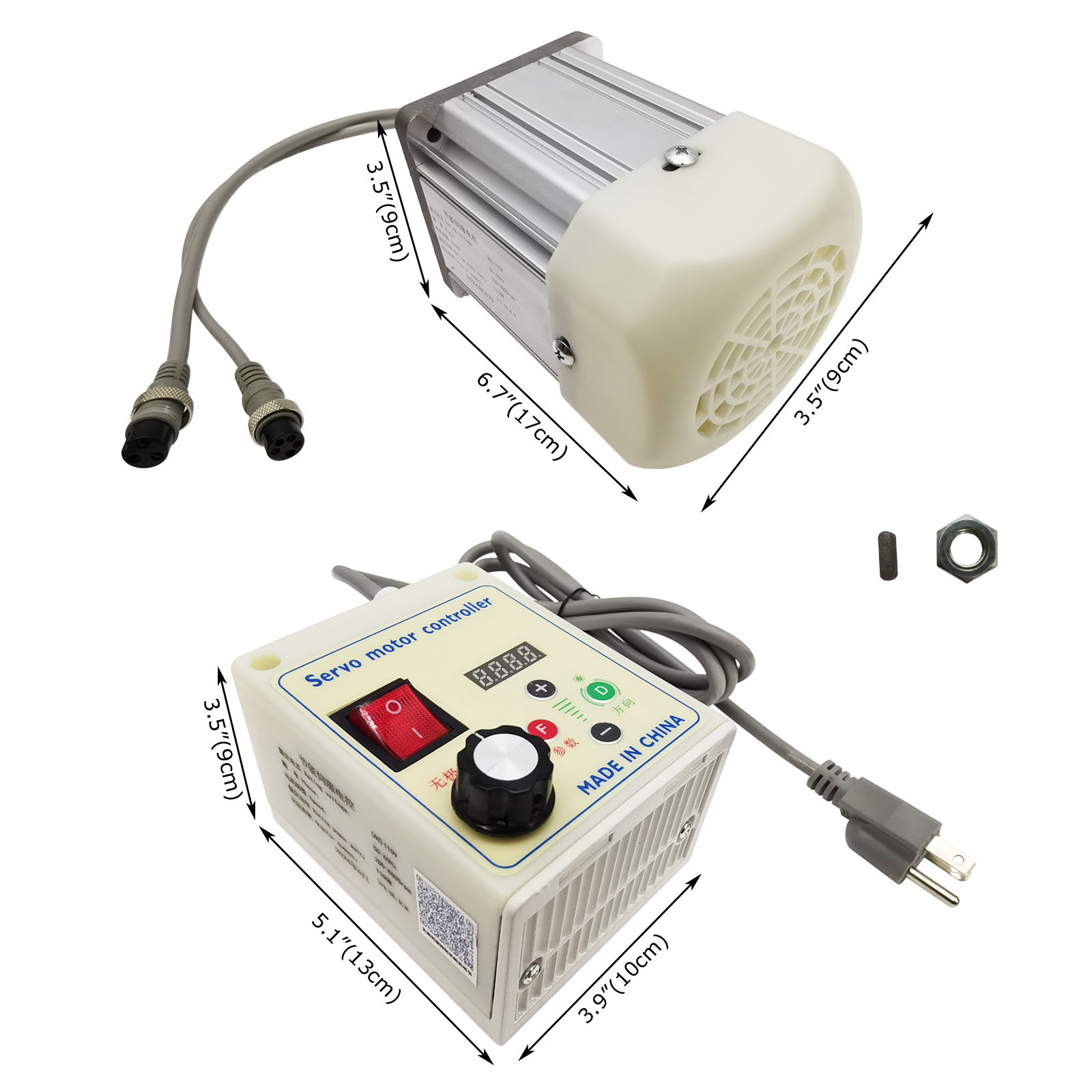

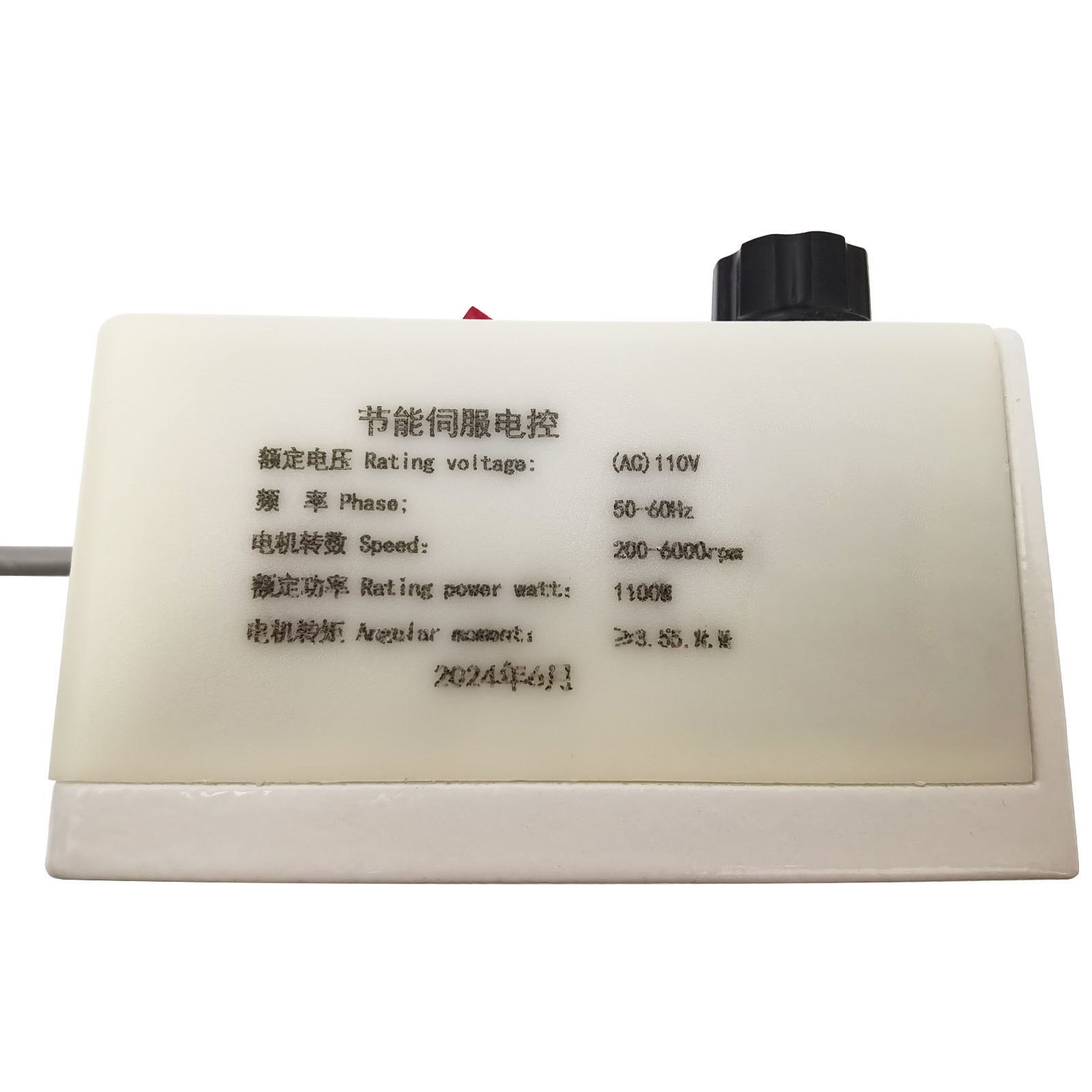

? 110V Brushless Servo Motor Set Lathe Switch Brushless Motor Face Mount Servo Motor Controller Driver 1100W Product Overview This servo motor control kit has a wide range of applications, providing a power source for sewing, woodworking, DIY and more. Up to 23-bit encoder with the latest third generation servo drive control algorithm for more stable operation and faster response. Multi-function protection with over-current, overload, over-voltage and so on. All-copper motor with stepless adjustable high power. Product Parameters Model: LL1100 Voltage: 110V Power: 1100W Range Of Rotation Speed: 200-6000rpm Rated Torque: 3.55n.m Installation Size: 2.7"(69mm) Mounting Flange: 3.5"(89mm) out Shaft Diameter: 0.59"(0.79)"(15mm(20)mm) out Shaft Length: 1.06"+0.59"(27mm+15mm) Motor Length: 4.33"(110mm) Mounting Thread: M6 through hole Keyway: 0.2"*0.2"*0.79"(5mm*5mm*20mm) Package size: 12.99"*9.45"*6.69" (33cm*24cm*17cm) Net weight/Gross weight: 7.17lbs(3.25kg)/8.05lbs(3.65kg) Product Features Advantages a. Aluminium alloy head The use of high-quality aluminum head, light weight, good heat dissipation, strong anti-explosive properties, reducing fuel consumption, and not easy to crack in the high-intensity working condition. b. Convenient controller Simple operation, can adjust the speed, change the direction, parameter selection, stepless speed regulation, non-destructive start, wide speed regulation range. c. Motor Adopts pure copper core motor, strong power, high efficiency; Simple structure, can work stably for a long time, high reliability, low maintenance cost. d. Heat emission hole There are a large number of vents on the head of servo motor, which can timely discharge the excess heat generated by the motor, prevent the temperature from being too high, and protect the motor. e. Mounting Hole The mounting fixing holes on the base make it easy to secure the base to the tabletop, ensuring the stability and security of the device. Features: - Adopting advanced heat dissipation design technology, lower temperature rise; built-in filter, strong anti-interference ability. - Adopting high quality aluminum head, not easy to crack under high intensity working conditions. - Thickened protective cover to prevent sparks and dust splashes, prevent the blade from breaking and hurting people. - Non-destructive start, wide speed range, high torque, low noise, energy saving and environmental protection. Product Presentation Details Item Included(053192) Servo Motor *1 Servo Motor Controller *1 Key *1 Nut *1 You can make order with no worry. Any concern just feel free to let us know, we'll reply in 24 hours in normal condition. Handling Time: Shipping is usually made in 1-3 business days after payments cleared. Orders are processed from Monday-Friday; Not on the weekends public holidays. Warranty: 6 months' warranty for the machines, not for the consumables. We stand behind our products all the item, so even if your warranty period has expired, you can still seek for service or technical support from us with low cost.
