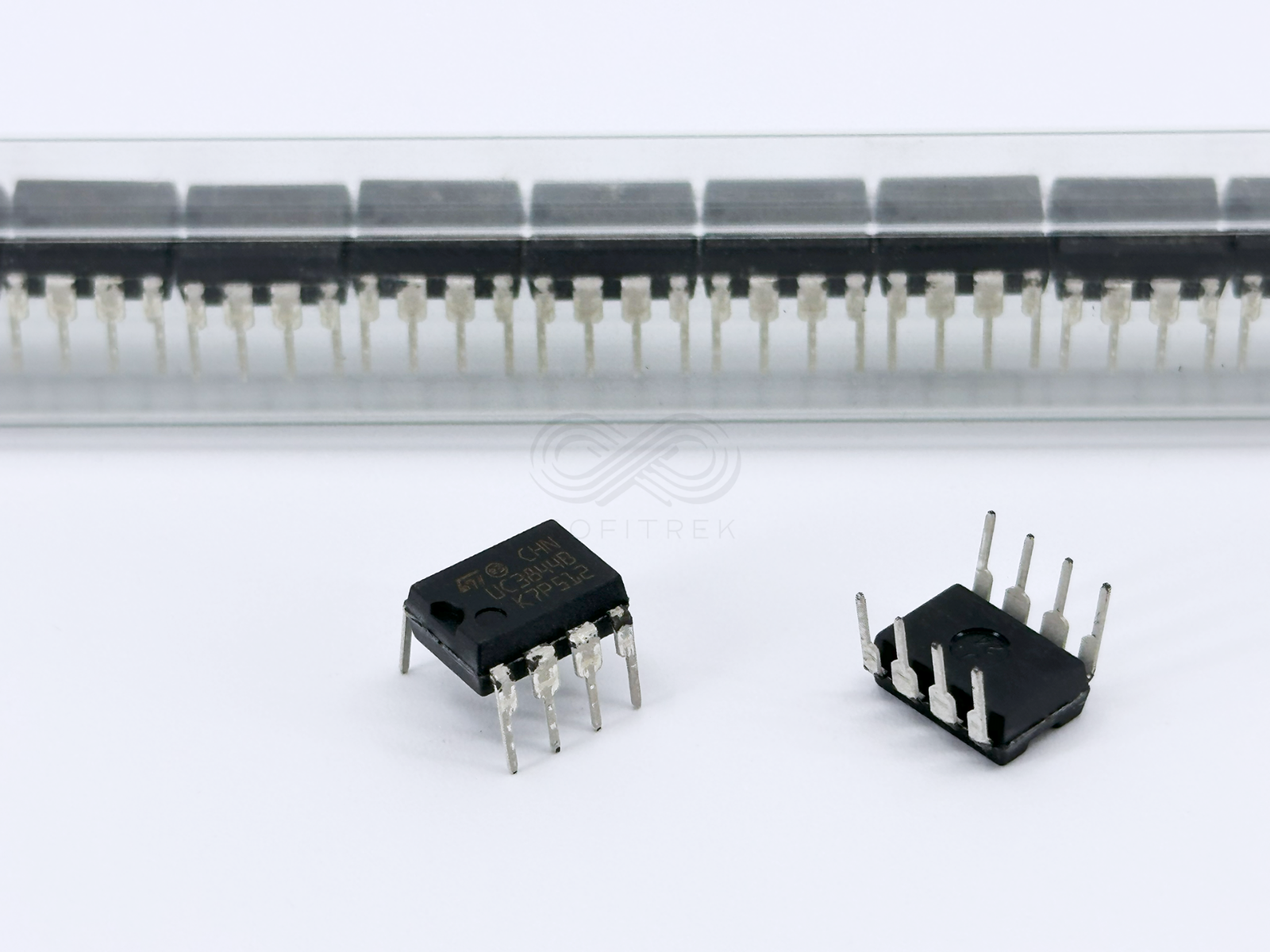

Store Seller Profile Feedbacks Contact Integrated Circuits - ICs Power Management ICs Switching Controllers close 10X UC3844BN STMicroelectronics Current Mode PWM Switching Controller 500 kHz DIP-8 SMPS IC Ready to Ship Ask a Question 30-Day Return Description Specifications Shipping Returns Disclaimer 10 Pieces - UC3844BN STMicroelectronics Current Mode PWM Switching Controller 500 kHz DIP-8 SMPS IC Specification Input Voltage-Nom 15 V Input Voltage-Max 30 V Input Voltage-Min 11.5 V Output Current-Max 1 A Surface Mount NO Switcher Configuration SINGLE Switching Frequency-Max 500 kHz Analog IC - Other Type SWITCHING CONTROLLER Control Mode CURRENT-MODE Control Technique PULSE WIDTH MODULATION Number of Functions 1 Technology BIPOLAR Temperature Grade COMMERCIAL Operating Temperature-Max 70 C Number of Terminals 8 Package Body Material PLASTIC/EPOXY Package Code DIP Package Equivalence Code DIP8,.3 Package Shape RECTANGULAR Surface Mount NO Terminal Finish MATTE TIN Terminal Form THROUGH-HOLE Terminal Pitch 2.54 mm Terminal Position DUAL Width 7.62 mm Seated Height-Max 5.08 mm Package Description DIP, DIP8,.3 Pin Count 8 Manufacturer STMicroelectronics Shipping Policy Our go-to options for small to medium items are USPS Ground Advantage and USPS Priority Mail, known for their reliable tracking and peace of mind. Smaller items might qualify for USPS First Class Mail. Contact us to discuss. Note: This method is less recommended due to the potential for delays. Return Policy We offer a 30-day return window, no questions asked. Providing a reason helps us improve. Combined Shipping Purchasing multiple listings? We?ll automatically combine them and refund any excess postage? everything above the actual label cost plus $0?$1.5 packing cost for large orders. After checkout, send us a quick message as a reminder. Or add all items to your cart and click ?Request total?. If that button is missing (common with promotions or volume pricing), just pay normally; we?ll handle the refund during fulfilment. Sofitrek Product Disclaimer Nature of Goods: All products offered by Sofitrek are surplus items. These products may originate from older batches, series, or have earlier date codes compared to those currently provided by the original manufacturers or their authorized dealers. Non-Affiliation: Sofitrek operates independently and is not an authorized distributor, nor is it affiliated or associated with the manufacturers of the products sold. Consequently, Sofitrek does not represent the manufacturers of these products in any capacity. Exclusion of Manufacturer's Warranty: Since Sofitrek is not an authorized distributor, the original manufacturer's warranties are explicitly not applicable to the products sold. This includes any implied warranties of merchantability or fitness for a particular purpose. Firmware and Software: Some products may include pre-installed firmware or software. However, Sofitrek does not guarantee the presence, compatibility, or the revision level of such firmware or software as suitable for your specific application. Furthermore, Sofitrek expressly disclaims any representation regarding your right or ability to download, obtain, or install any firmware or software for the products from any source, including the original manufacturers or their distributors. Limitation of Liability: Sofitrek shall not be held liable for any form of damages?direct, indirect, incidental, consequential, or otherwise?arising from the use, misuse, or inability to use any product sold. This includes, but is not limited to, damages for loss of profits, goodwill, use, data, or other intangible losses. The buyer assumes all responsibility for the safe and lawful use of the product and agrees to indemnify and hold harmless Sofitrek against any claims, liabilities, or expenses related to the product's use. Compliance and Responsibility: The buyer is solely responsible for adhering to all terms of any End-User License Agreement or similar documentation related to the products, particularly concerning the obtaining, installation, and use of firmware or software. Severability: If any provision of this disclaimer is found to be invalid or unenforceable, the remaining provisions shall continue to be in full force and effect. By purchasing from Sofitrek, the buyer acknowledges having read, understood, and agreed to this disclaimer in its entirety. Links Shop Feedbacks Contact Us Sofitrek
