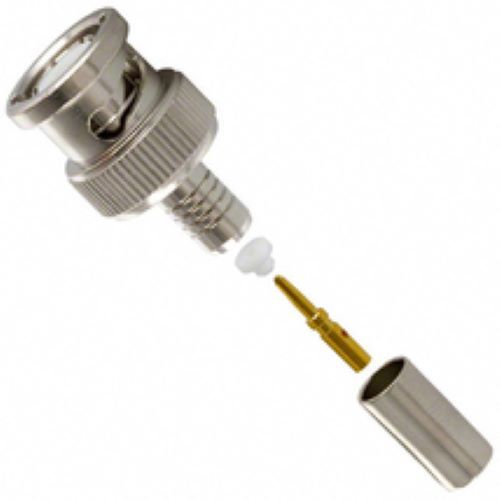

31-321 Amphenol r1 BNC m mil-crimp 23329 and 50 similar items

31-321 AmpAmphenol r1 bnc (m) mil-crimp 23329 rg59 62u bnc connector plug, male pin 50ohm free hanging (in-line) crimp 31321 Application: Crimp Body Plating: Nickel Body Termination: Crimp Cable Group: E Cable Type: Belden 8241, Belden 8279,RG-140,RG-59 Connector Body Style: Straight Contact Plating: Gold Contact Termination: Crimp Gender: Plug Grade: Industrial Impedance: 50 Ohm Part Status Active Connector Type Plug, Male Pin Contact Termination Crimp Shield Termination Crimp Impedance 50Ohm Mounting Feature - Cable Group RG-59, 59B, 62, 140, 210, Belden 8241, 8263, 8279, 9209 Fastening Type Bayonet Lock Frequency - Max 4ghz Number of Ports 1 Features - Housing Color Silver Ingress Protection - Includes 4 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Insulator Body Material Brass Body Finish Nickel Center Contact Plating Gold Dielectric Material Polytetrafluoroethylene (PTFE) Operating Temperature -65C ~ 165C Center Contact Material Brass Voltage Rating 500V Mating Cycles 500 0.2db 31321 connector type plug, male pin contact termination crimp shield termination crimp impedance 50ohm mounting type free hanging (in-line) mounting feature - cable group rg-59, 59b, 62, 140, 210, belden 8241, 8263, 8279, 9209 fastening type bayonet lock frequency - max 4 ghz number of ports 1 features - housing color silver ingress protection - includes 4 pcs - 1 connector, 1 contact, 1 ferrule, 1 insulator body material brass body finish nickel center contact plating gold dielectric material polytetrafluoroethylene (ptfe) operating temperature -65c ~ 165c voltage rating 500 v mating cycles 500 insertion loss 0.2db
