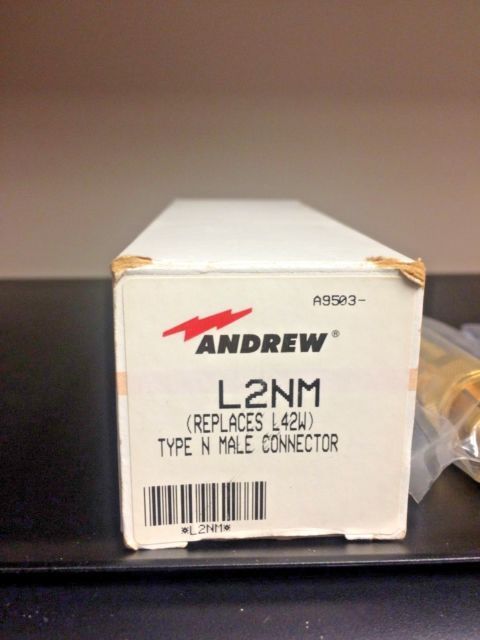

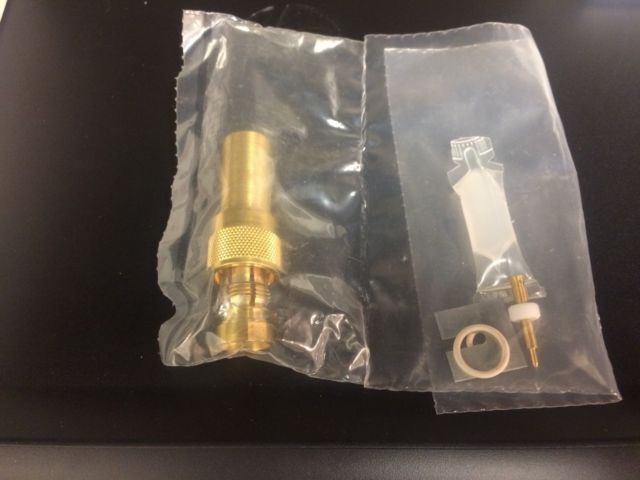

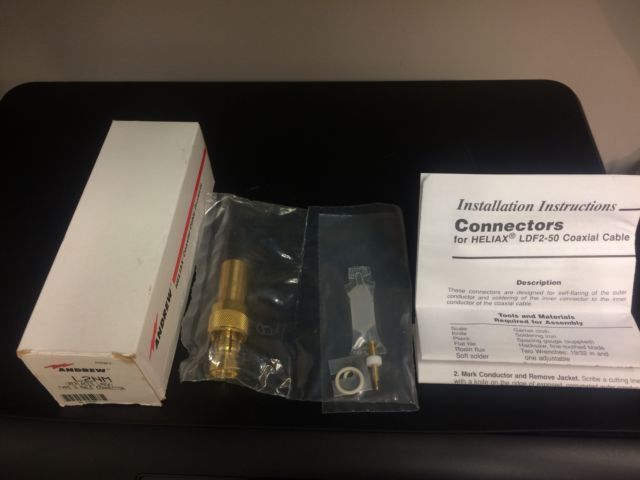

Connector N-Male Andrew L2NM for Cable and 14 similar items

Product Specifications Product Classification Brand HELIAX Product Type Wireless and radiating connector General Specifications Interface N Male body style Straight Brand HELIAX Mounting Angle Straight Electrical Specifications Connector Impedance 50 ohm Operating Frequency Band 0-6000MHz Wire Impedance 50 ohm 3rd Order IMD, typical -112dBm @ 910MHz 3rd Order IMD Test Method Two +43 dBm carriers RF Operating Voltage, maximum (vrms) 707.00V dc Test Voltage 2500V Outer Contact Resistance, maximum 0.25mOhm Inner Contact Resistance, maximum 1.00 mOhm Insulation Resistance, minimum 5000MOhm Average Power 0.7kW @ 900MHz Peak Power, maximum 10.00 kW Shielding Effectiveness -110dB Outline Drawing Click on image below to enlarge. Mechanical Specifications Outer Contact Attachment Method self-flare Inner Contact Attachment Method Welder Outer Contact Plating Copper alloy treatment Inner Contact Plating Copper alloy treatment Interface Durability 500 cycles Interface Durability Method IEC61169-4:17 Connector Retention Tensile Force 670 N | 151lbf Connector Retention Torque 2.70Nm | 1.99ft lb Insertion Force 124.55N | 28.00 lbf Insertion Force Method IEC61169-16:9.3.5 pressurizable Nope Coupling Nut Proof Torque 1.70Nm | 1.25 ft lb Coupling Nut Proof Torque Method IEC61169-16:9.3.11 Coupling Nut Retention Force 445.00N | 100.04lbf Coupling Nut Retention Force Method IEC61169-16:9.3.11 Dimensions Nominal Size 3/8in Diameter 17.55mm | 0.69in Length 57.57mm | 2.27in Weight 47.50g | 0.10lb Environmental Specifications Operating Temperature -55C to +85C (-67F to +185F) Storage Temperature -65C to +125C (-85F to +257F) ImmersionDepth 1m Immersion Test Mating Mated Immersion Test Method IEC60529:2001, IP68 Moisture Resistance Test Method IEC60068-2-3 Mechanical Shock Test Method IEC60068-2-27 Thermal Shock Test Method IEC60068-2-14 Vibration Test Method IEC60068-2-6 Corrosion Test Method IEC60068-2-11 Standard Conditions Attenuation, Ambient Temperature 20C | 68F Average Power, Ambient Temperature 40C | 104F Average Power, Inner Conductor Temperature 100C | 212F . . Due to recent problems with mailing to the UK. All UK buyers should contact us before buying. Thank you . We are sorry for this problem not coming from us. Wireless and radiating connector RF Operating Voltage, maximum (vrms) Outer Contact Resistance, maximum Inner Contact Resistance, maximum Insulation Resistance, minimum Click on image below to enlarge. Outer Contact Attachment Method Inner Contact Attachment Method Connector Retention Tensile Force Coupling Nut Proof Torque Method Coupling Nut Retention Force Coupling Nut Retention Force Method Environmental Specifications -55C to +85C (-67F to +185F) -65C to +125C (-85F to +257F) Moisture Resistance Test Method Attenuation, Ambient Temperature Average Power, Ambient Temperature Average Power, Inner Conductor Temperature Due to recent problems with mailing to the UK. All UK buyers should contact us before buying. We are sorry for this problem not comin Wireless and radiating connector RF Operating Voltage, maximum (vrms) Outer Contact Resistance, maximum Inner Contact Resistance, maximum Insulation Resistance, minimum Click on image below to enlarge. Outer Contact Attachment Method Inner Contact Attachment Method Connector Retention Tensile Force Coupling Nut Proof Torque Method Coupling Nut Retention Force Coupling Nut Retention Force Method Environmental Specifications -55C to +85C (-67F to +185F) -65C to +125C (-85F to +257F) Moisture Resistance Test Method Attenuation, Ambient Temperature Average Power, Ambient Temperature Average Power, Inner Conductor Temperature Due to recent problems with mailing to the UK. All UK buyers should contact us before buying. We are sorry for this problem not comin
