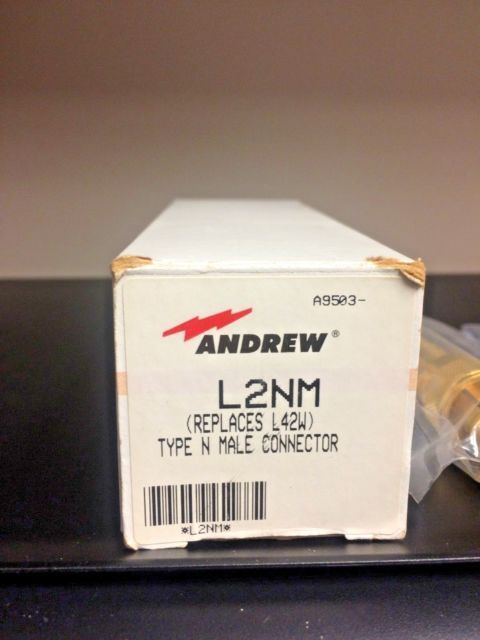

N-Male Connector Andrew L2NM For Coaxial Cable LDF2-50 The description of this item has been automatically translated. If you have any questions, please feel free to contact us. Product Specifications PRODUCT CLASSIFICATION Brand Heliax Product Type Wireless and Radiating Connector General Specifications Interface N Male Body Style Straight Brand Heliax Mounting Angle Straight Electrical Specifications Connector Impedance 50 ohm Operating Frequency Band 0 - 6000 MHz Impedance cable 50 ohm 3rd Order IMD, Typical -112 dBm @ 910 MHz 3rd Order IMD Test Method TWO +43 DBM CARRIERS RF Operating Voltage, Maximum (VRMS) 707.00 v DC Voltage Test 2500 v Outer Contact Resistance, Maximum 0.25 Mohm Inner Contact Resistance, Maximum 1.00 MOHM Insulation Resistance, Minimum 5000 Mohm Average Power 0.7 kW @ 900 MHz Peak Power, Maximum 10.00 kW Shielding Effectiveness -110 dB Outline drawing Click on Image Below to Enlarge. Mechanical Specifications Outer Contact Attachment Method Self-Flare Inner Contact Attachment Method Solder Outer Contact Plating Copper Alloy Treatment Inner Contact Plating Copper Alloy Treatment Durability interface 500 cycles Durability Method Interface IEC 61169-4: 17 Connector retention tensile force 670 n | 151 lbf Connector Retention Torque 2.70 nm | 1.99 FT LB INSERTION FORCE 124.55 N | 28.00 lbf Insertion Force Method IEC 61169-16: 9.3.5 Pressurizable No Coupling Nut Proof Torque 1.70 nm | 1.25 FT LB Coupling Nut Proof Torque Method IEC 61169-16: 9.3.11 Coupling nut retention force 445.00 N | 100.04 lbf Coupling nut retention force method IEC 61169-16: 9.3.11 Dimensions Nominal Size 3/8 in Diameter 17.55 mm | 0.69 in Length 57.57 mm | 2.27 in Weight 47.50 g | 0.10 lb Environmental Specifications Operating Temperature -55 C to +85 C (-67 F to +185 F) Storage Temperature -65 C to +125 C (-85 F to +257 F) IMMERSION DEPTH 1 m Immersion Test Mating MATED Immersion Test Method IEC 60529: 2001, IP68 Moisture Resistance Test Method IEC 60068-2-3 Mechanical Shock Test Method IEC 60068-2-27 Thermal Shock Test Method IEC 60068-2-14 Vibration Test Method IEC 60068-2-6 Corrosion Test Method IEC 60068-2-11 Standard Conditions Attenuation, Ambient Temperature 20 C | 68 f Average Power, Ambient Temperature 40 C | 104 f Average Power, Inner driver Temperature 100 C | 212 f . . Due to Recent Problems with Mailing to the UK. All UK Buyers Should Contact Us Before Buying. Thank you. We are sorry for this problem not coming from us. Wireless and Radiating Connector RF Operating Voltage, Maximum (VRMS) Outer Contact Resistance, Maximum Inner Contact Resistance, Maximum Insulation Resistance, Minimum Click on Image Below to Enlarge. Outer Contact Attachment Method Inner Contact Attachment Method Connector retention tensile force Coupling Nut Proof Torque Method Coupling nut retention force Coupling nut retention force method Environmental Specifications -55 C to +85 C (-67 F to +185 F) -65 C to +125 C (-85 F to +257 F) Moisture Resistance Test Method Attenuation, Ambient Temperature Average Power, Ambient Temperature Average Power, Inner driver Temperature Due to Recent Problems with Mailing to the UK. All UK Buyers Should Contact Us Before Buying. We are sorry for this prob Marca HELIAX Tipo Conector Conector A RP-SMA macho MPN No aplicable EAN No aplicable
