GE AC Disconnect Outdoor Switch 30A 120/240V and 19 similar items

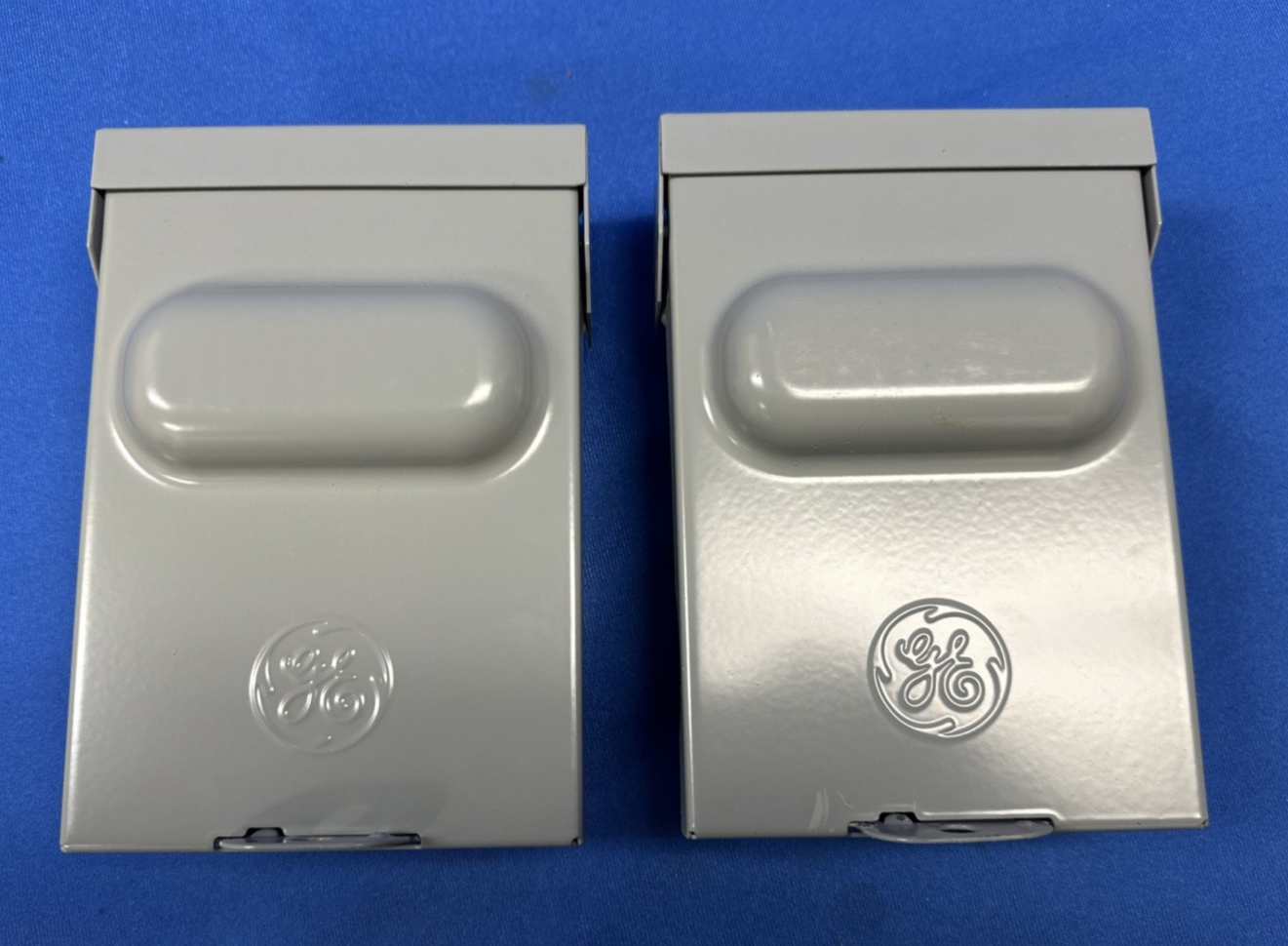

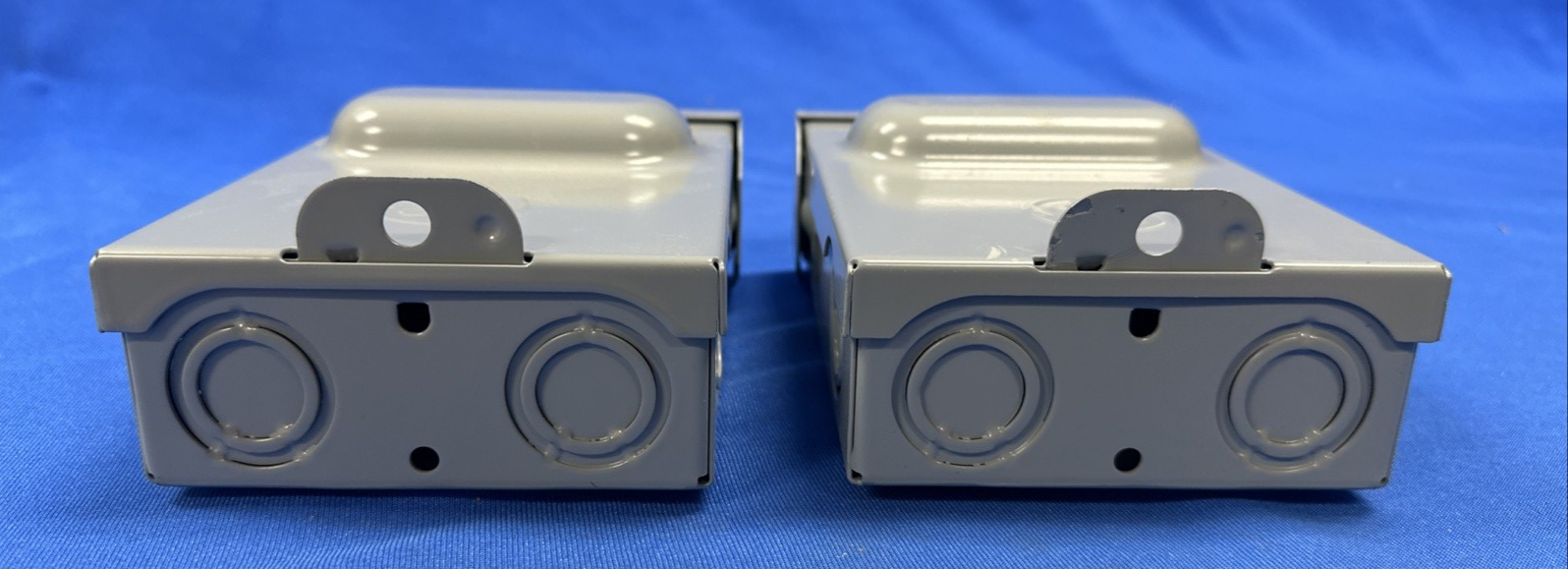

GE AC Disconnect Outdoor Switch 30A 120/240V TF30RCP About This Product The GE 30 Amp 120/240-Volt 240-Watt Fused (requires 2 fuses installed on the back side of the puller). AC Disconnect has a NEMA 3R-rated steel enclosure that is both rust- and corrosion resistant for outdoor use. This safety switch is intended to disconnect power from an air-conditioning unit and uses lug wire range AWG #14 - 3 copper/aluminum. This single-phase disconnect is ANSI certified and UL listed with a maximum load of 240-Volt. Highlights Use to disconnect power from an air-conditioning unit NEMA 3R-rated steel enclosure for outdoor use Rust- and corrosion resistant Fusible - requires 2 fuses that are installed on the back side of the puller Single phase Lug wire range is AWG #14 - 3 copper/aluminum 120/240-Volt 3 HP maximum The fuse classes accepted are: H, K1, K5, K9, RK1 and RK5 up to 30 amps ANSI certified and UL listed Dimensions Product Depth (in.) 3.5 in Product Height (in.) 8.2 in Product Width (in.) 5.3 in Details Disconnect Type Air Conditioner Electrical Product Type Disconnect Fused Fused Indoor/Outdoor Outdoor Maximum Amperage (A) 30 Maximum Wattage (W) 240 W NEMA Configuration NEMA 3R Phase Type 1 Phase Power Distribution Features Fusible Product Weight (lb.) 2.56 lb Returnable 30-Day Type Air Conditioner Voltage (V) 240
