60 Amp 12V/24V Auto, 60A Solar Panel Charge and similar items

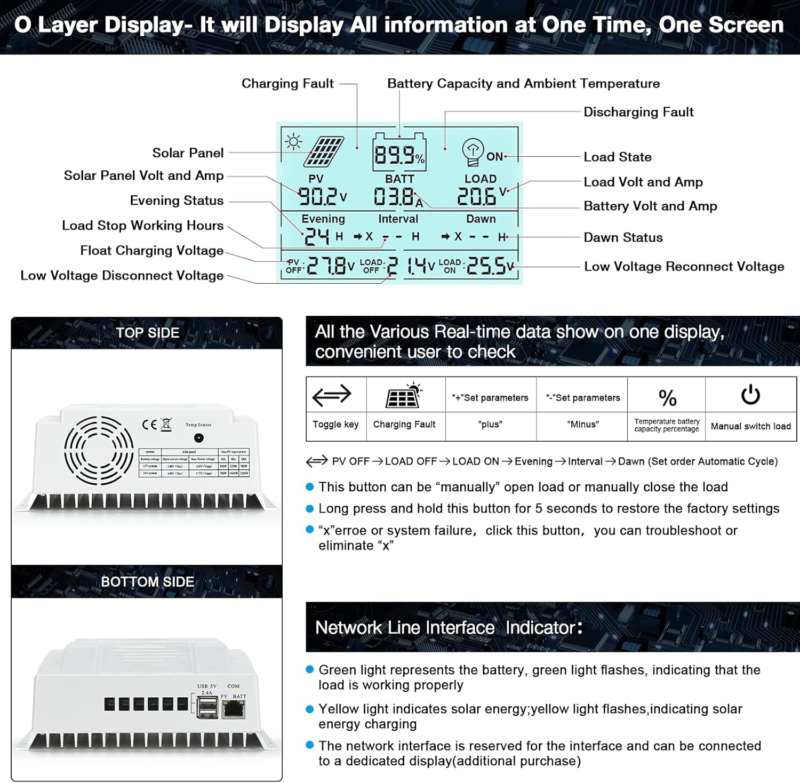

Fast Shipping On All Items 30 Days Money Guarantee Customer Support Excellent Service 100% Satisfaction Satisfaction Guaranteed 60 Amp 12V/24V Auto, 60A Solar Panel Charge Regulator with Blacklight LCD Display Max 100V for Lead-Acid Sealed Gel AGM Flooded Lithium Battery Specification Item model number PD-23401 Display Type LCD Batteries required No Brand OOYCYOO Material Gel Country of Origin China Style 60A 12V 24V Item Weight 1.26 Kilograms Color White Voltage 24 Volts Manufacturer OOYCYOO Is Discontinued By Manufacturer No Package Dimensions 8.27 x 8.23 x 3.31 inches Included Components USB 8.23 inches x 8.27 inches x 3.31 inches. Weight: 1.26 kg Item Description AUTOMATICALLY DETECTS 12V/24V?Max 100V) DC SYSTEMS,Dual USB give your electronic product MAX 5V 2.4A.Support sealed,Gel,Flooded Lead-acid battery and lithium battery.Three stages(constant current, constant voltage, floating charge) POSITIVE GROUND MPPT CONTROLLER - The solar panel charge controller is equipped with high tracking efficiency up to 99%, hardly wasting the energy from solar panels.with three load Timer:ON/OFF mode,PV Time control mode,PV voltage control mode,Dual Time control mode. MULTIFUNCTIONAL LCD DISPLAYS - All the Various Real-time data shown on the same one display, it's convenient for users to check the data. And the MPPT charge controller 60 amp supports manual switch load and 5 seconds to restore the factory settings.LED shows if solar panels and battery are really connected to the controller.Lightning protection function.Convenient to check. MULTI-PROTECTION AND MULTI-STAGE CHARGING - Built-in intelligent protection against reverse polarity, reverse discharge, overload, short-circuiting, under voltage and reverse current. Multi-stage charging includes constant current, constant voltage and floating charge, and temperature compensation increase your battery life and improve your system's performance. 360 DAY SATISFACTORY GUARANTEE - We offer a 360 Day 100% SATISFACTORY warranty for our customers.Contact us if you have any question. Product Description OUR FACTORY WORKING CONDITIONS Feature Advanced Maximum Power Point Tracking (MPPT) technology, with efficiency no less than 99%. High quality components, perfecting system performance, with maximum conversion efficiency of 98.5%. Ultra-fast tracking speed and great tracking efficiency. Wide MPP operating voltage range. 12/24VDC automatically identifying system voltage. LCD panel display design, dynamically displaying tool?s operating data and working condition. Support 3 charging lead-acid battery options: Sealed, Gel, Flooded. Battery temperature compensation function. General Safety Information Read all of the instructions and cautions in the manual before beginning the installation. There are no serviceable parts for this controller. Do NOT disassemble or attempt to repair the controller. Do NOT allow water to enter the controller. Make sure all connections going into and from the controller are tight. OOYCYOO MPPT SOLAR CHARGE CONTROLLER 40A/60A/80A/100A MPPT Solar Charge Controller w/ LCD Display The OOYCYOO 40A/60A/80A/100A P/K series MPPT Charge Controller is an intelligent positive ground controller. Built with protections against reverse polarity, short-circuiting, overheating, and more, this MPPT controller is also capable of self-diagnosing itself in the event of an error. The solar panel charge controller is equipped with high tracking efficiency up to 99%, hardly wasting the energy from solar panels.with three load Timer TRUE MPPT MPPT Technology High Tracking Efficiency 99% The maximum power point tracking is automatically traced Max Input Power: 12V battery @ 500W | 24V battery @ 1000W All the Various Real-time data shown on the same one display Display: Volt, Amaps, %, ? Parameter user can reset 'Manually' open load or manually close the load. Long press and hold togglr key button for 5 seconds to restore the factory settings USB 5V/2.4A and Indicator Power terminals: 10 AWG Dual USB 5V/2A Output for phone charging (LCD485) Indicator: Green light flashes, indicating that the load is working properly; Yellow light flashes, indicating solar energy charging Die-cast Aluminum Design Aluminum Heat sink:For efficient heat dissipation. Install the charge controller vertically in place where it will not be exposed to direct sunlight and high temperature MPPT technology Automatically detect 12V or 24V DC system voltages Innovative MPPT technology with high tracking efficiency up to 99% and peak conversion efficiency of 98% Various optional batteries Deep cycle Sealed, Gel, Flooded and Lithium (12.8V LFP) battery option ready Charges over-discharged lithium batteries Protection System Electronic protection: Overcharging, over-discharging, overload, and short circuit. Reverse protection: Any combination of solar module and battery, without causing damage to any component Customize charge controller Customizable charging voltages Positive ground charge controller HOW TO WIRE YOUR SOLAR CONTROLLER? Turn the adjusting screw counterclockwise until the plate moves downward. Please peel off the coating of the cable tip by about 8 to 10 mm, Then Insert the wire into the new opening between the plate and the "top" of the terminal hole. When turning the adjuster clockwise, the plate moves upward and crushes the wire in the hole of the terminal. Make sure all connections going into and from the controller are tight. IMPORTANT NOTE: Make sure your battery must be atleast 60% charged prior to connecting to controller. Always connect your battery first Never connect your solar panel array to the controller without a battery. Careful your input power and voltage does not exceed the max. Return Policy ? We guarantee against any defective or misrepresented products. The original shipping label must be sent back to us to validate the return. A full refund can only be issued during the first 30 days upon receipt of the product. ? Returns will be voided if the product is mishandled or physical damaged by customer. ? Buyer will be responsible for all kind of return shipping/shipment to the seller for resolving the problem. ? Returns made for all non-defective, undamaged products are subject to a 15% restocking fee. Shipping and handling fees are absolutely non-refundable. If an item is returned to us due to an address issue, we do charge a reshipping fee to reship. If you would like a refund, there will be a 15% restocking fee applied. ? All returned products need to be assigned an RMA # (Return Merchandise Authorization #) prior to return. Please contact us through's messaging system to obtain an RMA# for the return. Any returned product without an RMA # on package will not be accepted or processed. ? Please contact us before returning. Feedback ? We appreciate your feedback and our system will automatically leave feedback for you after bid ends. ? Please contact us through message center if you have any problems, we will always try our best for 100% customer satisfaction. Payment Options Shop With Confidence
