Connecticut Electric - 30-Amp RV Power and 48 similar items

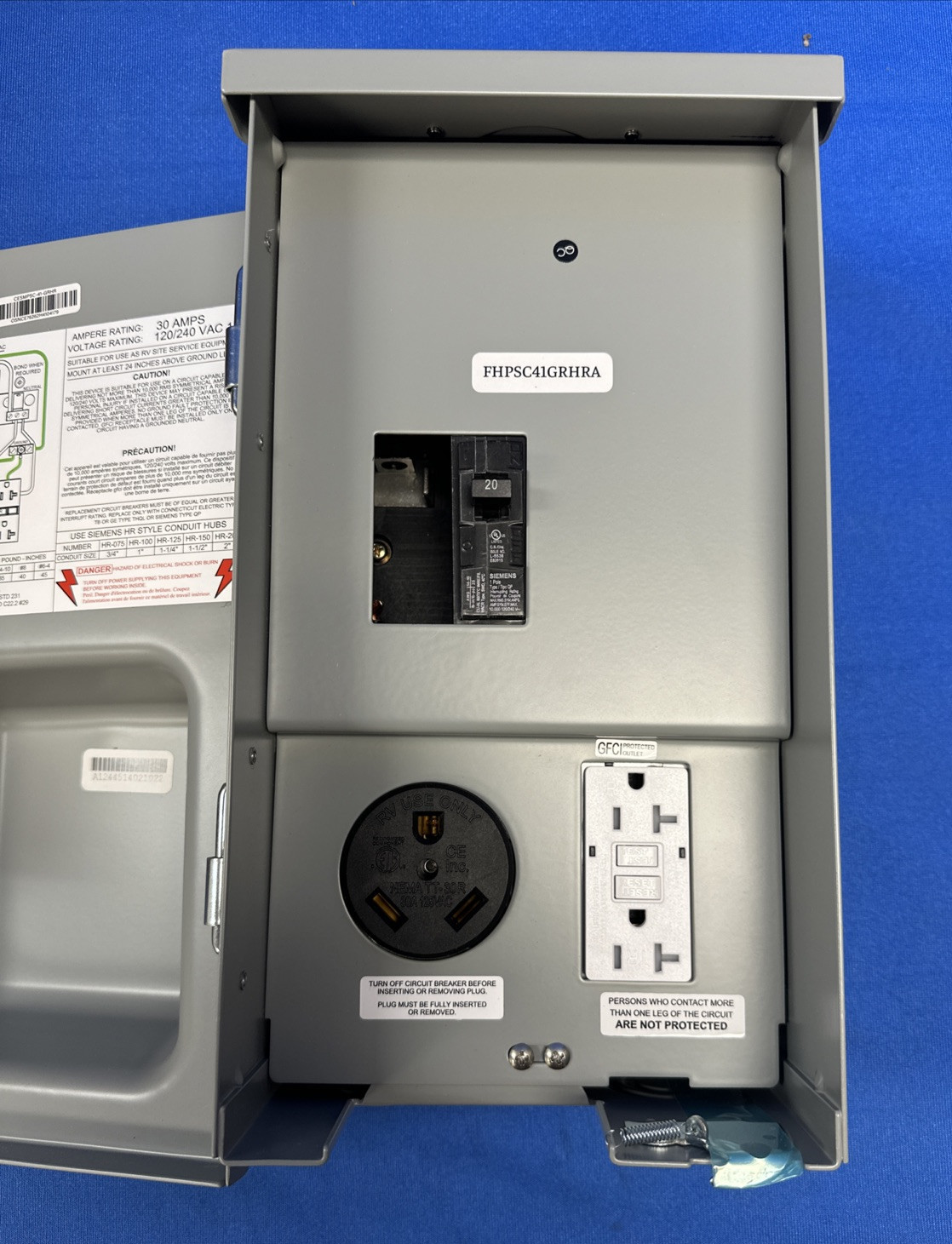

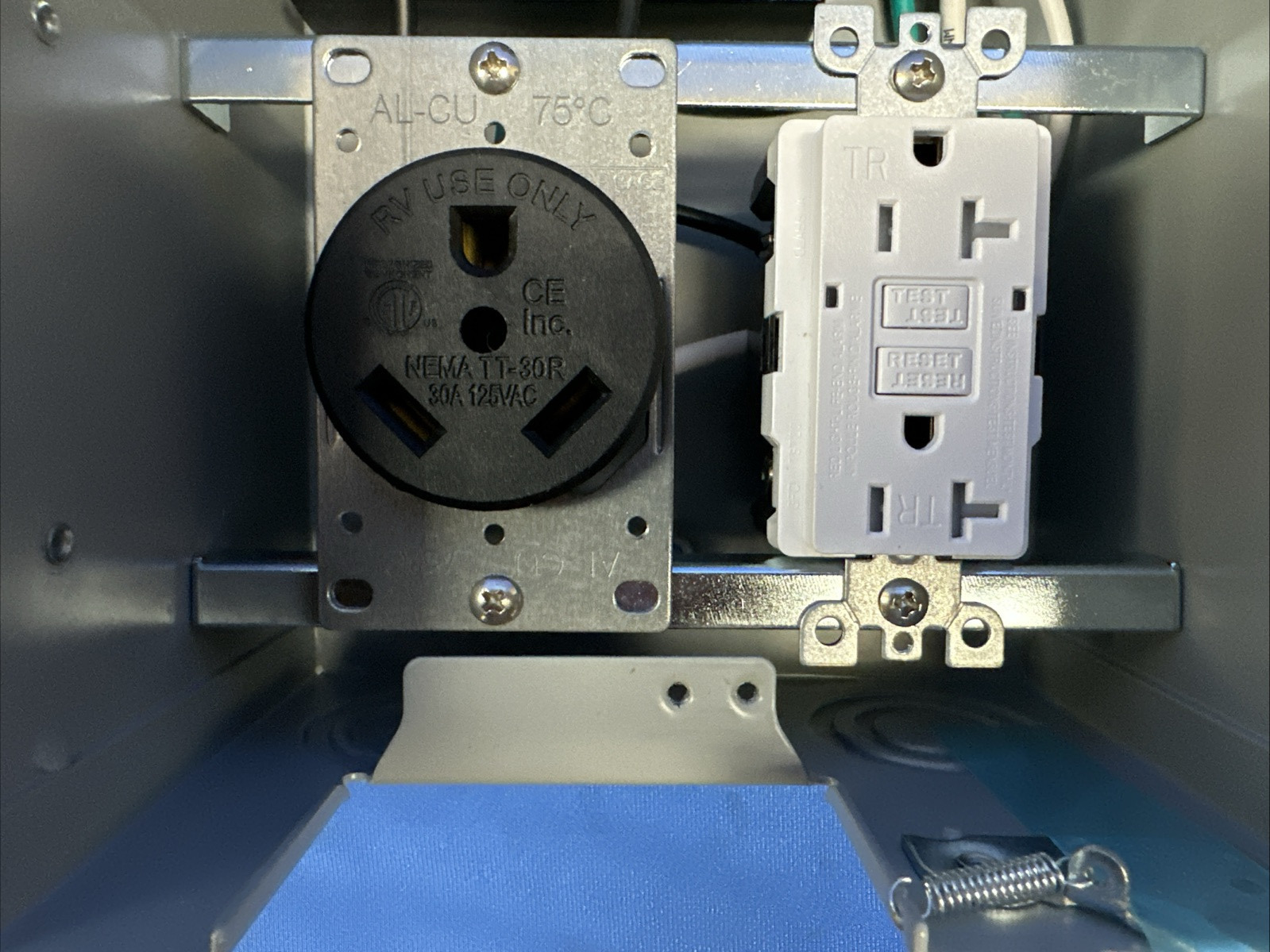

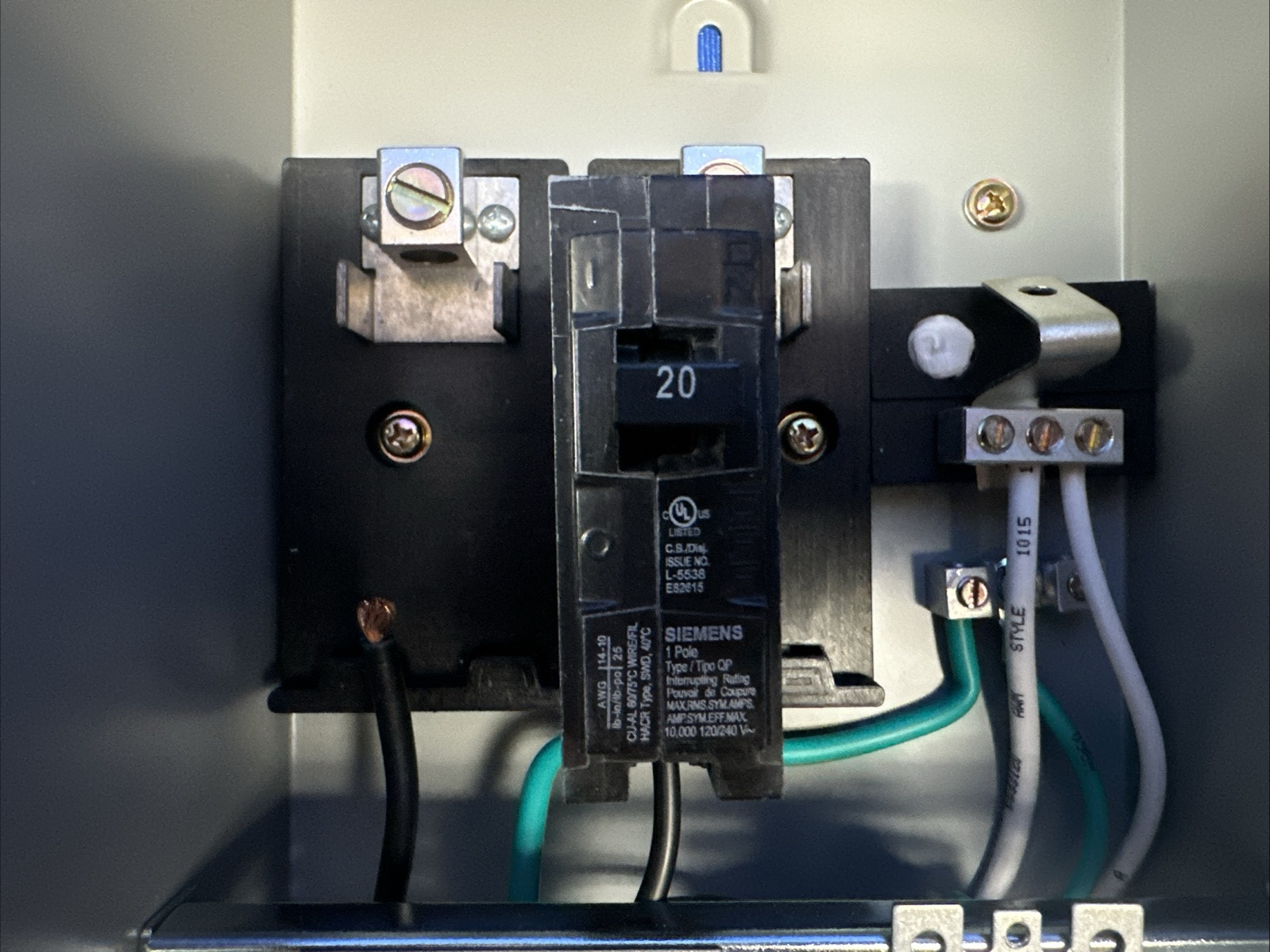

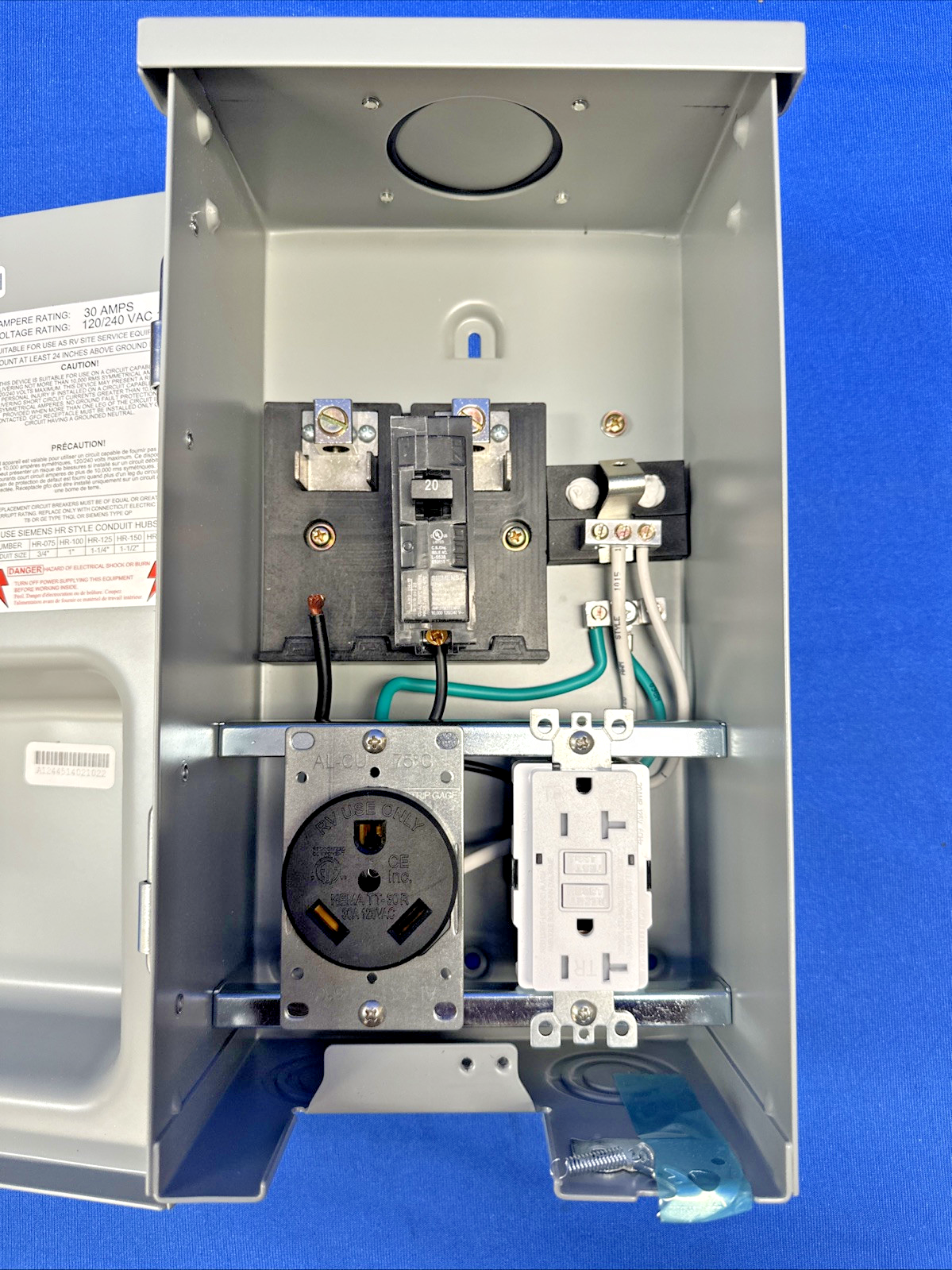

Connecticut Electric 30-Amp RV Power Outlet with Branch Breakers About This Product Perfect for the RV Owner that stores a motor home, camper, travel trailer or pop-up trailer and wants electricity close by, especially for a heater that will help prevent moisture and mildew from forming. Panel includes a 30-Amp receptacle and branch circuits: Single-Pole 20-Amp and Single-Pole 30-Amp as well as a 20-Amp GFCI duplex receptacle. Safe and easy to install for the do-it-yourselfer because it is factory wired and completely assembled. The unique cover design allows the cord to be used when the door is closed. Highlights TT-30R NEMA receptacle is 3 wire, rated at 30-Amp 125-Volt; 5-20R NEMA 3 wire receptacle is GFCI protected Hub provision is provided for use with Siemens HR-style hubs NEMA 3R rainproof enclosure has a lockable latch and the unique design allows the cord to be used with the door closed Lugs are suitable for either aluminum or copper wire Dimensions Load center depth (in.) 5 Load center height (in.) 13.25 Load center width (in.) 7.25 Product Depth (in.) 7 in Product Height (in.) 13 in Product Width (in.) 7.5 in Details Application Use RV Electrical Product Type Outlet Included Circuit Breaker, GFCI Receptacle(s) Load Center Type Main Lug Maximum Amperage (A) 30 A NEMA Configuration NEMA 3R Number of Circuits 2 Number of Receptacles 1 Number of Spaces 2 Phase Type 1 Phase Product Weight (lb.) 8 lb Receptacle Amperage 30 Receptacle Configuration (description exceeds maximum possible length)
