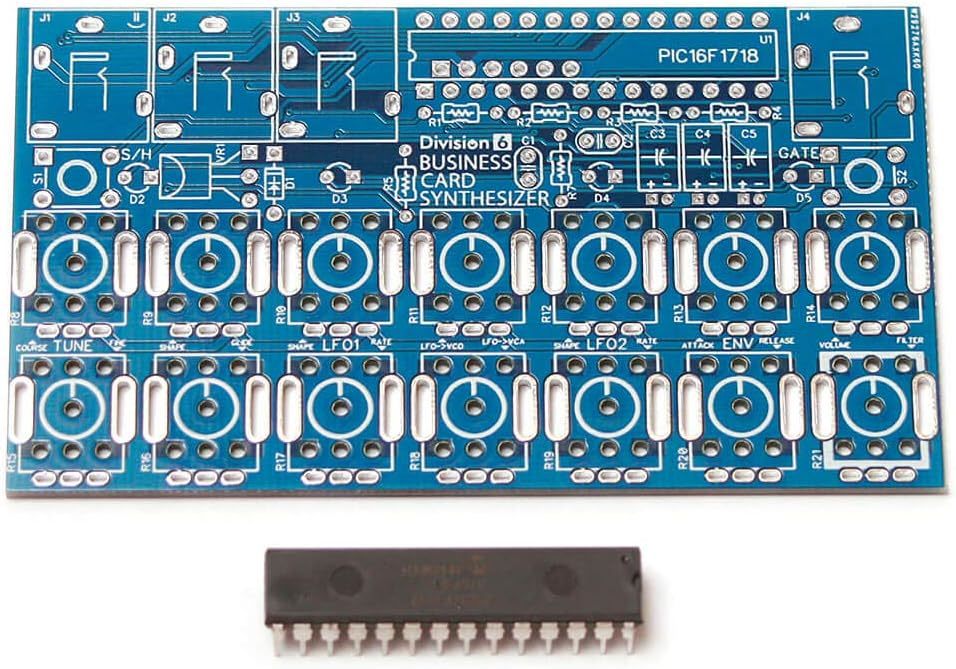

Division 6 Business Card Synthesizer Pcb And Ic Product Details Build it yourself! Please note: this includes the PCB and programmed IC only. You can source the rest of the parts you will need from the bill of materials on the Division 6 website. The Business Card Synthesizer is a tiny synth that can be connected to a Business Card Sequencer, other synth gear, or played by itself. These fun little kits were introduced at Knobcon 2018 as a build workshop. Now you can get your very own. Headphones can be connected directly to the output of the synth, and there are plenty of knobs to play with, so you can easily make noises anywhere. Great for learning about synthesizers! We send you a board and a bag of parts so you can build it yourself. Difficulty level = medium (it?s all through-hole, but some of the soldering is kind of small). The kit includes the PCB, preprogrammed microcontroller and all required parts to build kit. Features: Pulse, square, triangle, and sawtooth waves Glide 2 LFOs with pulse, square, saw, triangle and ramp shapes Attack / Decay Low-pass filter Sample and Hold Manual gate trigger (can be locked on) Course and fine-tune controls Controls: S H Button: Enables Sample Hold, which disables the external CV IN jack and uses LFO1 and LFO2 to determine oscillator pitch. LFO1 sets the sample rate (SHAPE is ignored for this), and LFO2 is the wave that gets sampled. GATE Button: Manually turns on the gate so sound comes out of the synth. This control is momentary, but you can latch it on by tapping the S H button while holding the GATE button down. COARSE TUNE: Adjusts the pitch of the oscillator up or down in large increments FINE TUNE: Adjusts the pitch of the oscillator up or down in fine increments SHAPE: Changes the shape of the wave produced by the main oscillator (VCO). Turning this contr A tiny synth that can be connected to a Business Card Sequencer, other synth gear, or played by itself Pulse, square, triangle, and sawtooth waves 2 LFOs with pulse, square, saw, triangle and ramp shapes Attack / Decay, Sample and Hold, Glide, Low-pass filter Can be powered by 7-15V power supply (not included) Payment We accept PayPal and credit cards via PayPal. Taxes - US We collect sales tax, as required by law. Shipping We make every effort of shipping within 3 business day of payment clearing. The estimated delivery time is 2 - 5 business days from the shipping date. Policies If you do need to return your item, please contact us via email (you will receive an email when your product ships with additional details - Subject: Important information about your purchase). You will then be provided with a return shipping label and packing slip. Pack the item carefully. Include the packing slip, apply the shipping label, and return the item within 30 business days of the date you request a return, or your return will be canceled. Once we receive your order we will inspect the return. Please allow up to 5 business days of receiving the returned item for your refund.
