Easy To Use Car Timer Switch Relay 1-480 Sec and 50 similar items

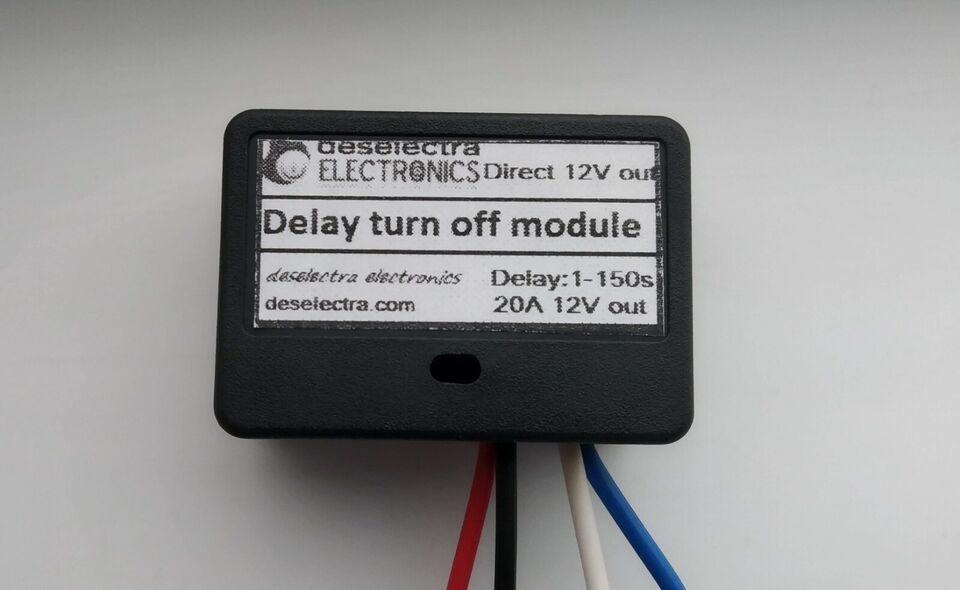

EASY TO USE CAR TIMER SWITCH RELAY 1- 480 SEC Delay OFF 12V 20A DIRECT 12V OUT Timer with adjustable delay time from 2 to 480 sec. Dimensions: - length - 38 mm - width 24 mm - height 19 mm Power supply - 10 to 14 V DC: -red wire ? 12V+ - black wire ? 12V- Output - direct 12V 20A white wire ? 12V+ Blue wire ? 12V- Time is adjusted by trimmer, with small screwdriver - rotate clockwise ? increase time Led indication for activated relay. For safety can be placed fuse 20A at the red wire. Please note: - that timer will not work if power supply is below 10V - If you set minimal time, relay will click when you power on the timer( not recommended) - At the output have voltage, you can wire the load directly - If you use load more than 20A, then must be used separate powerful relay after the timer. Principe of work: When power is on, the delay time start, led diode lights and output (white and blue wire) will receive 12V . When set time end, the relay is deactivated and output stop receiving 12V, even that power is still on. By restart power supply - cycle repeat. Device have plastic box, as see on the picture. Package contents: 1. Time Relay 2. Instruction for use and wiring diagram. Payment Terms We accept PayPal . It is easy and safe. PayPal allows you to pay by credit cards, debit cards, bank transfers and PayPal account balances. eCheck will be held until cleared. If you do not have PayPal account, please sign up and learn more about PayPal . Item will be shipped to Paypal shipping address only except special notes from buyers. Payment is due within 7 days of the close of an sale. Therefore, please be sure that buyer will be able to clear payment through PayPal, before bidding or buying.We are not responsible for any custom duty or tax since our price do not include this charge. Shipping All items will be checked before packing. All items are new and of high quality. Item will be shipped within 1 business days upon receipt of payment, excluding weekends and public holidays. We ship worldwide. Item will be shipped to winning Buyers from Bulgarian Post. Delivery time is approx. 5-20 business days to most destinations: 5-10 business days to UK 5-10 business days to Germany 10-25 business days to USA/ Canada 10-15 business days to Australia 5-14 business days to Europe Return information 30-day Warranty with Exchange for defective, malfunctioned, incorrect or parts-missing items. Please notify us and simply return the item with all parts and accessories packed and marked.
