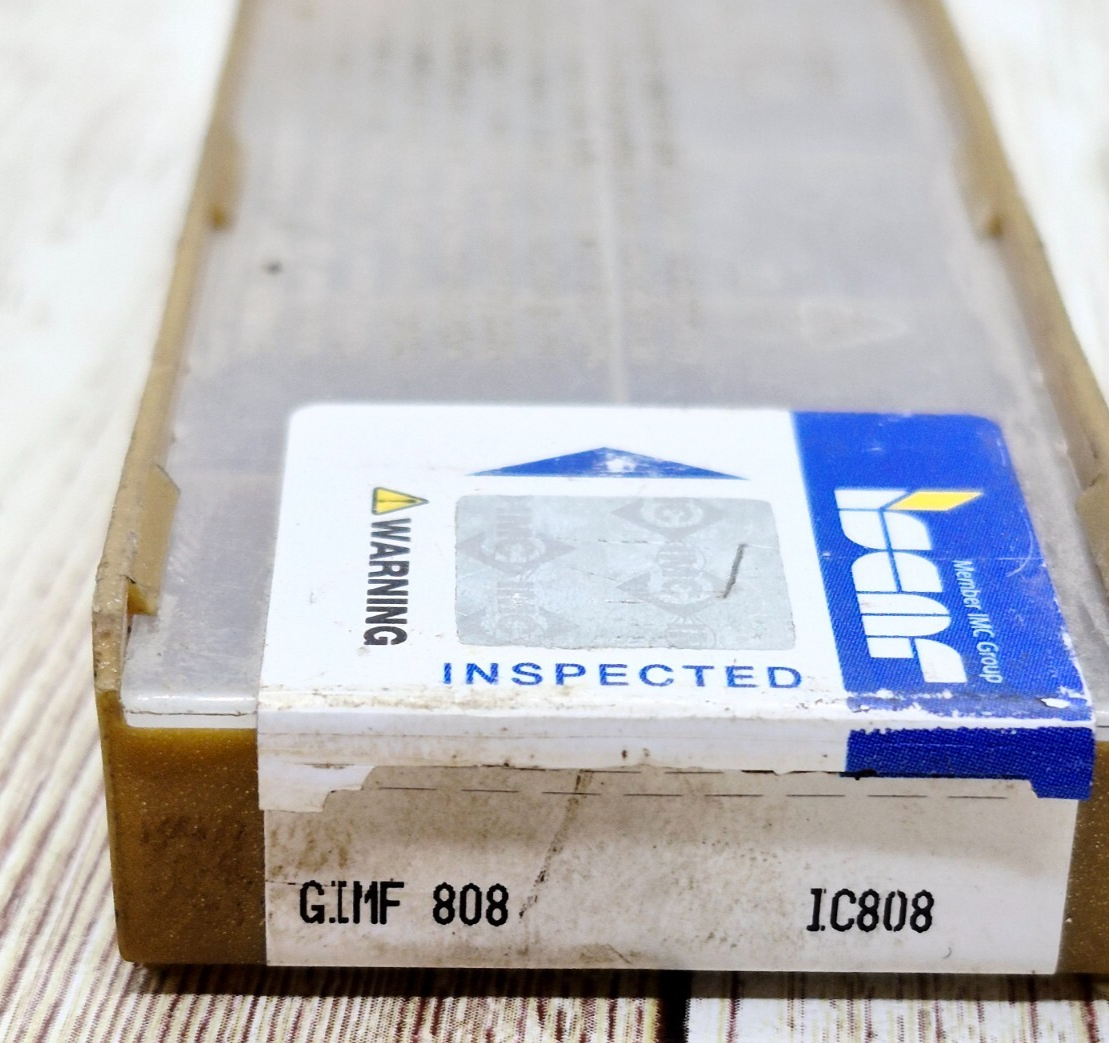

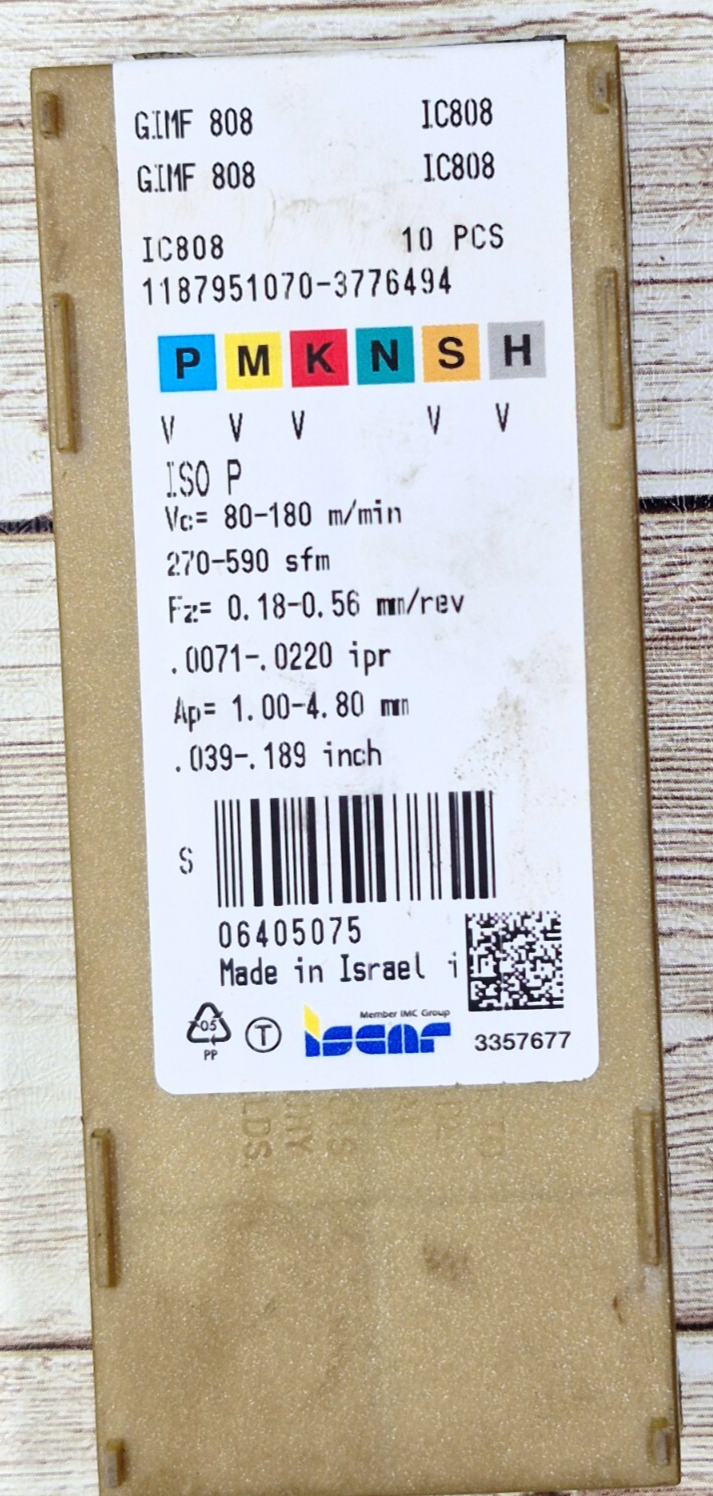

ISCAR GIMF 808 IC808 6405075 Grooving and similar items

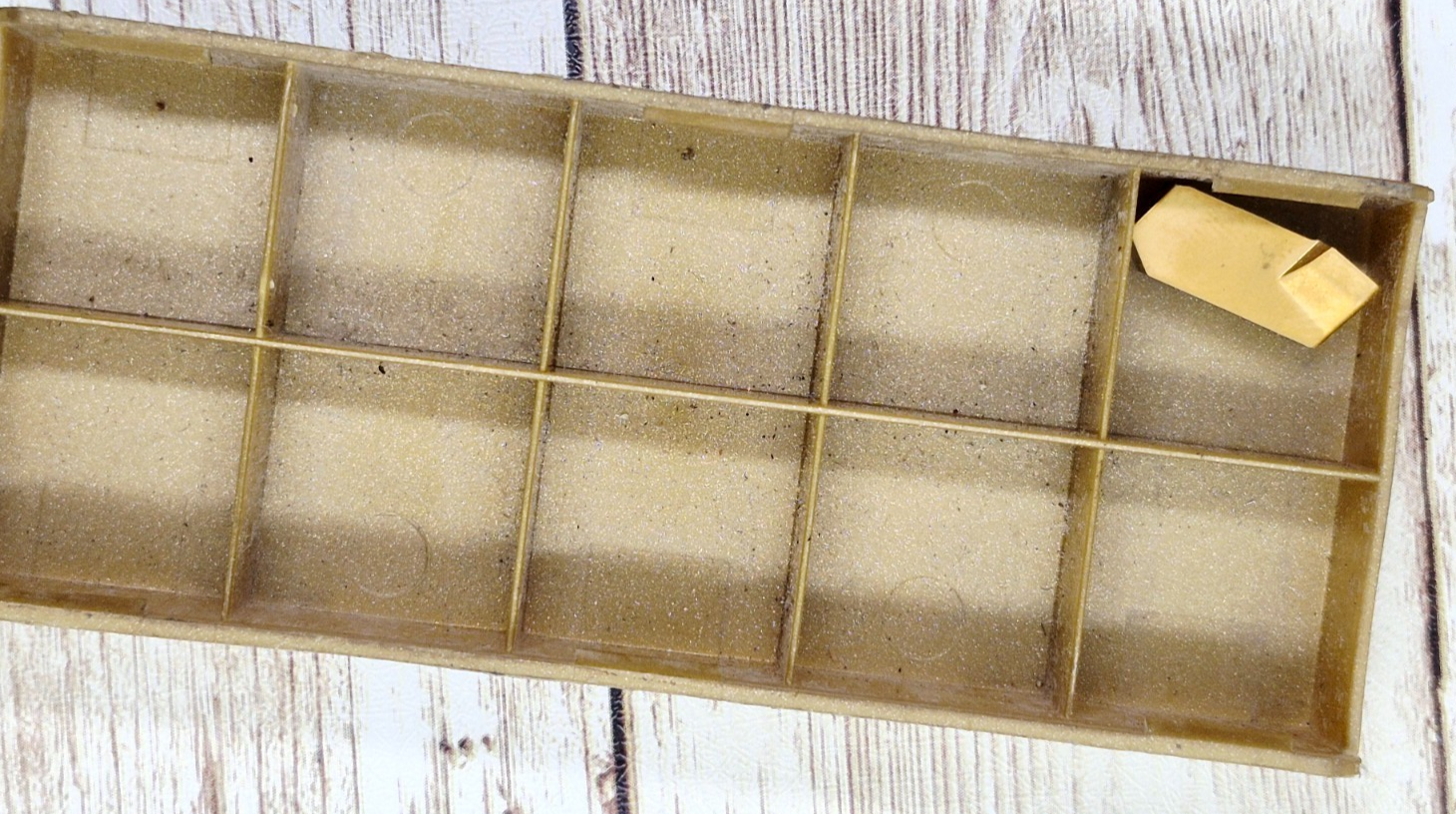

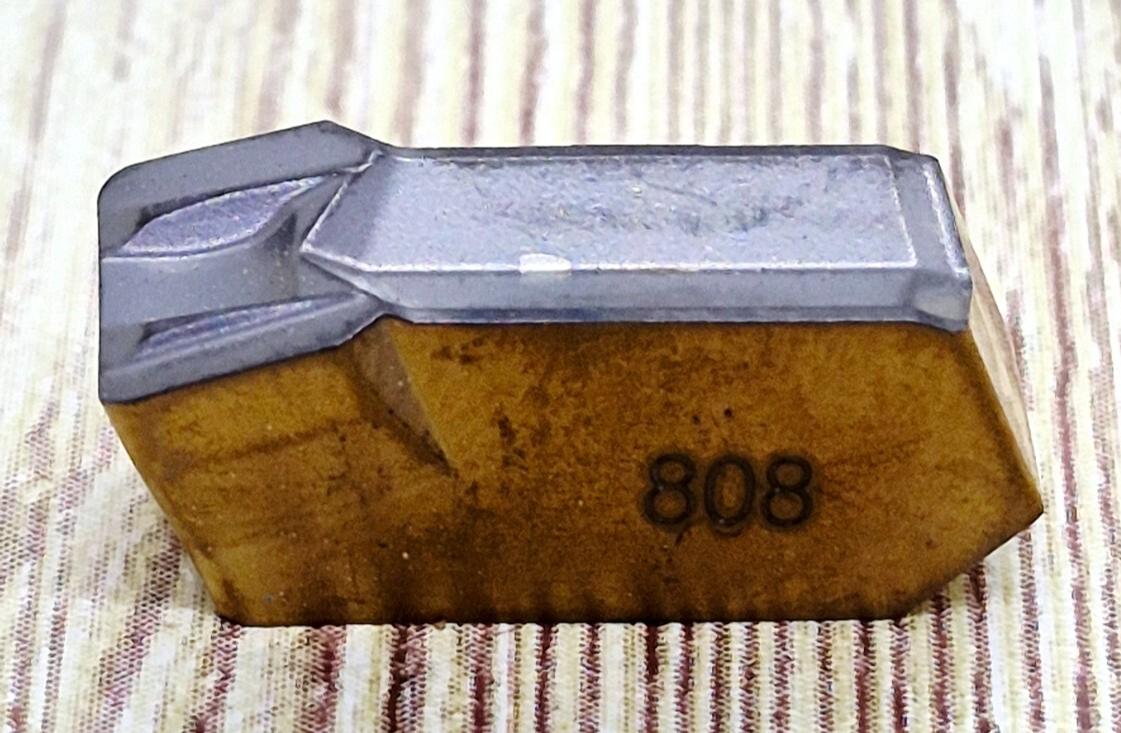

New open box. Buyer receives 1 insert as shown. Grooving Insert: GIMY808 IC808, Carbide AlTiN, TiAlN TiN Finish, Neutral, 8.00 mm Cutting Width, 4.80 mm Max Depth, Series Cut Grip Specifications Insert Style GIMY Insert Size Code 808 Cutting Width (Decimal Inch) 0.3150 Cutting Width (mm) 8.00 Insert Hand Neutral Maximum Depth of Cut (Decimal Inch) 0.1890 Maximum Depth of Cut (mm) 4.80 Insert Material Carbide Manufacturer Grade IC808 Full Radius No Corner Radius (Decimal Inch) 0.0315 Corner Radius (mm) 0.80 Rake Positive Measurement Type Metric Insert Holding Method Self Grip Insert Size 808 Material Grade Submicron Cutting Height (mm) 5.00 Maximum Depth Of Cut Range (Decimal Inch) 0.1500 to 0.2000 Cutting Height (Decimal Inch) 0.1969 Maximum Depth Of Cut Range (mm) 4.00 to 5.00 Multi-use Tool Yes Series Cut Grip Coating Process PVD Rake Angle 7 Overall Length (Decimal Inch) 0.6024 Primary Workpiece Material Universal Primary Workpiece Material Code P; S; H; K; M Iso Code GIMY 808 Standards ISO 13399 Manufacturers Catalog Number GIMY 808 UNSPSC Code 23242105 Chip Breaker Y Coating/Finish AlTiN; TiN; TiAlN Country of Origin Israel
