Teltonika RUTX08 000400 Industrial Ethernet and 47 similar items

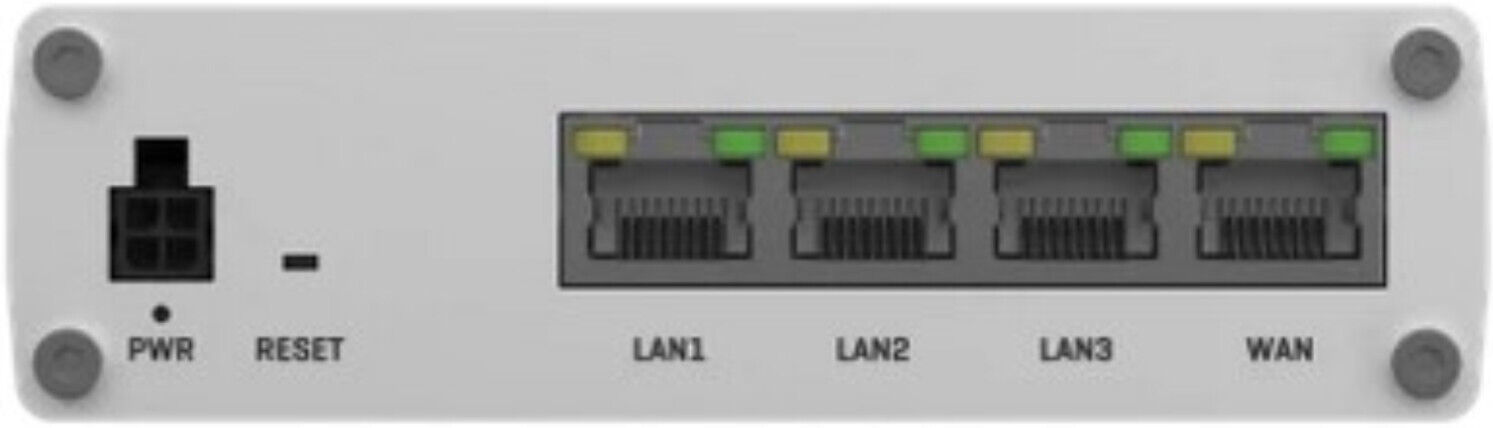

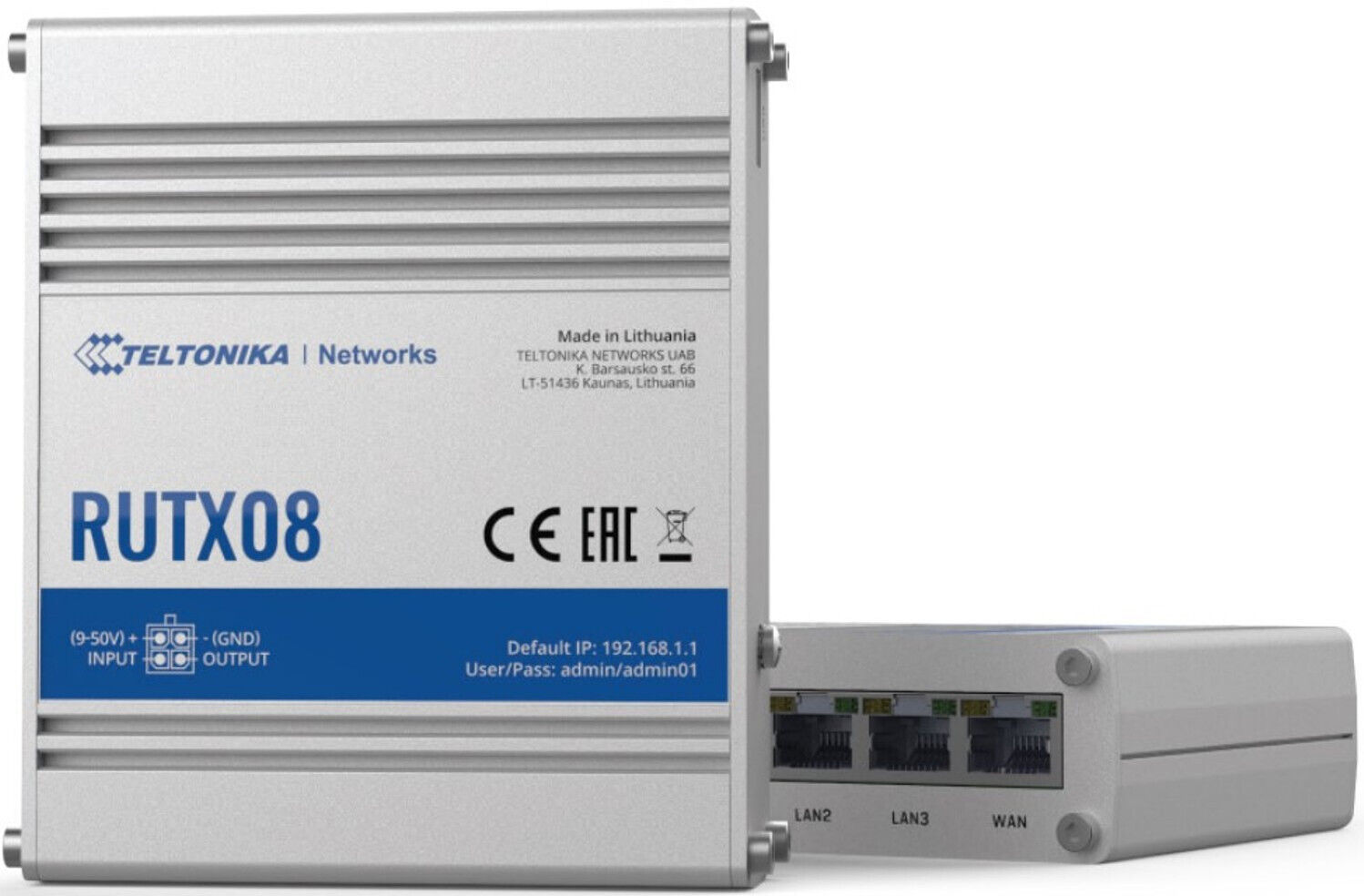

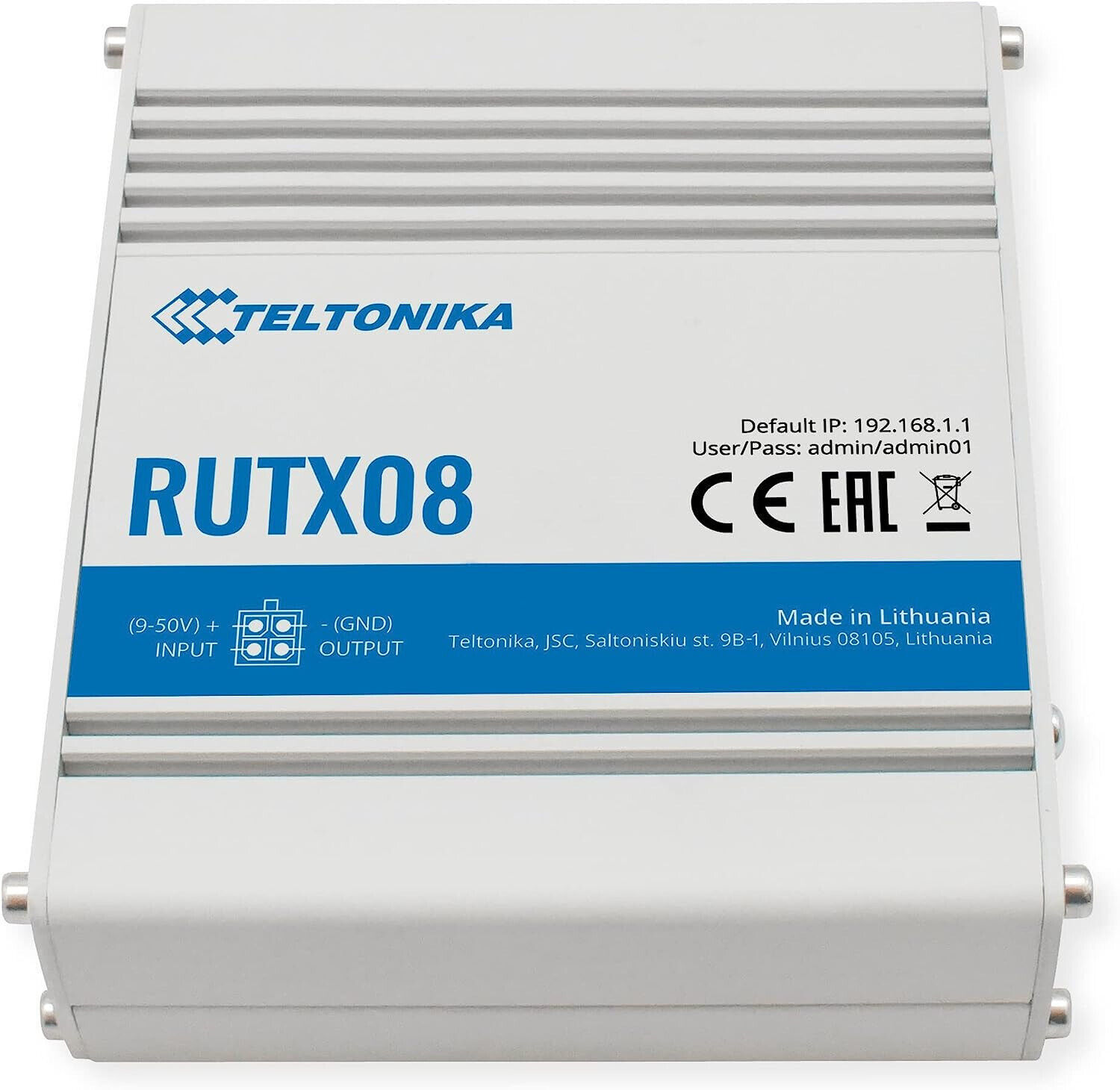

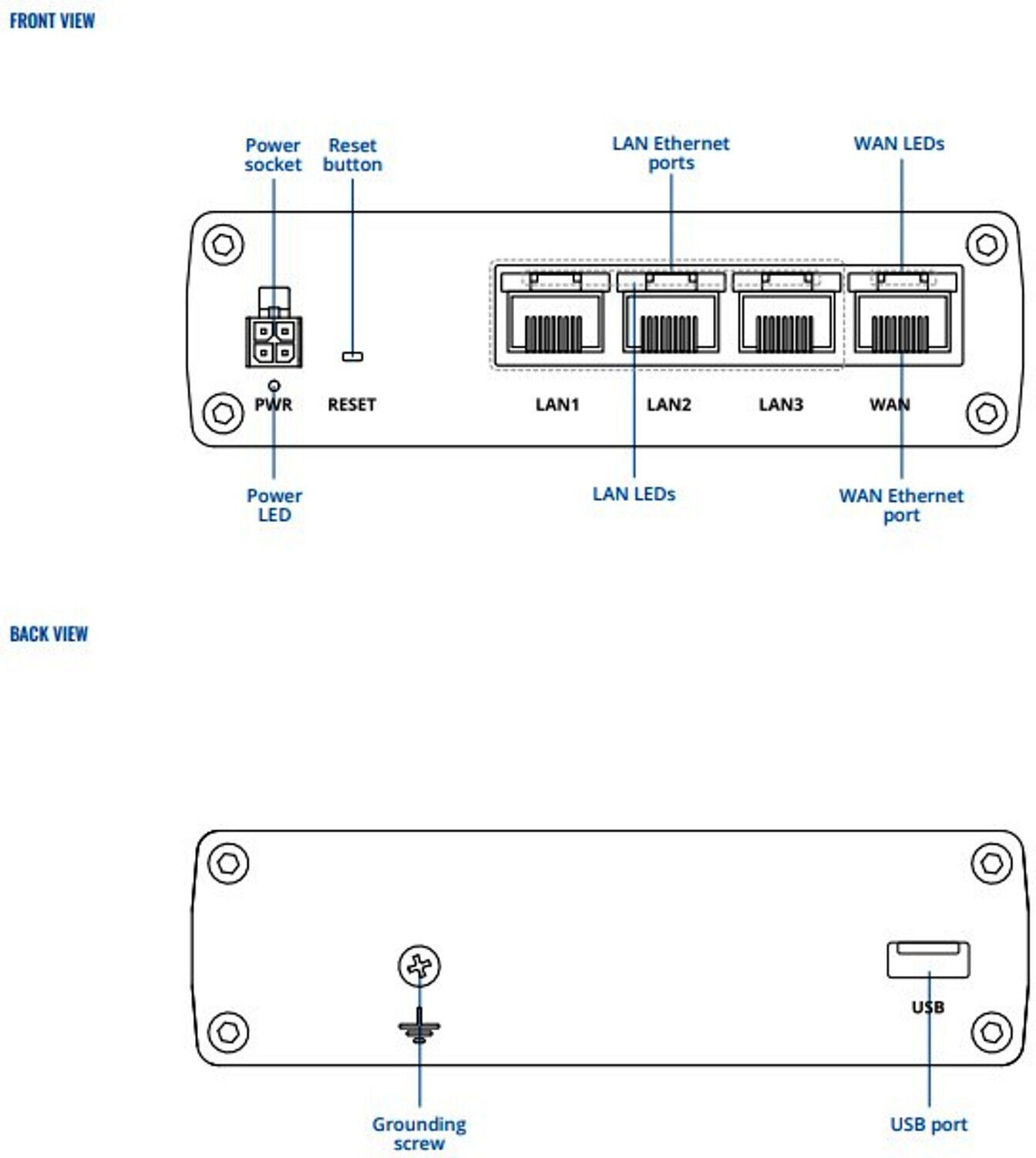

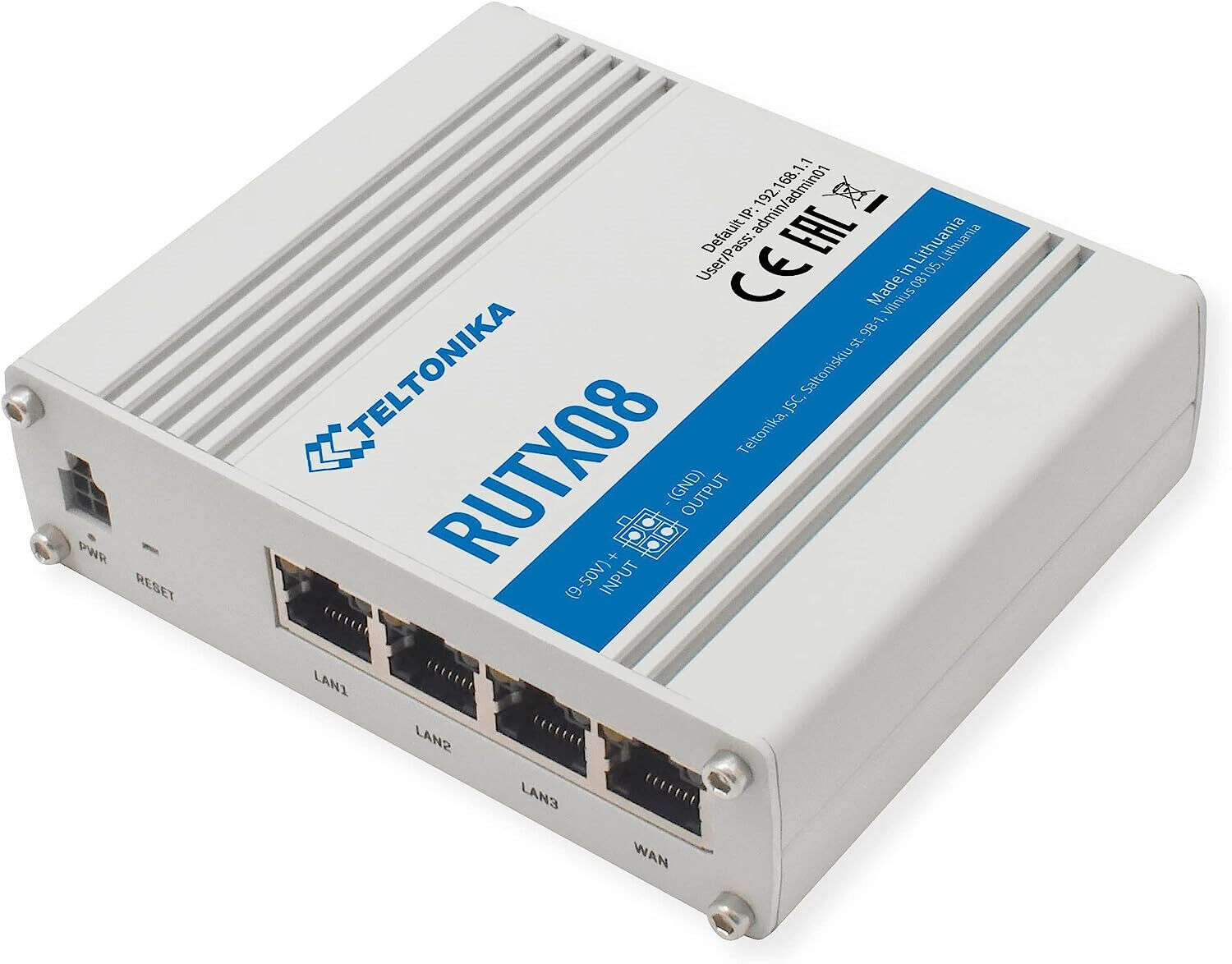

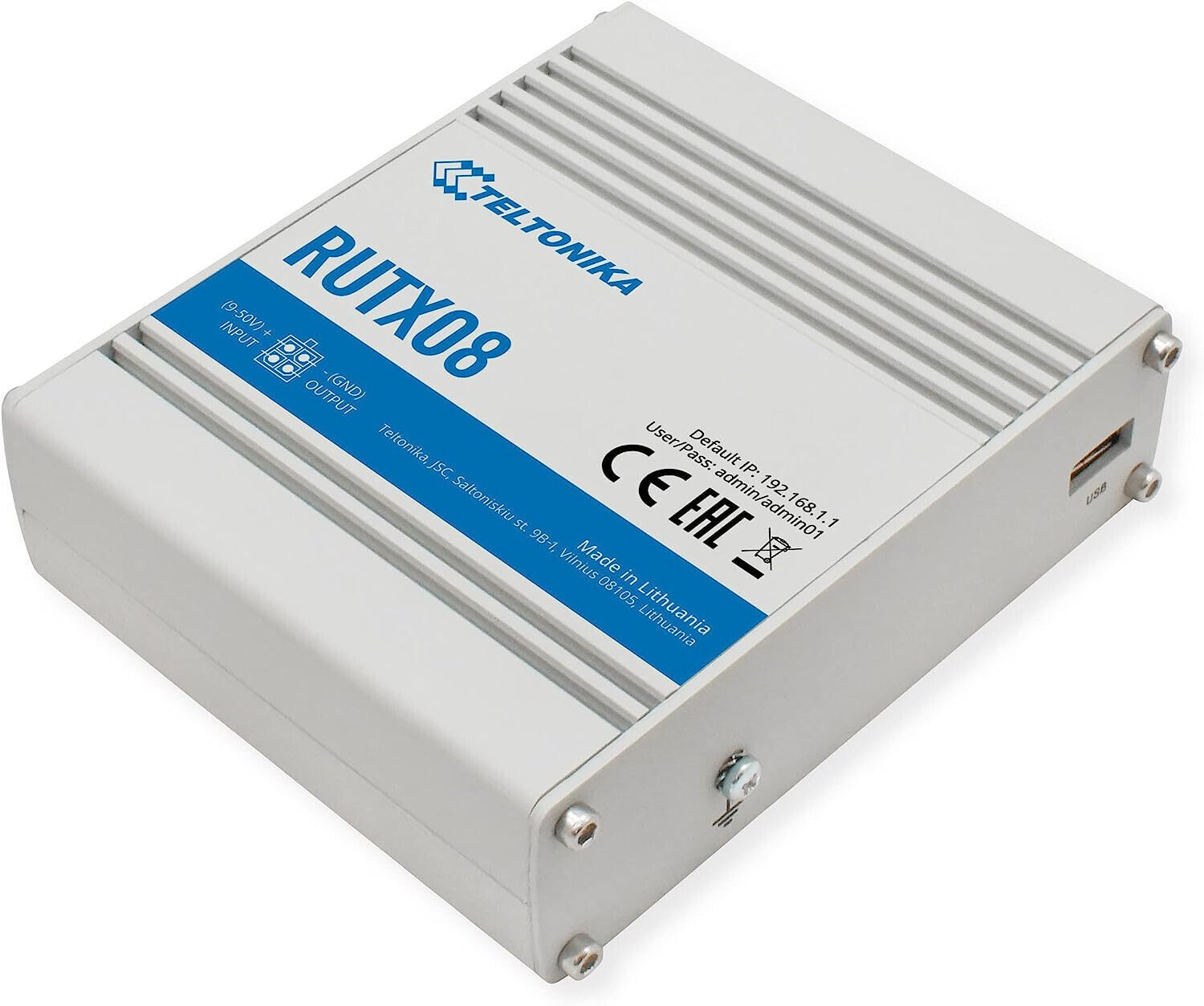

Serving our Customers since 1990 Authorized Dealers Distributors Full Manufacturer's Warranty Superior Customer Service Super Fast shipping Only Quality Products Easy Returns Refunds Teltonika RUTX08 000400 Industrial Ethernet Router with AU PSU; 4x Gigabit Ethernet Ports with Up to 128 Port/Tag-Based VLANs Supported; Numerous VPN Protocols Supported, Including OpenVPN, IPsec, PPTP, L2TP DMVPN; Multiple Protocols Supported Including MQTT, Modbus TCP, BGP, GRE; Multiple Clients and a Server Can Run Simultaneously, 27 Encryption Methods; Static Routing, Dynamic routing, Compatible with Teltonika Networks Remote Management System This robust industrial router has four Gigabit Ethernet ports, a Quad-Core CPU, and 256 MB RAM. These powerful specifications combined with core RutOS software features, such as multiple VPN services, advanced Firewall, and RMS support, make this device a superb industrial performer. FEATURES ETHERNET WAN: 1x WAN port 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover LAN: 3x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover NETWORK Routing: Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, NHRP) Network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SMNP, MQTT, Wake On Lan (WOL) VoIP passthrough support: H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets Connection monitoring: Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection Firewall: Port forward, traffic rules, custom rules DHCP: Static and dynamic IP allocation, DHCP Relay QoS / Smart Queue Management (SQM): Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e DDNS: Supported 25 service providers, others can be configured manually Network backup: VRRP, Wired options, each of which can be used as an automatic Failover Load balancing: Balance Internet traffic over multiple WAN connections SSHFS: Possibility to mount remote file system via SSH protocol SECURITY Authentication: Pre-shared key, digital certificates, X.509 certificates, TACACS+, Radius, IP Login attempts block Firewall: Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T Attack prevention: DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks) VLAN: Port and tag-based VLAN separation WEB filter: Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only Access control: Flexible access control of TCP, UDP, ICMP packets, MAC address filter VPN OpenVPN: Multiple clients and a server can run simultaneously, 27 encryption methods OpenVPN Encryption: DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192, BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256 IPsec: IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16) GRE: GRE tunnel, GRE tunnel over IPsec support PPTP, L2TP: Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support Stunnel: Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program's code DMVPN: Method of building scalable IPsec VPNs SSTP: SSTP client instance support ZeroTier: ZeroTier VPN client support WireGuard: WireGuard VPN client and server support Tinc: Tinc offers encryption, authentication and compression in it's tunnels. Client and server support MODBUS TCP SLAVE ID range: Respond to one ID in range [1;255] or any Allow Remote Access: Allow access through WAN Custom registers: MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Slave functionality MODBUS TCP MASTER Supported functions: 01, 02, 03, 04, 05, 06, 15, 16 Supported data formats: 8 bit: INT, UINT; 16 bit: INT, UINT (MSB or LSB first); 32 bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC) MODBUS DATA TO SERVER Protocol: HTTP(S), MQTT, Azure MQTT, Kinesis MQTT Gateway MQTT Gateway: Allows sending commands and receiving data from MODBUS Master through MQTT broker DNP3 Supported modes: TCP Master, DNP3 Outstation MONITORING MANAGEMENT WEB UI: HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, event log, system log, kernel log FOTA: Firmware update from server, automatic notification SSH: SSH (v1, v2) TR-069: OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem MQTT: MQTT Broker, MQTT publisher SNMP: SNMP (v1, v2, v3), SNMP Trap JSON-RPC: Management API over HTTP/HTTPS MODBUS: MODBUS TCP status/control RMS: Teltonika Remote Management System (RMS) IOT PLATFORMS Cloud of Things: Allows monitoring of: Device data, Mobile data, Network info, Availability ThingWorx: Allows monitoring of: WAN Type, WAN IP Cumulocity: Allows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP Azure IoT Hub: Can send device IP, Number of bytes send/received, Temperature, PIN count to Azure IoT Hub server SYSTEM CHARACTERISTICS CPU: Quad-core ARM Cortex A7, 717 MHz RAM: 256 MB, DDR3 FLASH storage: 256 MB, SPI Flash FIRMWARE / CONFIGURATION WEB UI: Update FW from file, check FW on server, configuration profiles, configuration backup FOTA: Update FW RMS: Update FW/configuration for multiple devices at once Keep settings: Update FW without losing current configuration FIRMWARE CUSTOMIZATION Operating system: RutOS (OpenWrt based Linux OS) Supported languages: Busybox shell, Lua, C, C++ Development tools: SDK package with build environment provided USB Data rate: USB 2.0 Applications: Samba share, USB-to-serial External devices: Possibility to connect external HDD, flash drive, additional modem, printer Storage formats: FAT, FAT32, exFAT, NTFS (read-only), ext2, ext3, ext4 INPUT / OUTPUT Input: 1x Digital Input, 0 - 6V detected as logic low, 8 - 30V detected as logic high Output: 1x Digital Output, Open collector output, max output 30V, 300mA Events: Email, RMS I/O juggler: Allows to set certain I/O conditions to initiate event POWER Connector: 4-pin industrial DC power socket Input voltage range: 9 - 50 VDC, reverse polarity protection, voltage surge/transient protection PoE (passive): Passive PoE over spare pairs. Possibility to power up through LAN port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, LAN1 Port, 9 - 50 VDC Power consumption: 6W Max PHYSICAL INTERFACES Ethernet: 4x RJ45 ports, 10/100/1000 Mbps I/O's: 1x Digital Input, 1x Digital Output on 4-pin power connector Status LEDs: 8x LAN status LEDs, 1x Power LED Power: 1x 4-pin power connector USB: 1x USB A port for external devices Reset: Reboot/User default reset/Factory reset button Other: 1x Grounding screw OPERATING ENVIRONMENT Operating temperature: -40C to 75C Operating humidity: 10% to 90% non-condensing Ingress Protection Rating: IP30 PHYSICAL SPECIFICATION Casing material: Aluminum housing Dimensions (W x H x D): 115 x 32.2 x 95.2 mm Weight: 345 g Mounting options: DIN rail, flat surface placement Package contains: Router RUTX08, 18W PSU, Ethernet cable (1.5 m), QSG (Quick Start Guide), Packaging box Payment Smooth Checkout Process We accept PayPal and all major Credit Cards through PayPal. Shipping Fast Shipping You will receive your products as soon as possible. After receipt of payment, your order will be processed immediately. As a rule, you can expect your order to be delivered within three to seven working days depending your location. Major Appliance and Furniture may take longer due to being shipped via a Trucking Company. White Glove Delivery (which includes Delivery, Inside Placement, Unpacking, Installation/Setup, Removal of Debris) may take a few extra days. We only ship to the lower 48 US contiguous continental States excluding Hawaii, Alaska and Puerto Rico. We do not ship to US Protectorates, APO/FPO and PO Boxes. We also do not ship internationally. Our Headquarters are located in Pembroke Park, Florida, USA, but your products might ship from other locations. Customer Service Superior Customer Service We are at your side both before and after the purchase with words and deeds. Contact us if you have any questions using the contact form and we will get back to you as soon as possible Our staff is multi-lingual (English, Spanish and German). We get Excellent Ratings and other Shopping sites. We use cutting edge CRM (Customer Relationship Management) software and whenever a customer calls us for any reason, we open a case and do not close it until resolved. Serving our Customers since 1990. We have maintained a 100% Positive Feedback Rating since 2003. We are a member of the Better Business Bureau, with an A+ rating. Our Pledge We cannot promise that we will do everything that any customer demands from us, but we WILL WORK VERY HARD to try to accommodate our customers needs. Warranty Product Warranties All new products have Full Manufacturer's Warranty. Unless specificly stated, Refurbished products might carry Full Manufacturer's Warranty or only a limited 30-90 days Warranty (please ask before you buy). Unless specificly stated, used products carry no Warranty but can be returned within 30 days of purchase. Returns / Exchanges Refunds 30-Days Return Guarantee 1. Returning/Exchanging If your product arrives defective or damaged, try refusing delivery from the Carrier. That will allow us to ship a replacement unit quickly. If refusing delivery is not possible, contact us and we will send you instructions for the return/exchange. Please do not return a product until you receive the Return Authorization (RA#) and instructions from us, as the product might end up lost if returned without an RA#. In such case no refund will be possible. 2. Time allowed for Returns If you need to return a product for any reason, you can do so but you have to report the issue and request the return within 7 days of receipt and the return has to be postmarked within 30 days of receipt of the original shipment to you. After 30 days you will need to contact the Manufacturer directly for Warranty Repair. 3. Condition of Returns In order to make a return, the product must be in NEW condition, with the ORIGINAL BOX, all the Accessories, Paperwork and Packing Materials intact, exactly as you received it. 4. Shipping Handling Costs If the return is due to our error, we will pick up the product at our expense. If the return is for any reason other than a fault of our Company, the actual shipping and handling costs (both ways) will be your responsibility. If you do not like a product or no longer need it, this is not considered our fault and we will not issue a shipping label for the return. If you ship the product at your expense please insure it for the full value of the order. 5. Restocking Fees If the return is due to our error, the product was damaged in transit or DOA (Dead On Arrival), no restocking fee will apply and we will refund 100% of the item's price. If you refuse delivery or decide to return a product because you changed your mind, no longer need the product, have buyer's remorse, found a cheaper seller, you don't like the product or the product doesn't fit your needs, a restocking fee will apply: Any unopened item in original condition: We will refund 80% of the item's price. Any item that is not in its original condition, is damaged, or is missing parts or original packaging for reasons not due to our error: Depending on the condition of the item received, we will refund from 50% to 70% of item's price or we could also return the product to you and not refund anything if the product is in bad condition or missing important parts. 6. Refunds Refunds can take 5-10 business days from the date the item returned was received by us or by our supplier. Sale Stores | All Rights Reserved Salestores2
