Dental Professional High Speed Grinder and similar items

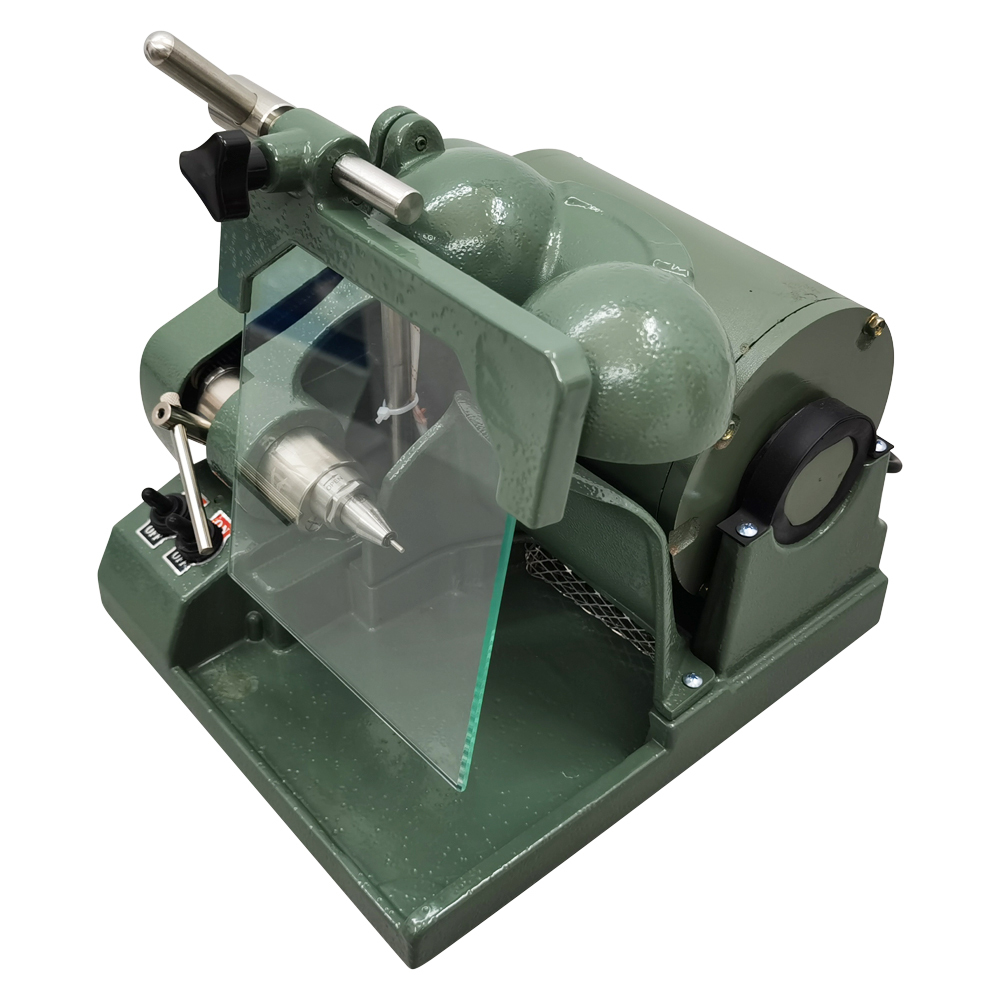

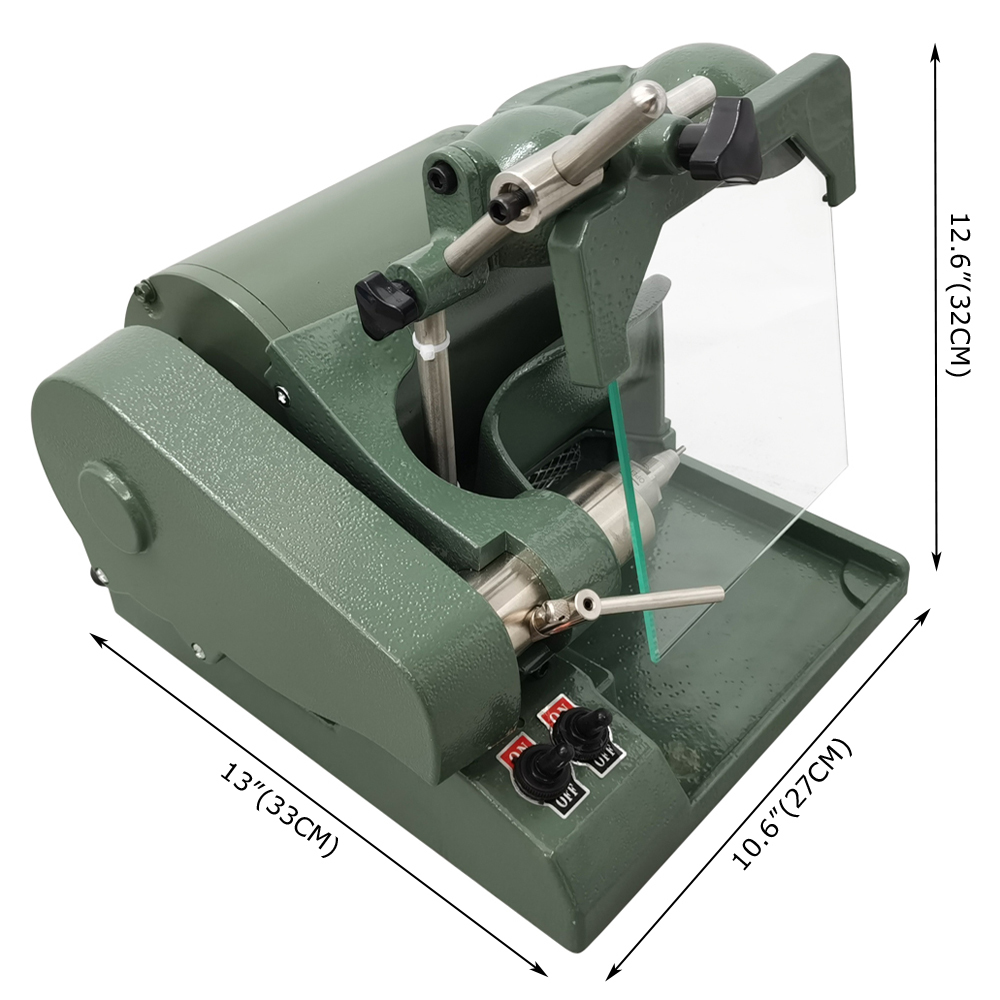

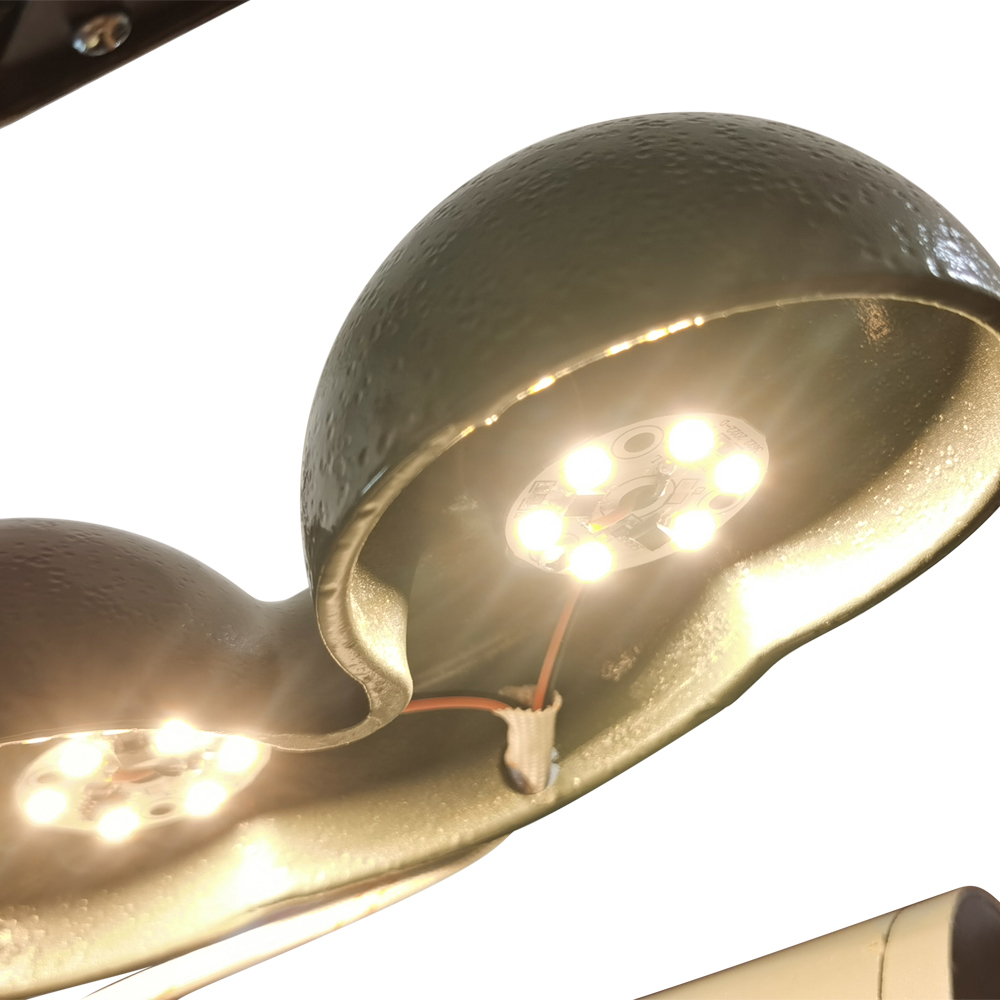

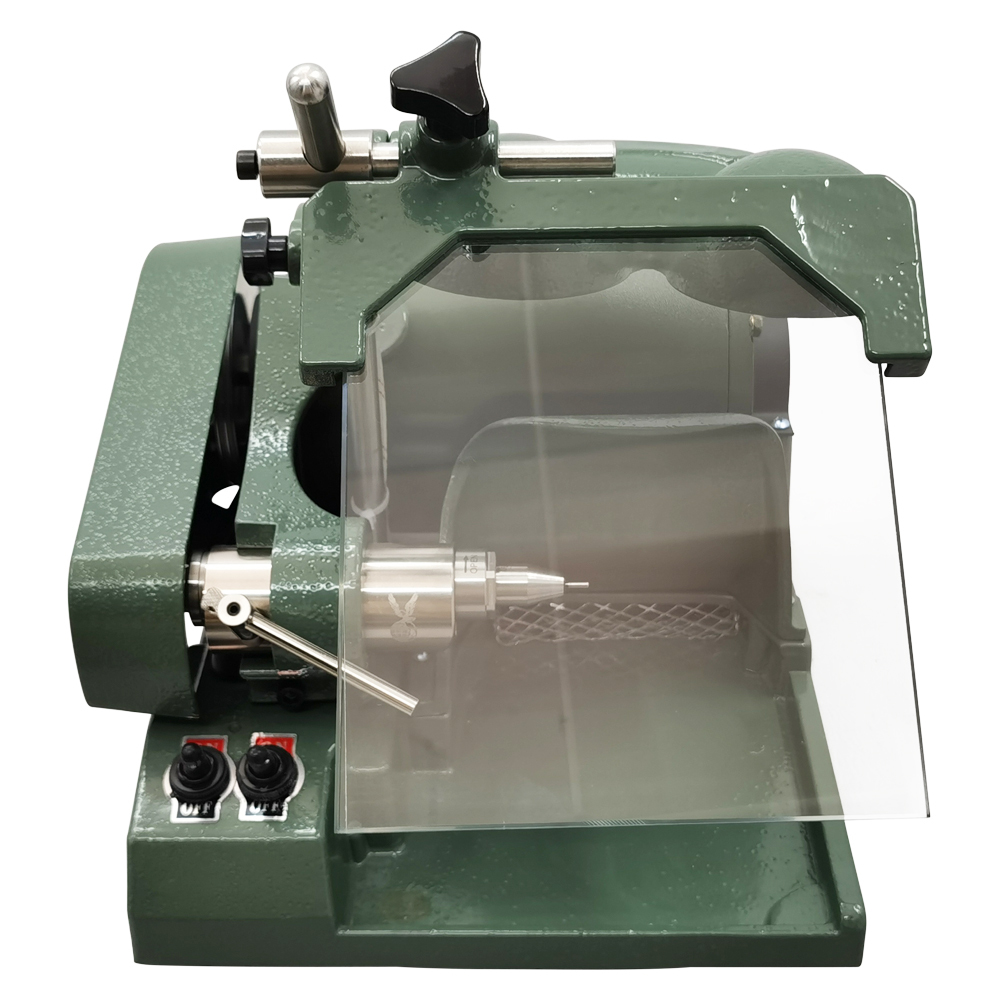

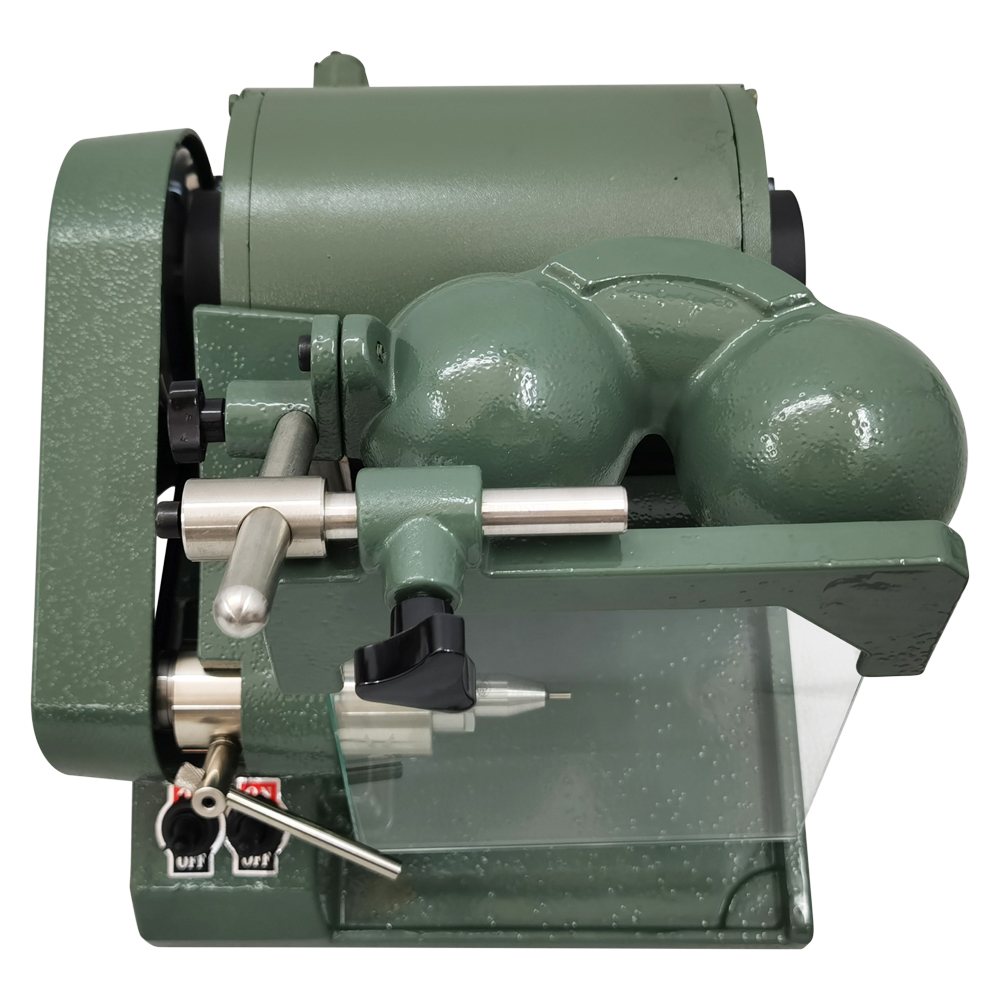

? Dental High Speed Cutting Machine Polishing Machine Product Overview Dental high-speed cutting machine is one of the professional dental equipment, this equipment by the transmission mechanism, special fixture, frame, protection plate, dust, lighting and electric control and other parts of the composition, is the metal parts can be quickly cut professional equipment, but also grinding, polishing and other operations. Product Parameters Voltage: 110V/60hz Frequency: 370W Head rotational speed: 20000rpm/min Product size: 10.6"*13"*12.6"(27CM*33CM*32CM) Package size: 15.7"*13.4"*15"(40CM*34CM*38CM) Net weight/Gross weight: 44lbs(20kg)/48.5lbs(22kg) Product Features Advantages 1. Durable : The high-power motor is made of pure copper core, strong power, high speed, low noise, and can be used for a long time. 2.Easy to move : Small size, light weight, easy to move, you can move at any time to the place where you need to use. 3.Protection design : The machine is designed with a protective plate, which plays a protective role during operation. Do not remove the protective plate for operation. 4.Multi-functional : A variety of functions are integrated, with cutting, grinding and polishing functions. Start and close through the switch, simple operation, easy to use. 5.Lighting design : The machine has its own lighting system to provide more light and better visibility during operation. Installation Operation Installation: The machine should be placed on a stable operating table, which can properly absorb shock and eliminate sound. The power plug should be matched with the socket, and the ground should be reliable. ? ? ? ? Operating points : 1. The metal part of the machine should be firmly grounded. 2. Park the clutch handle of the special fixture in the vertical position of the special fixture, and the elastic clamp head (four claws) extends out of the special fixture (that is, the friction clutch is in the release position). 3. Activate the lighting button and select the appropriate lighting position. 4. Start the "Work" button and check the rotation direction of the spindle (towards the internal operator). 5. Install the grip of the clamping tool and turn the clutch handle to the clamping position of the spring clamping head. 6. When the special fixture spindle is in the rotating state, the installation and removal of the grinding tool clamp can be carried out by rotating the clutch handle. Safety Notice ? Safety Information : 1. The protection grounding of the machine should be solid. 2. When the spindle is rotating, if there is an abnormal sound, it should be stopped and checked immediately, and it can continue to work after the fault is removed. 3. When cutting, grinding and polishing, do not exert too much force. 4. When operating, the protection plate should be stopped in a safe position. Do not remove the guard plate for operation. 5. Clean up the accumulated material in front of and inside the suction port. 6. When the spindle of the head is found to turn, the tightness of the rotating belt should be adjusted in time or the belt should be replaced. Adjusting the tightness of the belt can be adjusted by loosening the screws of the special clamp seat; The belt can be replaced by removing the belt safety cover. Remember that the fastening screw should be fastened reliably and the position should be accurate. ? Attention : Do not start the motor when there is no gripping stone holding pin in the head, otherwise the head will be damaged in a short time. Before the new head is used, it needs to be idled for 20 minutes, and there should be a gripping stone holding pin on the head when idling, before it can be used normally. Product Presentation Details Item Included(056825) Dental high-speed cutting machine*1 Hex wrench*2 You can make order with no worry. Any concern just feel free to let us know, we'll reply in 24 hours in normal condition. Handling Time: Shipping is usually made in 1-3 business days after payments cleared. Orders are processed from Monday-Friday; Not on the weekends public holidays. Warranty: 6 months' warranty for the machines, not for the consumables. We stand behind our products all the item, so even if your warranty period has expired, you can still seek for service or technical support from us with low cost.
