ADM232AARNZ Analog Devices RS-232 Interface IC 5V SOIC-16

Ready to Ship

Ask a Question

30-Day Return

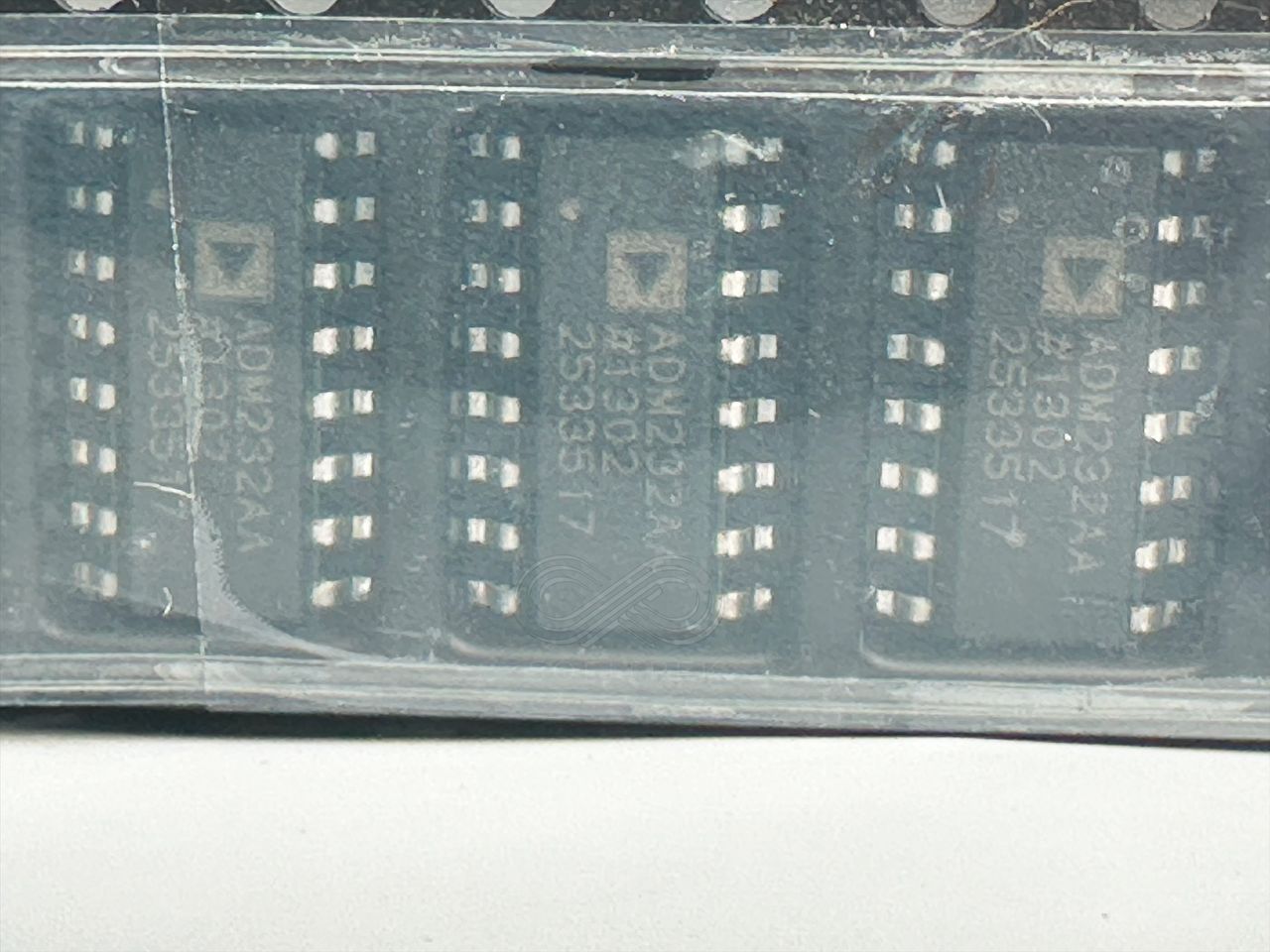

5 Pieces - ADM232AARNZ Analog Devices RS-232 Interface IC 5V SOIC-16

Specification
Supply Voltage-Nom 5 V
Input Characteristics SCHMITT TRIGGER
Output Characteristics TOTEM-POLE
Driver Number of Bits 2
Receiver Number of Bits 2
Transmit Delay-Max 3.5 µs
Interface IC Type LINE TRANSCEIVER
Technology BICMOS
Additional Feature EXTERNAL CHARGE PUMP
Differential Output NO
Interface Standard EIA-232-E; V.28
Number of Functions 2
Out Swing-Min 10 V
Output Low Current-Max 3.2 mA
Output Polarity INVERTED
Receive Delay-Max 500 ns
Supply Current-Max 8 mA
Supply Voltage-Max 5.5 V
Supply Voltage-Min 4.5 V
Surface Mount YES
Temperature Grade INDUSTRIAL
Moisture Sensitivity Level 1
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
Peak Reflow Temperature (Cel) 260
Time@Peak Reflow Temperature-Max (s) 40
Number of Terminals 16
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code SOP16,.25
Package Shape RECTANGULAR
Terminal Finish Matte Tin (Sn)
Terminal Form GULL WING
Terminal Pitch 1.27 mm
Terminal Position DUAL
Length 9.9 mm
Seated Height-Max 1.75 mm
Width 3.9 mm
Package Description SOIC-16
Pin Count 16
Manufacturer Package Code R-16
Manufacturer Analog Devices
