0.49 Inch 1920*1080 Mipi Near Eye Display Micro OLED Display 1080p for Ar/Vr Head Mounted Display Hud Headset
Product Overview
The 0.49 inch Micor OLED Display is a coloful 1080P AMOLED Grayscale micro display, with FHD 1920x1080 High resolution and high luminance level up 3000cd/m2, popular used in virtual devices such as AR Glasses and VR Headset, thanks to its micro Si-OLED (Silicon Organic Light Emitting Diode) technology, this micro screen is with very impact size, light weight and low power consumption, also applicable for the medical and military industry such as Head-mounted Displays (HMD),viewfinder,Head-Mounted Displays (HMD) etc.
0.49 inch Si-OLED micro display Parameter
- Product Number: JKSY049LDM01
- Display Type:Micro OLED
- Resolution:1920 x 1080
- Screen Size:15.68mm x 9.09mm x 1.5mm
- Active Area:10.783mm x 6.065mm/ 0.49" diagonal
- Luminance(Brightness):3000nits(Typ.)
- Color:Full RGB
- Contrast Ratio:50,000:1
- Interface:MIPI+I2C
- Frame Rate:90Hz
- Operating Temperature:-20℃ to +70℃
- Storage Temperature:-40℃ to +80℃
- Plan:Mass Production with micro lens
- Application:AR VR devices, EVF, Night vision, Hunting Scope...
0.49" FHD 1920x1080 Micro display Screen Features
- ◆ Small size high definition type 0.49 display dots: 1920 (RGB)×1080 = 6.22 M dots
- ◆ High contrast
- ◆ Wide color reproduction range
- ◆ High-speed response
- ◆ Thin type and light weight
- ◆ Power saving function
- ◆ Up/down and/or right/left inverse display function
- ◆ Orbit supported

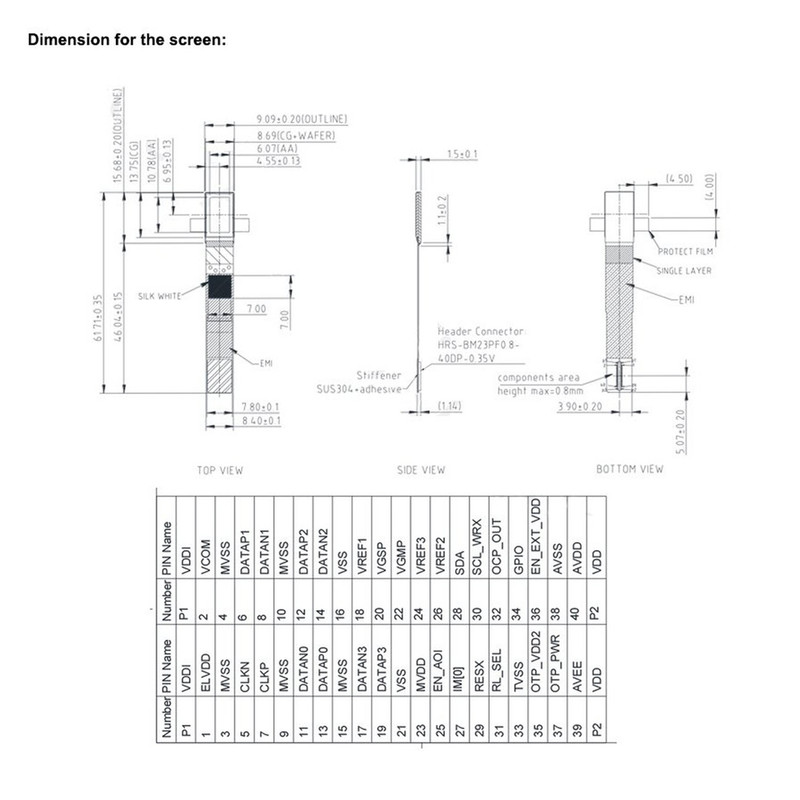

Mechanical Drawing for 0.49" micro screen
Mechanical Drawing for Binocular Type-c Controller Board:
0.49" FHD 1920x1080 Micro display Screen Applications:
- AR/VR display, electronic viewfinder of digital camera/video camera；
- Portable equipment such as miniature projectors, video glasses, 3D displays, head-mounted entertainment equipment,etc；
- Security monitoring /military:individual helmet display, electronic sight, infrared night vision device,Thermal imager displays,electronic telescopes,flight helmets,gun sights,life detection video devices；
- Medical and industrial:human and machine video engineering research, endoscope, portable B-ultrasound machine,Vision correction equipment,multi-scope,various portable inspection and testing equipment;
- Aircraft model:aerial photography:remote control aircraft parameter display system:remote control car video display terminal:etc.
Packing Listing:
0.49 inch micro oled display:2 pcs
Binocular type-c controller board: 1pcs
