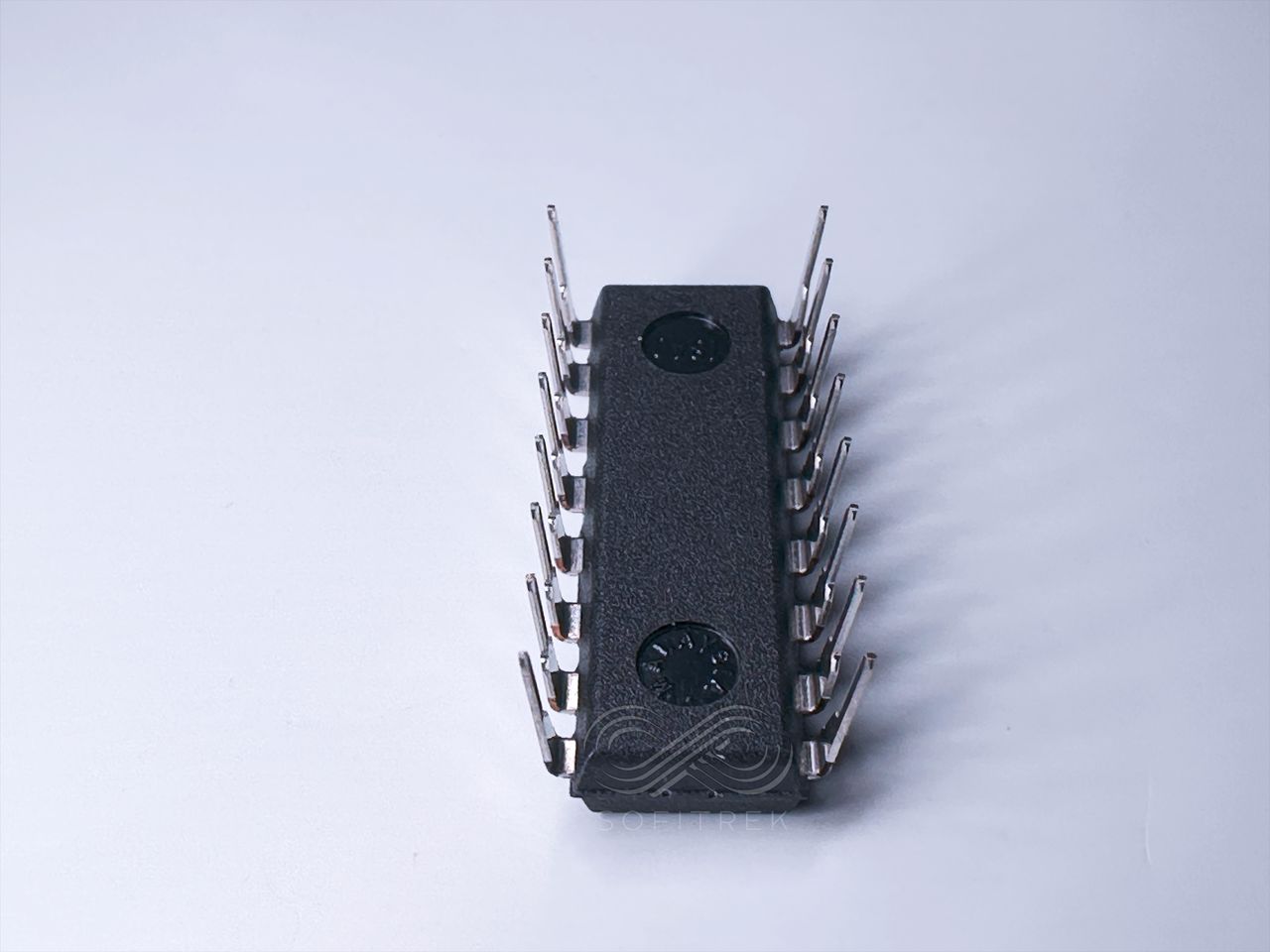

CD4516BE Texas Instruments CMOS Binary Up/Down Counter IC DIP-16 Logic Chip

Ready to Ship

Ask a Question

30-Day Return

4 Pieces - CD4516BE Texas Instruments CMOS Binary Up/Down Counter IC DIP-16 Logic Chip

Specification
Supply Voltage-Nom (Vsup) 5 V
Propagation Delay (tpd) 400 ns
Prop. Delay@Nom-Sup 200 ns
Number of Functions 1
Number of Bits 4
Surface Mount NO
Package Code DIP
Max Frequency@Nom-Sup 2 MHz
Load Capacitance 50 pF
Count Direction BIDIRECTIONAL
Trigger Type POSITIVE EDGE
Family 4000/14000/40000
Logic IC Type BINARY COUNTER
Technology CMOS
Additional Feature TCO OUTPUT
fmax-Min 5.5 MHz
Load/Preset Input YES
Max I(ol) 1.5 mA
Mode of Operation SYNCHRONOUS
Power Supplies 5/15 V
Power Supply Current-Max (ICC) 30 µA
Supply Voltage-Max (Vsup) 18 V
Supply Voltage-Min (Vsup) 3 V
Temperature Grade MILITARY
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Number of Terminals 16
Package Body Material PLASTIC/EPOXY
Package Equivalence Code DIP16,.3
Package Shape RECTANGULAR
Packing Method TUBE
Terminal Finish NICKEL PALLADIUM GOLD
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Seated Height-Max 5.08 mm
Width 6.35 mm
Length 19.3 mm
Package Description DIP, DIP16,.3
Pin Count 16
Manufacturer Texas Instruments
