0.71 inch Micro OLED Display 1920X1080 Full HD for AR
The 0.71" micro oled display is a 1.8 cm (type 0.71) diagonal, 1920(RGB) × 1080 dots active matrix color OLED panel module using single crystal silicon transistors. This panel incorporates panel driver and logic driver, andrealizes small size, light weight and high definition.
071" FHD 1920x1080 Micro display Parameter:
- Display Type:OLED Display
- Display Size:0.71"
- Display Color:Full color
- Resolution: 1920(RGB) × 1080
- Luminance:500 cd/m2
- Pin No:81P
- Driver Board: HDMI Port
- Optics:Resin Optics
- Module Dimension:25.24x99.50x0.15 (mm)
- Operatingn Temperature : -10℃~70℃
- Storage Temperature : -30℃~80℃
0.71" FHD 1920x1080 Micro display Features:
- Small size high definition type 0.70 display dots: 1920 (RGB)×1080 = 6.22 M dots
- High contrast
- Wide color reproduction range
- High-speed response
- Thin type and light weight
- Power saving function
- Up/down and/or right/left inverse display function
- Orbit supported

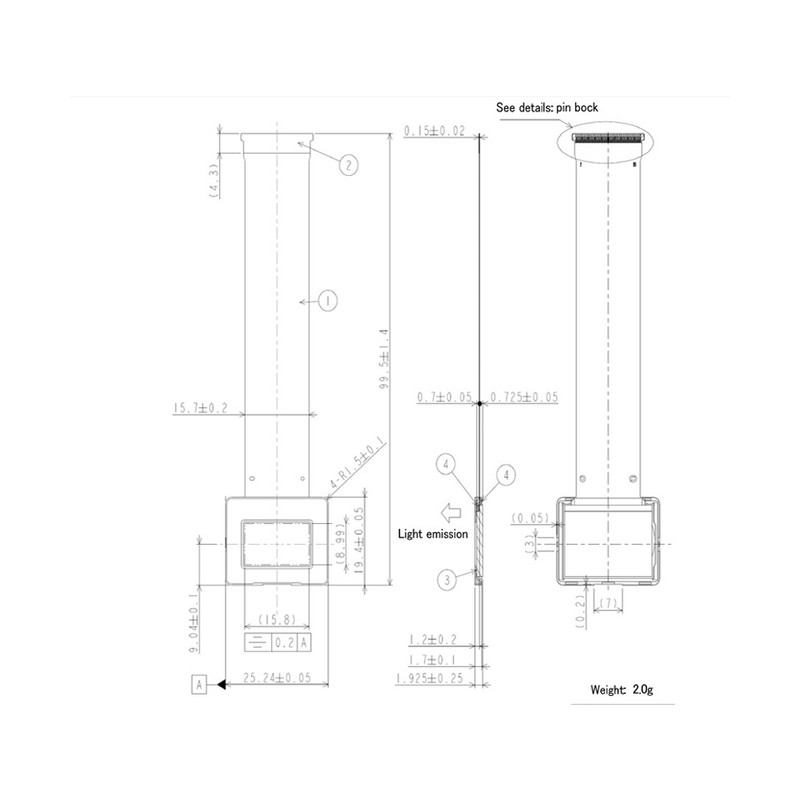

Mechanical Drawing
Specification for Magnifier Eyepiece
0.71" FHD 1920x1080 Micro display Applications:
- AR/VR display, electronic viewfinder of digital camera/video camera；
- Portable equipment such as miniature projectors, video glasses, 3D displays, head-mounted entertainment equipment,etc；
- Security monitoring /military:individual helmet display, electronic sight, infrared night vision device,Thermal imager displays,electronic telescopes,flight helmets,gun sights,life detection video devices；
- Medical and industrial:human and machine video engineering research, endoscope, portable B-ultrasound machine,Vision correction equipment,multi-scope,various portable inspection and testing equipment;
- Aircraft model:aerial photography:remote control aircraft parameter display system:remote control car video display terminal:etc.
Packing Listing:
0.71" micro oled display 1920x1080 500cd/m2: 2pcs
Binocular DHMI Controller Board: 1pcs
HDMI Cable: 1pcs
Magnifiering optics prism: 1pcs
