Micro AR Display 0.23 inch OLED Microdisplay 640x400 5000nits

Overview:
the micro oled display of LZOE023 is a 0.23-inch full-color silicon-based display module, this oled microdisplay is with a high resolution of 640 x 400 lattice and the brightness is 5000nits in Max. The display module is characterized by high brightness, high contrast, narrow frame, wide
viewing Angle, wide temperature range and low power consumption, and is used for headmounted displays, AR glasses, etc.

0.23 inch Micro OLED display 640x400 parameter:

• Display Panel Type:Micro OLED, Si-OLED
• Diagonal A/A Size: 0.23 inch
• Resolution/Dot Matrix:nHD+640(RGB)×400;3255PPI
• Dot Size:7.8×7.8μm2
• Display Area:5.06×3.29 mm2
• Outline Size:9.35×5.97 mm2
• Module Size（FPC) :38.33×9.0 mm2
• Frame rate: up to 90Hz
• Brightness:5000 cd/m² (Typ.)
• Contrast Ratio:100000:1
• Module Weight :0.2 gram
• Power Supply:1.8V (logic) 3.3V, -6.6V (analog)
• Operating ambient temperature: -40℃~65℃
• Support MIPI input video interface: 2 data lanes/1 clock lanes, speed up to 800M bps
• Support I²C(up to 400K bps) configuration interface

0.23 inch Micro OLED display 640x400 Features

• Display Color: Full color
• Small size high-Definition display: 0.23" 3255PPI
• Support up to 90hz frame rate.
• Support MIPI input video interface: 2 data lanes/1 clock lanes, speed up to 800M bps
• Support I²C(up to 400K bps) configuration interface
• Operating ambient temperature: -40℃~65℃

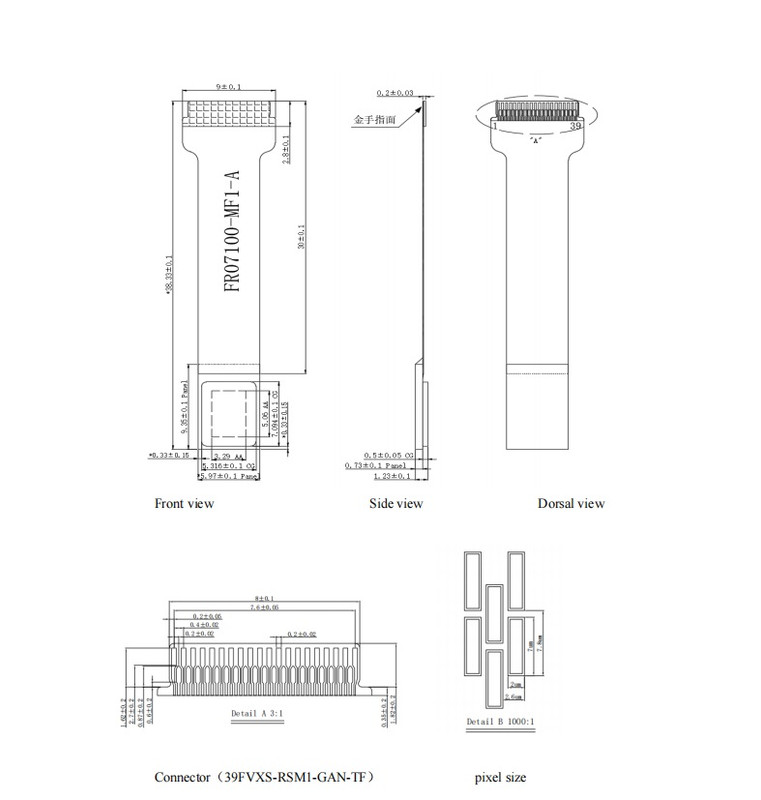

Mechanical Drawing

0.23 inch Micro OLED display 640x400 Application

• Helmet display,night vision observation, electronic aiming ;
• other specialized fields can also be applied in consumer entertainment fields such as thermal imagers, digital camera DV viewfinders, entertainment games, head mounted televisions, AR/VR, etc

Packing Including:

0.23" Micro OLED Display 640x400: 1 pcs
Adapter HDMI Driver board:1 pcs

HAMI Adapter Cable:1pcs
