Item Description:

The rain sensor alarm circuit serves as a valuable device to alert when rain is coming. This rain detector features high sensitivity, which can effectively detect rain or moisture.

Overall dimensions:

• Length: 55 mm
• Width: 29 mm
• Height: 20 mm

Sensor dimensions: 20 mm x 29 mm

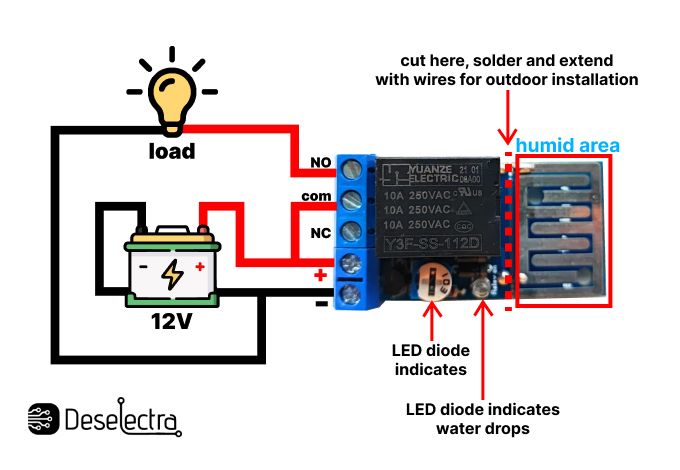

The sensor can be cut along the hole line, extended with wires and placed outside. The switch is equipped with reverse supply voltage protection.

Output relay characteristics:

• Normally open contact
• Normally closed contact

Power supply: 9 to 14 V DC

Power consumption:

• Sleep mode: 0 mA (no consumption)
• Active mode: 41 mA

Ideal for alarm applications, it can operate for an extended period of time in standby mode.

Relay specifications:

• 15A/125V DC
• 15A/24V DC or AC
• 10A/250V AC

Sensitivity is adjustable using the trimmer.

Operating principle:

When powered on, the switch enters standby mode. The sensitivity of water detection can be adjusted using the trimmer. When water is detected on the sensor (located at the bottom of the plate), the relay closes until the sensor becomes dry again.

The device does not include a plastic box; it consists of a plate only, as shown in the photo.

Package contents:

1. Rain switch
2. Operating instructions and wiring diagram
