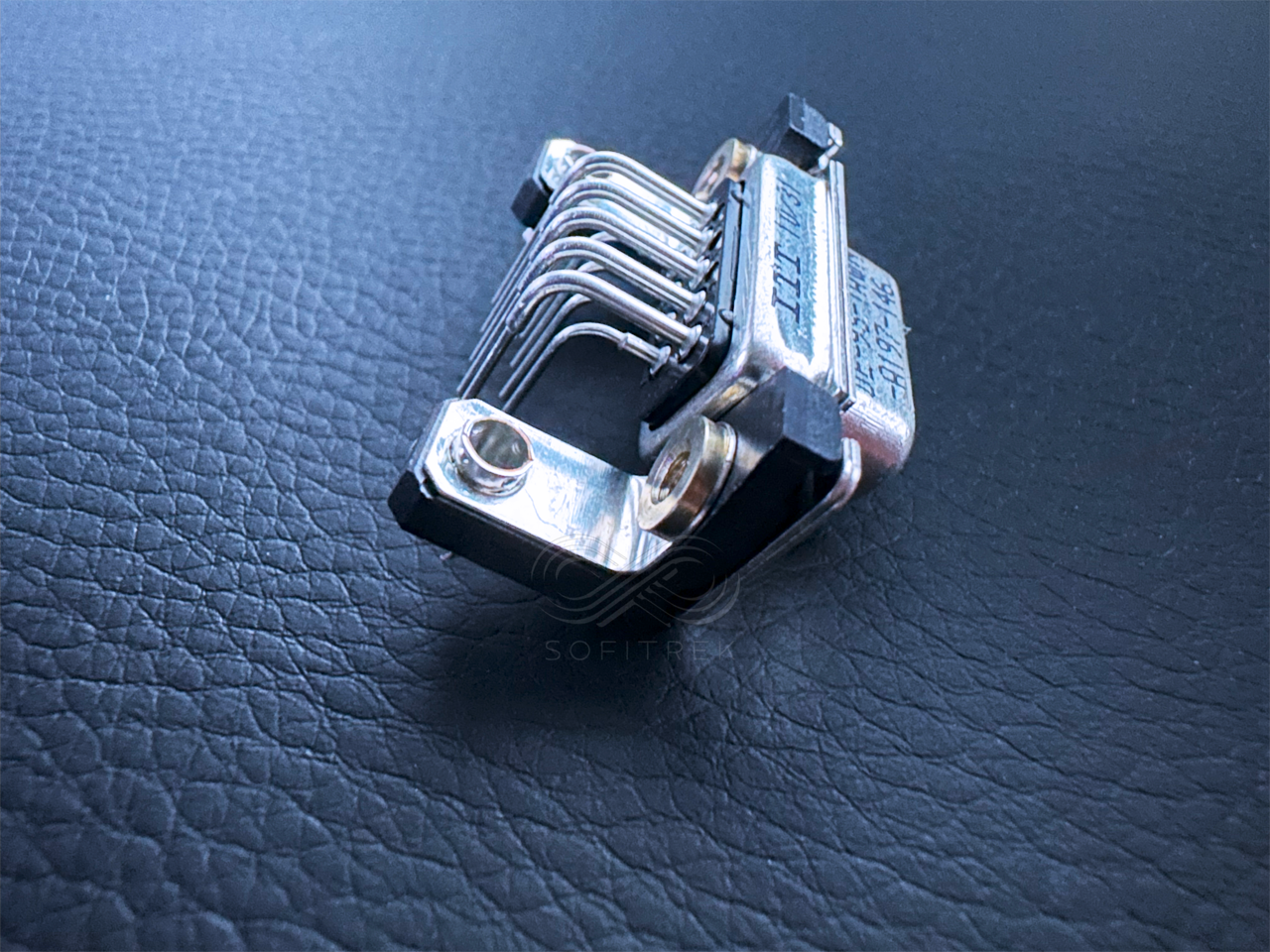

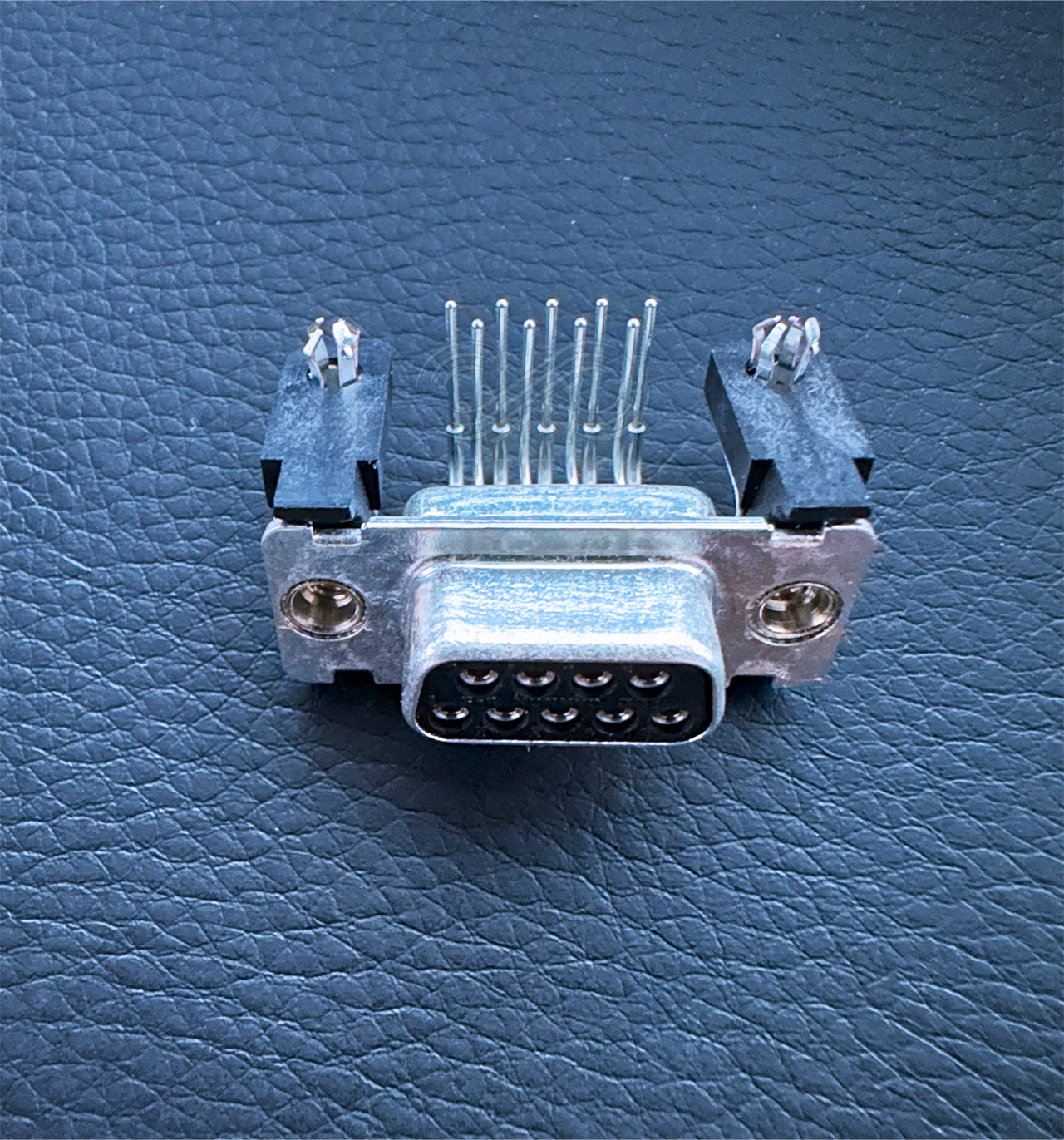

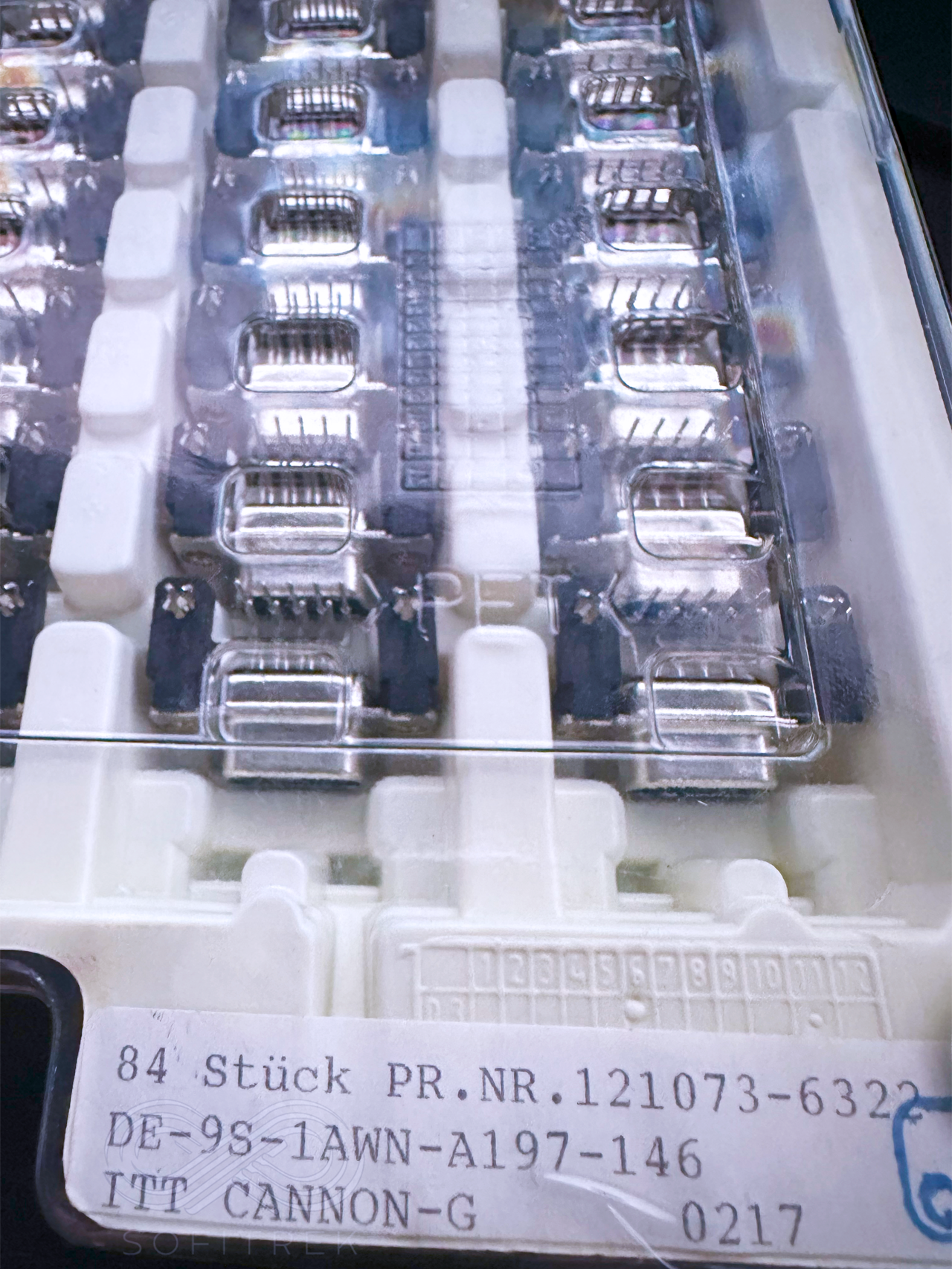

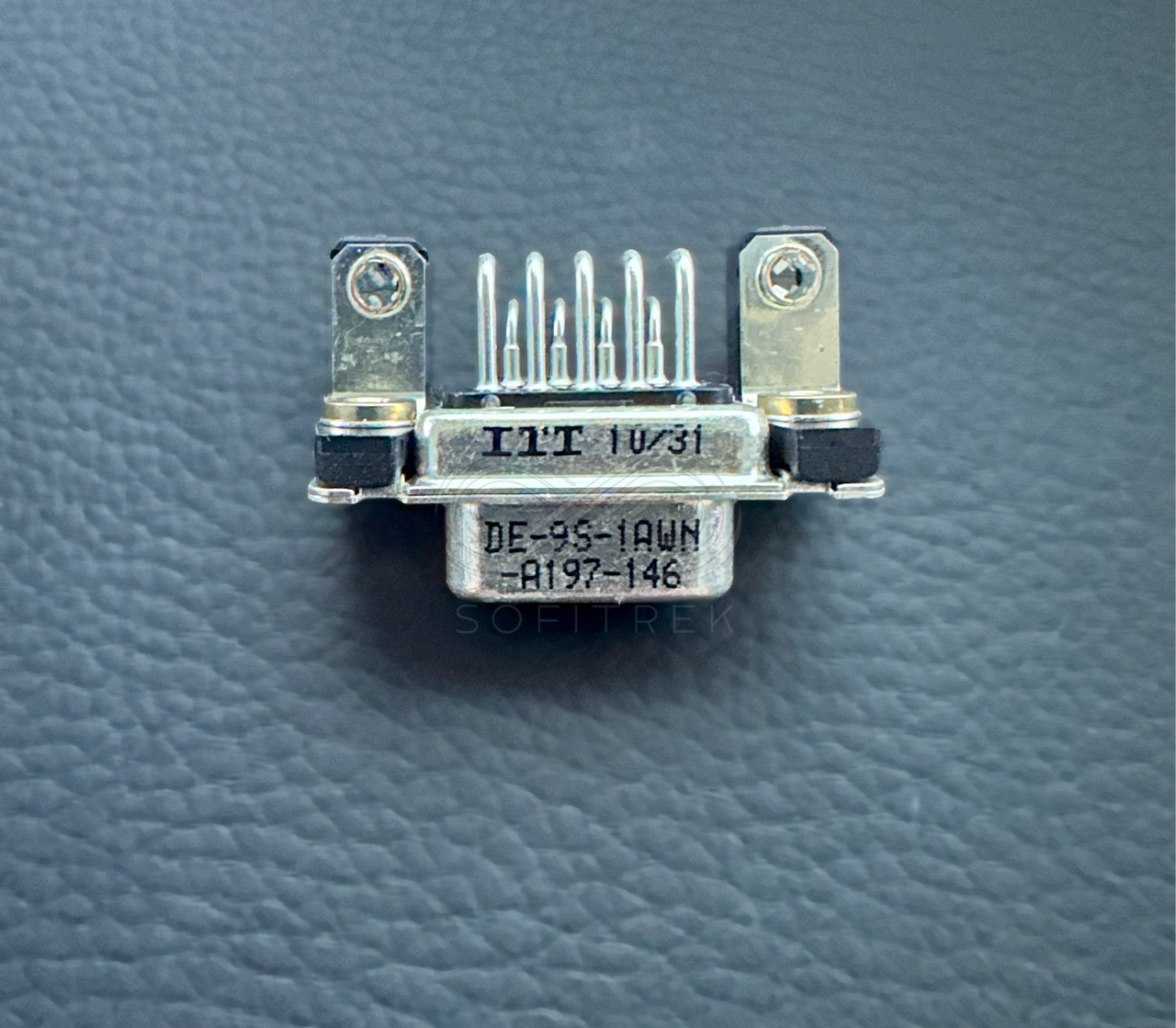

1Pcs DE-9S-1AWN-A197-146 ITT Cannon D-Sub Female Connector 9 Terminal 1 Port 9-Positions

Ready to Ship

Ask a Question

30-Day Return

1 Unit of DE-9S-1AWN-A197-146 ITT Cannon D-Sub Female Connector 9 Terminal 1 Port 9-Positions

Specification
Catalog Part Number DE-9S-1-A-W-N-A191-A197-146
Global Manufacturing Part Number 121551-0907
Manufacturer Cannon
Product Category D Sub
Product Line D Sub
Series ORIGINAL D
General Standard D-Subminiature
Wire Gauge Range AWG AWG 20-28
Mating Cycles 200
Dielectric Withstanding Voltage 1200 VAC at sea level
Current Rating 7.5 A at 85°C / 5 A at 105°C
Contact Resistance 10 milli Ohm max
Operating Temperature -55°/+125°
Salt Spray Test 20 hours
Shell Material steel
Shell Finish tin
Insulator Material Thermoplastic, type PCT UL 94V-0
Insulator Color black
Contact Arrangement 9 contacts size 20
Gender Socket
Contact Type turned
Contact Material copper alloy
Contact Finish gold over nickel (Performance Class 2)
Contact Termination Right angled solder
Termination Direction contact termination at short side of trapezoid (Standard)
Mounting Methode Plastic bracket with grounding brackets with 4-40 Captive Nut
PCB Pushfit for PCB hold diameter 3.0
