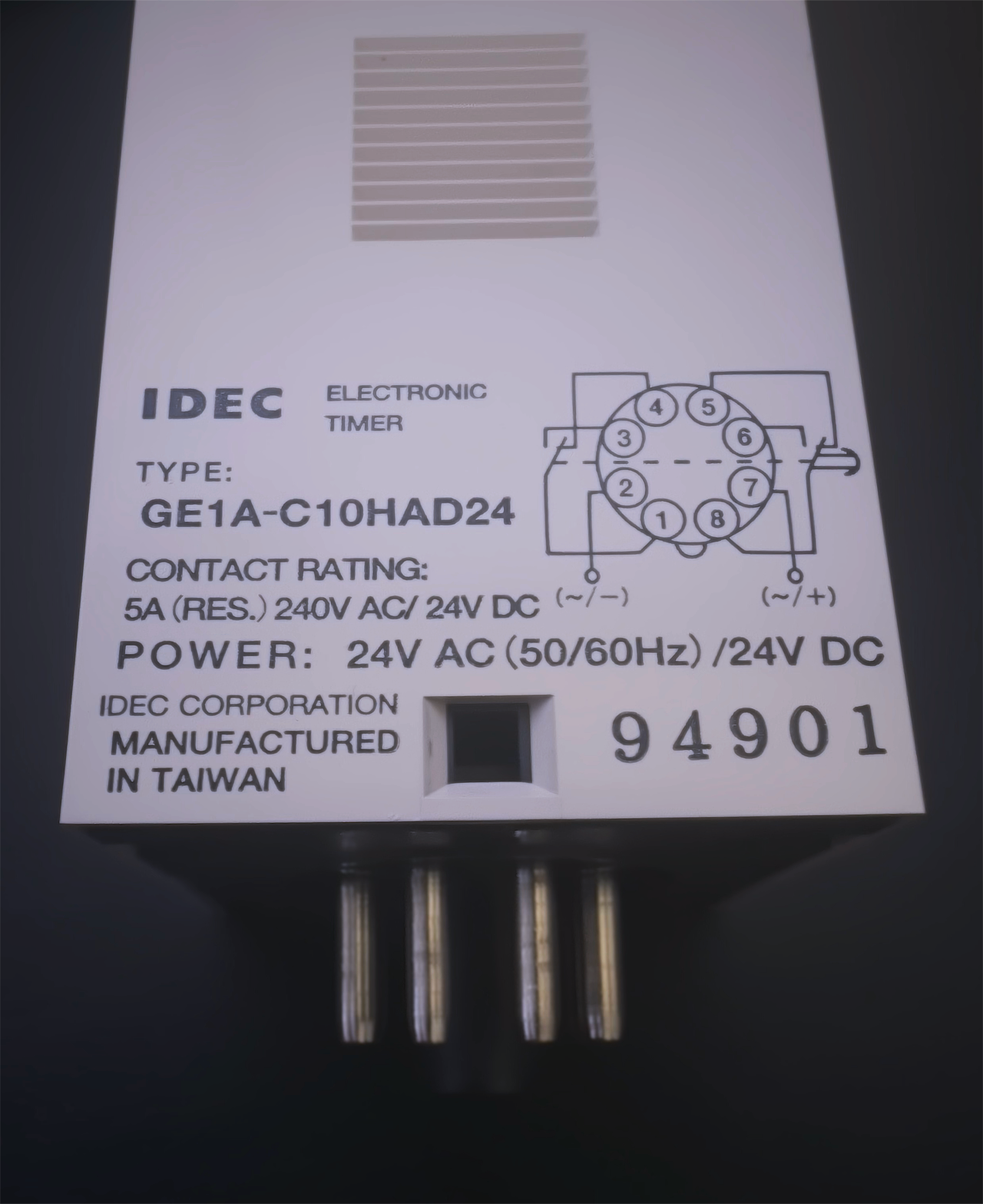

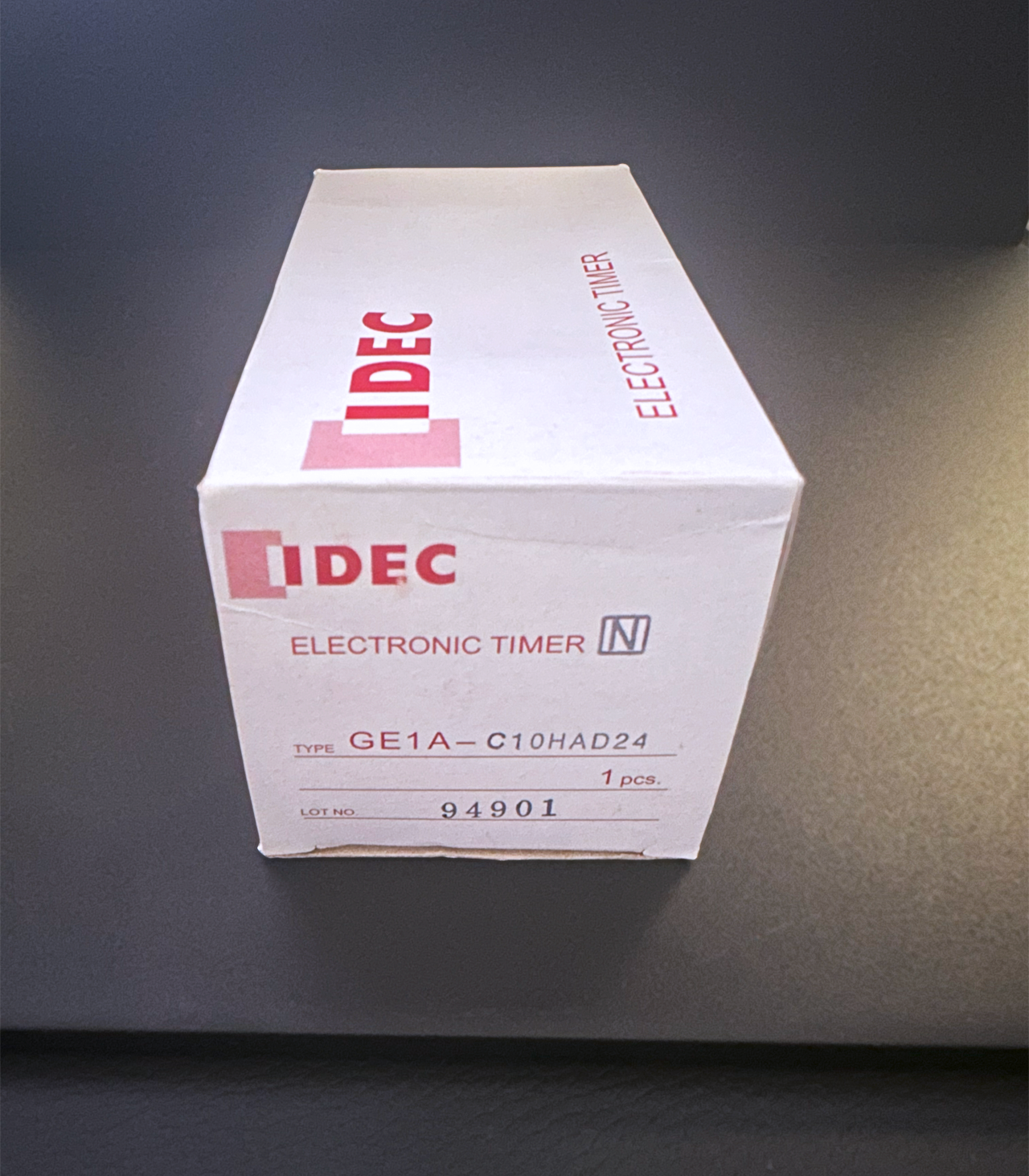

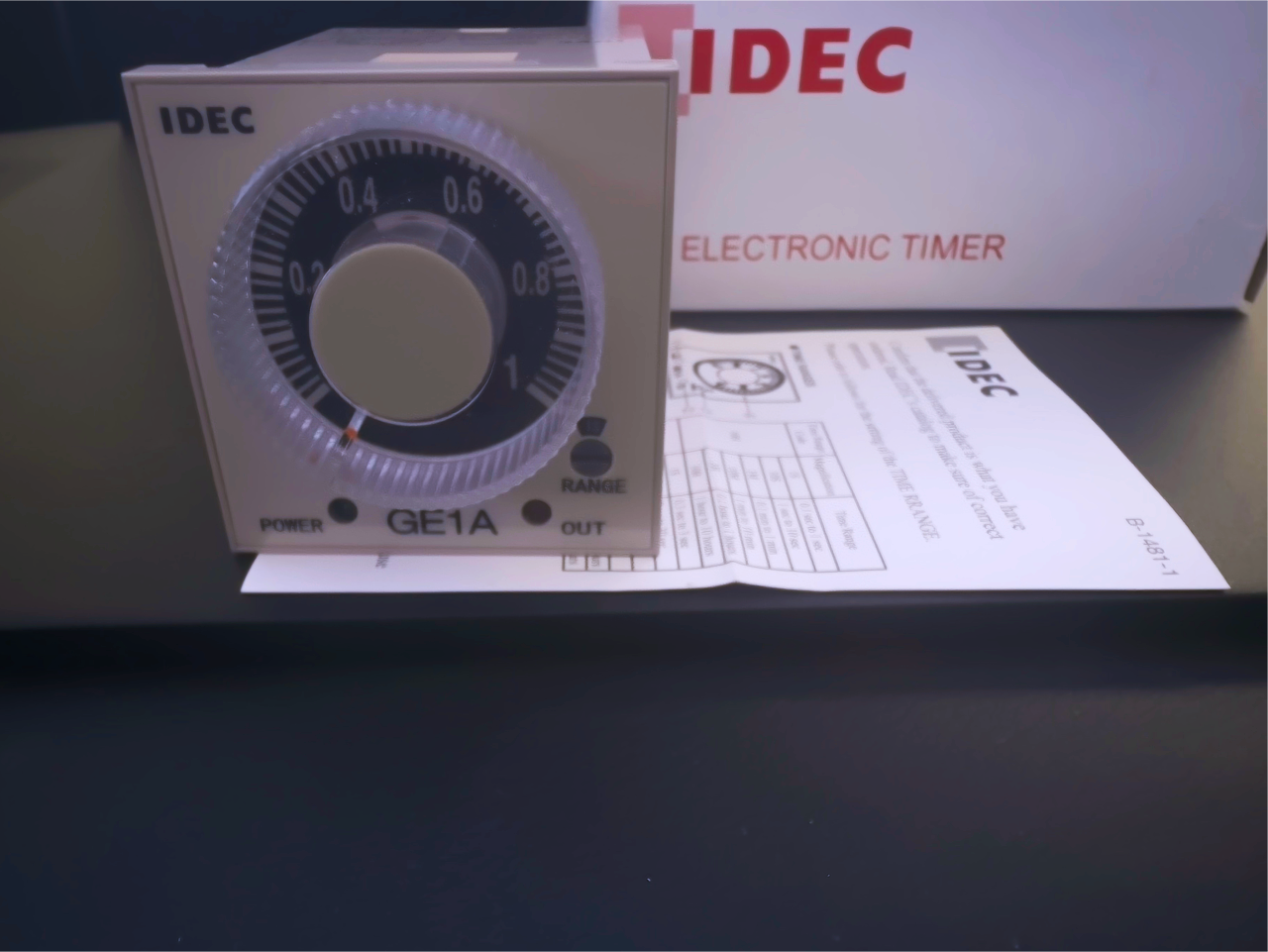

1X GE1A-C10HAD24 IDEC Plug-in On Delay 24V AC/DC Timer 0.1s-10h DPDT 8-Pin

Ready to Ship

Ask a Question

30-Day Return

GE1A-C10HAD24 IDEC Plug-in On Delay 24V AC/DC Timer 0.1s-10h DPDT 8-Pin

Sofitrek Product Disclaimer
Nature of Goods:
All products offered by Sofitrek are surplus items. These products may originate from older batches, series, or have earlier date codes compared to those currently provided by the original manufacturers or their authorized dealers.
Non-Affiliation:
Sofitrek operates independently and is not an authorized distributor, nor is it affiliated or associated with the manufacturers of the products sold. Consequently, Sofitrek does not represent the manufacturers of these products in any capacity.
Exclusion of Manufacturer's Warranty:
Since Sofitrek is not an authorized distributor, the original manufacturer's warranties are explicitly not applicable to the products sold. This includes any implied warranties of merchantability or fitness for a particular purpose.
Firmware and Software:
Some products may include pre-installed firmware or software. However, Sofitrek does not guarantee the presence, compatibility, or the revision level of such firmware or software as suitable for your specific application. Furthermore, Sofitrek expressly disclaims any representation regarding your right or ability to download, obtain, or install any firmware or software for the products from any source, including the original manufacturers or their distributors.
Limitation of Liability:
Sofitrek shall not be held liable for any form of damages—direct, indirect, incidental, consequential, or otherwise—arising from the use, misuse, or inability to use any product sold. This includes, but is not limited to, damages for loss of profits, goodwill, use, data, or other intangible losses. The buyer assumes all responsibility for the safe and lawful use of the product and agrees to indemnify and hold harmless Sofitrek against any claims, liabilities, or expenses related to the product's use.
Compliance and Responsibility:
The buyer is solely responsible for adhering to all terms of any End-User License Agreement or similar documentation related to the products, particularly concerning the obtaining, installation, and use of firmware or software.

By purchasing from Sofitrek, the buyer acknowledges having read, understood, and agreed to this disclaimer in its entirety.
Specification
Mode of Operation ON-Delay
Contact Delayed DPDT
Output 24V DC/120V AC, 5A 240V AC, 5A
Rated Voltage 24V AC/DC
Time Range 0.1s - 10h
Complete Part Number GE1A-C10HAD24
Rated Operating Voltage 24V AC/DC
Voltage Tolerance AC: 85 to 110%, DC: 90 to 110%
Contact Rating 240V AC/5A, 24V DC/5A
Contact Form DPDT
Repeat Error ±0.2% ±10ms max
Voltage Error ±0.5% ±10ms max
Temperature Error ±3% max
Setting Error ±10% max
Reset Time 0.1s max
Insulation Resistance 100 MΩ min (500V DC megger)
Dielectric Strength (Power and Output Terminals) 2000V AC, 1 min
Dielectric Strength (Contact Circuits) 750V AC, 1 min
Vibration Resistance (Damage Limits) 0.75mm, 10 to 55 Hz
Vibration Resistance (Operating Extremes) 0.5mm, 10 to 55 Hz
Shock Resistance 500 m/s² (Approx. 50G)
Power Consumption (24V AC) 2.0 VA
Power Consumption (24V DC) 0.8W
Power Consumption (110V AC) 3.5 VA
Power Consumption (220V AC) 8.0 VA
Electrical Life 100,000 operations min (full rated load)
Mechanical Life 5,000,000 operations min
Operating Temperature -10 to +55°C (without freezing)
Operating Humidity 35 to 85% RH (without freezing)
